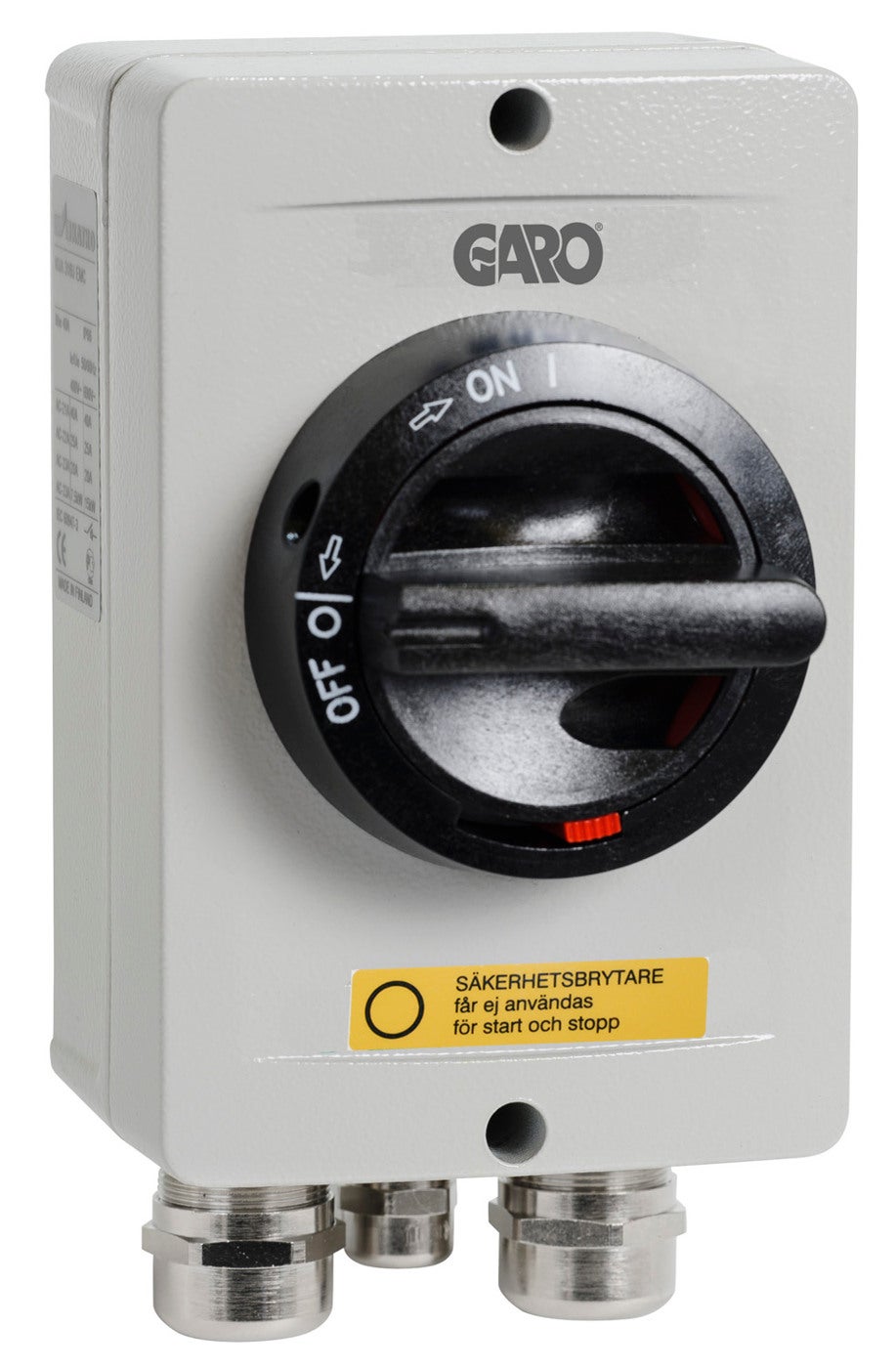

Safety switches aluminium 3-pole 16A
Safety switches aluminium 3-pole 16A Safety switch 3-pole 16A made of aluminium. IP66
| Type designation | GKUA316U1V |
|---|---|
| Standard | EN60947-3 |
| Housing material | Aluminium |
| Color | Grey |
| Number of poles | 3 |
| Mounting method | Floor fastening |
| RAL-number | RAL7035 |
| Power[kW] | 7,5kW |
| Cable gland | 2xM25+M16 |
| Isolation voltage [V] | 690V AC |
| Rated current AC23 400V [A] | 16A |
| Degree of protection [IP] | IP66 |
| Connection N [mm²] | 16mm² |
| Connection PE [mm²] | 16mm² |
| Connection area | 16 |
| Auxiliary contact | Yes |
| NetProductWeight | 1.11 |
| EngineerWidth | 104 |
| EngineerHeight | 158 |
| EngineerDepth | 116 |
| Name | SAFETY SWITCH 3P 16A AL |
|---|---|
| E-number | E3134199 |
| Article number | 107623 |
