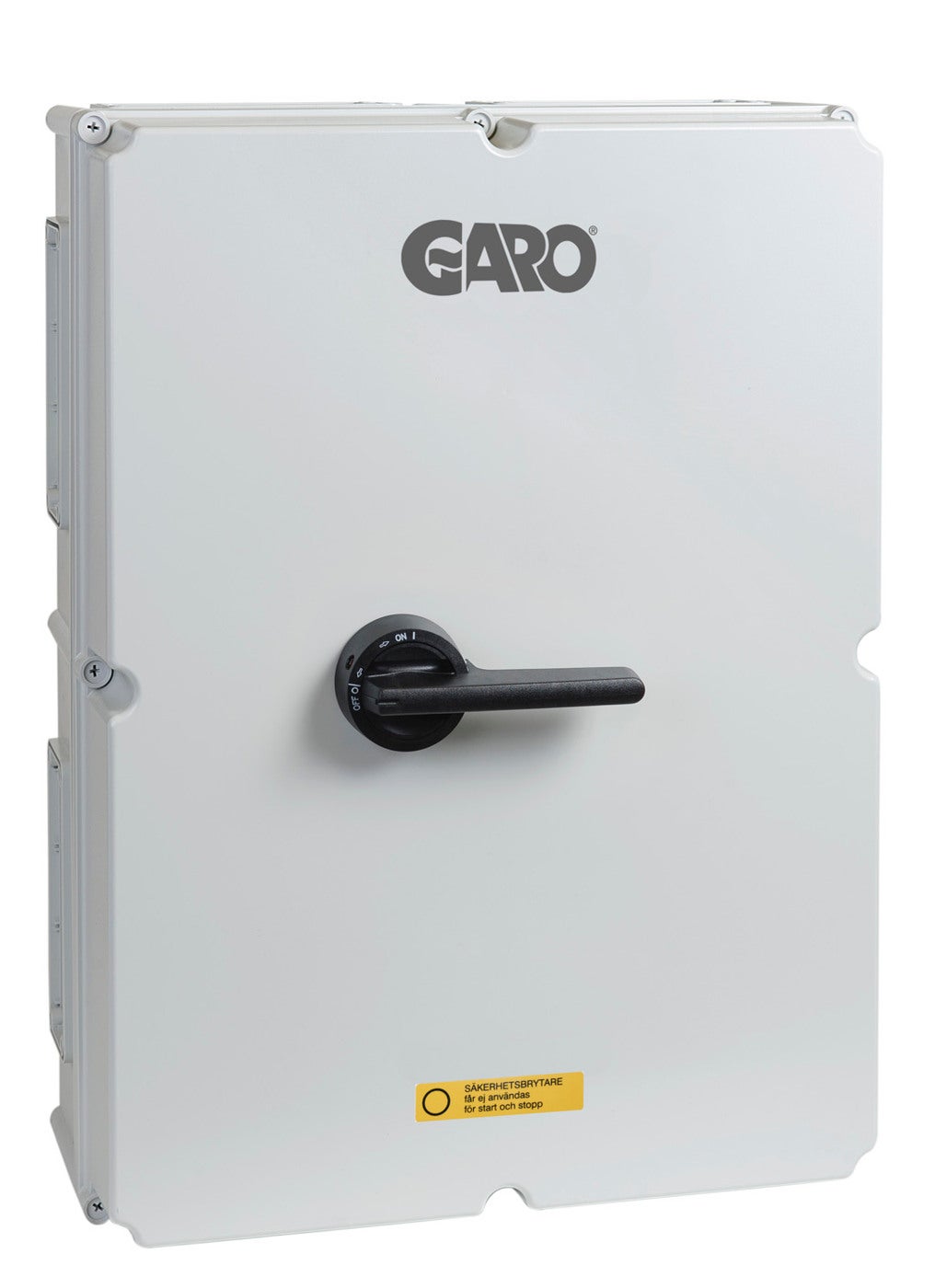

Safety switches polycarbonate 3-pole 250A
Safety switches polycarbonate 3-pole 250A Safety switch 3-pole 250A polycarbonate.
| Type designation | GKUM3250AVT1V |
|---|---|
| Standard | EN60947-3 |
| Housing material | Polycarbonate |
| Color | Grey |
| Number of poles | 3 |
| Mounting method | Wall mounting |
| RAL-number | RAL7035 |
| Connection PE [pcs] | 12+11 |
| Power[kW] | 132kW |
| Cable gland | 1XEPA2260+M20 |
| Isolation voltage [V] | 1000V AC |
| Connection Cu/Al | 240mm² |
| Rated current AC23 400V [A] | 250A |
| Degree of protection [IP] | IP65 |
| Auxiliary contact | Yes |
| NetProductWeight | 12.5 |
| EngineerWidth | 405 |
| EngineerHeight | 610 |
| EngineerDepth | 300 |
| Name | SWITCH SAFETY 3P 250A PC |
|---|---|
| E-number | E3134182 |
| Article number | 107606 |
