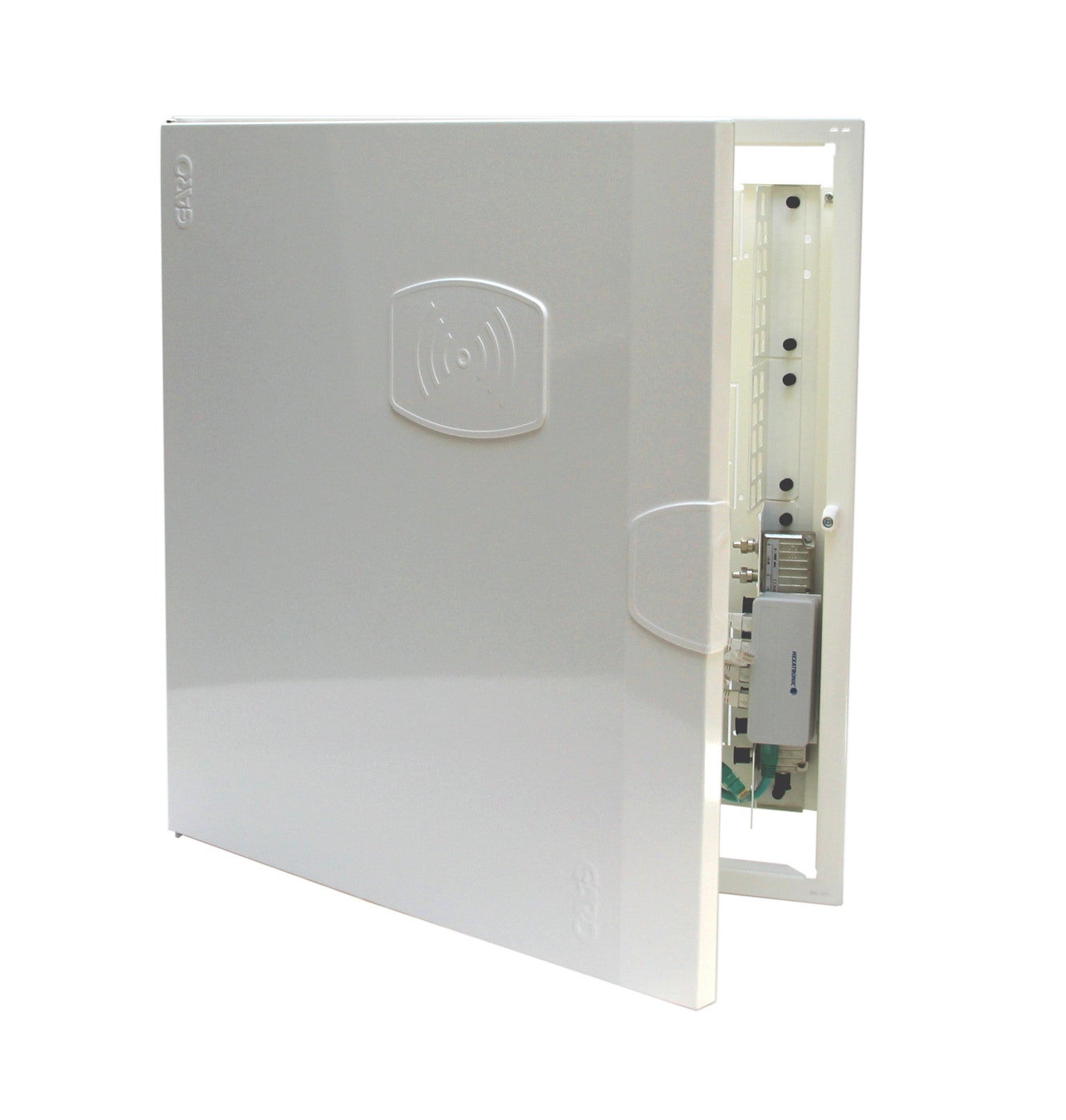

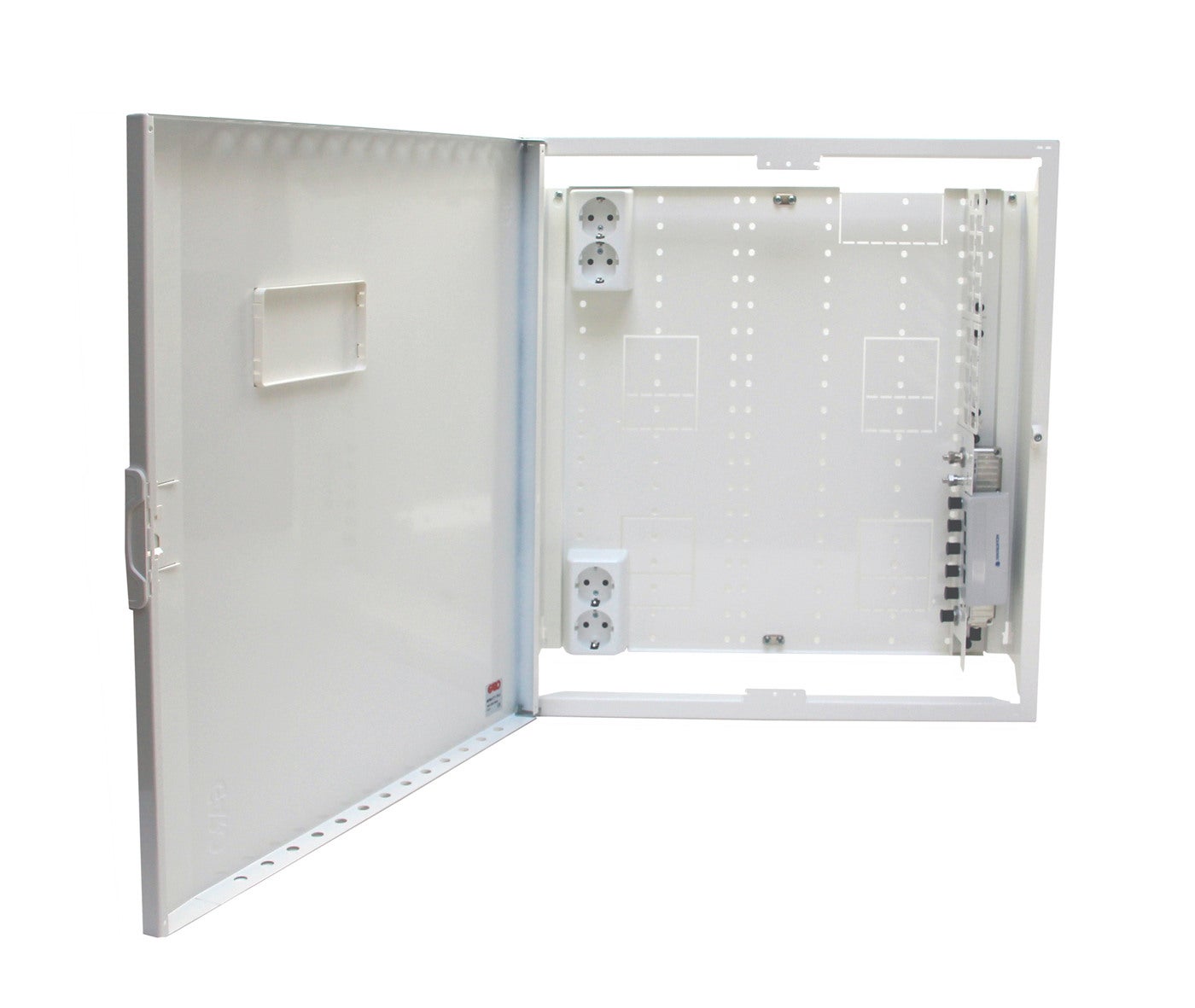

MPM-ITT 25modules IP30 without bottombox
GARO’s metal cabinet without bottom tray for media. The mounting plate is equipped with the latest in order to meet today's communications needs. The plate is equipped with holes and all parts can be moved if necessary. The components that are pre-assembled for ITT is equipped with mounting plate and front chassis.Media cabinets can ideally be mounted in combination with GARO’s DIN cabinets. There are horizontal or vertical mounting chassis connections for this purpose. Of course, the cabinet can be mounte MET CAB REC 3R 75M M ITT WO BB
E-number
E2290038
E2290038
Article number
356043
356043
| Type designation | MPM ITT 75-3 |
|---|---|
| Standard | EN61439-3 |
| Frequency [Hz] | 50Hz |
| Housing material | Sheet steel |
| Color | White |
| Rated current [A] | 50A |
| Rated voltage [V AC] | 400V AC |
| Mounting method | Flush mounted |
| Lock | No |
| RAL-number | RAL9010 |
| DIN-rail | No |
| Further feeding [A] | Further feeding 63A |
| Mountingplate | Yes |
| Recessed depth [mm] | 82mm |
| Recessed height [mm] | 518mm |
| Recessed width [mm] | 492mm |
| Type of door | Single |
| Degree of protection [IP] | IP30 |
| Transparent cover/door | No |
| Bottombox | No |
| NetProductWeight | 7 |
| EngineerWidth | 515 |
| EngineerHeight | 847 |
| EngineerDepth | 115 |
| Name | MET CAB REC 3R 75M M ITT WO BB |
|---|---|
| E-number | E2290038 |
| Article number | 356043 |
