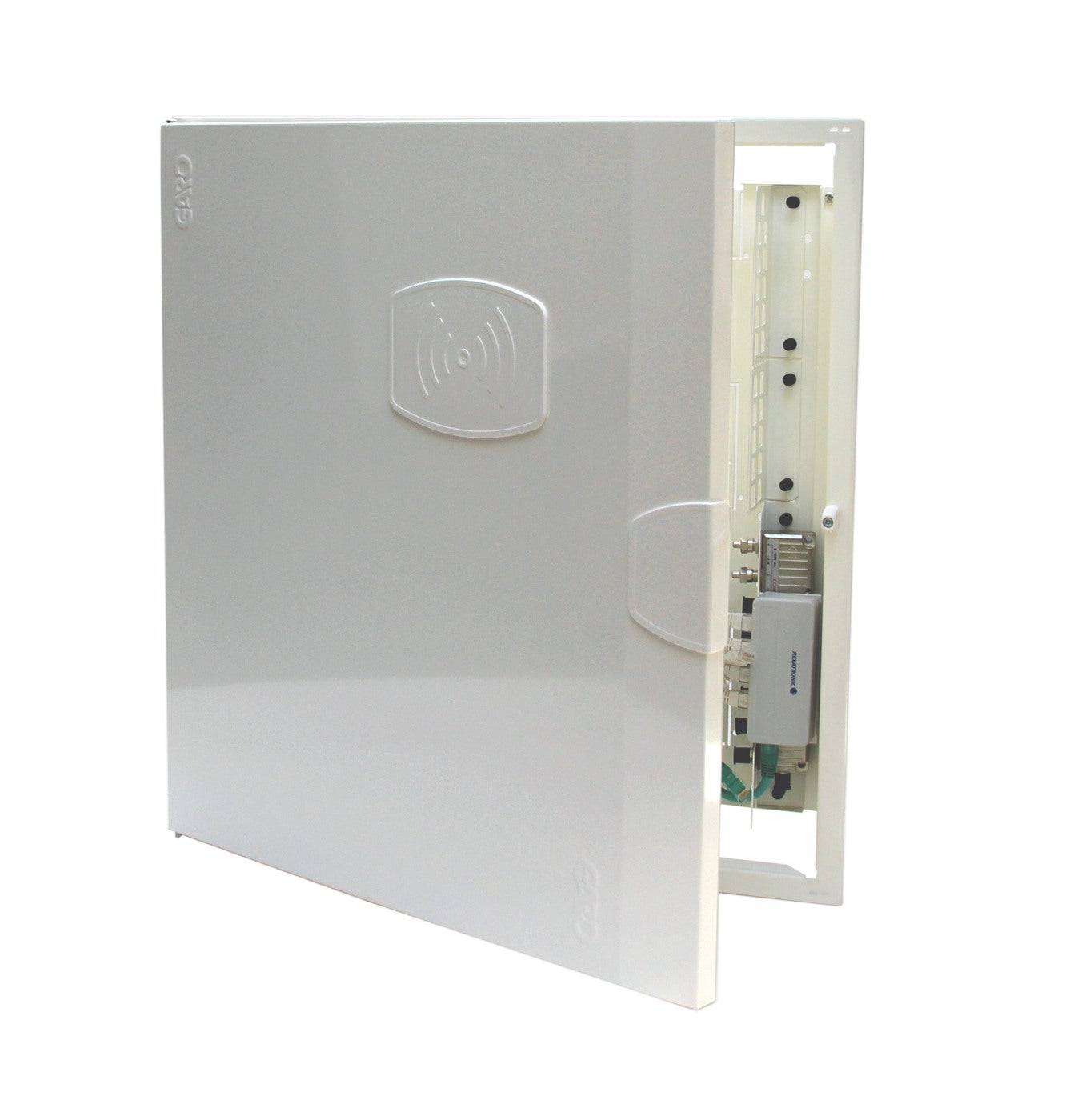

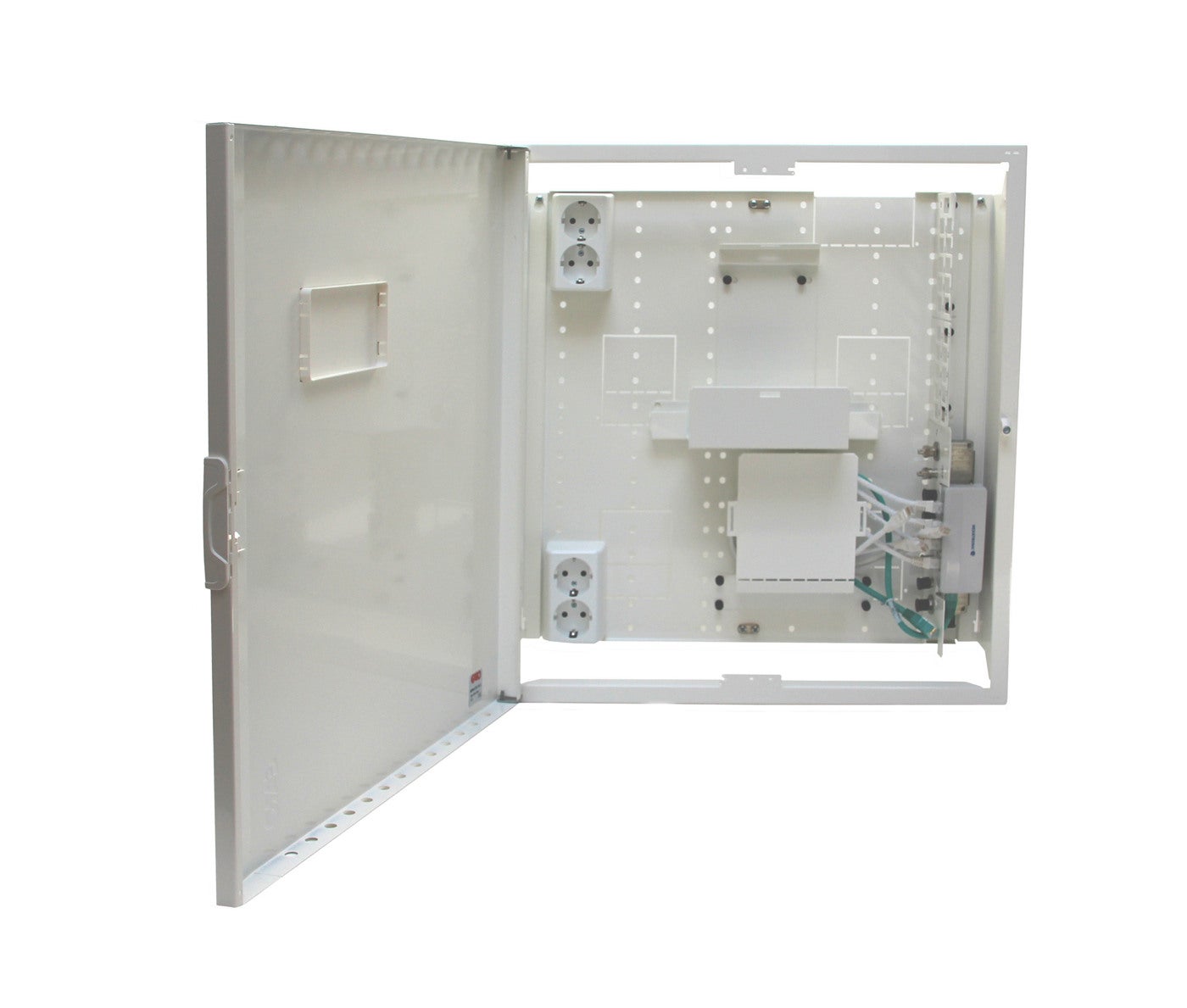

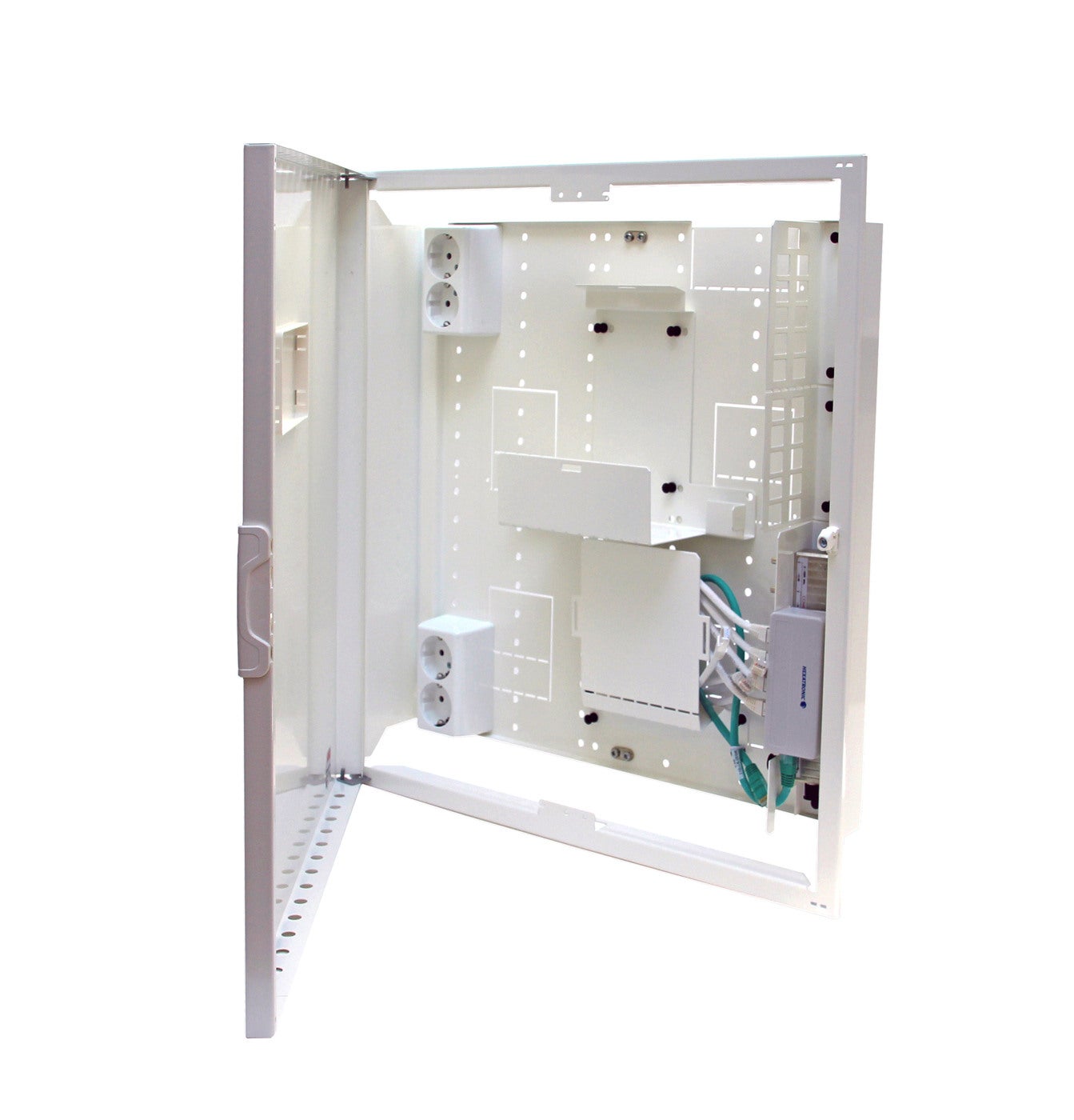

MPM-ITB 25mod IP30 without bottombox

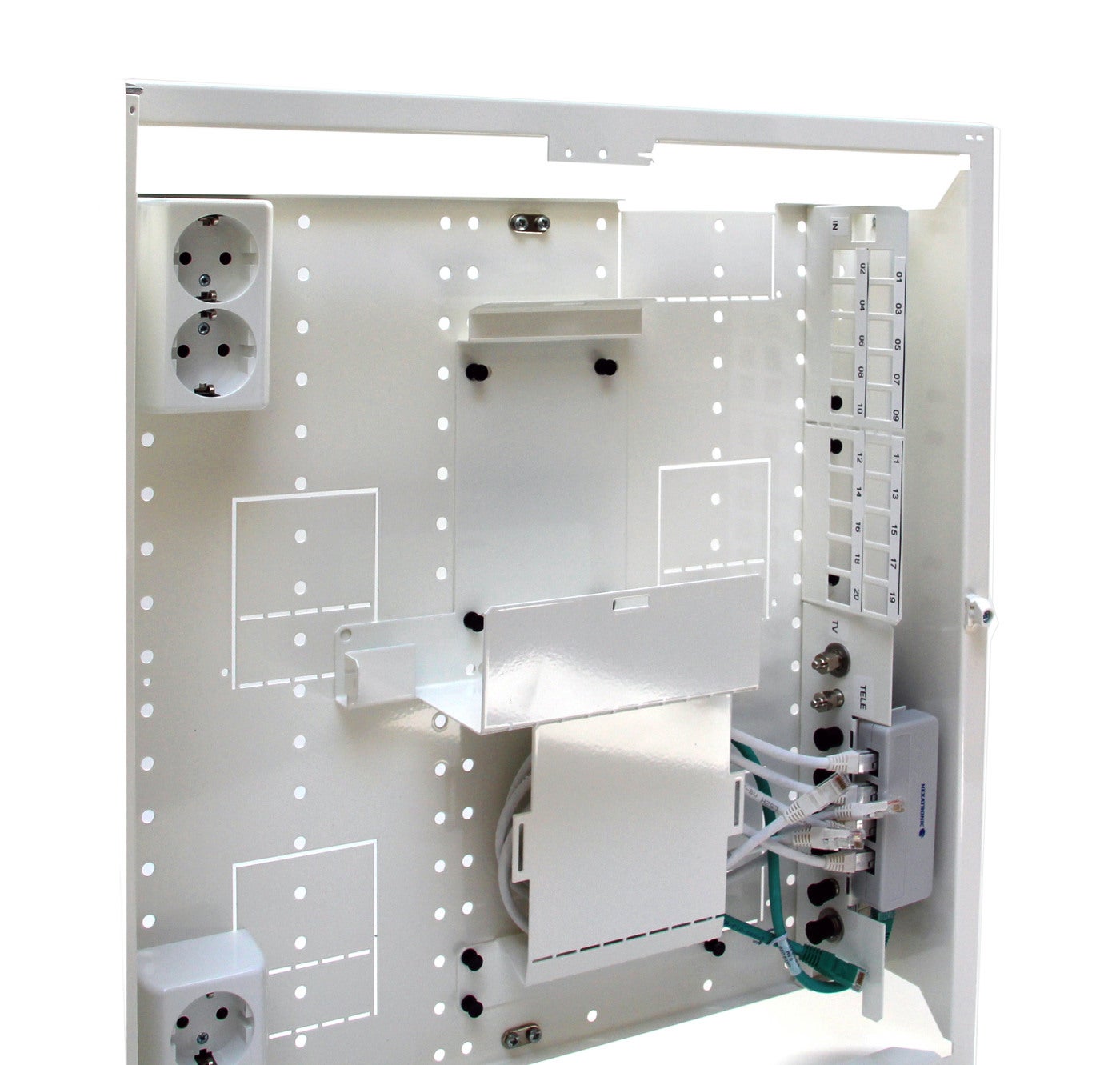

GARO’s metal cabinet without bottom tray for media. The mounting plate is equipped with the latest in order to meet today's communications needs. The plate is equipped with holes and all parts can be moved if necessary. The components that are pre-assembled for ITB include mounting plate,front chassis , panels for 21 x RJ45 Keystone (14x 20 mm per/hole), telecommunications splitter with 4 outputs where patch cables are included and 8 Coax for TV. Media cabinets can ideally be mounted in combination with GAR MET CAB REC 3R 75M M ITB WO BB
E-number
E2290037
E2290037
Article number
356040
356040
| Type designation | MPM ITB 75-3 |
|---|---|
| Standard | EN61439-3 |
| Frequency [Hz] | 50Hz |
| Housing material | Sheet steel |
| Color | White |
| Rated current [A] | 50A |
| Rated voltage [V AC] | 400V AC |
| Mounting method | Flush mounted |
| Lock | No |
| RAL-number | RAL9010 |
| DIN-rail | No |
| Further feeding [A] | Further feeding 63A |
| Recessed depth [mm] | 82mm |
| Recessed height [mm] | 518mm |
| Recessed width [mm] | 492mm |
| Type of door | Single |
| Number of Schuko[pcs] | 4pcs |
| RJ45 [pcs] | 20pcs Keystone (14x20mm/hole) |
| Degree of protection [IP] | IP30 |
| Transparent cover/door | No |
| Bottombox | No |
| NetProductWeight | 7.3 |
| EngineerWidth | 515 |
| EngineerHeight | 547 |
| EngineerDepth | 115 |
| Name | MET CAB REC 3R 75M M ITB WO BB |
|---|---|
| E-number | E2290037 |
| Article number | 356040 |
