NIM-ITF W 20mod IP30 wo Bottombox

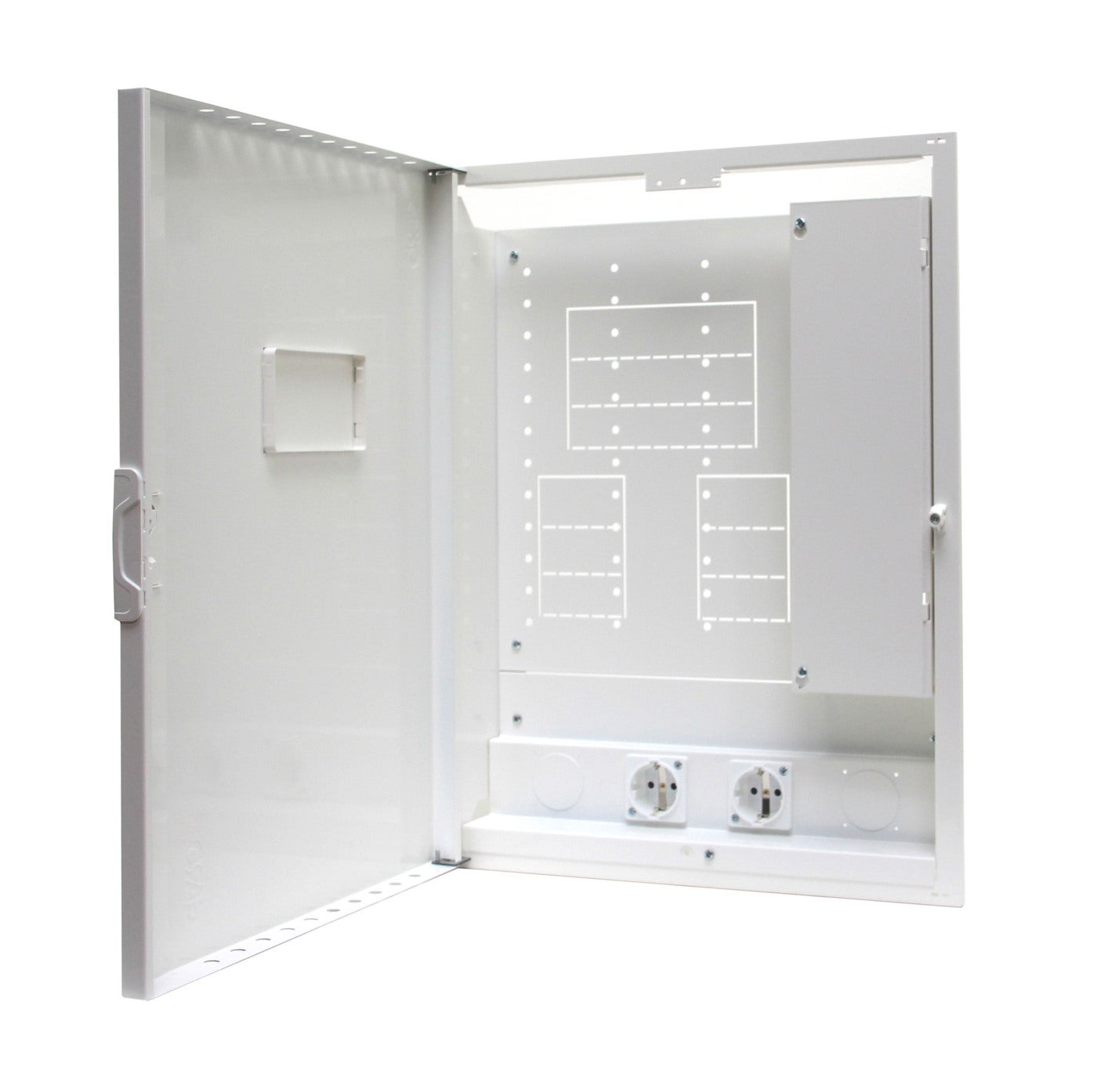

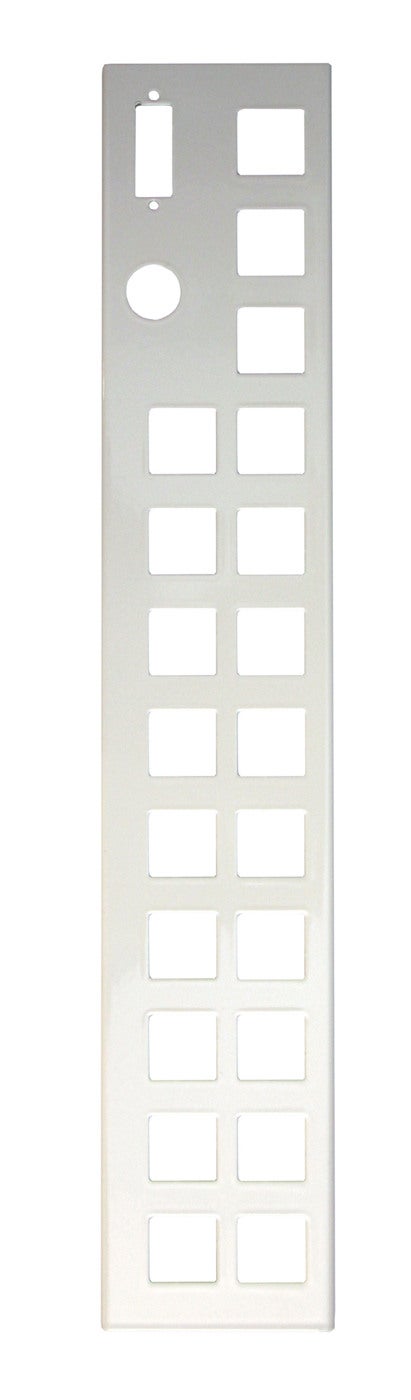

GARO’s metal cabinet without bottom tray for media with compartments and areas for installation of different media products. Assembly panel has space for 24 x RJ45 (14x20mm per/hole) and knock-outs, integrated shelf. The cabinet is ideal for all media boxes available on the market. The cabinet is equipped with 4 power sockets and can accommodate 2 additional sockets. Interchangeable mounting panels are available for the cabinet. Media cabinets can ideally be mounted in combination with GARO’s DIN cabinets. MET CAB REC 3R 60M M ITF WO BB
E-number
E2290034
E2290034
Article number
356037
356037
| Type designation | NIM ITF 60-3 |
|---|---|
| Standard | EN61439-3 |
| Frequency [Hz] | 50Hz |
| Housing material | Sheet steel |
| Color | White |
| Rated current [A] | 50A |
| Rated voltage [V AC] | 400V AC |
| Mounting method | Flush mounted |
| Lock | No |
| RAL-number | RAL9010 |
| DIN-rail | No |
| Further feeding [A] | Further feeding 63A |
| Mountingplate | Yes |
| Recessed depth [mm] | 82mm |
| Recessed height [mm] | 518mm |
| Recessed width [mm] | 395mm |
| Type of door | Single |
| Number of Schuko[pcs] | 2pcs |
| RJ45 [pcs] | 21pcs Keystone (14x20mm/hole) |
| Degree of protection [IP] | IP30 |
| Transparent cover/door | No |
| Bottombox | No |
| NetProductWeight | 5.2 |
| EngineerWidth | 418 |
| EngineerHeight | 547 |
| EngineerDepth | 115 |
| Name | MET CAB REC 3R 60M M ITF WO BB |
|---|---|
| E-number | E2290034 |
| Article number | 356037 |
