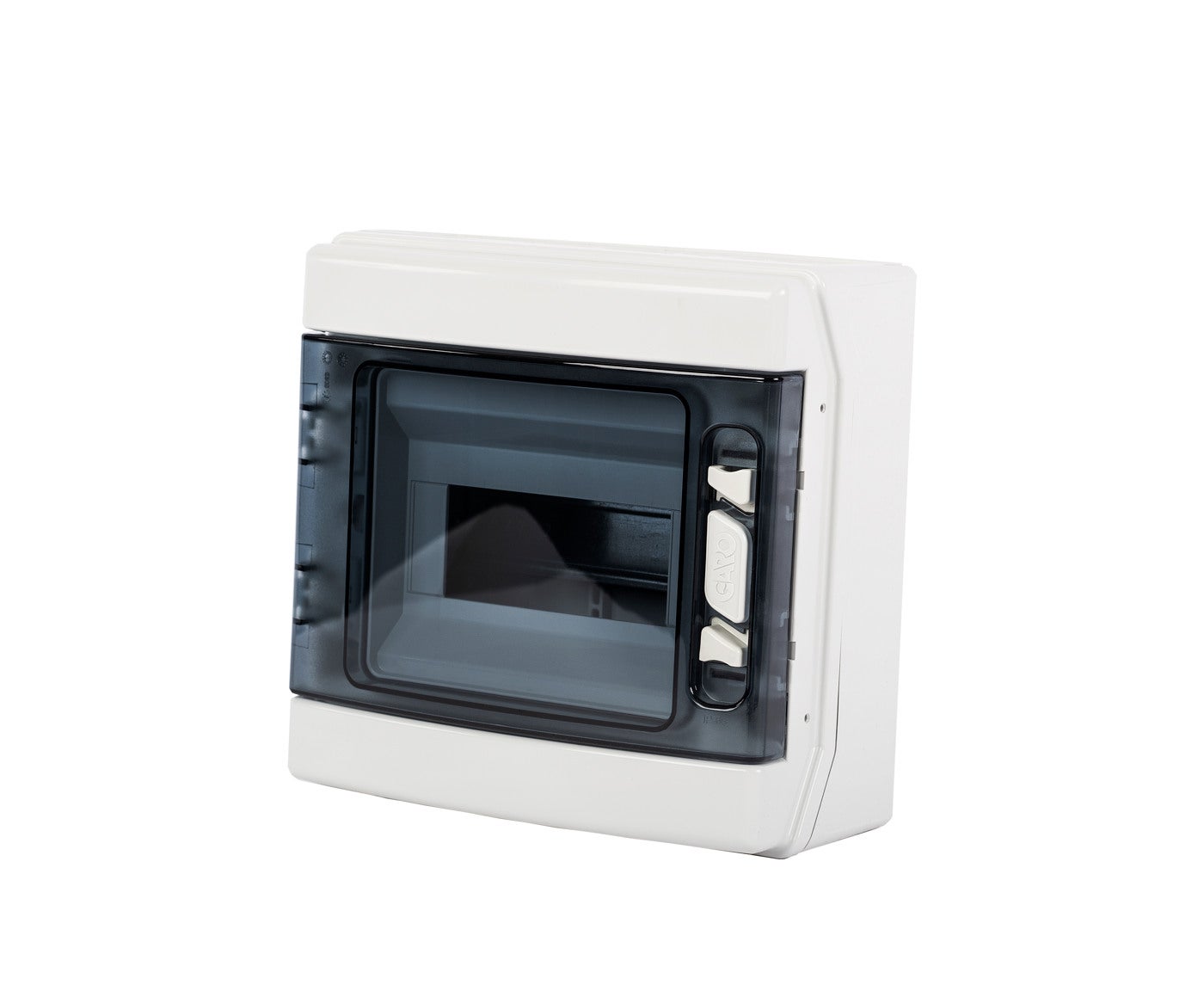

Consumer unit plastic 8mod W238

GARO’s plastic consumer unit for surface mounting with rounded design with transparent, smoke-coloured door. The 2 - and 3-row enclosures have 150 mm spacing between the DIN rails with space for wiring under the rails. Module widths are adapted to components that are 17.5 mm wide. Enclosures are sealable and manufactured of halogen-free ABS plastic.GARO’s plastic distribution cabinet for surface mounting with rounded design with transparent, smoke-coloured door. The 2 - and 3-row enclosures have 150 mm spac Plastic consumerunit surface mounting IP65 1 row max 8-modules ABS plastic.
E-number
E2271141
Article number
110299
Type designation NUPT 1-8
Standard EN61439-3, EN62208
Frequency [Hz] 50Hz
Housing material Plastic
Color White
Rated voltage [V AC] 400V AC
Number of modules 8
Mounting method Surface mounted
Modelltype NUPT
Lock No
RAL-number RAL9010
DIN-rail Yes
Earthing terminal block Yes
Further feeding [A] Further feeding 63A
Mountingplate No
Neutral terminal block Yes
Number of rows 1
Type of door Single
Knockouts Ø25 Down [pcs] 4xM25
Knockouts Ø25 Up [pcs] 4xM25
Knockouts Ø40 Up [pcs] 1xM40
Knockouts Ø40 Down [pcs] 1xM40
Degree of protection [IP] IP65
Connection N [mm²] 1x16-35mm²+3x4-10mm²+5x2,5-6mm²
Connection PE [mm²] 1x16-35mm²+3x4-10mm²+5x2,5-6mm²
NetProductWeight 1.04
EngineerWidth 238
EngineerHeight 231
EngineerDepth 118
Name PLAST C SURF 1R 8M IP65 ABS
E-number E2271141
Article number 110299
