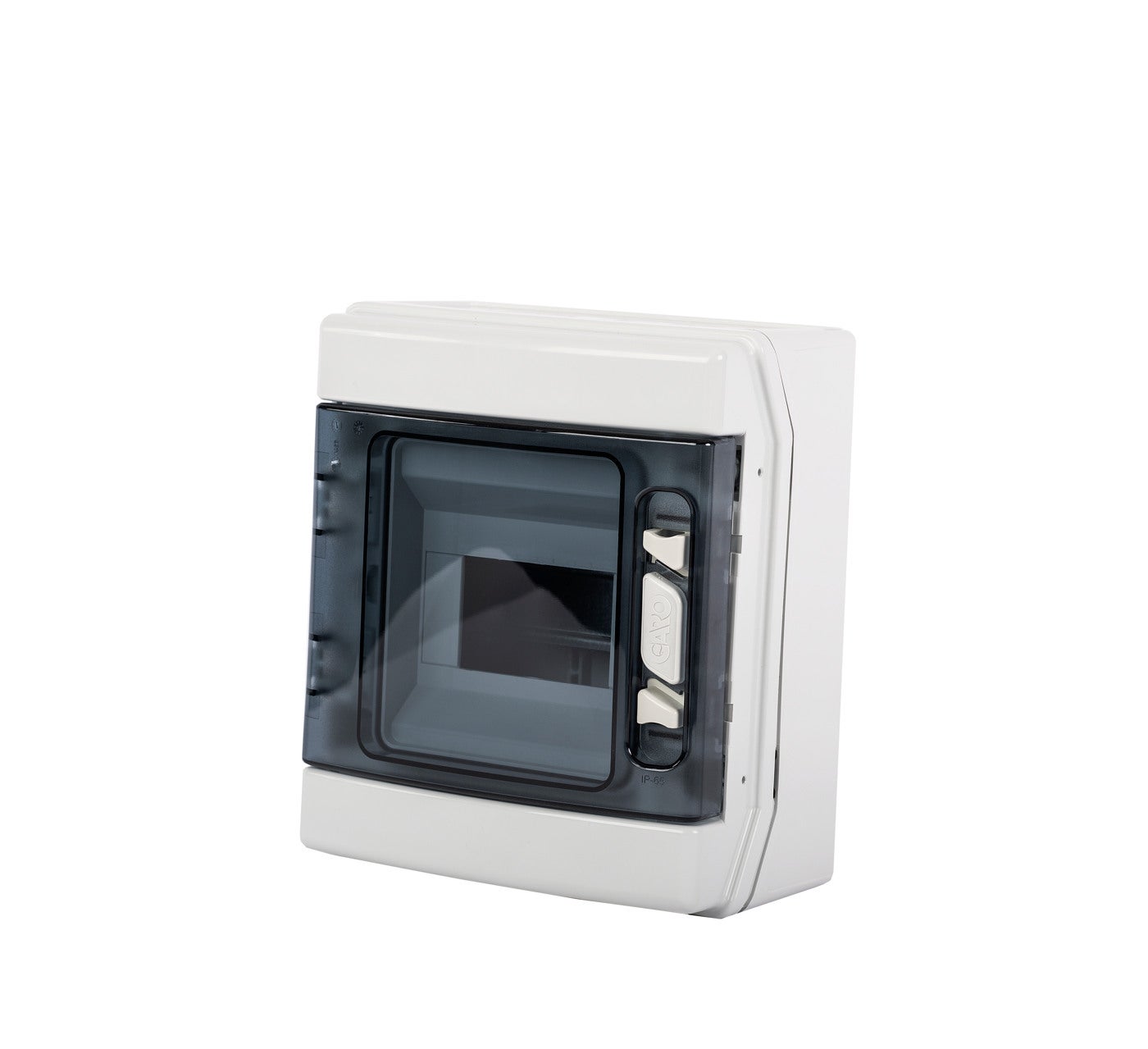

Consumer unit plastic 6mod W202
GARO’s plastic consumer unit for surface mounting with rounded design with transparent, smoke-coloured door. The 2 - and 3-row enclosures have 150 mm spacing between the DIN rails with space for wiring under the rails. Module widths are adapted to components that are 17.5 mm wide. Enclosures are sealable and manufactured of halogen-free ABS plastic.GARO’s plastic distribution cabinet for surface mounting with rounded design with transparent, smoke-coloured door. The 2 - and 3-row enclosures have 150 mm spac Plastic consumerunit surface mounting IP65 1 row max 6-modules ABS plastic.
| Type designation | NUPT 1-6 |
|---|---|
| Standard | EN61439-3, EN62208 |
| Frequency [Hz] | 50Hz |
| Housing material | Plastic |
| Color | White |
| Rated voltage [V AC] | 400V AC |
| Number of modules | 6 |
| Mounting method | Surface mounted |
| Modelltype | NUPT |
| Lock | No |
| RAL-number | RAL7035 |
| DIN-rail | Yes |
| Further feeding [A] | Further feeding 63A |
| Mountingplate | No |
| Number of rows | 1 |
| Type of door | Single |
| Knockouts Ø25 Down [pcs] | 2xM25 |
| Knockouts Ø25 Up [pcs] | 2xM25 |
| Knockouts Ø40 Up [pcs] | 1xM40 |
| Knockouts Ø40 Down [pcs] | 1xM40 |
| Degree of protection [IP] | IP65 |
| Connection N [mm²] | 1x16-35+1x4-10+3x2,5-6mm² |
| Connection PE [mm²] | 1x16-35+1x4-10+3x2,5-6mm² |
| NetProductWeight | 0.99 |
| EngineerWidth | 202 |
| EngineerHeight | 231 |
| EngineerDepth | 113 |
| Name | PLAST C SURF 1R 6M IP65 ABS |
|---|---|
| E-number | E2271140 |
| Article number | 110298 |
