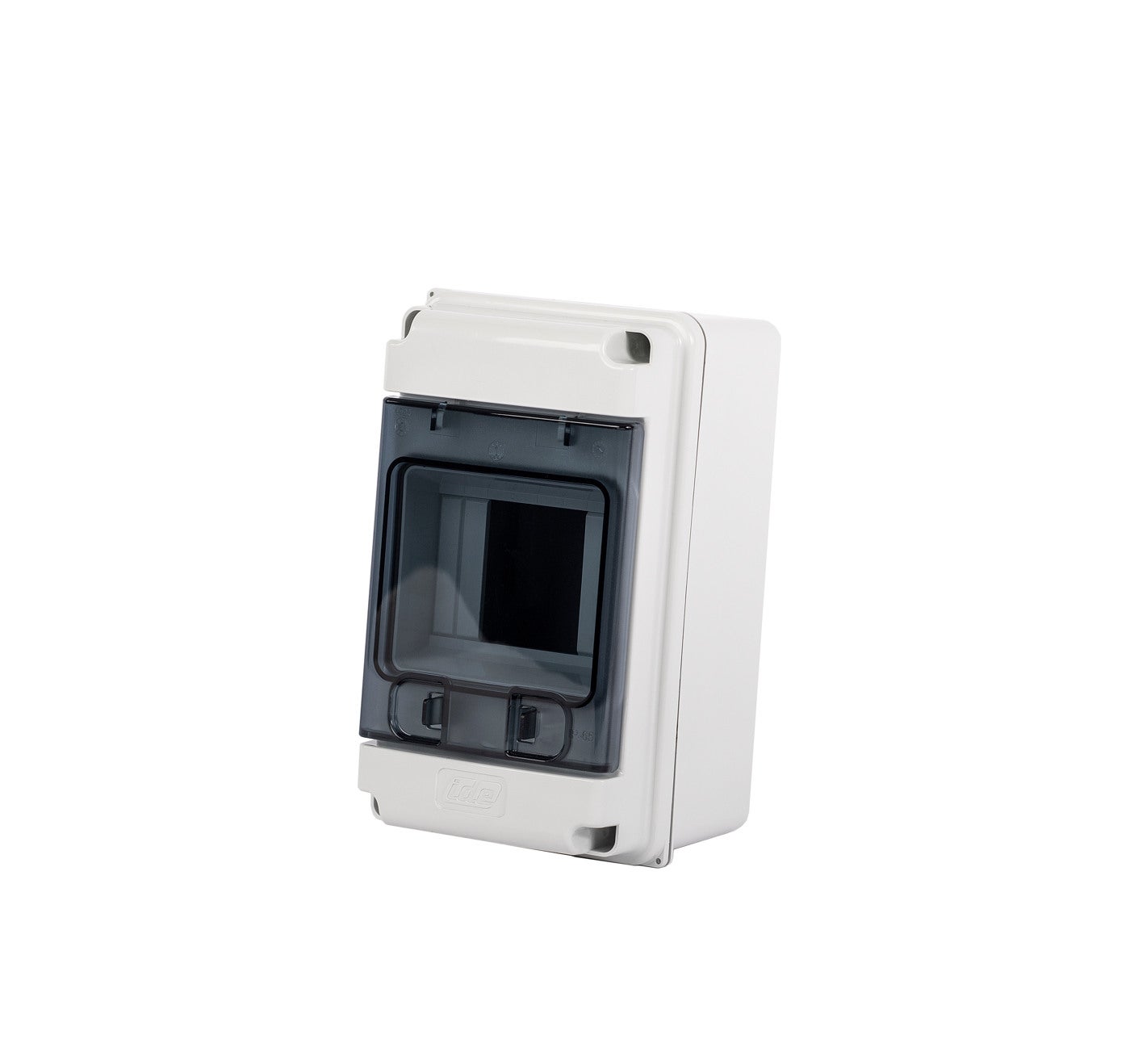

Consumer unit plastic 4mod W102/166
GARO’s plastic consumer unit for surface mounting with rounded design with transparent, smoke-coloured door. The 2 - and 3-row enclosures have 150 mm spacing between the DIN rails with space for wiring under the rails. Module widths are adapted to components that are 17.5 mm wide. Enclosures are sealable and manufactured of halogen-free ABS plastic.GARO’s plastic distribution cabinet for surface mounting with rounded design with transparent, smoke-coloured door. The 2 - and 3-row enclosures have 150 mm spac Plastic consumerunit surface mounting IP65 1 row max 4-modules ABS plastic.
| Frequency [Hz] | 50Hz |
|---|---|
| Housing material | Plastic |
| Rated voltage [V AC] | 400V AC |
| Number of modules | 4 |
| Mounting method | Surface mounted |
| Modelltype | NUPT |
| Lock | No |
| DIN-rail | Yes |
| Further feeding [A] | Further feeding 63A |
| Mountingplate | No |
| Number of rows | 1 |
| Type of door | Single |
| Name | CONSUMER UNIT PLAST SURF 1R4M EC |
|---|---|
| E-number | E2271138 |
| Article number | 110296 |
| Type designation | NUPT 1-4 E |
| Standard | EN61439-3, EN62208 |
| Color | Grey |
| RAL-number | RAL7035 |
| Neutral terminal block | Yes |
| Knockouts Ø25 Up [pcs] | 1xM25 |
| Degree of protection [IP] | IP65 |
| Connection N [mm²] | Optional Noll or PE terminal |
| Connection PE [mm²] | 1x16-35+5x10-25mm² |
| NetProductWeight | 0.37 |
| EngineerWidth | 102 |
| EngineerHeight | 177 |
| EngineerDepth | 105 |
