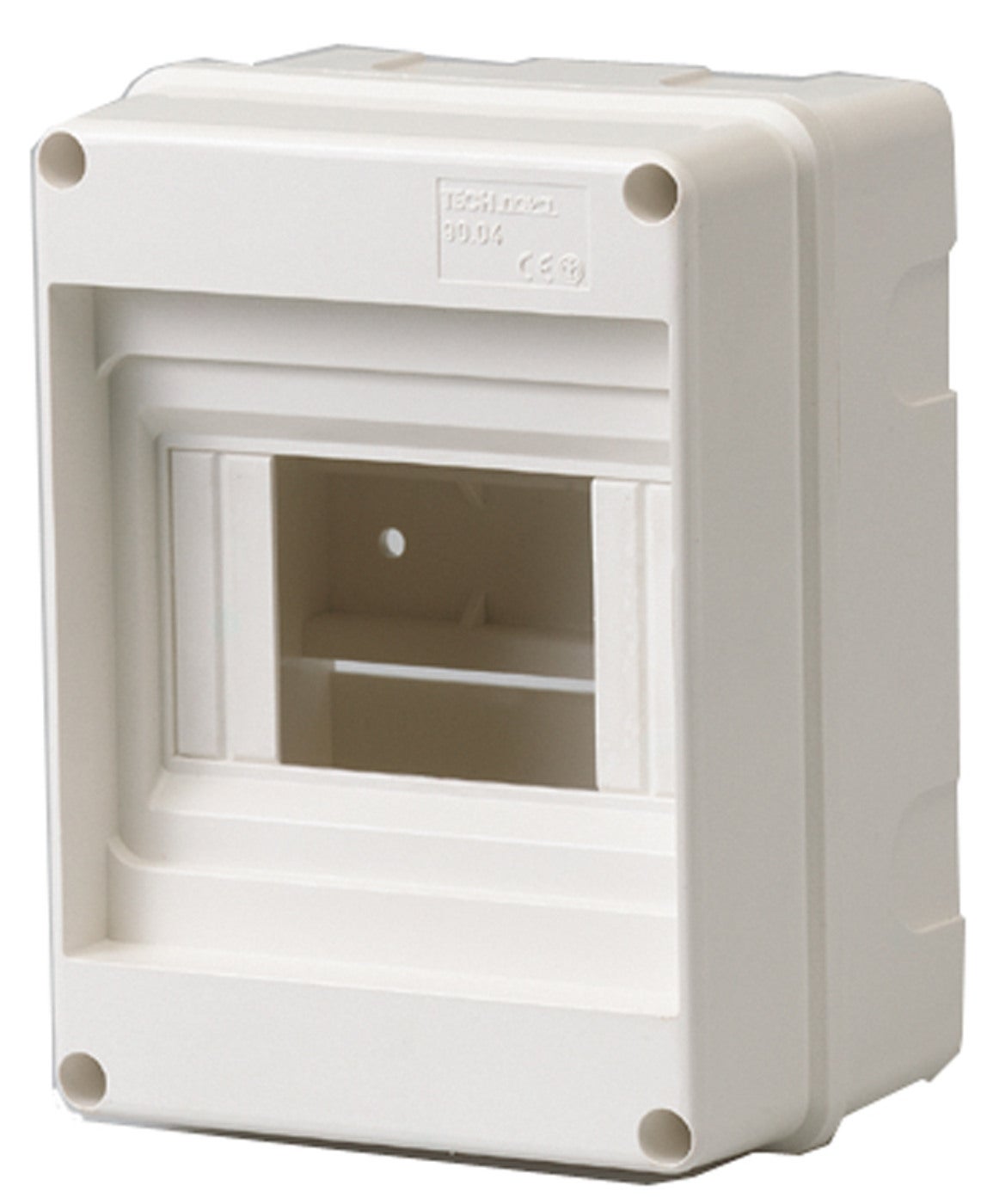

Consumer unit plastic 2/4mod W53/100
GARO’s plastic distribution cabinet for surface mounting, which is suitable for e.g. residual current devices. Consumer unit plastic surface mounting 1row 4modules
E-number
E2178004
E2178004
Article number
2178004
2178004
| Standard | EN61439-3 |
|---|---|
| Short-circuit current [kA] | 10kA |
| Housing material | Plastic |
| Color | White |
| Rated current [A] | 25A |
| Rated voltage [V AC] | 400V AC |
| Mounting method | Surface mounted |
| Modelltype | NCU |
| Lock | No |
| RAL-number | RAL9010 |
| DIN-rail | Yes |
| Earthing terminal block | Yes |
| Mountingplate | No |
| Neutral terminal block | Yes |
| Number of rows | 1 |
| Type of door | Single |
| Degree of protection [IP] | IP20 |
| EngineerHeight | 133 |
| EngineerDepth | 80 |
| Name | CONSUMER UNIT PLAST SURF 1R4M |
|---|---|
| E-number | E2178004 |
| Article number | 2178004 |
| Type designation | NCU 4 |
| Frequency [Hz] | 50Hz |
| Number of modules | 4 |
| Further feeding [A] | Further feeding 63A |
| NetProductWeight | 0.17 |
| EngineerWidth | 100 |
