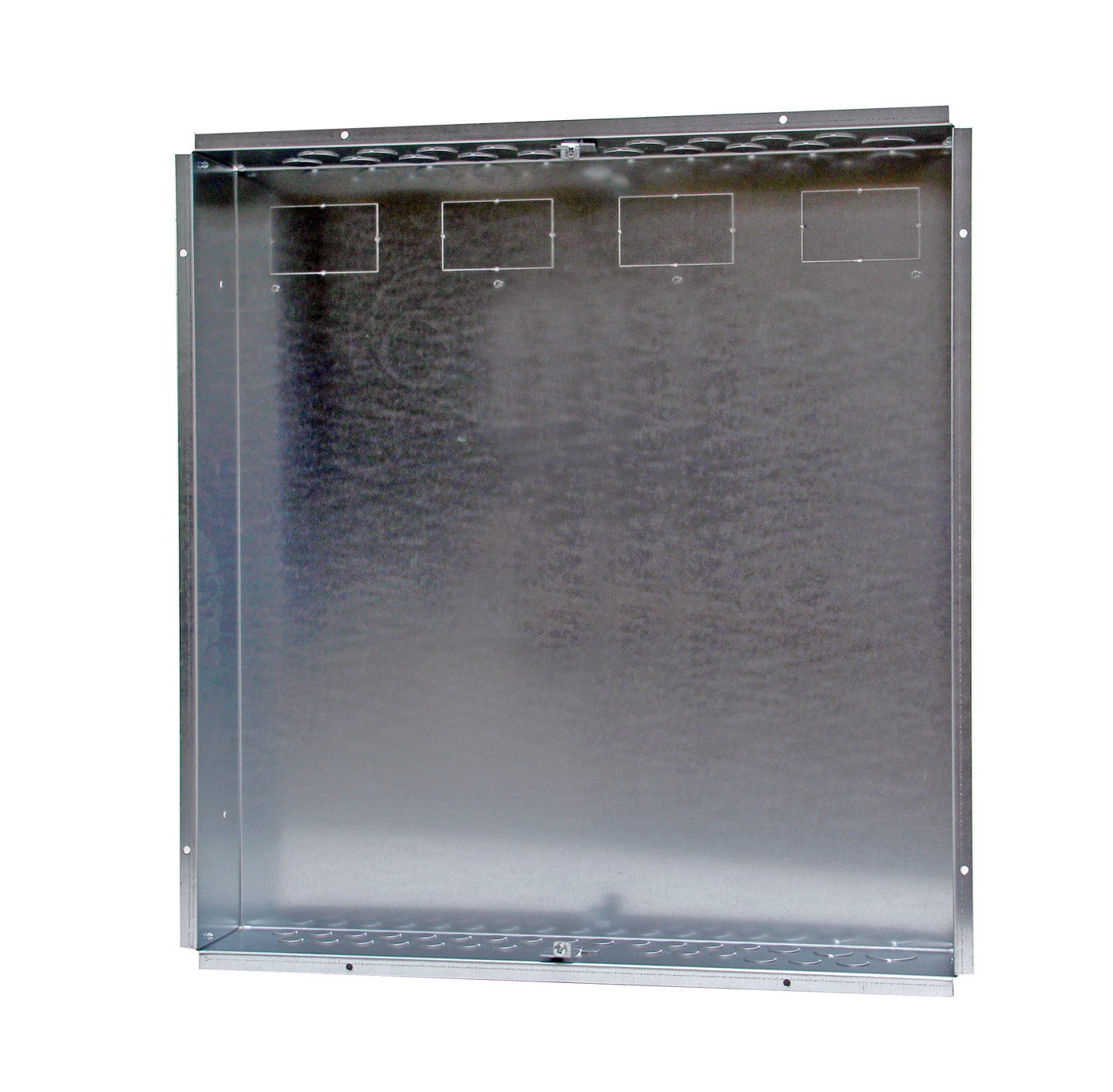

BOTTOMBOX 3R 75M

Bottomboxes 25modules D82

Bottomboxes Width 492mm and Depth 82mm 25moduler Bottombox 3row 75modules D82mm fits NIM 75-3
E-number
E2290047
Article number
356060
Support
Materials Sheet metal
Mounting method Flush mounted
EngineerDepth 82
Name BOTTOMBOX 3R 75M
E-number E2290047
Article number 356060
Type designation NIL 75-3
Number of modules 75
Number of rows 3
Knockouts Ø25 Down [pcs] 1xM25
Knockouts Ø25 Up [pcs] 17xM25
Knockouts Ø32 Down [pcs] 1xM32
Knockouts Ø32 Up [pcs] 1xM32
Knockouts Ø20 Down [pcs] 4xM20
Knockouts Ø16 Down [pcs] 24xM16
NetProductWeight 3.1
EngineerWidth 509
EngineerHeight 538

More variants of Bottomboxes 25modules D82

E-number Article number Type designation Number of modules Number of rows Knockouts Ø25 Down [pcs] Knockouts Ø25 Up [pcs] Knockouts Ø32 Down [pcs] Knockouts Ø32 Up [pcs] Knockouts Ø20 Down [pcs] Knockouts Ø16 Down [pcs] NetProductWeight EngineerWidth EngineerHeight
BOTTOMBOX 3R 75M E2290047 356060 NIL 75-3 75 3 1xM25 17xM25 1xM32 1xM32 4xM20 24xM16 3.1 509 538

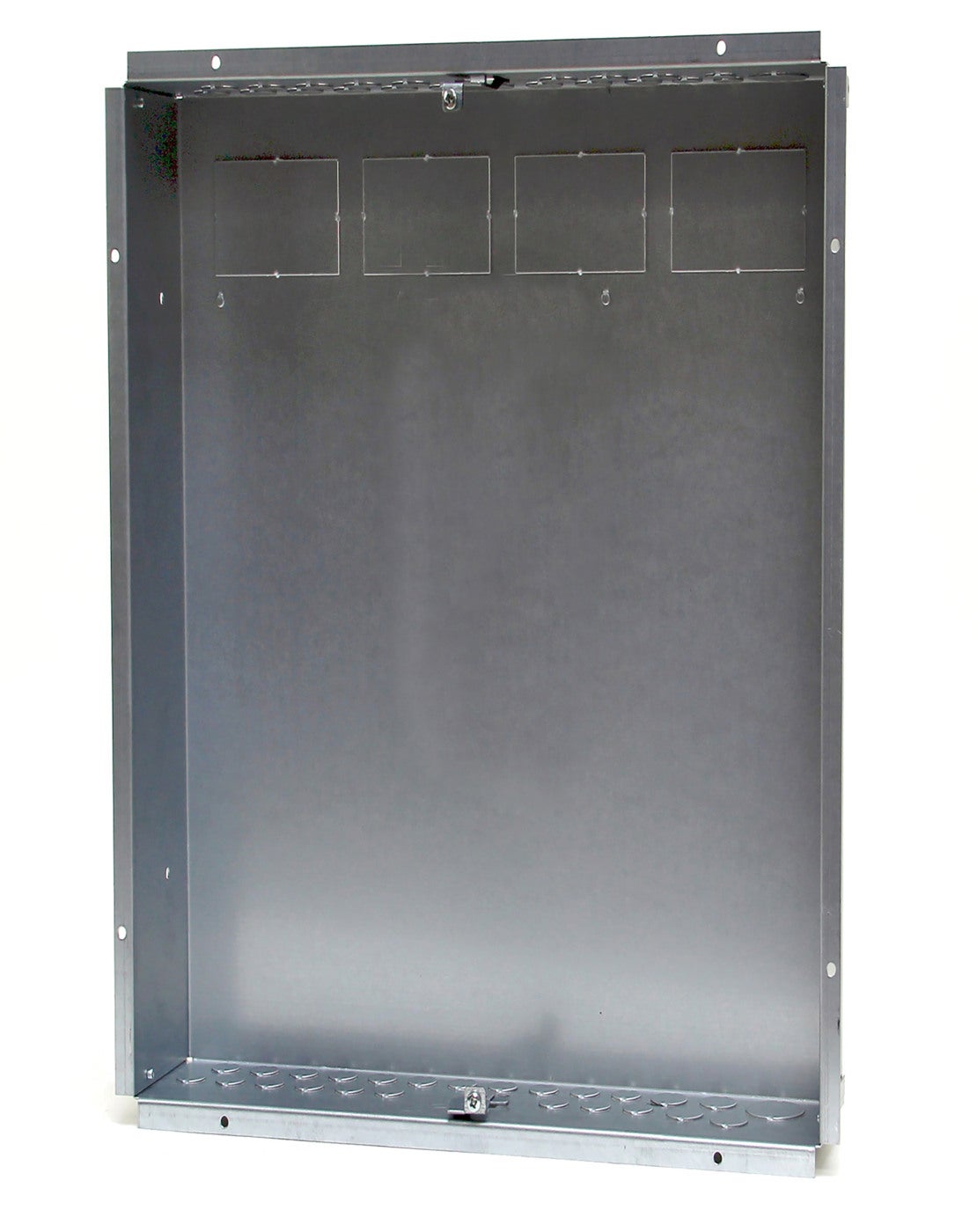

BOTTOMBOX 4R 100M E2290082 356096 NIL 100-4 100 4 3.9 492 718
