NUM-M 14modules IP30

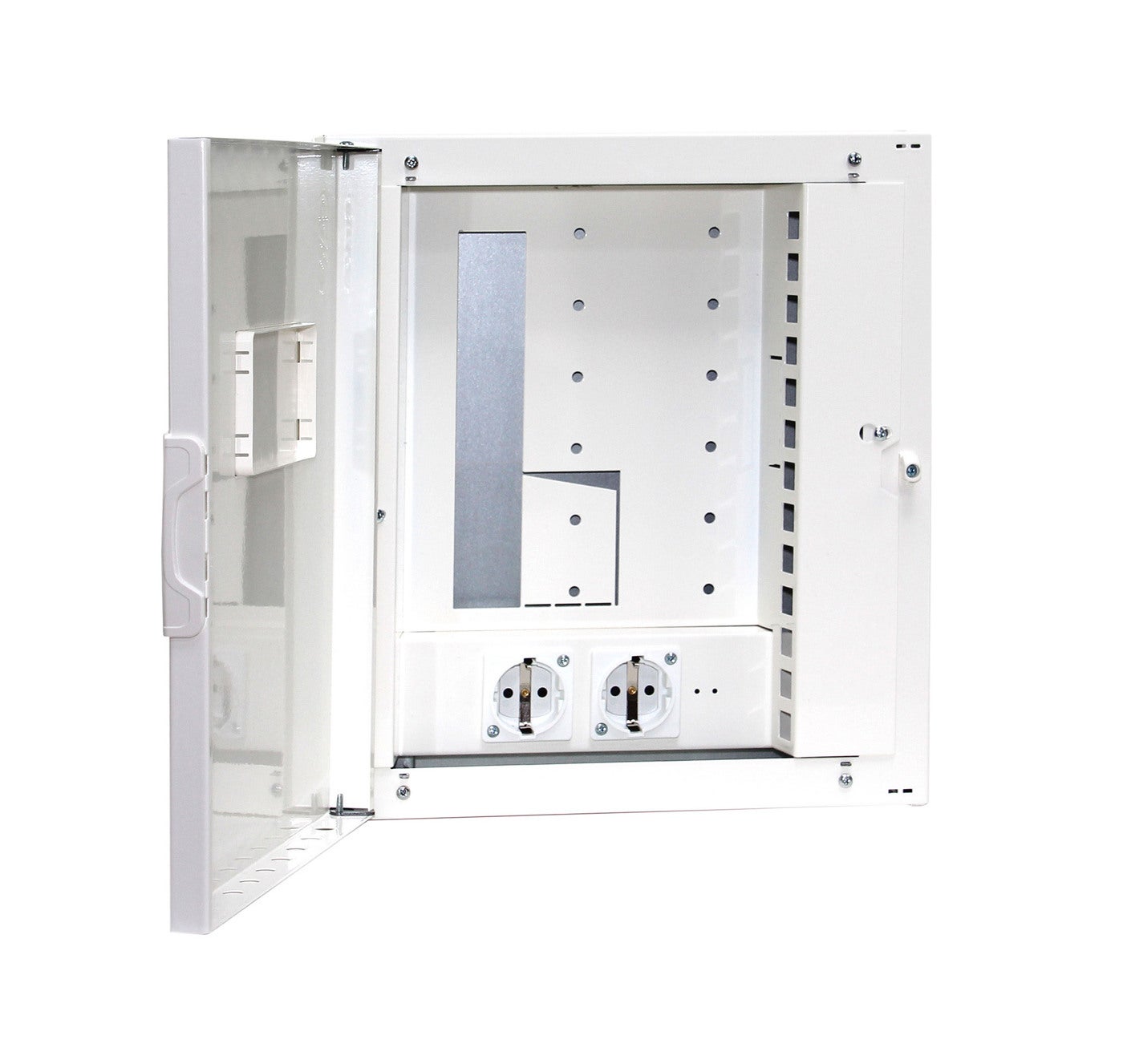

GARO’s metal cabinet for media is a slightly smaller cabinet for surface mounting that is idea for repair, rebuilding and extension projects. Mounting panel with space for 13 x RJ45 jacks (15x20 mm per/hole) and equipped with 2 wall sockets that can be turned so that the plugs can fit in the best possible way. It is possible to combine the media cabinet with a DIN cabinet. Media cabinets can ideally be mounted in combination with GARO’s DIN cabinets. The cabinets are made to maintain good ventilation as the MET CAB SURFACE 2R 28M M-M
E-number
E2290036
E2290036
Article number
356039
356039
| Type designation | NUML-M 28-2 |
|---|---|
| Standard | EN61439-3 |
| Frequency [Hz] | 50Hz |
| Housing material | Sheet steel |
| Color | White |
| Rated current [A] | 400A |
| Rated voltage [V AC] | 400V AC |
| Lock | No |
| RAL-number | RAL9010 |
| DIN-rail | No |
| Further feeding [A] | 63A |
| Type of door | Single |
| Number of Schuko[pcs] | 2pcs |
| RJ45 [pcs] | 13pcs Keystone (14x20mm/hole) |
| Degree of protection [IP] | IP30 |
| Transparent cover/door | No |
| NetProductWeight | 4.2 |
| EngineerWidth | 335 |
| EngineerHeight | 370 |
| EngineerDepth | 108 |
| Name | MET CAB SURFACE 2R 28M M-M |
|---|---|
| E-number | E2290036 |
| Article number | 356039 |
