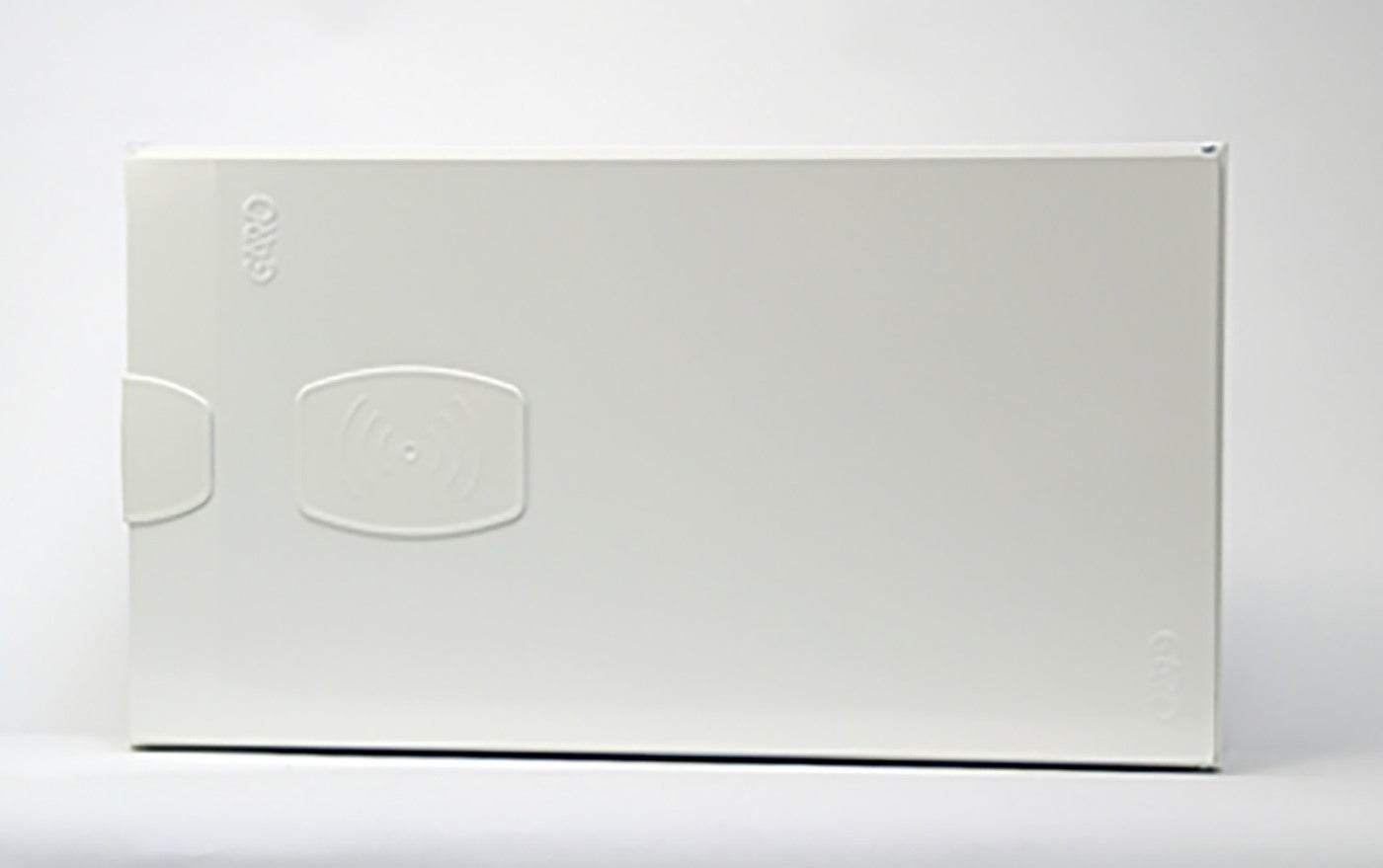

Metal cabinet surface combi Left

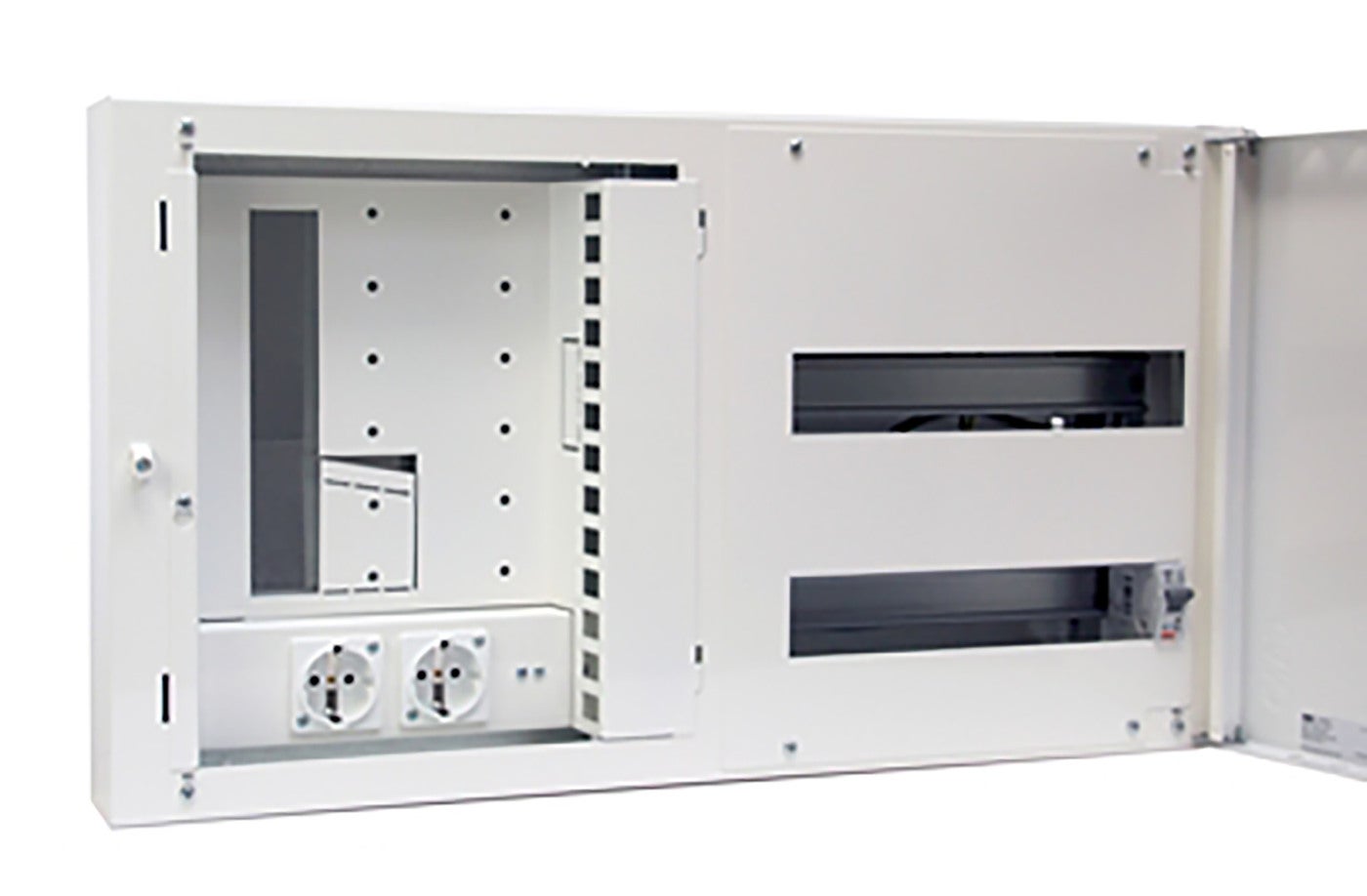

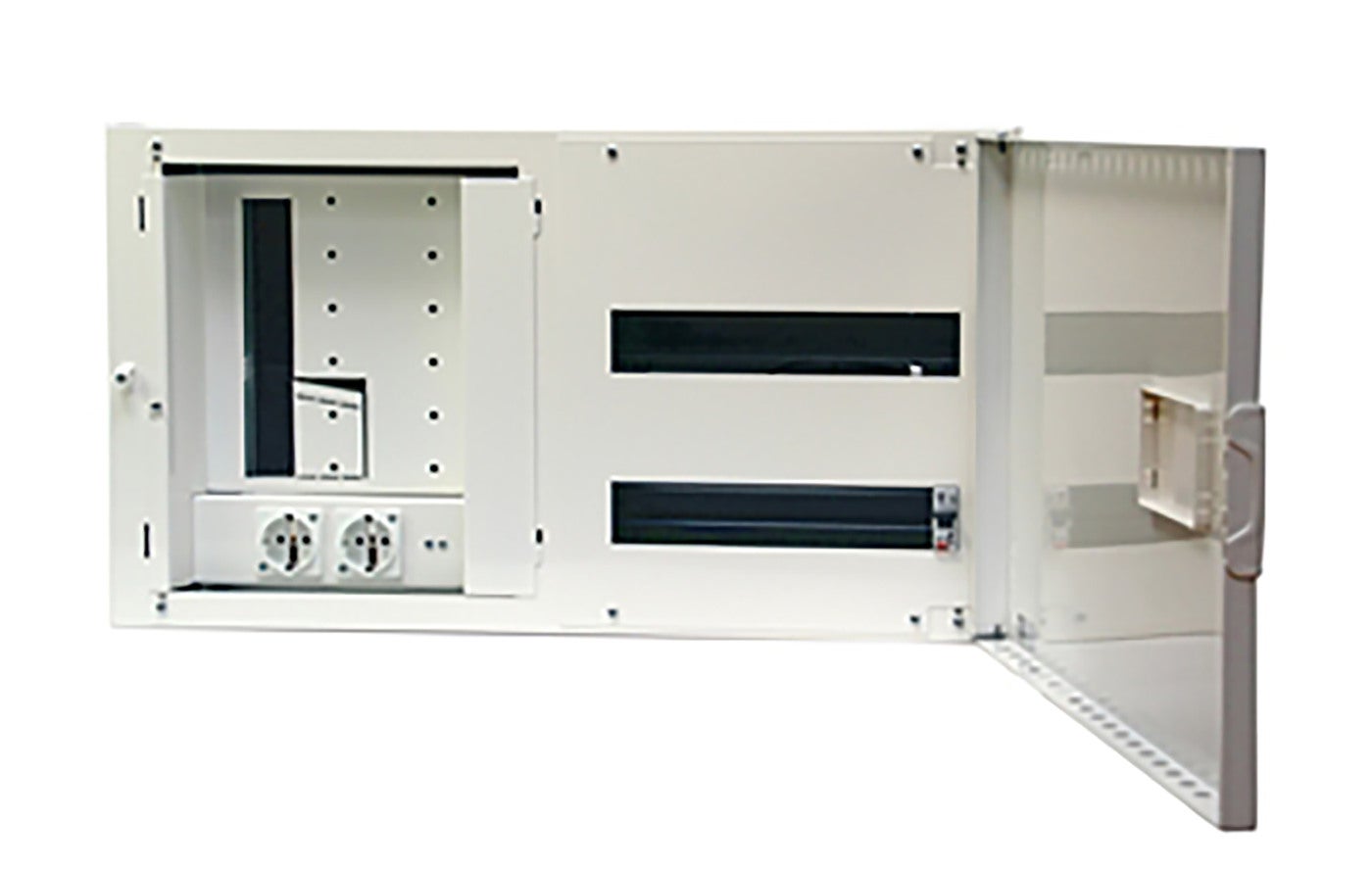

Metal cabinets for surface mounting, which are a combination of DIN and media metal cabinets for surface mounting. The media section is located to the right or left in the cabinet. The cabinet is supplied with a 10A 1-pole miniature circuit breaker to protect the wall sockets. Slots for media boxes. Wifi window to secure that wifisignal comes out. Metal cabinet surfacemounting combi 2rows 28modules mediapart left
E-number
E2200516
E2200516
Article number
356093
356093
| Type designation | NUML 28-2 KMV |
|---|---|
| Standard | EN61439-3 |
| Frequency [Hz] | 50Hz |
| Housing material | Sheet steel |
| Color | White |
| Rated current [A] | 40A |
| Rated voltage [V AC] | 400V AC |
| Number of modules | 28 |
| Mounting method | Surface mounted/recessed mounted |
| Lock | No |
| RAL-number | RAL9010 |
| Connection N [pcs] | 17 |
| Connection PE [pcs] | 16 |
| DIN-rail | Yes |
| Further feeding [A] | Further feeding 63A |
| Mountingplate | Yes |
| Number of rows | 2 |
| Type of door | Single |
| Number of Schuko[pcs] | 2pcs |
| RJ45 [pcs] | 13pcs Keystone (14x20mm/hole) |
| Degree of protection [IP] | IP30 |
| Transparent cover/door | No |
| NetProductWeight | 8.05 |
| EngineerWidth | 665 |
| EngineerHeight | 370 |
| EngineerDepth | 110 |
| Name | MET CAB SURF 2R 28M LE |
|---|---|
| E-number | E2200516 |
| Article number | 356093 |
