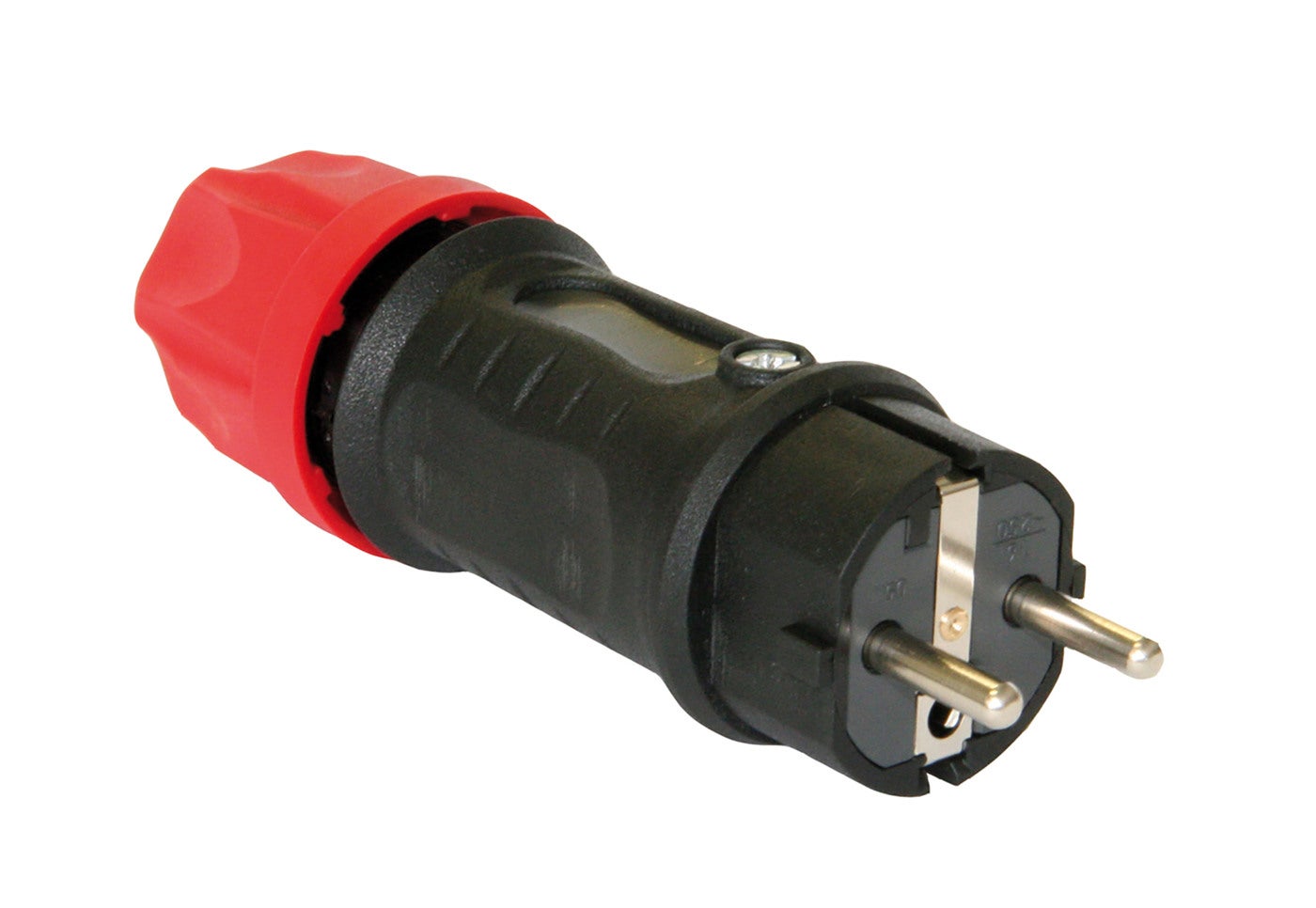

Plugs 16A IP44 Solid
Solid, a tough and durable range that can withstand just about everything, even being run over by construction vehicles. Plug 16A has cable clamps that are open for quicker handling and easier assembly. Plugs rubber with strain relief 3-poles 16A.
E-number
E2403002
E2403002
Article number
2403002
2403002
| Type designation | PSDG 216 |
|---|---|
| Materials | Rubber |
| Frequency [Hz] | 50Hz |
| Color | Black/Red |
| Rated current [A] | 16A |
| Rated voltage [V AC] | 250V AC |
| Number of poles | 3/2P+E |
| Connection type | Screwed terminal |
| RAL-number | RAL9005 |
| Cable entry | Other |
| Contact material | CuZn |
| Phase inverter | No |
| Contact plating | Untreated |
| Pin/Sleeve | Pin |
| Degree of protection [IP] | IP44 |
| EngineerWidth | 190 |
| EngineerHeight | 140 |
| EngineerDepth | 290 |
| Name | PLUG 3P 16A RUBBER ST REL |
|---|---|
| E-number | E2403002 |
| Article number | 2403002 |
