• OUTLET BOX WT TOM 5P 125A 4h - 1
  • OUTLET BOX WT TOM 5P 125A 4h - 2

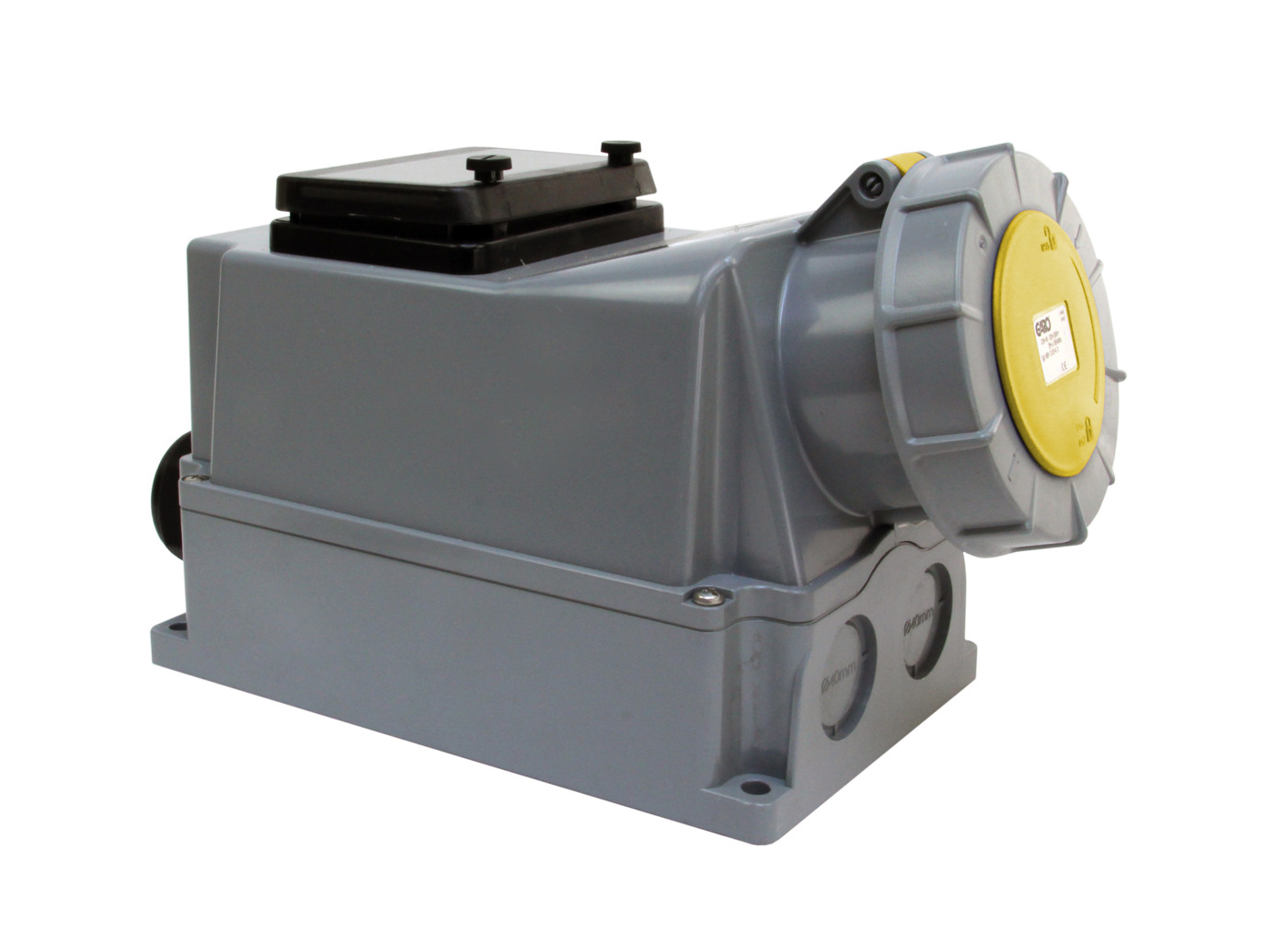

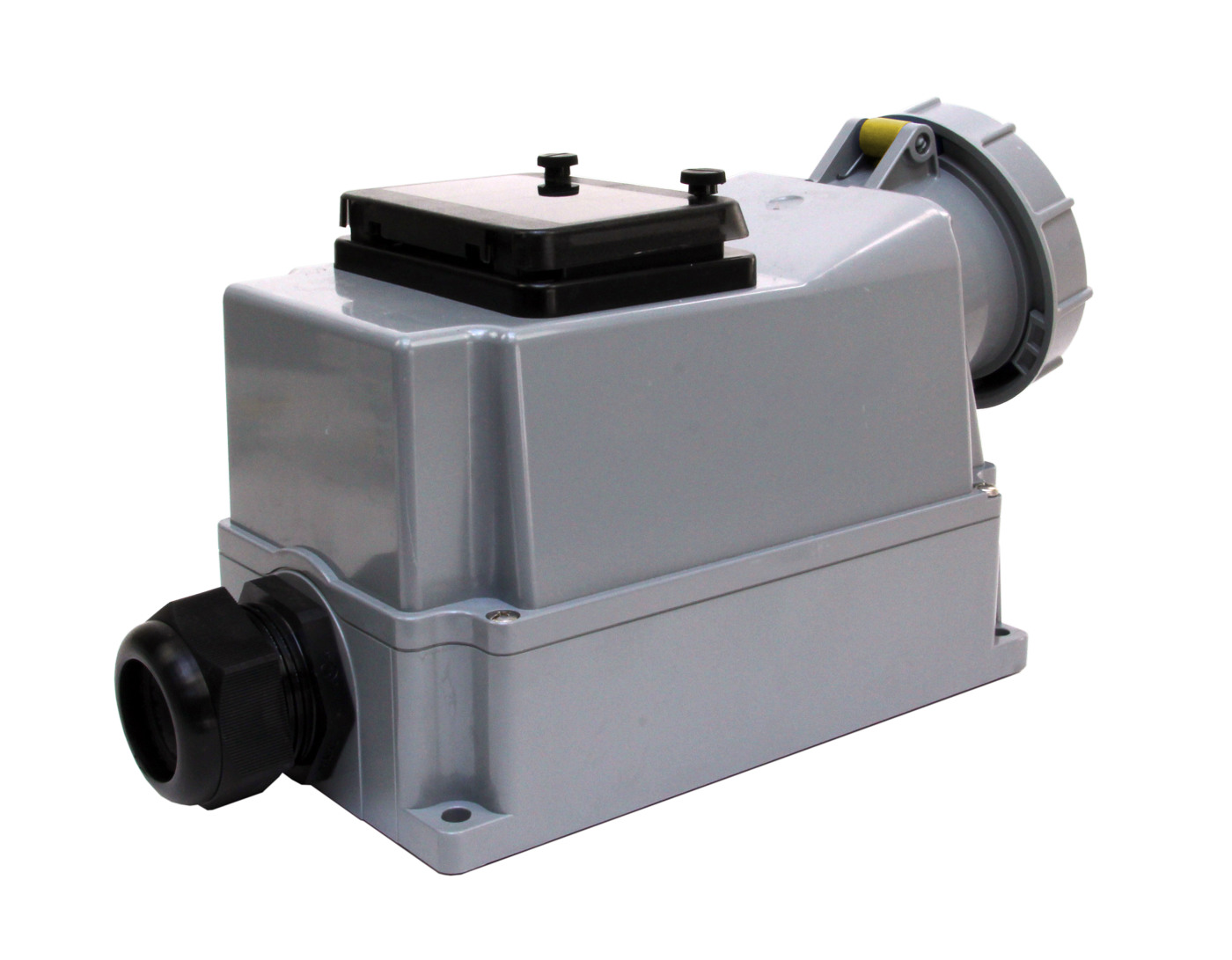

Outlet boxes 125A IP67

Outlet boxes with one IEC/CEE socket on the front. Can be equipped with DIN devices. Ample connection space and with knockouts in the bottom. Supplied with glands adapted to each box, otherwise empty Cable entry options from both the top and bottom. Waterproof. Outlet box watertight tom 5-poles 125A 4h.
E-number
2468757
Article number
2468757
Support
Rated current [A] 125
Degree of protection [IP] 67
Frequency [Hz] 50/60
Standard 61439-4
Width [mm] 162
Height [mm] 322
Depth [mm] 205
Materials Plastic
Earth terminal [mm²] 10
Knockouts Down[Ø/pcs] 2x40
Knockouts up[Ø/pcs] 2x40
Name OUTLET BOX WT TOM 5P 125A 4h
E-number 2468757
Article number 2468757
Type designation URBV 4125-4 S
Colour Yellow
Rated voltage [V AC] 100-130
Netweight [kg] 1.95
No.of Poles [pcs] 5/3PN+E
Position of earth [h] 4

More variants of Outlet boxes 125A IP67

E-number Article number Type designation Colour Rated voltage [V AC] Netweight [kg] No.of Poles [pcs] Position of earth [h]
OUTLET BOX WT TOM 3P 125A 4h 2468750 2468750 URBV 2125-4 S Yellow 100-130 1.85 3/2P+E 4
OUTLET BOX WT TOM 3P 125A 6h 2468751 2468751 URBV 2125-6 S Blue 200-250 1.85 3/2P+E 6
OUTLET BOX WT TOM 3P 125A 9h 2468752 2468752 URBV 2125-9 S Red 380-415 1.85 3/2P+E 9
OUTLET BOX WT TOM 4P 125A 4h 2468753 2468753 URBV 3125-4 S Yellow 100-130 1.90 4/3P+E 4
OUTLET BOX WT TOM 4P 125A 6h 2468754 2468754 URBV 3125-6 S Red 400 1.90 4/3P+E 6
OUTLET BOX WT TOM 4P 125A 7h 2468755 2468755 URBV 3125-7 S Black 480-500 1.90 4/3P+E 7
OUTLET BOX WT TOM 4P 125A 9h 2468756 2468756 URBV 3125-9 S Blue 400 1.90 4/3P+E 9
OUTLET BOX WT TOM 5P 125A 4h 2468757 2468757 URBV 4125-4 S Yellow 100-130 1.95 5/3PN+E 4
OUTLET BOX WT TOM 5P 125A 6h 2468758 2468758 URBV 4125-6 S Red 230/400 1.95 5/3PN+E 6
OUTLET BOX WT TOM 5P 125A 9h 2468759 2468759 URBV 4125-9 S Blue 208-250 1.95 5/3PN+E 9
