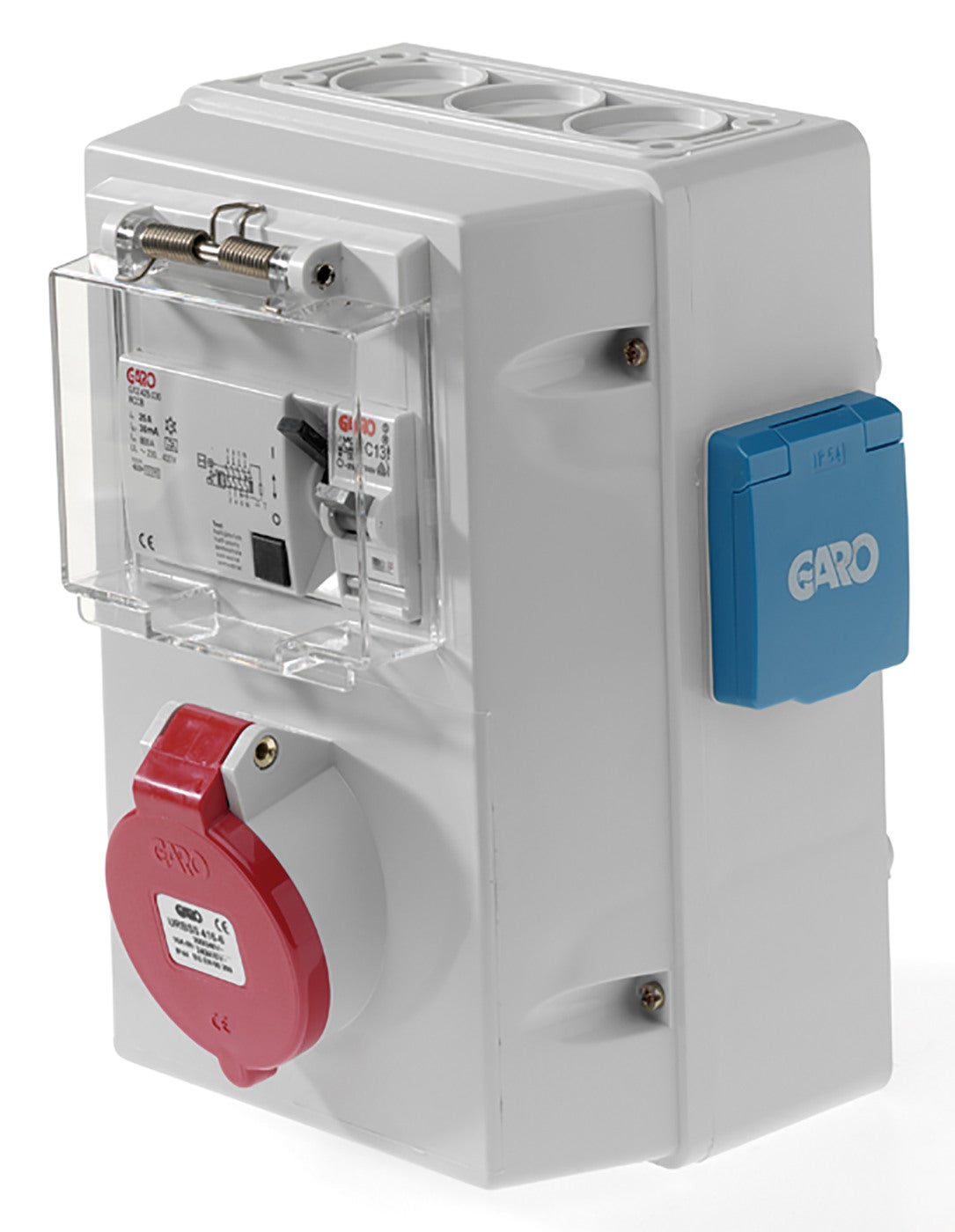

OUTLETBOX 5P 32A 6h URBSS

Outlet box with Schuko 32A IP44

Outlet boxes with one IEC/CEE socket on the front. Ample connection space. FL13 in the top and bottom combined with knockouts. Supplied with glands adapted to each box. Cable entry options from both the top and bottom. Outlet box with RCCB and MCB 5pole 32A 6h URBSS
E-number
E2468762
Article number
2468762
Support
Standard EN61439-4
Frequency [Hz] 50/60Hz
Housing material Plastic
Color Red
Rated current [A] 32A
Rated voltage [V AC] 230/400V AC
Clock hour position [h] 6h
Earthing terminal block Yes
Degree of protection [IP] IP44
Name OUTLETBOX 5P 32A 6h URBSS
E-number E2468762
Article number 2468762
Type designation URBSS 432-6 S
Number of MCB 1P (1) 1pcs C113
Number of Schuko[pcs] 2pcs
Number of RCCB [pcs] 1 1pcs 4P 40A
Knockouts Ø32 Down [pcs] 3
Knockouts Ø32 Up [pcs] 3

More variants of Outlet box with Schuko 32A IP44

E-number Article number Type designation Number of poles Number of MCB 1P (1) Number of MCB 1P (2) Number of Schuko[pcs] Number of RCCB [pcs] 1 Knockouts Ø40 Up [pcs] Knockouts Ø40 Down [pcs] Knockouts Ø32 Down [pcs] Knockouts Ø32 Up [pcs] EngineerWidth EngineerHeight EngineerDepth
OUTLETBOX 5P 32A 6h URBSS E2468762 2468762 URBSS 432-6 S 1pcs C113 2pcs 1pcs 4P 40A 3 3

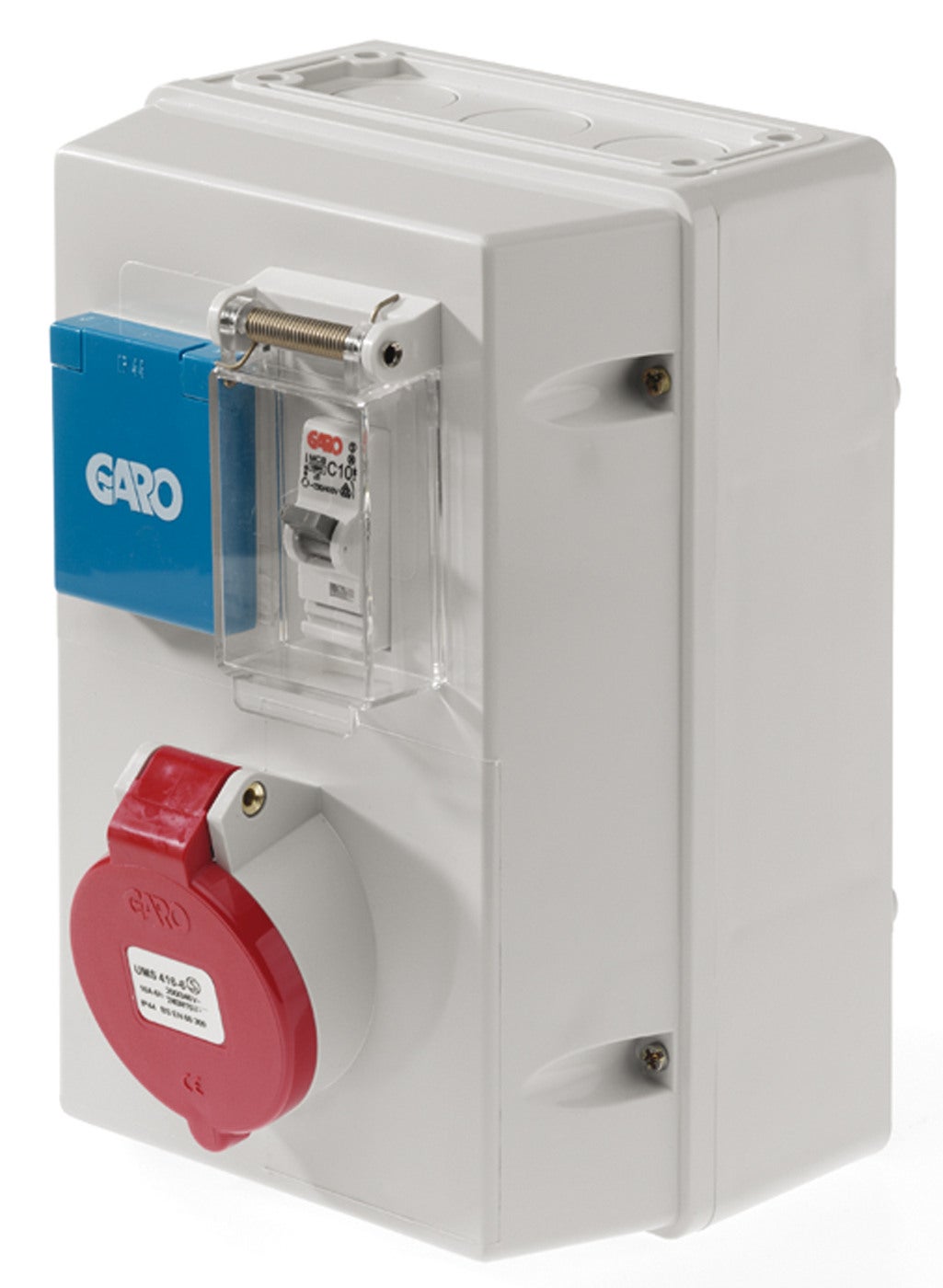

OUTLETBOX 5P 32A 6h UMS E2468784 2468784 UMS 432-6 S 5/3P+N+E 1pcs C110 1pcs 3 3

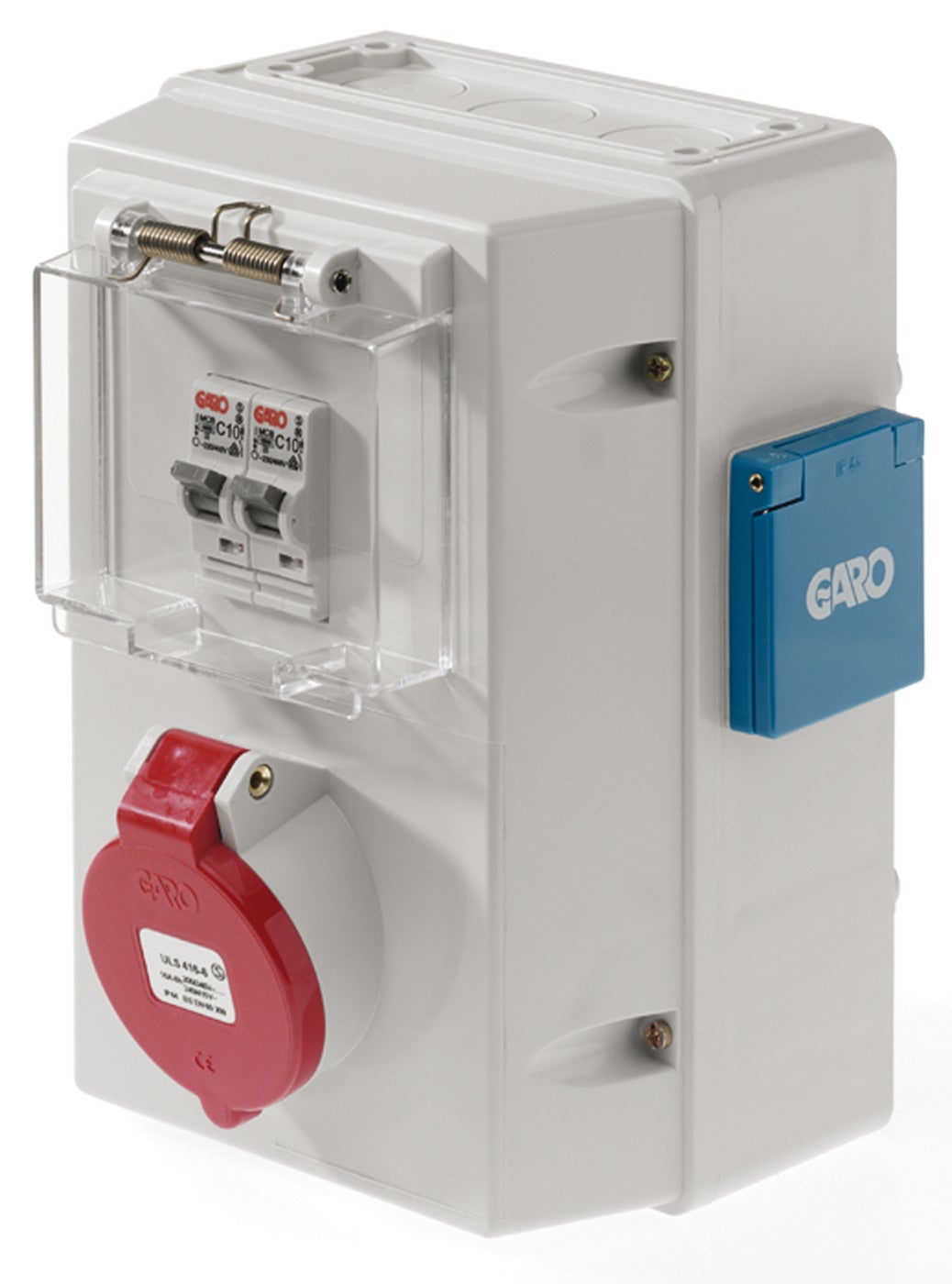

OUTLETBOX 5P 32A 6h ULS E2468786 2468786 ULS 432-6 S 5/3P+N+E 2pcs C110 2pcs 3 3
OUTLETBOX 5P 32A 6h UC ULS E2468788 2468788 UC ULS 432-6 S 5/3P+N+E 2pcs C110 1pcs C332 2pcs 3 3

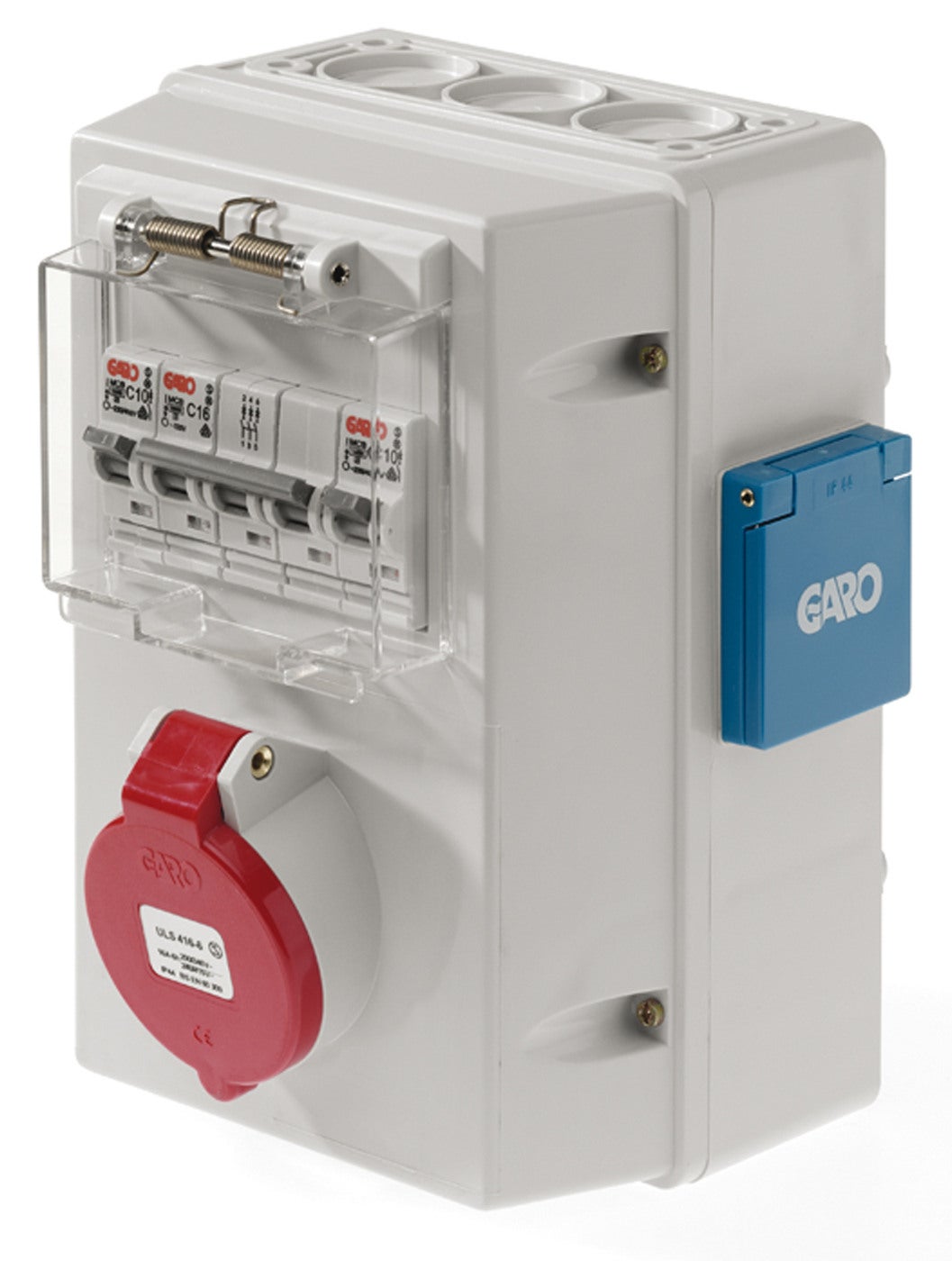

OUTLETBOX 5P 32A 6h UC UIS E2468790 2468790 UC UIS 432-6 S 5/3P+N+E 2pcs C110 1pcs C332 2pcs 2 2

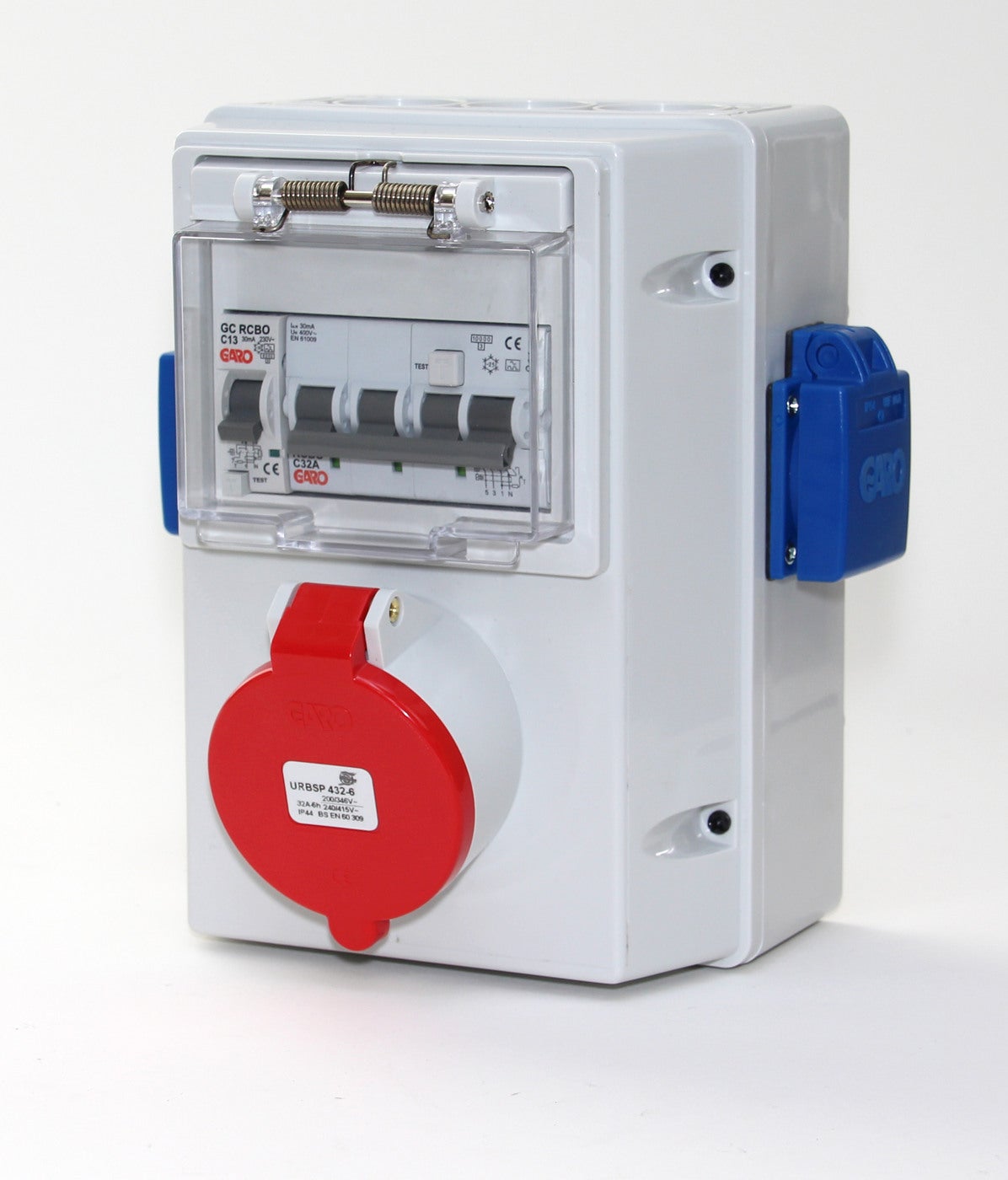

OUTLETBOX 5P 32A 6h 2UIF E2466416 352434 URBSP 432-6S 2pcs 3 3 183 220 155
