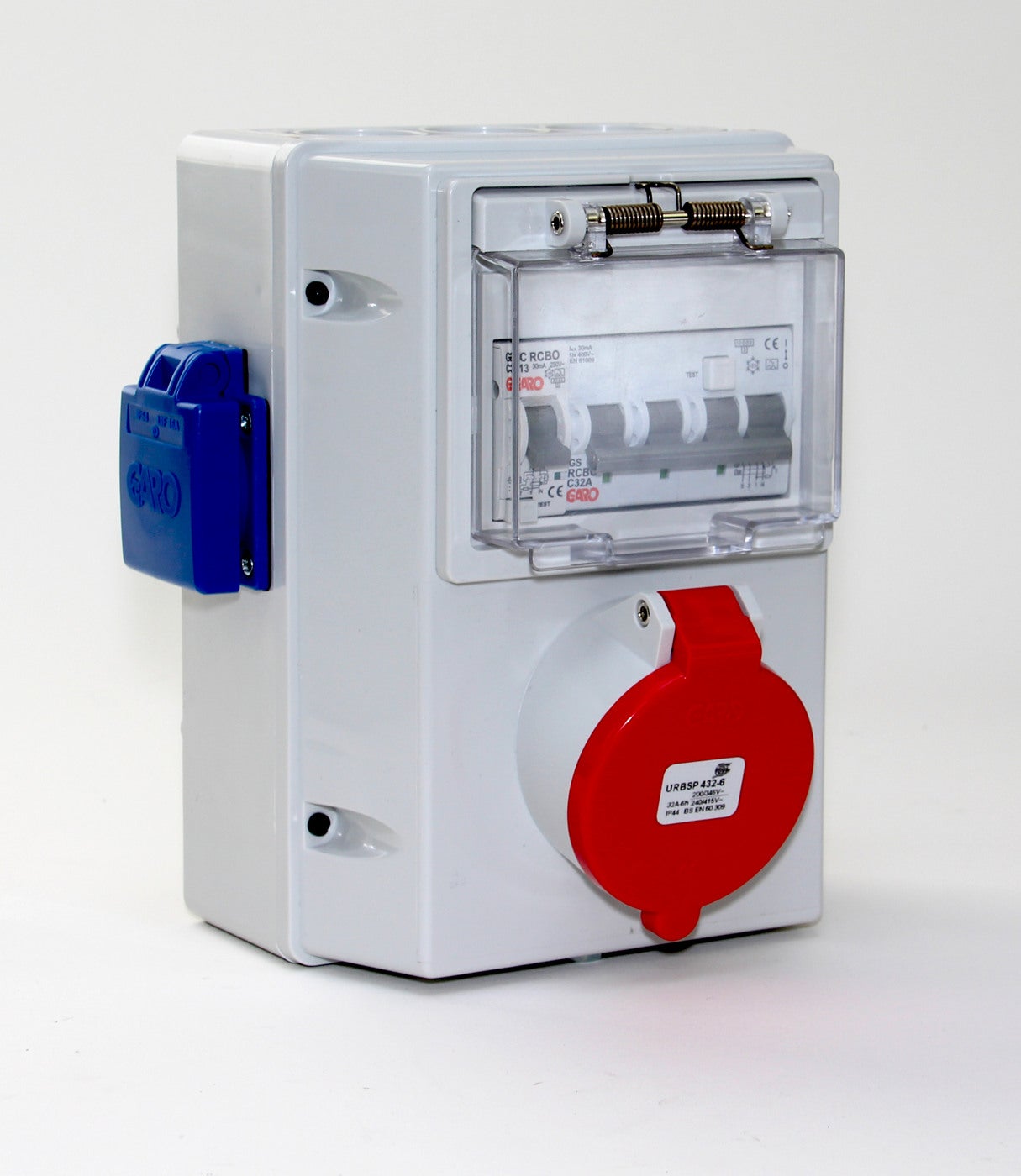

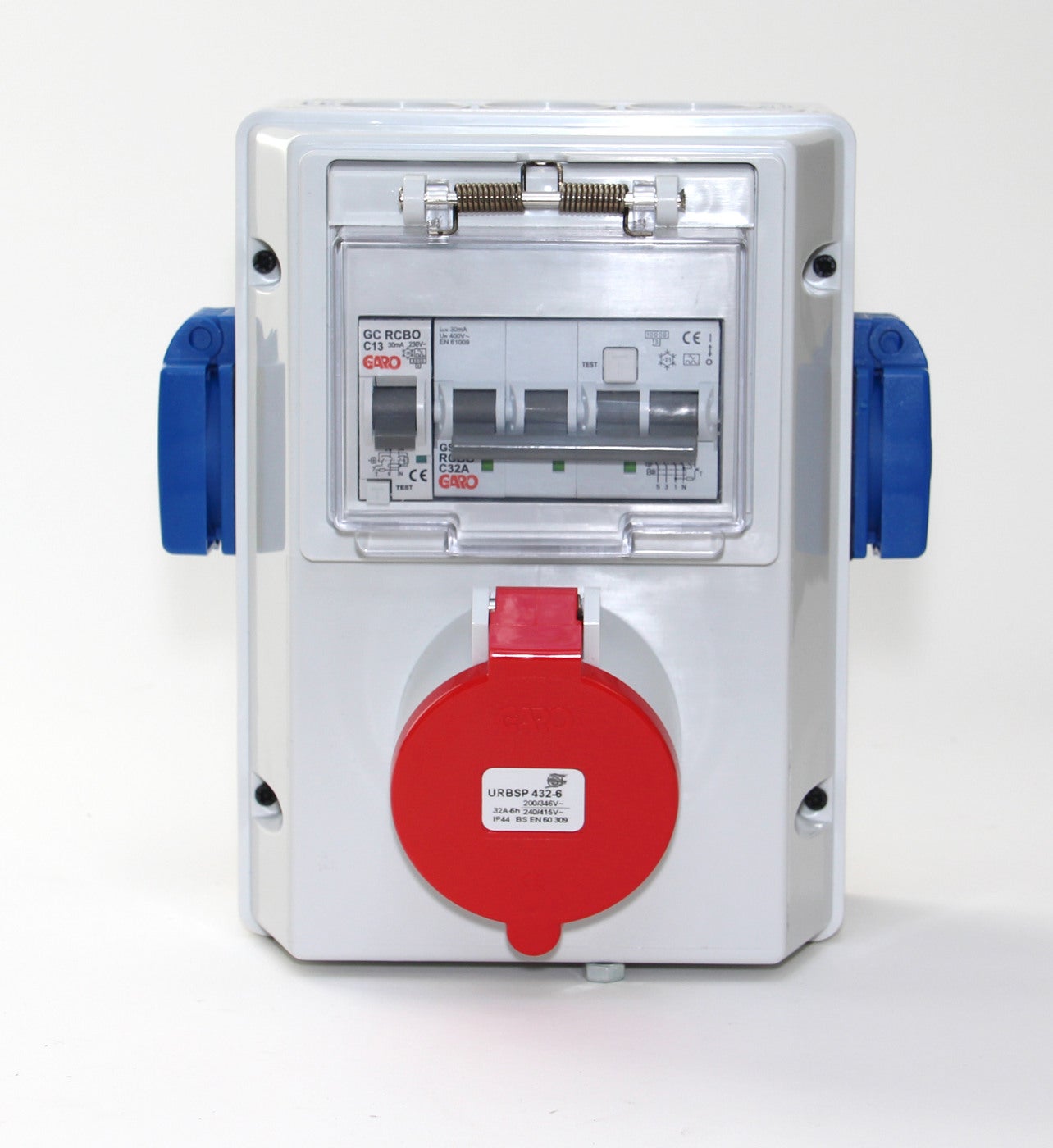

Outlet box with Schuko 32A IP44

Outlet boxes with one IEC/CEE socket on the front. Ample connection space. FL13 in the top and bottom combined with knockouts. Supplied with glands adapted to each box. Cable entry options from both the top and bottom. Outletbox RCBO 5-poles 32A 6h 2xUIF
E-number
E2466416
Article number
352434
Support
Standard EN61439-4
Frequency [Hz] 50/60Hz
Housing material Plastic
Color Red
Rated current [A] 32A
Rated voltage [V AC] 230/400V AC
Clock hour position [h] 6h
Earthing terminal block Yes
Degree of protection [IP] IP44
Name OUTLETBOX 5P 32A 6h 2UIF
E-number E2466416
Article number 352434
Type designation URBSP 432-6S
Number of Schuko[pcs] 2pcs
Knockouts Ø32 Down [pcs] 3
Knockouts Ø32 Up [pcs] 3
EngineerWidth 183
EngineerHeight 220
EngineerDepth 155

More variants of Outlet box with Schuko 32A IP44

E-number Article number Type designation Number of poles Number of MCB 1P (1) Number of MCB 1P (2) Number of Schuko[pcs] Number of RCCB [pcs] 1 Knockouts Ø40 Up [pcs] Knockouts Ø40 Down [pcs] Knockouts Ø32 Down [pcs] Knockouts Ø32 Up [pcs] EngineerWidth EngineerHeight EngineerDepth
OUTLETBOX 5P 32A 6h URBSS E2468762 2468762 URBSS 432-6 S 1pcs C113 2pcs 1pcs 4P 40A 3 3
OUTLETBOX 5P 32A 6h UMS E2468784 2468784 UMS 432-6 S 5/3P+N+E 1pcs C110 1pcs 3 3
OUTLETBOX 5P 32A 6h ULS E2468786 2468786 ULS 432-6 S 5/3P+N+E 2pcs C110 2pcs 3 3
OUTLETBOX 5P 32A 6h UC ULS E2468788 2468788 UC ULS 432-6 S 5/3P+N+E 2pcs C110 1pcs C332 2pcs 3 3
OUTLETBOX 5P 32A 6h UC UIS E2468790 2468790 UC UIS 432-6 S 5/3P+N+E 2pcs C110 1pcs C332 2pcs 2 2
OUTLETBOX 5P 32A 6h 2UIF E2466416 352434 URBSP 432-6S 2pcs 3 3 183 220 155
