LS4 outlet LAN

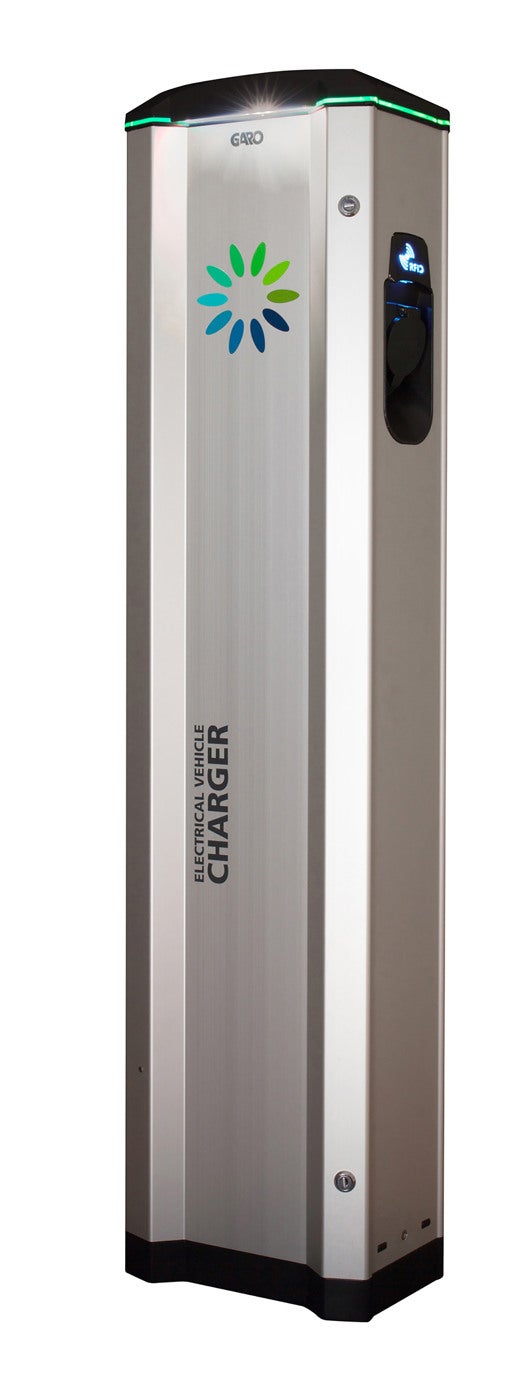

Public charging stations for ground mounting with 2 EV outlet and integrated MCB and RCCB for each outlet. Light list indicator is at the top of the station and on distance you can read the charging status. The connection to the base station with mobile com or wired internet connection. In accordance with the applicable international standard IEC 60364-7-722 charging of electric cars there are requirements for Type B RCDs or type A RCDs in combination with the DC monitoring that breaks at 6mA. EVSE ground mounted type2 EV-outlet 22kW with meter, RFID and LAN utan ISO.
| Standard | EN61851-1 IEC 61439-7 AEVCS |
|---|---|
| Storage temperature [C] | -40C...+50C |
| Operation Temperature [C] | -25C...+40C |
| Frequency [Hz] | 50Hz |
| Housing material | Aluminium |
| Color | Grey |
| Rated voltage [V AC] | 230/400V AC |
| Mounting method | Floor fastening |
| Modelltype | LS4 |
| Energymeter | Built-in meter |
| Phases [PH] | 3PH |
| Length of cable [m] | Not included |
| Lock | Yes |
| Networkable LAN | Yes |
| Networkable WiFi | No |
| AC/DC output 1 | Type 2 Outlet |
| AC/DC output 2 | Type 2 Outlet |
| DC-fault protection | Yes |
| Communication | LAN |
| Cable area [mm²] | 50mm² Al/Cu |
| Degree of protection [IP] | IP54 |
| Impact strength [IK] | IK10 |
| NetProductWeight | 24.5 |
| EngineerWidth | 375 |
| EngineerHeight | 1400 |
| EngineerDepth | 208 |
| Name | EVSE LS4 T2EV 22kW M R LAN |
|---|---|
| E-number | E2701321 |
| Article number | 354659 |
| Type designation | LS4-DCM-T222WO-R-LAN |
| Rated current [A] | 63A |
| Power per charging point [kW] | 22kW |
| Number of RCCB-A [pcs] | 2pcs 4P 40A |
