DISTRIBUTION CABINET DINRAIL 42M

Final distribution DIN-rail W315

MSI cabinet is supplied with DIN rails, front plates and PEN terminal PNF 3. Protection class IP40, IP44 with seal for the door. Depth measurement 150mm. Distribution cabinet DIN-rail 42-modules
E-number
E2260140
Article number
2260140
Support
Standard EN61439-3
Housing material Sheet metal
Color White
Flanges 1x21 Up+1x21 Down
Degree of protection [IP] IP40/44
EngineerWidth 315
EngineerDepth 145
Name DISTRIBUTION CABINET DINRAIL 42M
E-number E2260140
Article number 2260140
Type designation MSI 42/1
Number of modules 3x14
NetProductWeight 8.47
EngineerHeight 530

More variants of Final distribution DIN-rail W315

E-number Article number Type designation Number of modules NetProductWeight EngineerHeight

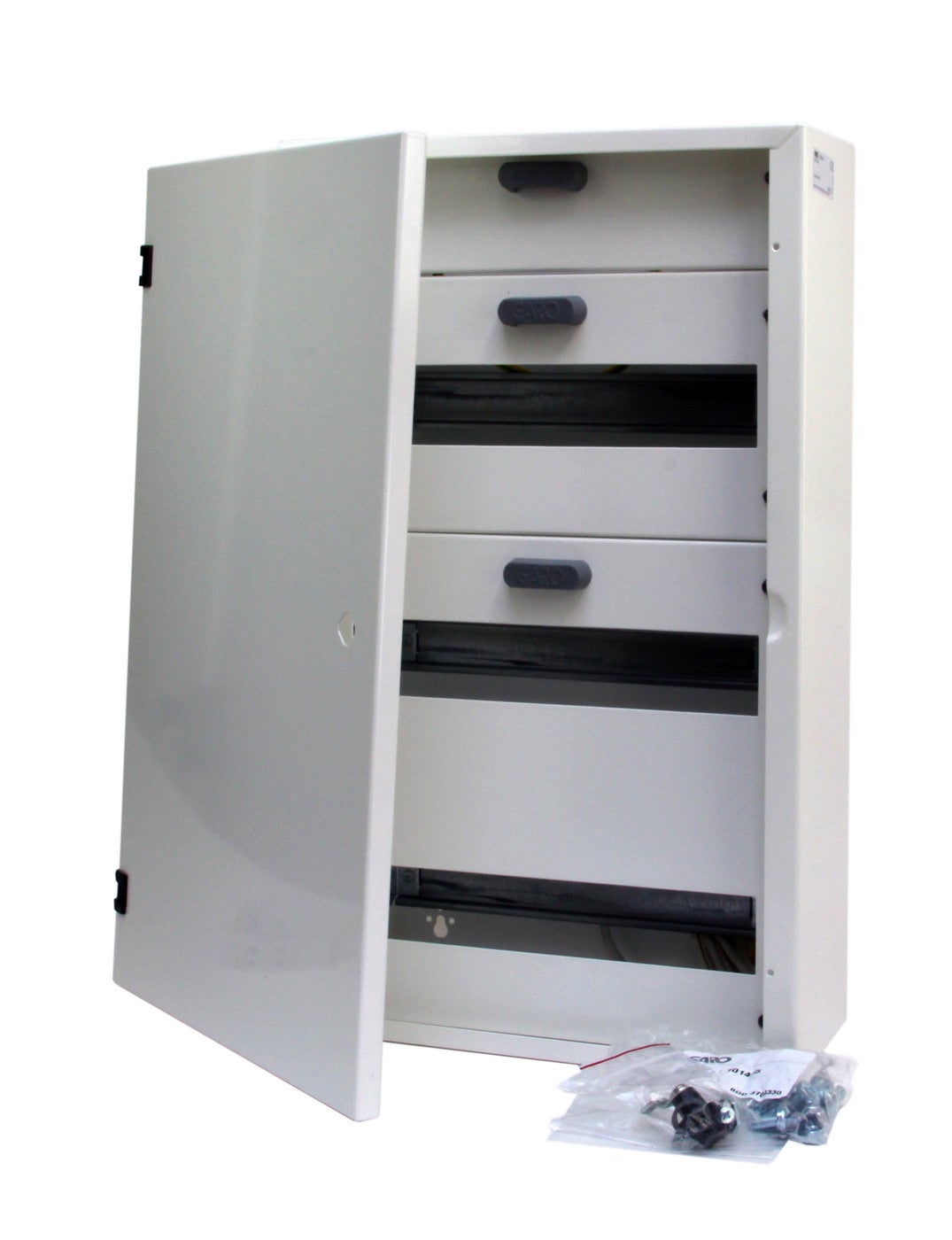

DISTRIBUTION CABINET DINRAIL 42M E2260140 2260140 MSI 42/1 3x14 8.47 530

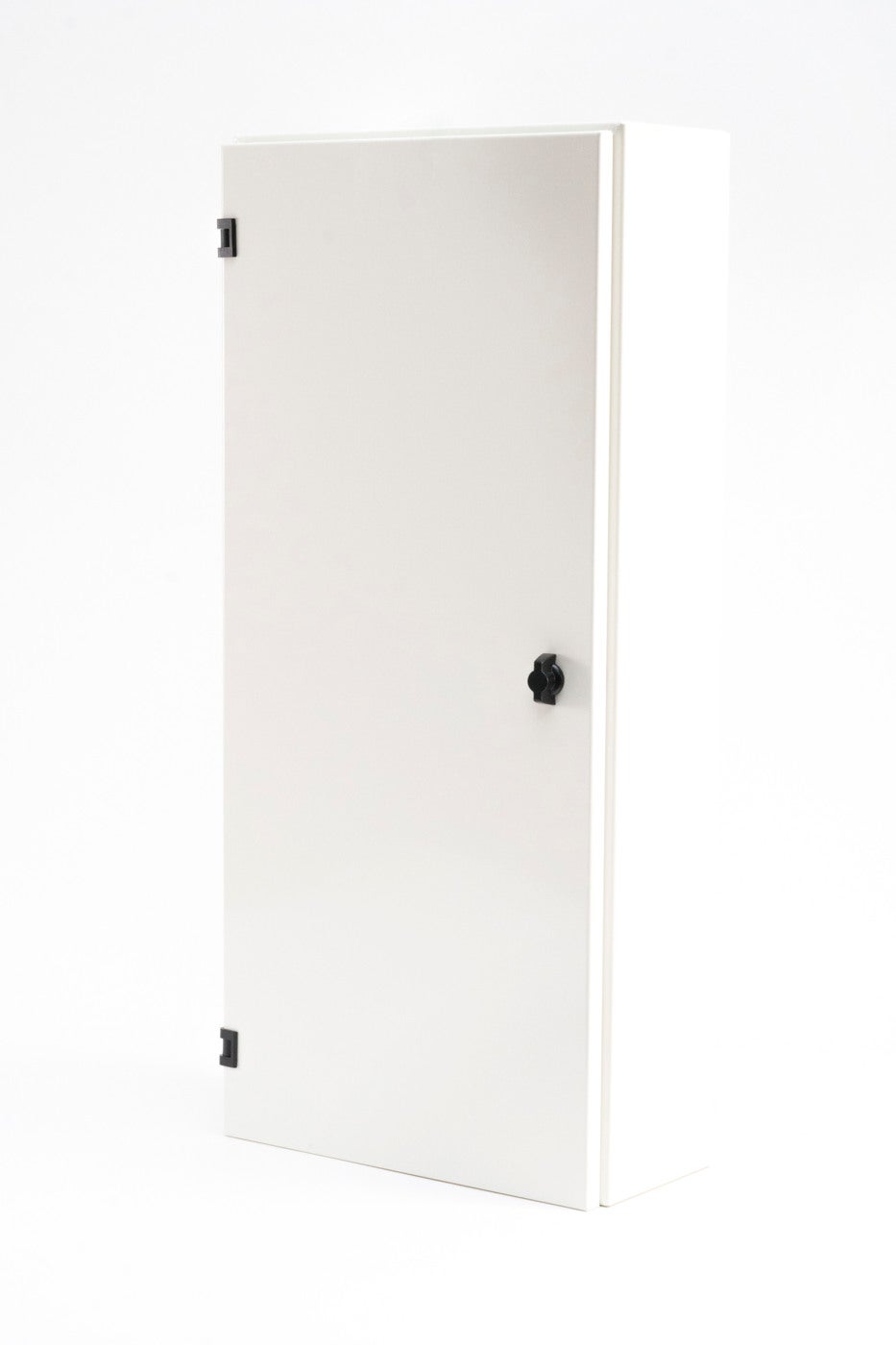

DISTRIBUTION CABINET DINRAIL 56M E2260142 2260142 MSI 56/1 4x14 10.49 380
