• CLAMP 35-5 AKS - 1

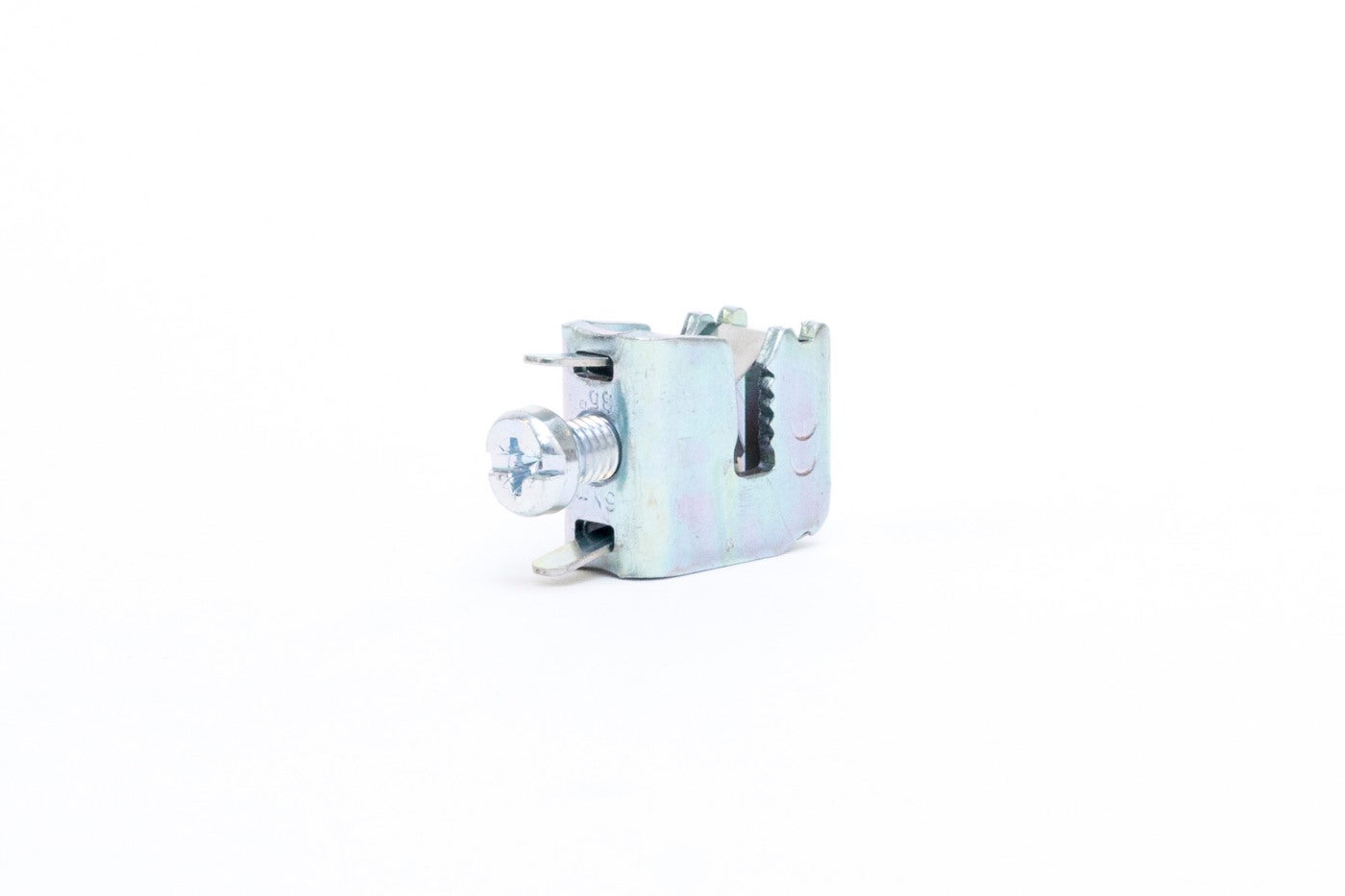

  • CLAMP 35-5 AKS - 2

Clamp connection GCS

Clamp connection GCS CLAMP 35-5 AKS
E-number
E2260360
Article number
2260360
Support
Name CLAMP 35-5 AKS
E-number E2260360
Article number 2260360
Type designation AKS 35-5
NetProductWeight 0.05
EngineerWidth 16
EngineerHeight 42
EngineerDepth 29

More variants of Clamp connection GCS

E-number Article number Type designation Tightening torque [Nm] Wire flexible [mm²] NetProductWeight EngineerWidth EngineerHeight EngineerDepth
TERMINAL PE+N 2x16+12x6 2260251 PN1
CLAMP 35-5 AKS E2260360 2260360 AKS 35-5 0.05 16 42 29
CLAMP 70-5 AKS E2260362 2260362 AKS 70-5 0.07 32 55 21
CLAMP 120-5 AKS E2260364 2260364 AKS 120-5 0.1 35 62 24
CLAMP 35-10 AKS E2260366 2260366 AKS 35-10 0.05 30 51 17
CLAMP 70-10 AKS E2260368 2260368 AKS 70-10 0.07 32 58 22
CLAMP 120-10 AKS E2260370 2260370 AKS 120-10 0.1 34 68 23
CLAMP 3P 125-160A 16-95 AL/CU E2260402 2260402 AL CU 16-95 3P 14Nm 16-95 Al/Cu 0.18 50 110 30
CLAMP 3P 200-250A 16-185 AL/CU E2260404 2260404 AL CU 16-185 3P 25Nm AL/Cu 16-185 0.36 70 110 40
CLAMP 3P 400A 50-300 AL/CU E2260406 2260406 AL CU 50-300 3P 45Nm Al/Cu 50-300 0.53 80 110 40
CLAMP 3P 630A 70-300 AL/CU E2260408 2260408 AL CU 70-300 3P 70x300 Al/Cu 0.76 110 120 40
CLAMP 4P 200-250A 16-185 AL/CU E2270610 2260410 AL CU 16-185 4P 25Nm AL/Cu 16-185 0.48 90 120 35
CLAMP 4P 400A 50-300 AL/CU E2260412 2260412 AL CU 50-300 4P 45Nm Al/Cu 50-300 0.71 80 130 40
