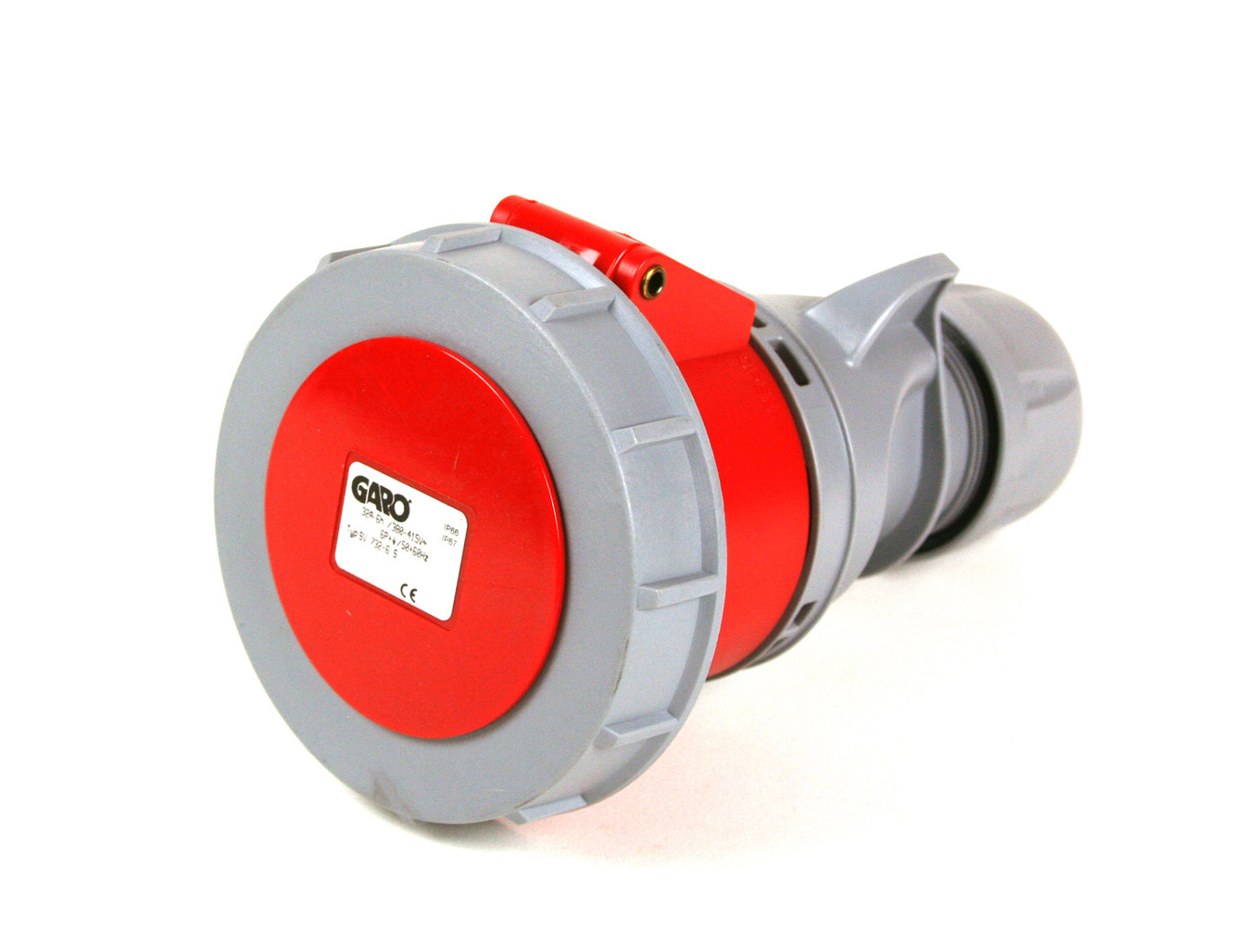

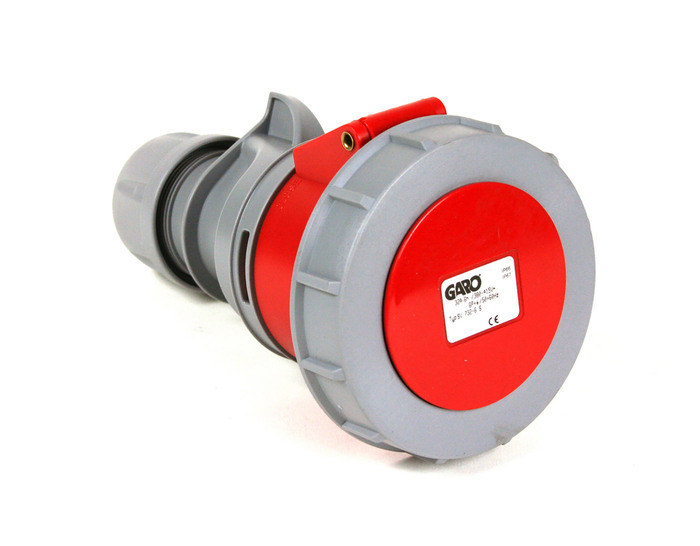

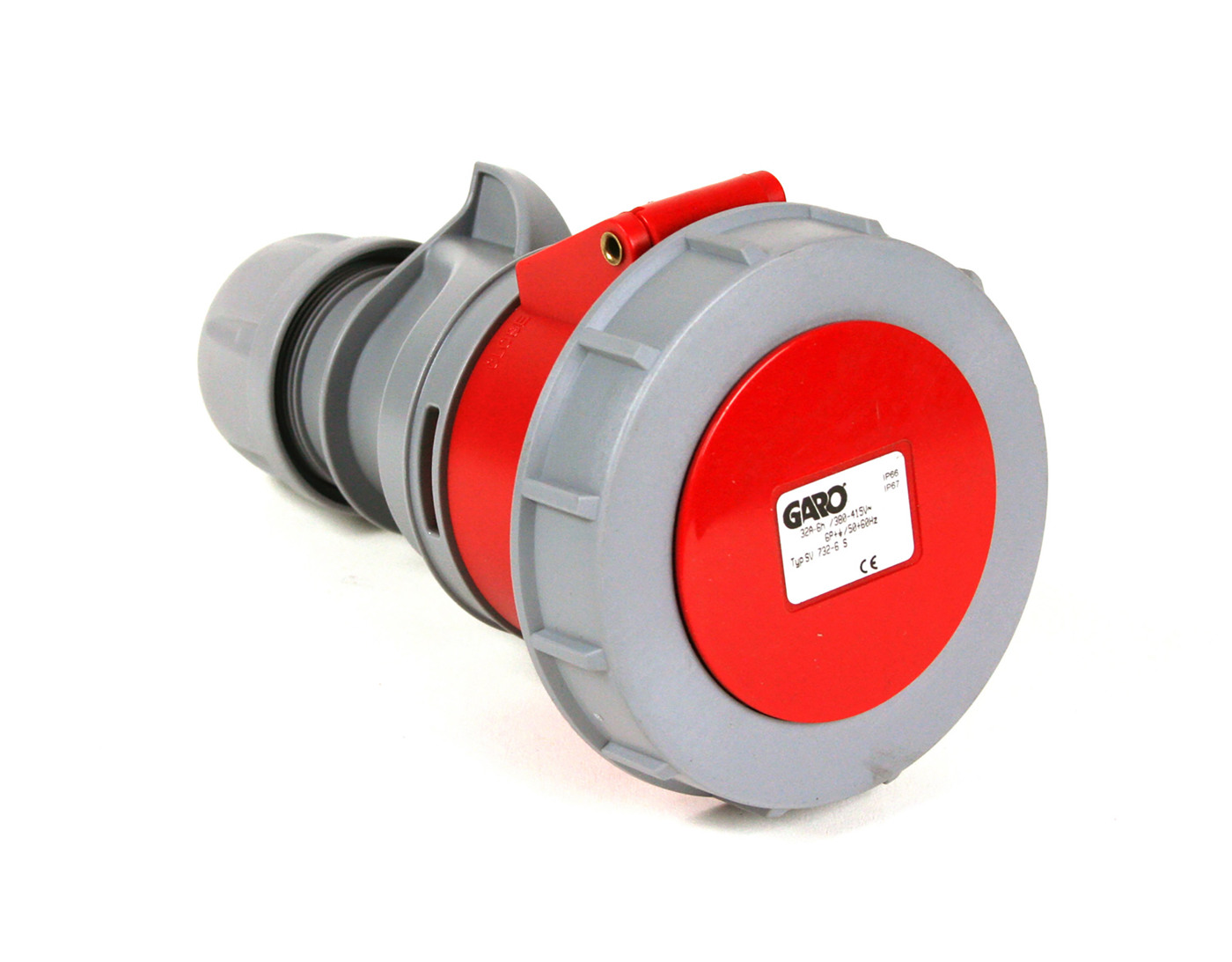

Connectors basic 16A IP67 7P
Connectors basic 16A IP67 7P Connectors basic 7-poles 16A 6h waterproof.
E-number
2425924
2425924
Article number
107763
107763
Type designation | SV 716-6S |
---|---|
Rated current [A] | 16 |
No.of Poles [pcs] | 7P |
Rated voltage [V AC] | 400 |
Frequency [Hz] | 50/60 |
Degree of protection [IP] | 67 |
Colour | Red |
Standard | Class 1 EN 60044-8 |
Width [mm] | 92 |
Height [mm] | 147 |
Depth [mm] | 92 |
Netweight [kg] | 0.25 |
Materials | Plastic |
Function | Basic |
Position of earth [h] | 6 |
RAL-nummer | RAL3000 |
Name | CONNECTORS WT 7P 16A 6h |
---|---|
E-number | 2425924 |
Article number | 107763 |
