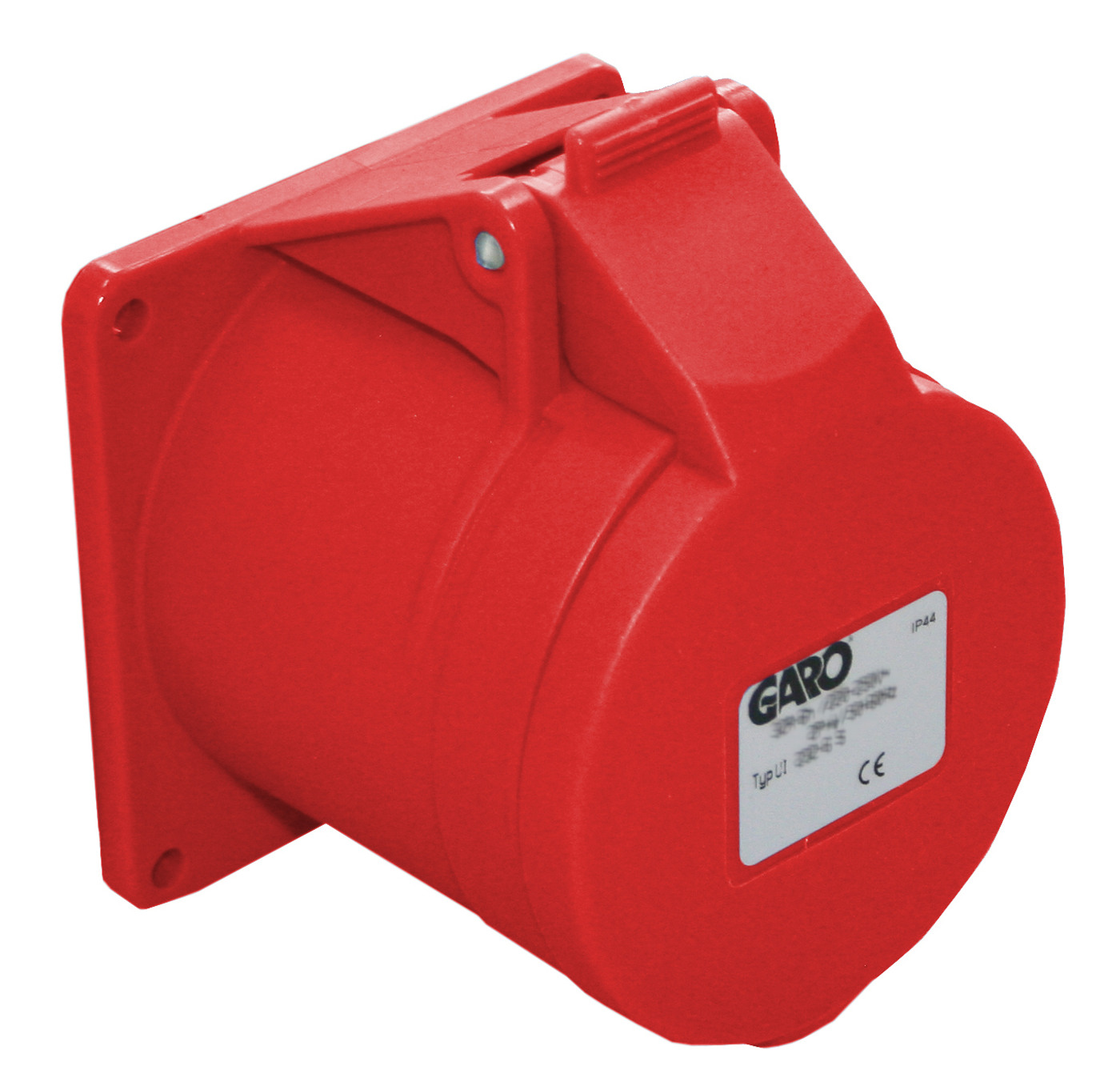

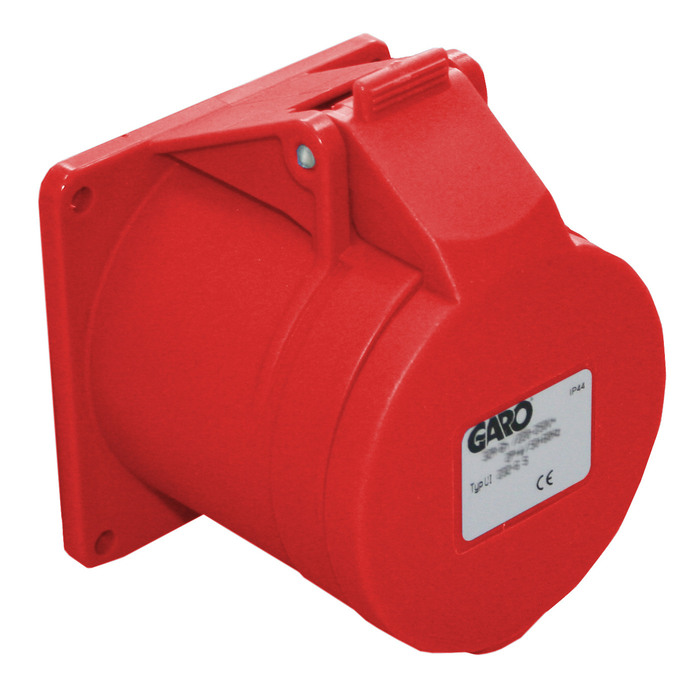

SOCKET STRAIGHT 3P 16A 9h

Flanged sockets Basic with straight mounting plate 16A IP44

Basic, our standard range with a screw function. Socket 16A for recess mounting with straight mounting plate. Socket straight basic 3-poles 16A 9h
E-number
2424895
Article number
2424895
Support
Wire flexible [mm²] 1-2,5
Rated current [A] 16
Degree of protection [IP] 44
Standard Class 1 EN 60044-8
Package size [pcs] 10
Width [mm] 70
Height [mm] 70
Depth [mm] 76
Materials Plastic
Location Recessed
Function Basic
Wire solid [mm²] 1-4
Name SOCKET STRAIGHT 3P 16A 9h
E-number 2424895
Article number 2424895
Type designation UI 216-9 S
Colour Red
Frequency [Hz] 50/60
Rated voltage [V AC] 380-415
Netweight [kg] 0.11
No.of Poles [pcs] 3/2P+E
Position of earth [h] 9
RAL-nummer RAL3000

More variants of Flanged sockets Basic with straight mounting plate 16A IP44

E-number Article number Type designation Colour Frequency [Hz] Rated voltage [V AC] Netweight [kg] No.of Poles [pcs] Position of earth [h] RAL-nummer
SOCKET STRAIGHT 3P 16A 2h 2424891 2424891 UI 216-2 S Green >300-500 >50 0.11 3/2P+E 2 RAL6010
SOCKET STRAIGHT 3P 16A 3h 2424892 2424892 UI 216-3 S Grey DC >50-250 0.11 3/2P+E 3 RAL7046
SOCKET STRAIGHT 3P 16A 4h 2424893 2424893 UI 216-4 S Yellow 50/60 100-130 0.11 3/2P+E 4 RAL1023
SOCKET STRAIGHT 3P 16A 6h 2424894 2424894 UI 216-6 S Blue 50/60 200-250 0.11 3/2P+E 6 RAL6003
SOCKET STRAIGHT 3P 16A 9h 2424895 2424895 UI 216-9 S Red 50/60 380-415 0.11 3/2P+E 9 RAL3000
SOCKET STRAIGHT 3P 16A 12h 2424896 2424896 UI 216-12 S Grey 50/60 Matning fr.isolertransf. 0.11 3/2P+E 12 RAL7046
SOCKET STRAIGHT 4P 16A 2h 2424897 2424897 UI 316-2 S Green >300-500 >50 0.13 4/3P+E 2 RAL6010
SOCKET STRAIGHT 4P 16A 3h 2424898 2424898 UI 316-3 S Red 50/60 380-440 0.13 4/3P+E 3 RAL3000
SOCKET STRAIGHT 4P 16A 4h 2424899 2424899 UI 316-4 S Yellow 50/60 100-130 0.13 4/3P+E 4 RAL1023
SOCKET STRAIGHT 4P 16A 6h 2424900 2424900 UI 316-6 S Red 50/60 400 0.13 4/3P+E 6 RAL3000
SOCKET STRAIGHT 4P 16A 7h 2424901 2424901 UI 316-7 S Black 50/60 480-500 0.13 4/3P+E 7 RAL9005
SOCKET STRAIGHT 4P 16A 9h 2424902 2424902 UI 316-9 S Blue 50/60 230 0.13 4/3P+E 9 RAL5017
SOCKET STRAIGHT 4P 16A 10h 2424903 2424903 UI 316-10 S Green 100-300 >50 0.13 4/3P+E 10 RAL6010
SOCKET STRAIGHT 4P 16A 11h 2424904 2424904 UI 316-11 S Red 60 440-460 0.13 4/3P+E 11 RAL3000
SOCKET STRAIGHT 5P 16A 2h 2424905 2424905 UI 416-2 S Green >300-500 >50 0.15 5/3PN+E 2 RAL6010
SOCKET STRAIGHT 5P 16A 3h 2424906 2424906 UI 416-3 S Red 50-60 380-440 0.15 5/3PN+E 3 RAL3000
SOCKET STRAIGHT 5P 16A 4h 2424907 2424907 UI 416-4 S Yellow 50/60 100-130 0.15 5/3PN+E 4 RAL1023
SOCKET STRAIGHT 5P 16A 5h 2424908 2424908 UI 416-5 S Black 50/60 600-690 0.15 5/3PN+E 5 RAL9005
SOCKET STRAIGHT 5P 16A 6h 2424909 2424909 UI 416-6 S Red 50-60 230-400 0.15 5/3PN+E 6 RAL3000
SOCKET STRAIGHT 5P 16A 7h 2424910 2424910 UI 416-7 S Black 50/60 480-500 0.15 5/3PN+E 7 RAL9005
SOCKET STRAIGHT 5P 16A 9h 2424911 2424911 UI 416-9 S Blue 50/60 208-250 0.15 5/3PN+E 9 RAL5017
SOCKET STRAIGHT 5P 16A 11h 2424912 2424912 UI 416-11 S Red 60 440-460 0.15 5/3PN+E 11 RAL3000
