SOCKET STRAIGHT 3P 16A 2h

Flanged sockets Basic Straight 16A IP44

Basic, our standard range with a screw function. Socket 16A for recess mounting with straight mounting plate Socket straight basic 3-poles 16A 2h
E-number
E2424891
Article number
2424891
Support
Housing material Plastic
Rated current [A] 16A
Wire flexible [mm²] 1-2,5mm²
Modelltype Basic
Wire solid [mm²] 1-4mm²
Degree of protection [IP] IP44
Name SOCKET STRAIGHT 3P 16A 2h
E-number E2424891
Article number 2424891
Type designation UI 216-2 S
Frequency [Hz] 300-500Hz
Color Green
Rated voltage [V AC] >50V AC
Number of poles 3/2P+E
RAL-number RAL6010
Clock hour position [h] 2h

More variants of Flanged sockets Basic Straight 16A IP44

E-number Article number Type designation Frequency [Hz] Color Rated voltage [V AC] Number of poles Lock RAL-number Clock hour position [h] Cable entry Phase inverter Angle of plug NetProductWeight EngineerWidth EngineerHeight EngineerDepth
SOCKET STRAIGHT 3P 16A 2h E2424891 2424891 UI 216-2 S 300-500Hz Green >50V AC 3/2P+E RAL6010 2h

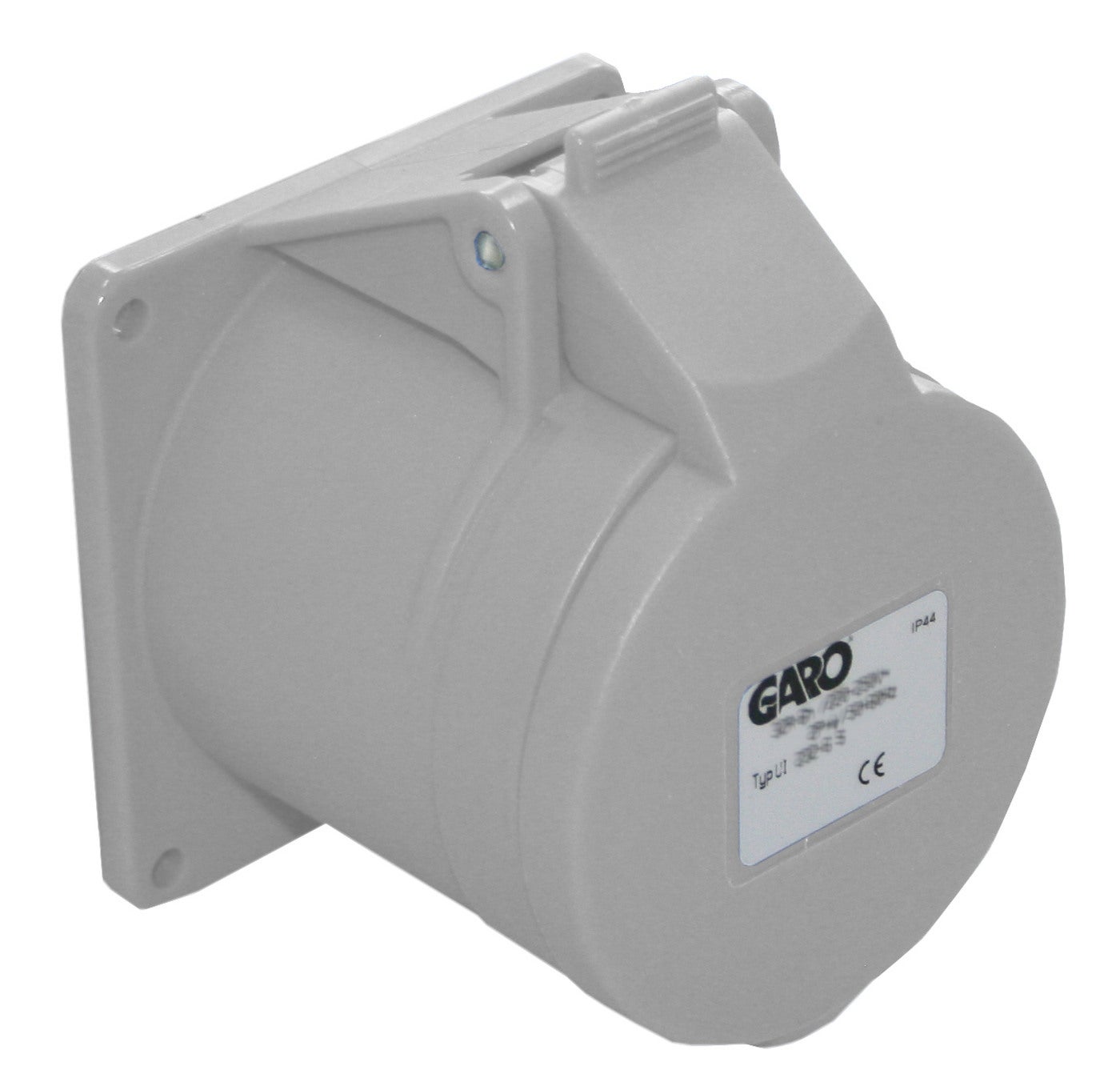

SOCKET STRAIGHT 3P 16A 3h E2424892 2424892 UI 216-3 S DC Grey >50-250V AC 3/2P+E RAL7046 3h

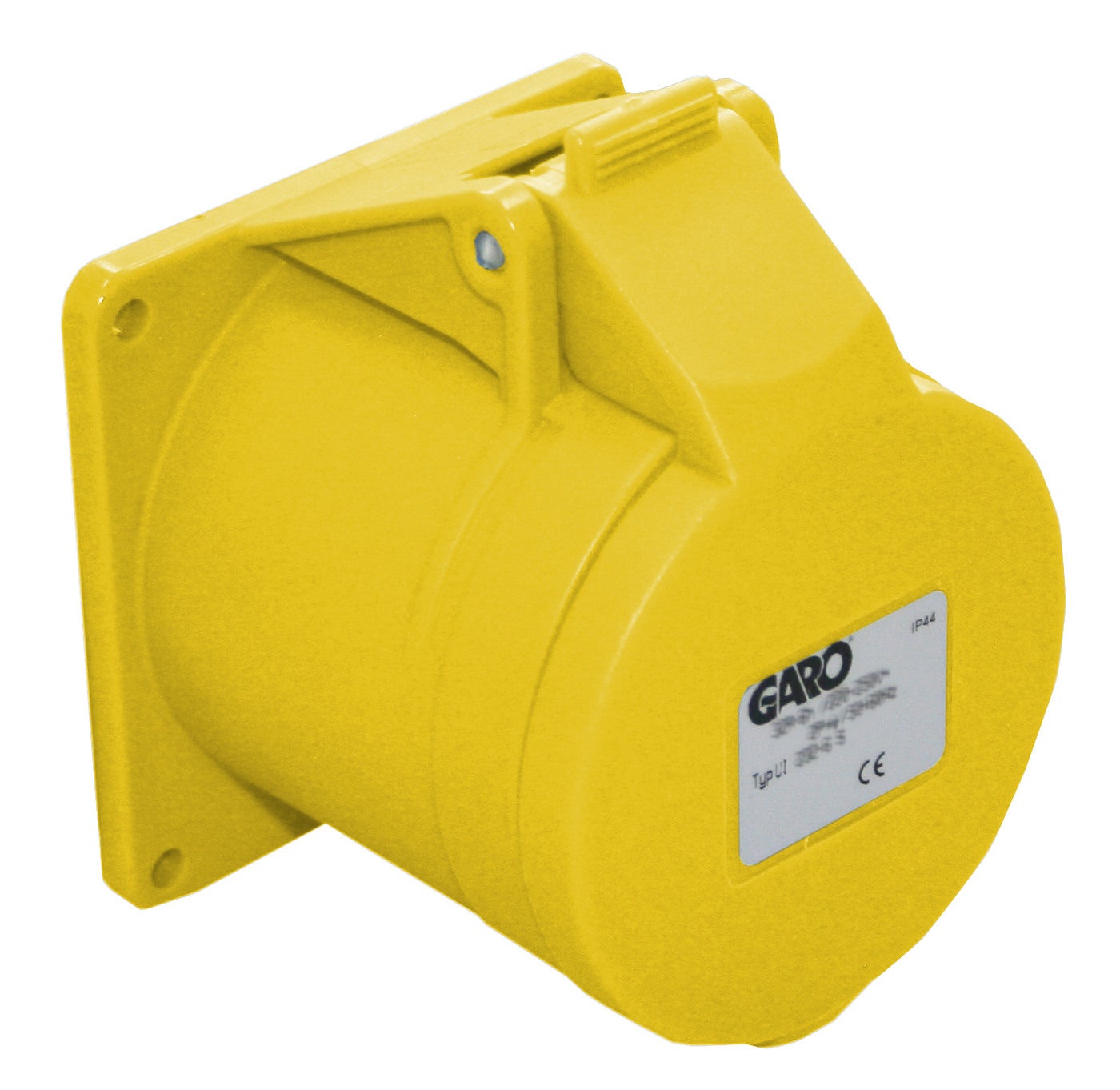

SOCKET STRAIGHT 3P 16A 4h E2424893 2424893 UI 216-4 S 50/60Hz Yellow 100-130V AC 3/2P+E RAL1023 4h
SOCKET STRAIGHT 3P 16A 6h E2424894 2424894 UI 216-6 S 50/60Hz Blue 200-250V AC 3/2P+E RAL6003 6h 0.11 190 140 290
SOCKET STRAIGHT 3P 16A 9h E2424895 2424895 UI 216-9 S 50/60Hz Red 380-415V AC 3/2P+E RAL3000 9h
SOCKET STRAIGHT 3P 16A 12h E2424896 2424896 UI 216-12 S 50/60Hz Grey After isolating transformerb 3/2P+E RAL7046 12h
SOCKET STRAIGHT 4P 16A 2h E2424897 2424897 UI 316-2 S 300-500Hz Green >50V AC 4/3P+E RAL6010 2h
SOCKET STRAIGHT 4P 16A 3h E2424898 2424898 UI 316-3 S 50/60Hz Red 380-440V AC 4/3P+E RAL3000 3h
SOCKET STRAIGHT 4P 16A 6h E2424900 2424900 UI 316-6 S 50/60Hz Red 400V AC 4/3P+E RAL3000 6h 0.13 190 140 290
SOCKET STRAIGHT 4P 16A 7h E2424901 2424901 UI 316-7 S 50/60Hz Black 480-500V AC 4/3P+E RAL9005 7h

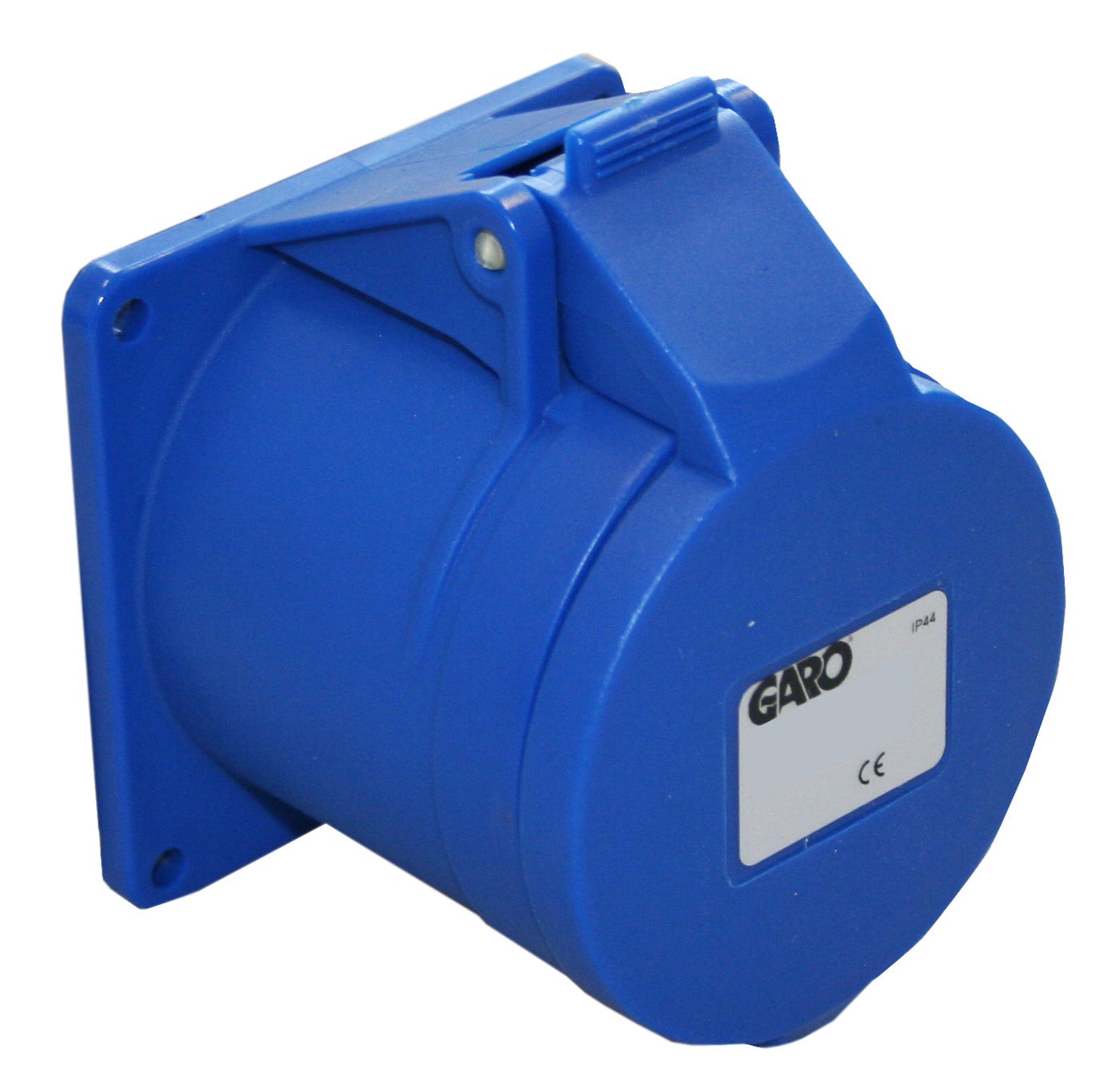

SOCKET STRAIGHT 4P 16A 9h E2424902 2424902 UI 316-9 S 50/60Hz Blue 230V AC 4 No 9h Angled No Straight 0.13 70 70 76
SOCKET STRAIGHT 4P 16A 10h E2424903 2424903 UI 316-10 S 100-300Hz Green >50V AC 4/3P+E RAL6010 10h
SOCKET STRAIGHT 5P 16A 2h E2424905 2424905 UI 416-2 S 300-500Hz Green >50V AC 5/3P+N+E RAL6010 2h
SOCKET STRAIGHT 5P 16A 4h E2424907 2424907 UI 416-4 S 50/60Hz Yellow 100-130V AC 5/3P+N+E RAL1023 4h

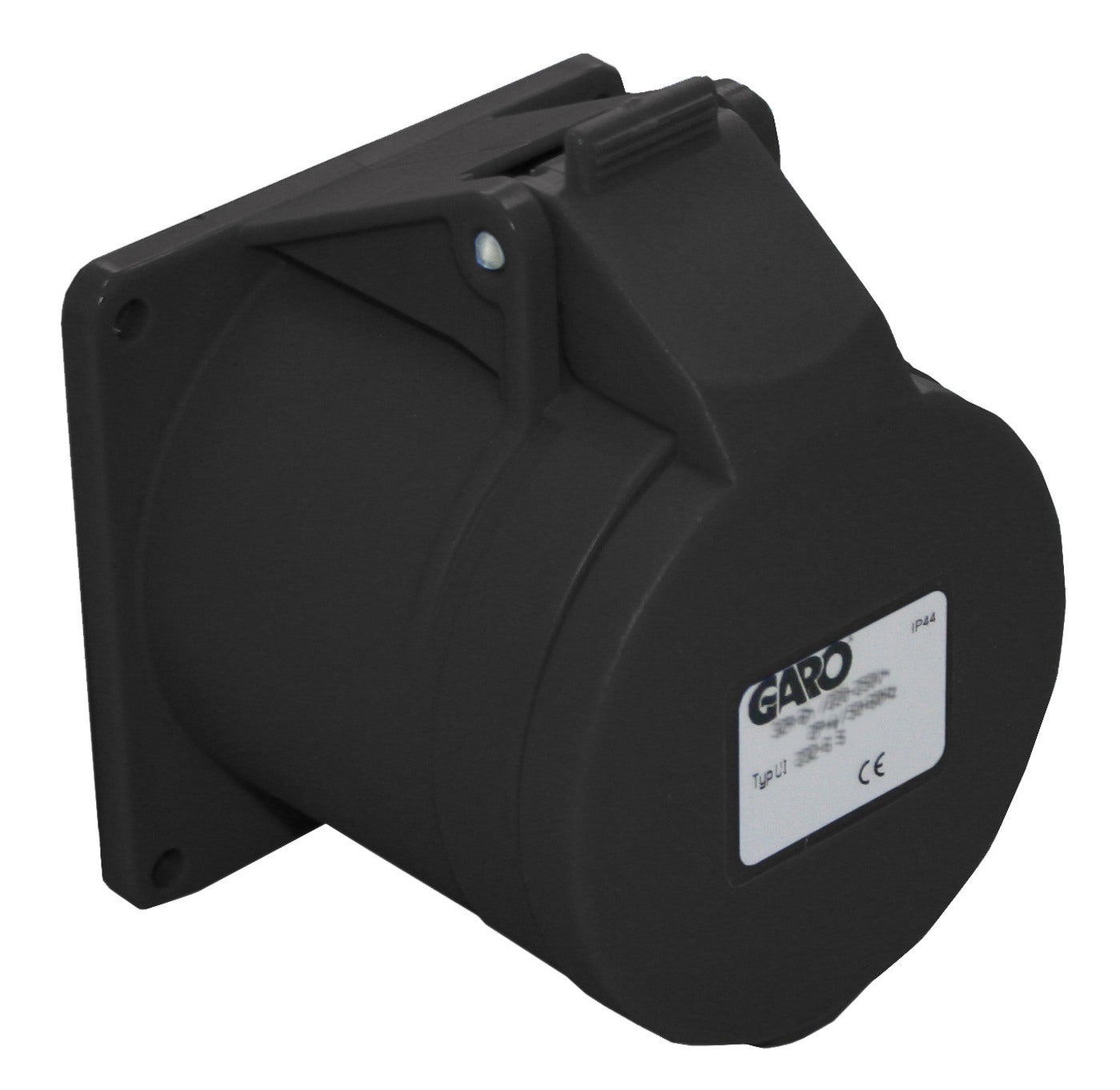

SOCKET STRAIGHT 5P 16A 5h E2424908 2424908 UI 416-5 S 50/60Hz Black 600-690V AC 5/3P+N+E RAL9005 5h
SOCKET STRAIGHT 5P 16A 6h E2424909 2424909 UI 416-6 S 50-60Hz Red 230-400V AC 5/3P+N+E RAL3000 6h 0.15 70 70 76
SOCKET STRAIGHT 5P 16A 7h E2424910 2424910 UI 416-7 S 50/60Hz Black 480-500V AC 5/3P+N+E RAL9005 7h
SOCKET STRAIGHT 5P 16A 9h E2424911 2424911 UI 416-9 S 50/60Hz Blue 208-250V AC 5/3P+N+E RAL5017 9h
SOCKET STRAIGHT 5P 16A 11h E2424912 2424912 UI 416-11 S 60Hz Red 440-460V AC 5/3P+N+E RAL3000 11h
