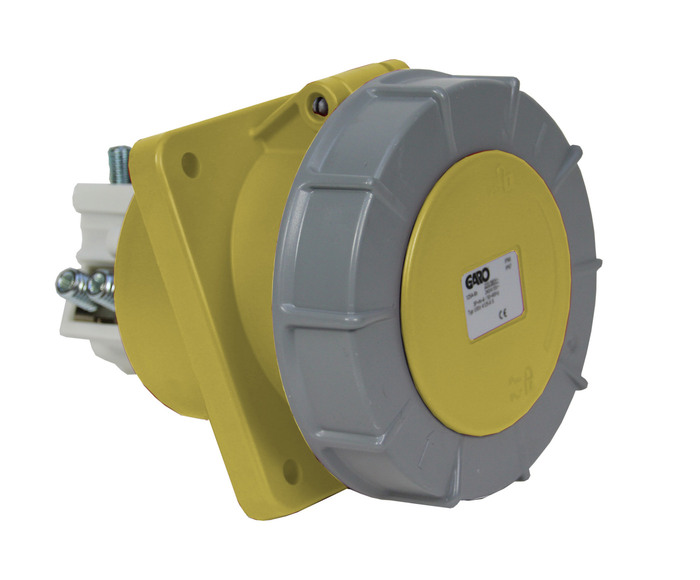

Flanged sockets Basic with sloping mounting plate 125A IP67

Basic, our standard range with a screw function. Socket 125A recess mounting with angled mounting plate in a waterproof design. Supplied including seal. Socket sloping basic watertight 4-poles 125A 4h
E-number
2425121
Article number
2425121
Wire flexible [mm²] 16-50
Rated current [A] 125
Degree of protection [IP] 67
Standard EN 60309-2
Package size [pcs] 2
Width [mm] 114
Height [mm] 114
Depth [mm] 169
Materials Plastic
Location Recessed
Function Basic
Wire solid [mm²] 16-70
Name SOCKET SLOPING WT 4P 125A 4h
E-number 2425121
Article number 2425121
Type designation UISV 3125-4 S
Colour Yellow
Frequency [Hz] 50/60
Rated voltage [V AC] 100-130
Netweight [kg] 0.97
No.of Poles [pcs] 4/3P+E
Position of earth [h] 4
RAL-nummer RAL1023

More variants of Flanged sockets Basic with sloping mounting plate 125A IP67

E-number Article number Type designation Colour Frequency [Hz] Rated voltage [V AC] Netweight [kg] No.of Poles [pcs] Position of earth [h] RAL-nummer
SOCKET SLOPING WT 3P 125A 4h 2425117 2425117 UISV 2125-4 S Yellow 50/60 100-130 0.87 3/2P+E 4 RAL1023
SOCKET SLOPING WT 3P 125A 6h 2425118 2425118 UISV 2125-6 S Blue 50/60 200-250 0.87 3/2P+E 6 RAL5017
SOCKET SLOPING WT 3P 125A 9h 2425119 2425119 UISV 2125-9 S Red 50/60 380-415 0.87 3/2P+E 9 RAL3000
SOCKET SLOPING WT 4P 125A 2h 2425120 2425120 UISV 3125-2 S Green >300-500 >50 0.97 4/3P+E 2 RAL6010
SOCKET SLOPING WT 4P 125A 4h 2425121 2425121 UISV 3125-4 S Yellow 50/60 100-130 0.97 4/3P+E 4 RAL1023
SOCKET SLOPING WT 4P 125A 6h 2425122 2425122 UISV 3125-6 S Red 50/60 400 0.97 4/3P+E 6 RAL3000
SOCKET SLOPING WT 4P 125A 7h 2425123 2425123 UISV 3125-7 S Black 50/60 480-500 0.97 4/3P+E 7 RAL9005
SOCKET SLOPING WT 4P 125A 9h 2425124 2425124 UISV 3125-9 S Blue 50/60 230 0.97 4/3P+E 9 RAL5017
SOCKET SLOPING WT 4P 125A 10h 2425125 2425125 UISV 3125-10 S Green 100-300 >50 0.97 4/3P+E 10 RAL6010
SOCKET SLOPING WT 4P 125A 11h 2425126 2425126 UISV 3125-11 S Red 60 440-460 0.97 4/3P+E 11 RAL3000
SOCKET SLOPING WT 5P 125A 4h 2425127 2425127 UISV 4125-4 S Yellow 50/60 100-130 1.05 5/3PN+E 4 RAL1023
SOCKET SLOPING WT 5P 125A 6h 2425128 2425128 UISV 4125-6 S Red 50/60 230/400 1.05 5/3PN+E 6 RAL3000
SOCKET SLOPING WT 5P 125A 9h 2425129 2425129 UISV 4125-9 S Blue 50/60 208-250 1.05 5/3PN+E 9 RAL5017
SOCKET SLOPING WT 5P 125A 11h 2425130 2425130 UISV 4125-11 S Red 60 440-460 1.05 5/3PN+E 11 RAL3000
