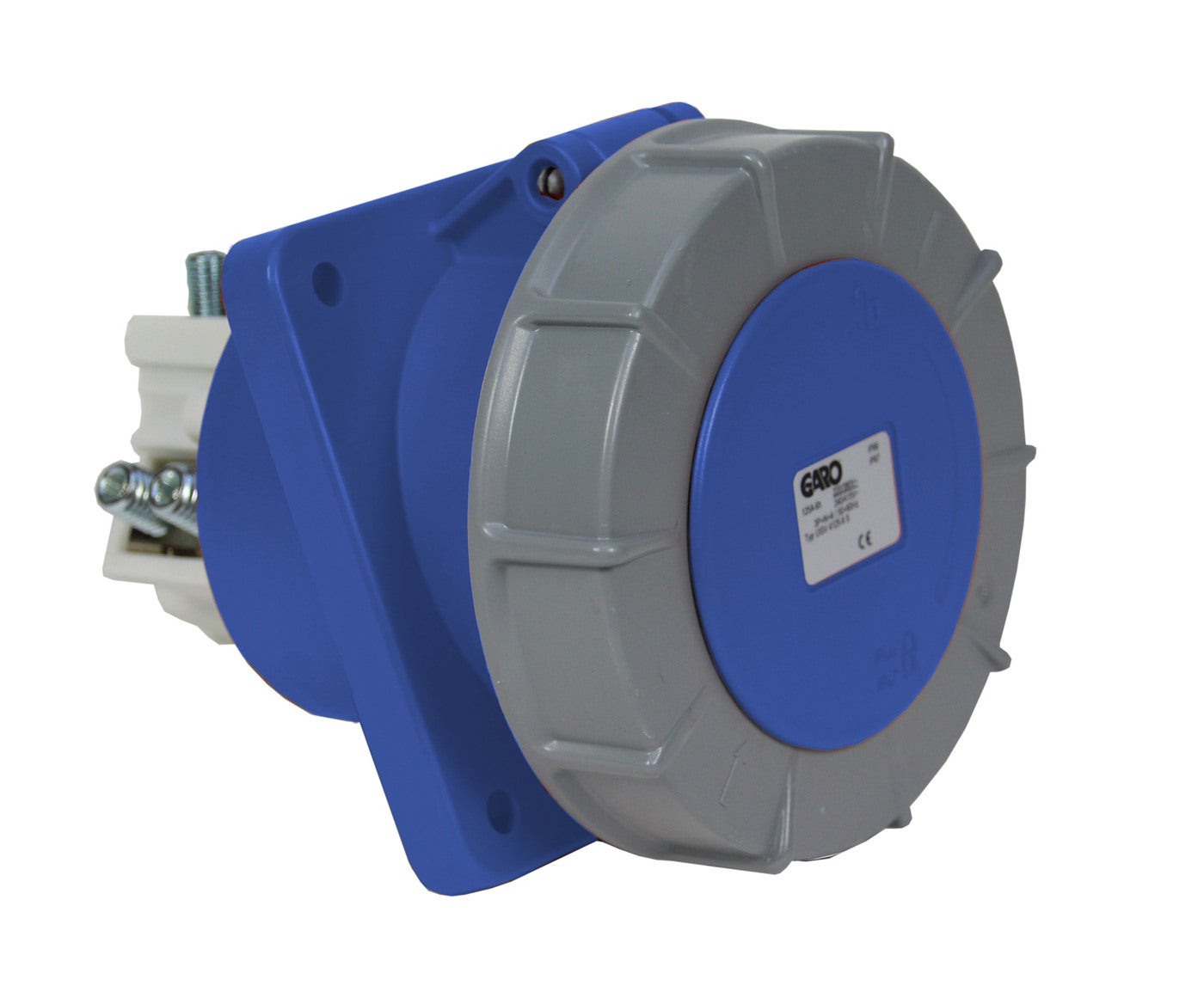

SOCKET SLOPING 3P 125A 6h WT

Flanged sockets Basic Sloping 125A IP67

Basic, our standard range with a screw function. Socket 125A recess mounting with angled mounting plate in a waterproof design. Supplied including seal. Socket sloping basic 3-poles 125A 6h watertight
E-number
E2425118
Article number
2425118
Support
Housing material Plastic
Rated current [A] 125A
Wire flexible [mm²] 16-50mm²
Modelltype Basic
Wire solid [mm²] 16-70mm²
Degree of protection [IP] IP67
Name SOCKET SLOPING 3P 125A 6h WT
E-number E2425118
Article number 2425118
Type designation UISV 2125-6 S
Frequency [Hz] 50/60Hz
Color Blue
Rated voltage [V AC] 200-250V AC
Number of poles 3/2P+E
RAL-number RAL5017
Clock hour position [h] 6h
NetProductWeight 0.87
EngineerWidth 190
EngineerHeight 140
EngineerDepth 290

More variants of Flanged sockets Basic Sloping 125A IP67

E-number Article number Type designation Frequency [Hz] Color Rated voltage [V AC] Number of poles RAL-number Clock hour position [h] NetProductWeight EngineerWidth EngineerHeight EngineerDepth
SOCKET SLOPING 3P 125A 6h WT E2425118 2425118 UISV 2125-6 S 50/60Hz Blue 200-250V AC 3/2P+E RAL5017 6h 0.87 190 140 290
SOCKET SLOPING 4P 125A 6h WT E2425122 2425122 UISV 3125-6 S 50/60Hz Red 400V AC 4/3P+E RAL3000 6h 0.97 190 140 290

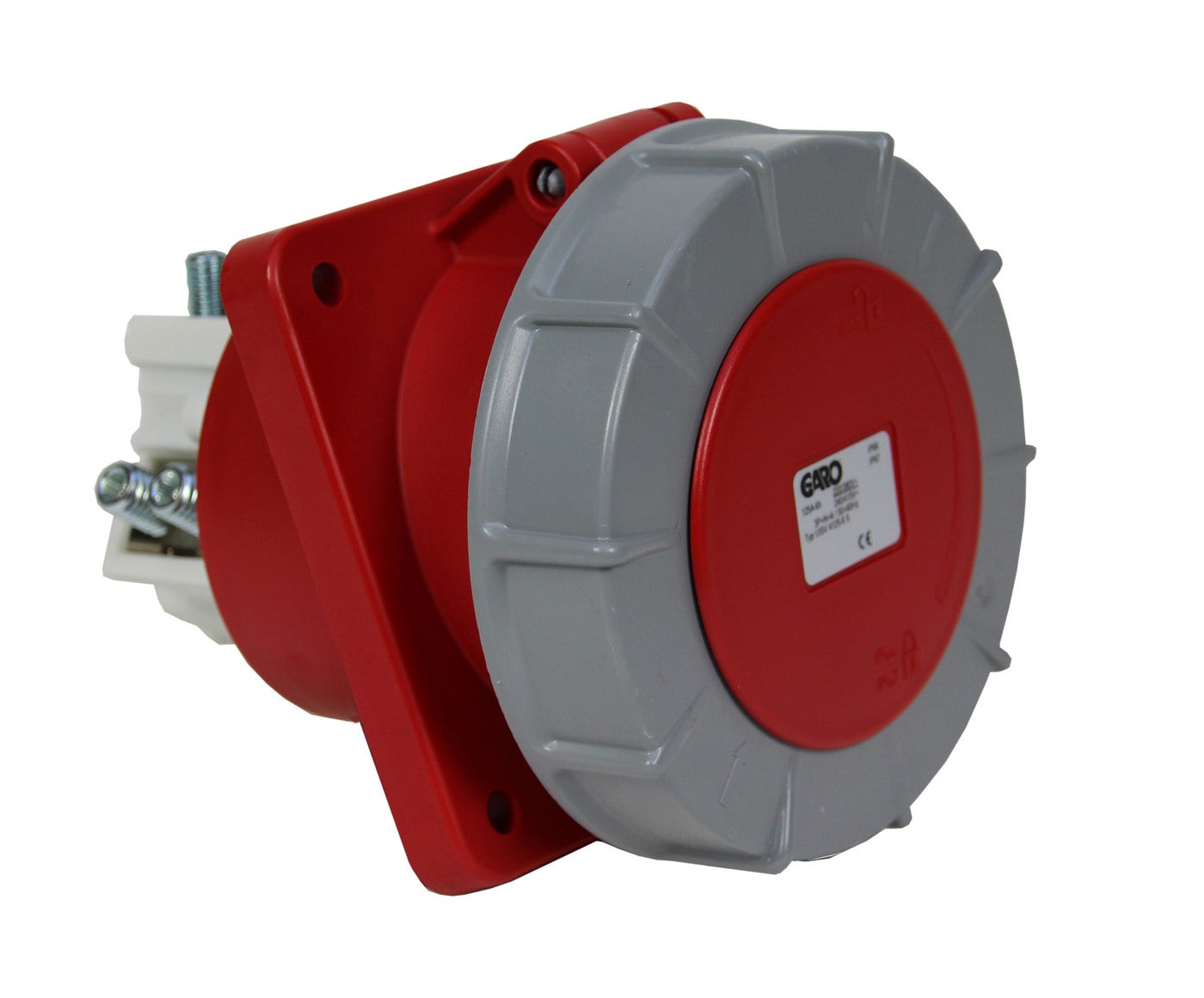

SOCKET SLOPING 5P 125A 6h WT E2425128 2425128 UISV 4125-6 S 50/60Hz Red 230/400V AC 5/3P+N+E RAL3000 6h 1.05 114 114 169
SOCKET SLOPING 5P 125A 11h WT E2425130 2425130 UISV 4125-11 S 60Hz Red 440-460V AC 5/3P+N+E RAL3000 11h
