Chargingunit Cable Entity Compact

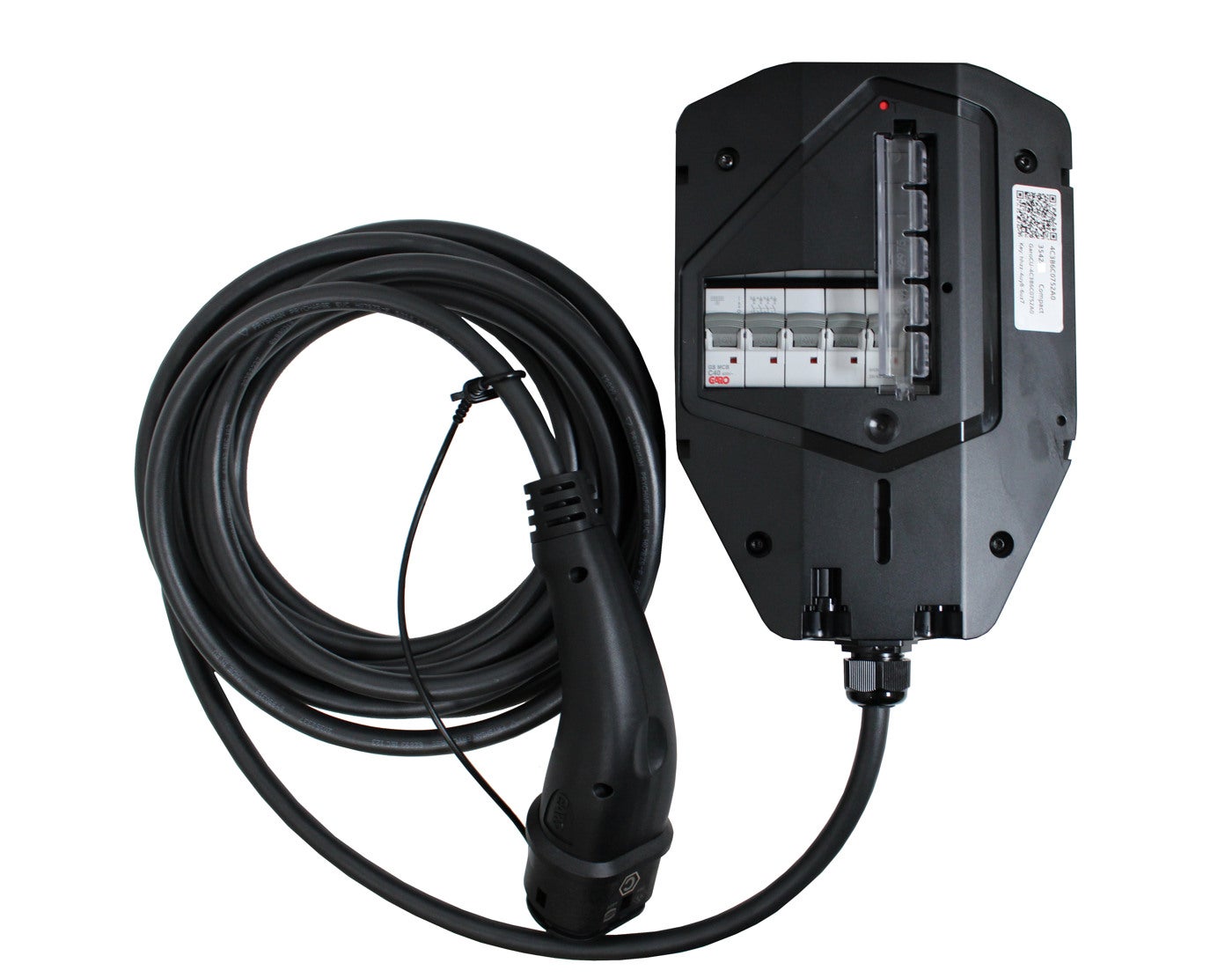

The charging unit is the component in the Entity family that determines the properties of the charger.The Entity Compact charging unit comes with a fixed cable available in various lengths. Integrated energymeter and fuse. Integrated residual current device (RCD) with an all-pole mechanical circuit breaker for AC and DC that meets all requirements. The wallboxes can communicate with each other over Ethernet or mesh Wi-Fi and are connected to internet using Ethernet, Wi-Fi or built in modem. Charging unit 22kW with fixed cable 5m 3x32A, modem and Simcard GARO Connect.
| Short-circuit current [kA] | 10kA |
|---|---|
| Storage temperature [C] | -40C...+40C |
| Operation Temperature [C] | -40C...+40C |
| Frequency [Hz] | 50Hz |
| Housing material | Plastic |
| Color | Black |
| Mounting method | Wall mounting |
| Lock | Yes |
| RAL-number | RAL9011 |
| Degree of protection [IP] | IP54 |
| EngineerWidth | 190 |
| Name | CHARGUNIT ENTITY COMPACT 22 5M |
|---|---|
| E-number | E2700820 |
| Article number | 354482 |
| Type designation | |
| Standard | EN61851.1, IEC62955, ISO15118 |
| Modelltype | Entity Compact |
| Energymeter | Built-in meter |
| Phases [PH] | 3PH |
| Length of cable [m] | 5m |
| AC/DC output 1 | Type 2 Cable Straight |
| Charging current [A] | 0-32 |
| Impact strength [IK] | IK10 |
| NetProductWeight | 4.6 |
| EngineerHeight | 264 |
| EngineerDepth | 96 |
