Chargingunit Cable Entity Compact

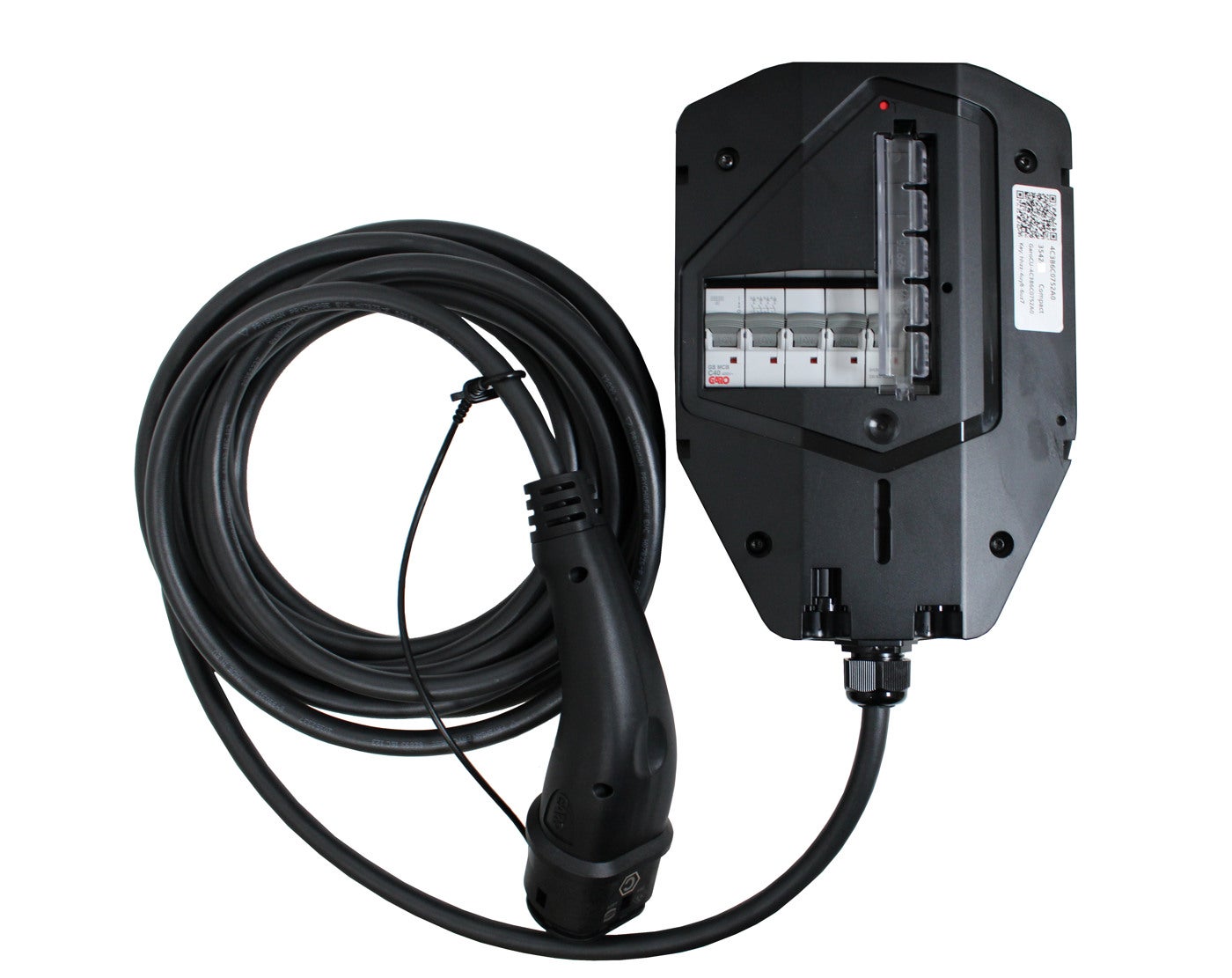

The charging unit is the component in the Entity family that determines the properties of the charger.The Entity Compact charging unit comes with a fixed cable available in various lengths. Integrated energymeter and fuse. Integrated residual current device (RCD) with an all-pole mechanical circuit breaker for AC and DC that meets all requirements. The wallboxes can communicate with each other over Ethernet or mesh Wi-Fi and are connected to internet using Ethernet, Wi-Fi or built in modem. Charging unit 14kW with fixed cable 8m 3x20A, modem and Simcard GARO Connect.
| Short-circuit current [kA] | 10kA |
|---|---|
| Storage temperature [C] | -40C...+40C |
| Operation Temperature [C] | -40C...+40C |
| Frequency [Hz] | 50Hz |
| Housing material | Plastic |
| Color | Black |
| Mounting method | Wall mounting |
| Lock | Yes |
| RAL-number | RAL9011 |
| Degree of protection [IP] | IP54 |
| EngineerWidth | 190 |
| Name | CHARGUNIT ENTITY COMPACT 14 8M |
|---|---|
| E-number | E2701032 |
| Article number | 354249 |
| Type designation | ECCUC80320FIGI |
| Standard | EN61851-1, IEC62955, IEC61439-7, EN61008-1, EN60898-1, ISO15118 |
| Rated current [A] | 20A |
| Rated voltage [V AC] | 230/400V AC |
| Modelltype | Entity Compact |
| Phases [PH] | 3PH |
| Length of cable [m] | 8m |
| AC/DC output 1 | Type 2 Cable Straight |
| Power per charging point [kW] | 13,9kW |
| Charging current [A] | 0-20 |
| NetProductWeight | 3.7 |
| EngineerHeight | 268 |
| EngineerDepth | 102 |
