Measurement devices flex wire 63A

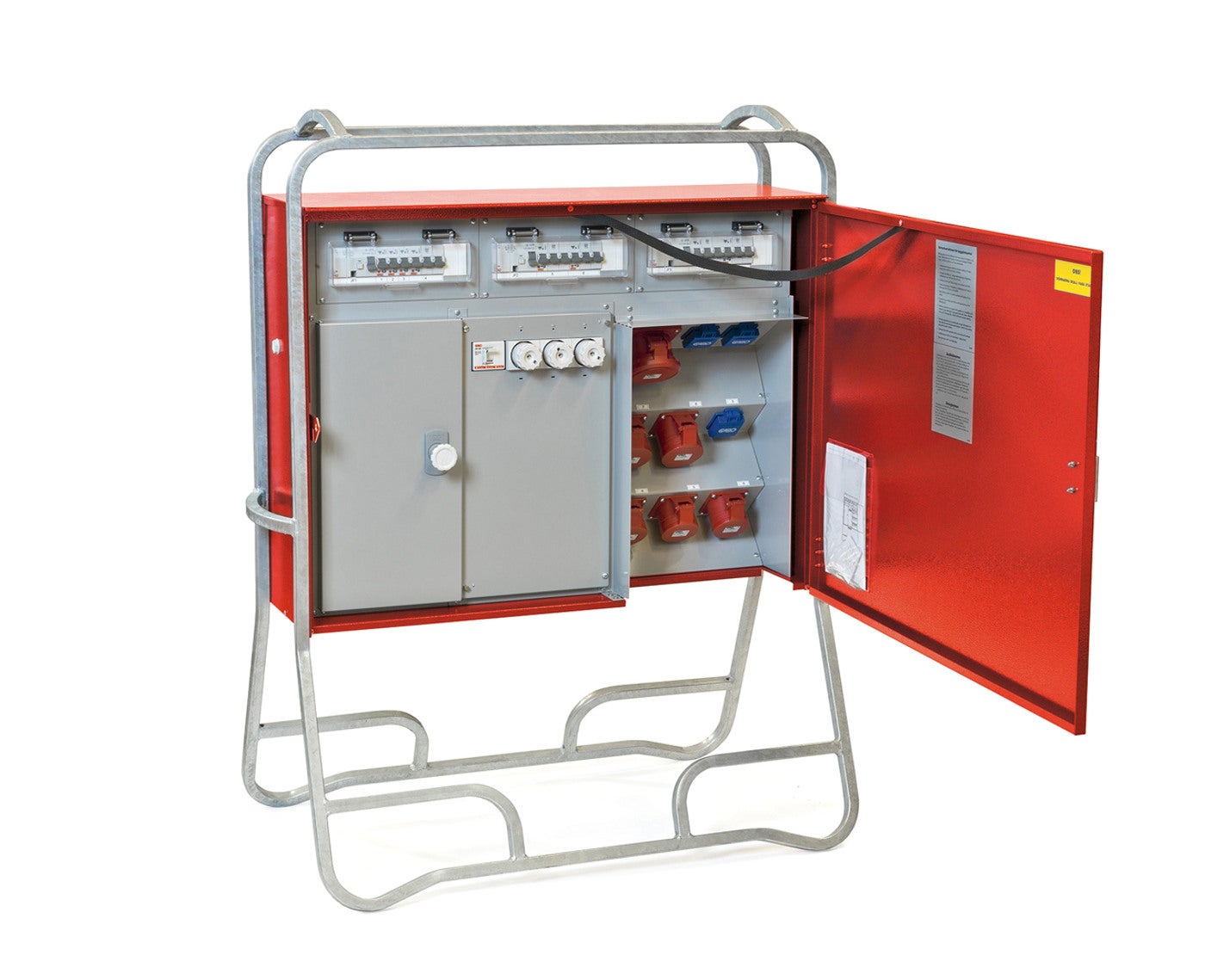

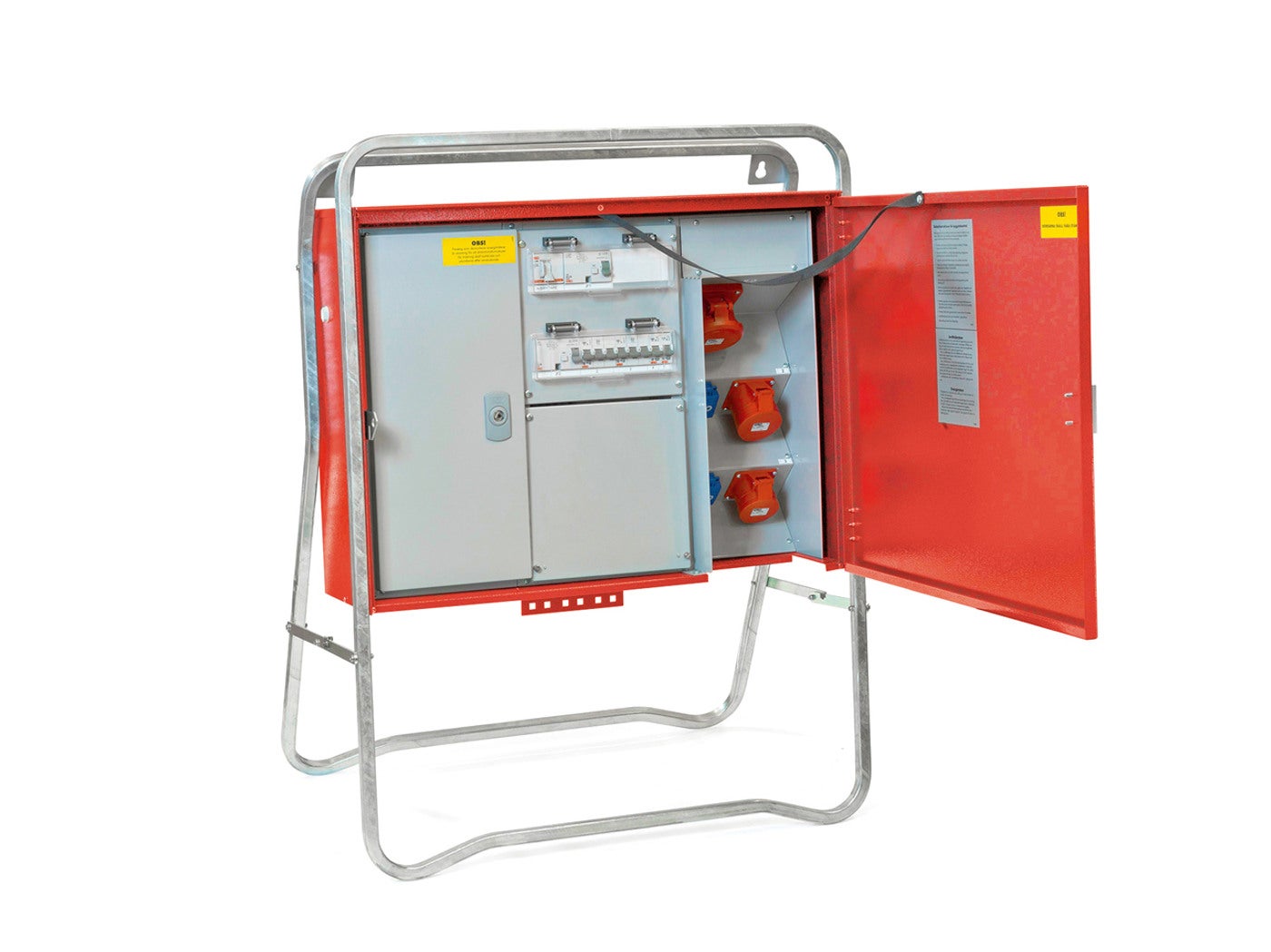

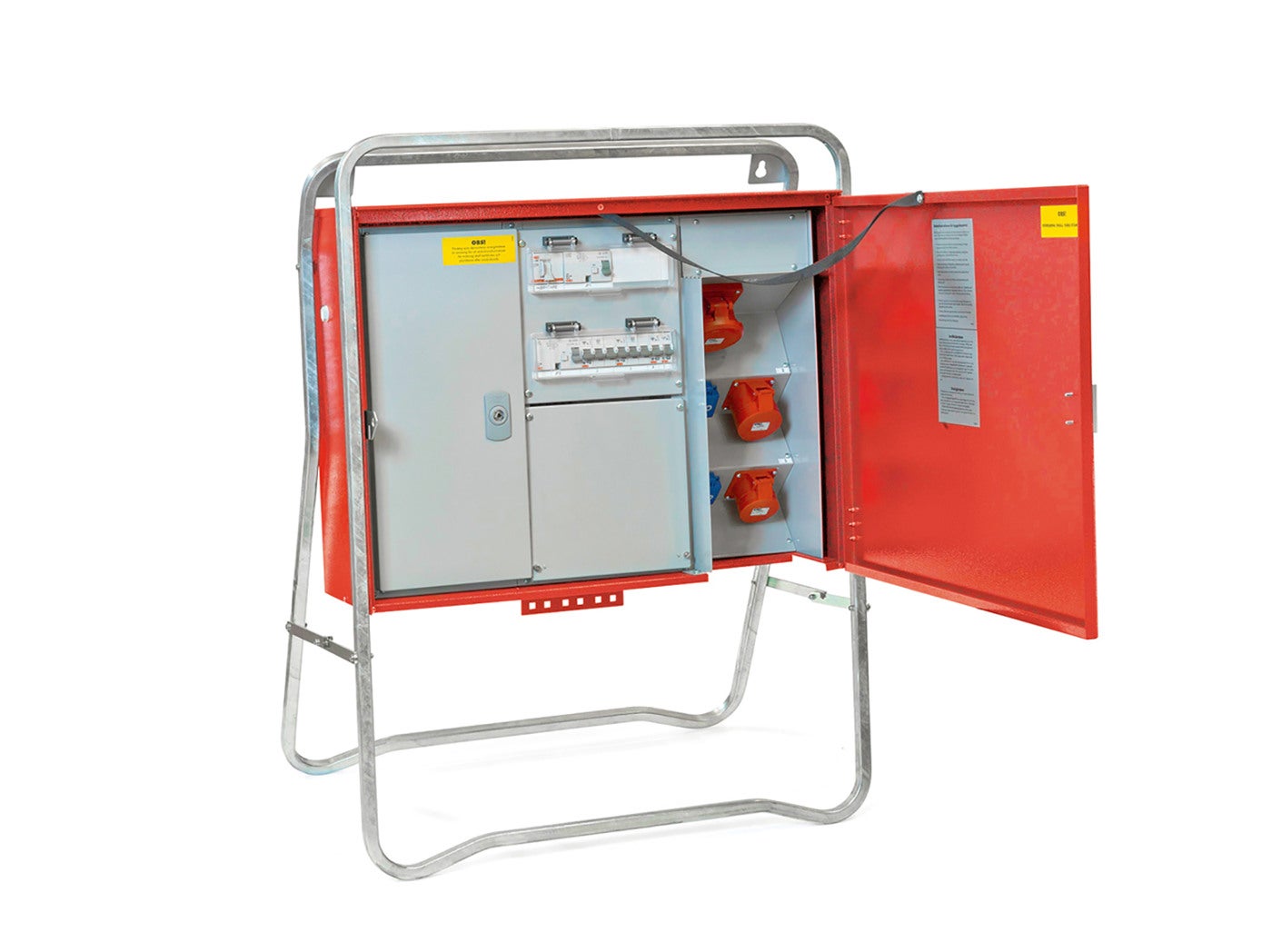

Mains distribution assembly 63A (HC63, HFC63) is normally used for the construction of terraced houses, apartment construction, events, etc. The distribution assembly is equipped with sockets 13-63A which are preceded by residual current devices and miniature circuit breakers. Some models are also equipped with output for onward feed of the earth cable (Type AKKJ) 16-95 mm². The distribution assemblies are equipped with a hot-dip galvanized stand and lockable door. Main distribution assembly 63A 2xRCCB 2xschuko 1x16A outlet 1x32A outlet 1x63A outlet
| Standard | EN61439-4 |
|---|---|
| Frequency [Hz] | 50Hz |
| Housing material | Sheet steel |
| Color | Red |
| Rated current [A] | 63A |
| Rated voltage [V AC] | 400V AC |
| Number of RCCB [pcs] 1 | 1pcs 4P 63A 300mA |
| CEE socket outlet 63A | 1pcs 5P 63A 230/400V |
| Space for meters [pcs] | 1 |
| Degree of protection [IP] | IP44 |
| Name | TEMP POWER MET UNIT 63A S |
|---|---|
| E-number | E2469021 |
| Article number | 2469021 |
| Type designation | ZSF GBN 63/00/11102-11 |
| Number of MCB 1P (1) | 2pcs C113 |
| Number of MCB 1P (2) | 1pcs C316 |
| Number of MCB 3P (1) | 1pcs C332 |
| Number of Schuko[pcs] | 2pcs |
| CEE socket outlet 32A | 1pcs 5P 32A 230/400V |
| NetProductWeight | 48 |
| EngineerWidth | 790 |
| EngineerHeight | 1100 |
| EngineerDepth | 545 |
