Safety switches metal

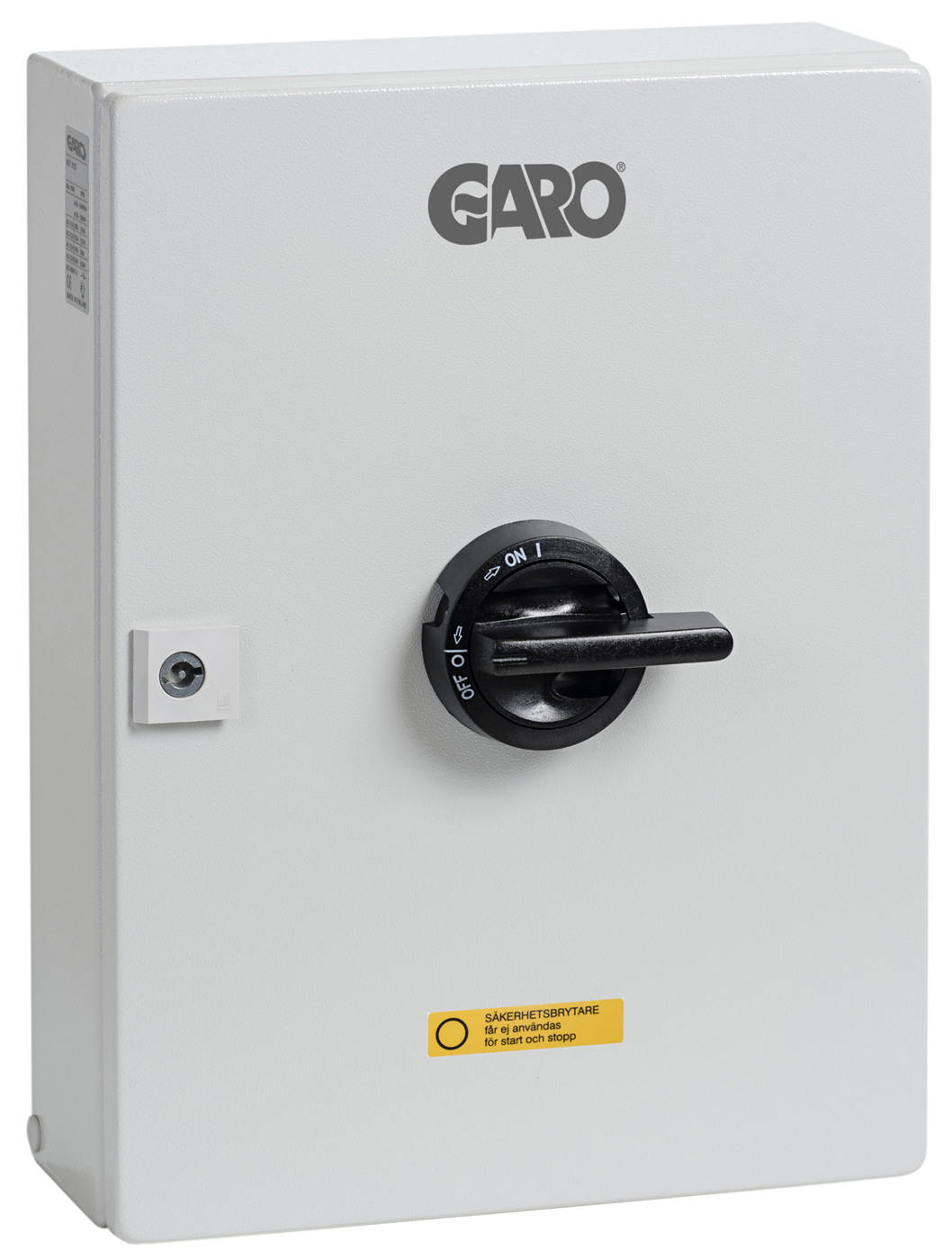

Safety switches metal Safety switch 3-pole 80A made of sheet steel. IP65
E-number
3134189
Article number
107613
Degree of protection [IP] 65
Colour RAL7035 Grey
Standard EN 60947-3
Materials Sheet metal
No.of Poles [pcs] 3
Auxiliary contact Yes
Name SAFETY SW 3P 80A M
E-number 3134189
Article number 107613
Type designation GKUT380T1V
Netweight [kg] 7.50
Width [mm] 300
Height [mm] 400
Depth [mm] 161
Rated current AC23 400V [A] 80
Connection N & phase Cu [mm²] 70
Connection PE [pcs] [mm²] 70
Glands 2xM40+M16
Max connection area 70
kW 45
Isolation voltage [V] 690

More variants of Safety switches metal

E-number Article number Type designation Netweight [kg] Width [mm] Height [mm] Depth [mm] Rated current AC23 400V [A] Connection N & phase Cu [mm²] Connection PE [pcs] [mm²] Glands Max connection area kW Connection Al [mm²] Isolation voltage [V]
SAFETY SW 3P 80A M 3134189 107613 GKUT380T1V 7.50 300 400 161 80 70 70 2xM40+M16 70 45 690
SAFETY SW 3P 125A M 3134190 107614 GKUT3125AVT1V 8.50 300 400 161 125 70 2xM63+M16 120 55 120 400
SAFETY SW 3P 250A M 3134191 107615 GKUT3250AVT1V 21.50 380 600 270 250 70-185 1xKF221-56+M16 240 132 240 1000
SAFETY SW 3P 400A M 3134192 107616 GKUT3400AVT1V 44.10 600 800 310 400 70-185 2xKF221-56+M16 2x240 200 2x240 1000
SAFETY SW 3P 630A M 3134193 107617 GKUT3630VT1V 45.40 600 800 310 630 70-185 2xKF221-56+M16 2x240 355 2x240 1000
