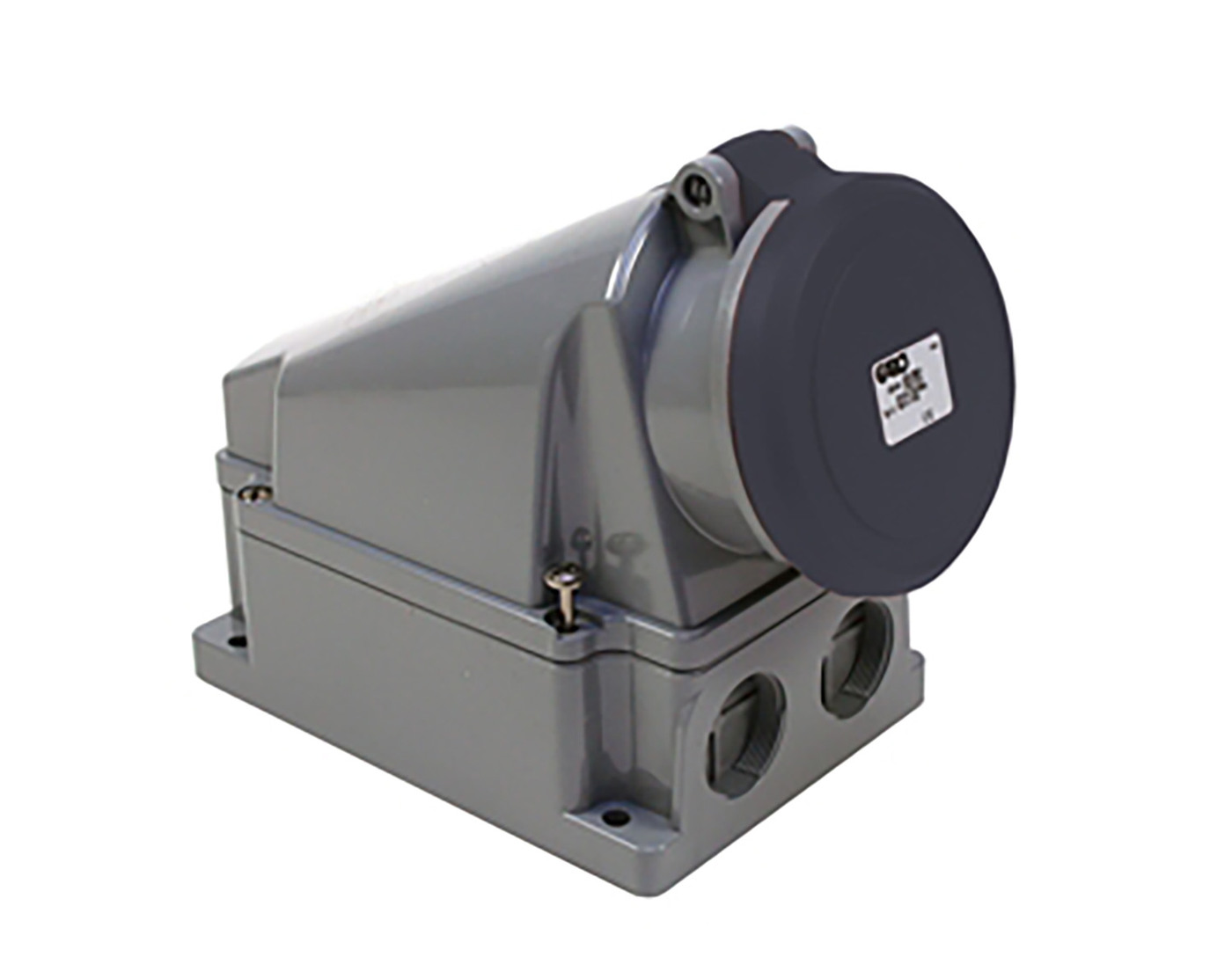

WALL SOCKET 5P 63A 7h

Sockets wallmounting Basic 63A IP44

Basic, our standard range with a screw function. Socket 63A in waterproof design, suitable for wall mounting and engine mounting with cable connectivity from the bottom. Wall socket basic 5-poles 63A 7h.
E-number
2424829
Article number
2424829
Support
Rated current [A] 63
Degree of protection [IP] 44
Wire flexible [mm²] 6-16
Standard Class 1 EN 60044-8
Package size [pcs] 2
Width [mm] 118
Height [mm] 213
Depth [mm] 173
Materials Plastic
Location Surface
Function Basic
Wire solid [mm²] 6-25
Name WALL SOCKET 5P 63A 7h
E-number 2424829
Article number 2424829
Type designation UI 463-7 S+RU
No.of Poles [pcs] 5/3PN+E
Rated voltage [V AC] 480-500
Frequency [Hz] 50/60
Colour Black
Netweight [kg] 0.94
Position of earth [h] 7
RAL-nummer RAL9005

Instruction Sheet

More variants of Sockets wallmounting Basic 63A IP44

E-number Article number Type designation No.of Poles [pcs] Rated voltage [V AC] Frequency [Hz] Colour Netweight [kg] Position of earth [h] RAL-nummer
WALL SOCKET 3P 63A 4h 2424815 2424815 UI 263-4 S+RU 3/2P+E 100-130 50/60 Yellow 0.83 4 RAL1023
WALL SOCKET 3P 63A 6h 2424816 2424816 UI 263-6 S+RU 3/2P+E 200-250 50/60 Blue 0.83 6 RAL5017
WALL SOCKET 3P 63A 9h 2424817 2424817 UI 263-9 S+RU 3/2P+E 380-415 50/60 Red 0.83 9 RAL3000
WALL SOCKET 3P 63A 12h 2424818 2424818 UI 263-12 S+RU 3/2P+E Matning fr.isolertransf. 50/60 Grey 0.83 12 RAL7046
WALL SOCKET 4P 63A 4h 2424819 2424819 UI 363-4 S+RU 4/3P+E 100-130 50/60 Yellow 0.87 4 RAL1023
WALL SOCKET 4P 63A 6h 2424820 2424820 UI 363-6 S+RU 4/3P+E 400 50/60 Red 0.87 6 RAL3000
WALL SOCKET 4P 63A 7h 2424821 2424821 UI 363-7 S+RU 4/3P+E 480-500 50/60 Black 0.87 7 RAL9005
WALL SOCKET 4P 63A 9h 2424822 2424822 UI 363-9 S+RU 4/3P+E 230 50/60 Blue 0.87 9 RAL5017
WALL SOCKET 4P 63A 10h 2424823 2424823 UI 363-10 S+RU 4/3P+E >50 100-300 Green 0.87 10 RAL6010
WALL SOCKET 4P 63A 11h 2424824 2424824 UI 363-11 S+RU 4/3P+E 440-460 60 Red 0.87 11 RAL3000
WALL SOCKET 5P 63A 2h 2424825 2424825 UI 463-2 S+RU 5/3PN+E >50 >300-500 Green 0.94 2 RAL6010
WALL SOCKET 5P 63A 4h 2424826 2424826 UI 463-4 S+RU 5/3PN+E 100-130 50/60 Yellow 0.94 4 RAL1023
WALL SOCKET 5P 63A 5h 2424827 2424827 UI 463-5S+RU 5/3PN+E 600-690 50/60 Black 0.94 5 RAL9005
WALL SOCKET 5P 63A 6h 2424828 2424828 UI 463-6 S+RU 5/3PN+E 230/400 50/60 Red 0.94 6 RAL3000
WALL SOCKET 5P 63A 7h 2424829 2424829 UI 463-7 S+RU 5/3PN+E 480-500 50/60 Black 0.94 7 RAL9005
WALL SOCKET 5P 63A 9h 2424830 2424830 UI 463-9 S+RU 5/3PN+E 208-250 50/60 Blue 0.94 9 RAL5017
WALL SOCKET 5P 63A 11h 2424831 2424831 UI 463-11 S+RU 5/3PN+E 440-460 60 Red 0.94 11 RAL3000
