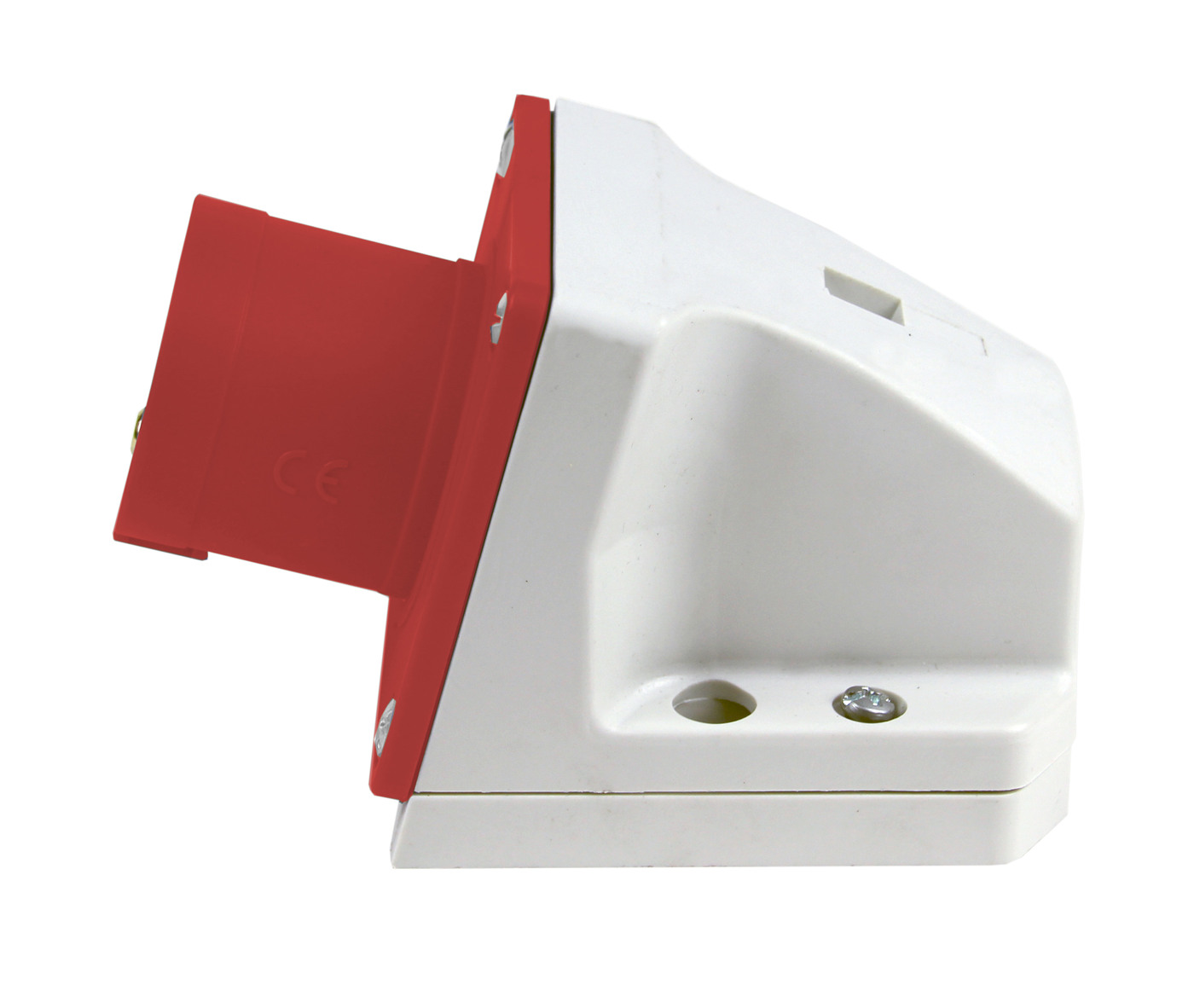

Inlet wallmounted Quick 32A IP44

Quick, our screwless range with quick connections that require no tools, just a simple push of the thumb. Wall socket 32A suitable for wall mounting and engine mounting with cable connectivity from both the top and bottom. Wall inlet quick conection 4-poles 32A 6h
E-number
2425639
Article number
2425639
Rated current [A] 32
Degree of protection [IP] 44
Wire flexible [mm²] 2,5-6
Package size [pcs] 10
Width [mm] 70.50
Netweight [kg] 0.28
Materials Plastic
Location Surface
Function Quick
Wire solid [mm²] 2,5-10
Name WALL INLET TT 4P 32A 6h
E-number 2425639
Article number 2425639
Type designation II 432-6 Q+RI
No.of Poles [pcs] 5/3PN+E
Rated voltage [V AC] 230/400
Frequency [Hz] 50/60
Colour Red
Height [mm] 132
Depth [mm] 85
Position of earth [h] 6
RAL-nummer RAL3000

More variants of Inlet wallmounted Quick 32A IP44

E-number Article number Type designation No.of Poles [pcs] Rated voltage [V AC] Frequency [Hz] Colour Height [mm] Depth [mm] Position of earth [h] RAL-nummer
WALL INLET TT 3P 32A 2h 2425627 2425627 II 332-2 Q+RI 4/3P+E >50 >300-500 Green 131 82 2 RAL6010
WALL INLET TT 3P 32A 3h 2425628 2425628 II 332-3 Q+RI 4/3P+E 380-440 50/60 Red 131 82 3 RAL3000
WALL INLET TT 3P 32A 4h 2425629 2425629 II 332-4 Q+RI 4/3P+E 100-130 50/60 Yellow 131 82 4 RAL1023
WALL INLET TT 3P 32A 6h 2425630 2425630 II 332-6 Q+RI 4/3P+E 400 50/60 Red 131 82 6 RAL3000
WALL INLET TT 3P 32A 7h 2425631 2425631 II 332-7 Q+RI 4/3P+E 480-500 50/60 Black 131 82 7 RAL9005
WALL INLET TT 3P 32A 9h 2425632 2425632 II 332-9 Q+RI 4/3P+E 230 50/60 Blue 131 82 9 RAL5017
WALL INLET TT 3P 32A 10h 2425633 2425633 II 332-10 Q+RI 4/3P+E >50 100-300 Green 131 82 10 RAL6010
WALL INLET TT 3P 32A 11h 2425634 2425634 II 332-11 Q+RI 4/3P+E 440-460 60 Red 131 82 11 RAL3000
WALL INLET TT 4P 32A 2h 2425635 2425635 II 432-2 Q+RI 5/3PN+E >50 >300-500 Green 132 85 2 RAL6010
WALL INLET TT 4P 32A 3h 2425636 2425636 II 432-3 Q+RI 5/3PN+E 380-440 50-60 Red 132 85 3 RAL3000
WALL INLET TT 4P 32A 4h 2425637 2425637 II 432-4 Q+RI 5/3PN+E 100-130 50/60 Yellow 132 85 4 RAL1023
WALL INLET TT 4P 32A 5h 2425638 2425638 II 432-5 Q+RI 5/3PN+E 600-690 50/60 Black 132 85 5 RAL9005
WALL INLET TT 4P 32A 6h 2425639 2425639 II 432-6 Q+RI 5/3PN+E 230/400 50/60 Red 132 85 6 RAL3000
WALL INLET TT 4P 32A 7h 2425640 2425640 II 432-7 Q+RI 5/3PN+E 480-500 50/60 Black 132 85 7 RAL9005
WALL INLET TT 4P 32A 9h 2425641 2425641 II 432-9 Q+RI 5/3PN+E 208-250 50/60 Blue 132 85 9 RAL5017
WALL INLET TT 4P 32A 11h 2425642 2425642 II 432-11 Q+RI 5/3PN+E 440-460 60 Red 132 85 11 RAL3000
