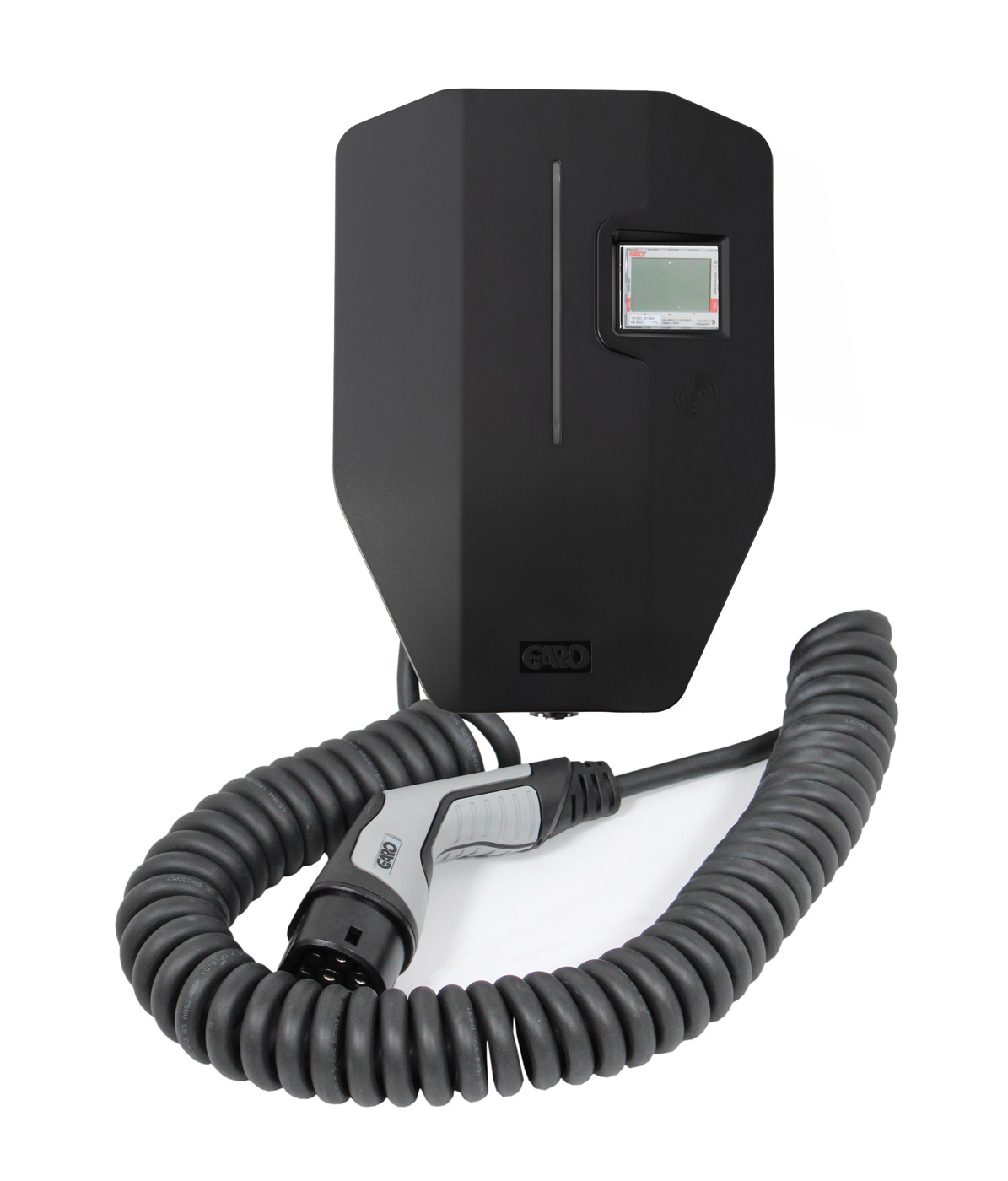

WALLBOX ENTITY PRO 14MID H5M

Entity PRO Wallbox

Entity PRO complete wallbox with following components: An installation bracket, a charging unit and a front panel. Available for purchase in a single or dual version. Entity PRO comes with a fixed cable available in various lengths or an outlet. Built-in Energymeter or visible MID meter. Integrated residual current device (RCD) with an all-pole mechanical circuit breaker for AC and DC that meets all requirements. The wallboxes can communicate with each other over Ethernet or mesh Wi-Fi and the internet over LTE CAT M1, Ethernet or Wi-Fi. NB: Complete wallbox. Charging station Entity Pro 14kW fixed cable helix 5meter, , phasebalancing, visible meter MID and SIM for Garo Connect
E-number
2701052
Article number
354457
Support
Materials Plastic
Colour Black
Rated voltage [V AC] 230/400
Package size [pcs] 1
Standard EN61851-1, IEC62955, IEC61439-7, EN61008-1, EN60898-1, ISO15118
Frequency [Hz] 50
Temperature range [C] -40C...+40C
Mounting method Wall mounting
Degree of protection [IP] 54
Storage temperature [C] -40C...+40C
Phases 3
RFID Yes
Impact strength IK10
Locks Yes
Short-circuit current [kA] 10
RAL-nummer RAL9011
Name WALLBOX ENTITY PRO 14MID H5M
E-number 2701052
Article number 354457
Type designation EPCSH50320SVGI
Rated current [A] 20
Meter Visible meter
AC/DC output Type2 fixed cable
Cable [m] 5
Netweight [kg] 5.50
Width [mm] 240
Height [mm] 340
Depth [mm] 150
RCCB/RCBO Yes
Charging current [A] 0-20
Effekt [kW] 14

Instruction Sheet

Manual

Product sheet

More variants of Entity PRO Wallbox

E-number Article number Type designation Rated current [A] Meter AC/DC output AC/DC output Cable [m] Netweight [kg] Width [mm] Height [mm] Depth [mm] RCCB/RCBO Charging current [A] Effekt [kW]
WALLBOX ENTITY PRO 22 2701000 354200 EPCSO00332SIGI 32 Built-in meter Type2 outlet Not included 4.10 240 340 150 0-32 22
WALLBOX ENTITY PRO 2X22 2701001 354201 EPCSO00332SIGIO00332SIGI 32+32 Built-in meter Type2 outlet Type2 outlet Not included 0-32 22+22
WALLBOX ENTITY PRO 14 5M 2701002 354202 EPCSC50320SIGI 20 Built-in meter Type2 fixed cable 5 5.50 240 340 150 0-20 14
WALLBOX ENTITY PRO 22 MID 2701003 354203 EPCSO00332SVGI 32 Visible meter Type2 outlet Not included 0-32 22
WALLBOX ENTITY PRO 2x22 MID 2701004 354204 EPCSO00332SVGIO00332SVGI 32+32 Visible meter Type2 outlet Type2 outlet Not included 8.20 485 340 150 0-32 22+22
WALLBOX ENTITY PRO 14 H5M 2701054 354456 EPCSH50320SIGI 20 Built-in meter Type2 fixed cable 5 5.50 240 340 150 Yes 0-20 14
WALLBOX ENTITY PRO 14MID H5M 2701052 354457 EPCSH50320SVGI 20 Visible meter Type2 fixed cable 5 5.50 240 340 150 Yes 0-20 14
WALLBOX ENTITY PRO 14 CAB 8M 2700813 354483 EPCSC80320SIGI 20 Built-in meter Type2 fixed cable 8 6 240 340 150 Yes 0-20 14
WALLBOX ENTITY PRO 22 CAB 5M 2700814 354484 EPCSC50332SIGI 32 Built-in meter Type2 fixed cable 5 5.50 240 340 150 Yes 0-32 22
