Balance Advance Entity

Entity Balance Advanced Power Unit fitted with: Two Ethernet ports (RJ45) for network connection (two-port switch). A 90 mm SMA Wi-Fi antenna for mesh Wi-Fi to connect to charging stations and/or the internet over Wi-Fi. Terminal blocks for: 5A current transformer (optional), M-BUS, Modbus, relay control (future function). Entity load interface unit advanced

E-number
E2701042

Article number
354248

Support

Type designation	ELIA
NetProductWeight	0.3
EngineerWidth	72
EngineerHeight	86
EngineerDepth	49

Name	LOAD INTERFACE ENTITY BALANCEA
E-number	E2701042
Article number	354248

Manual

Entity Load Interface Advanced( EN) Quickguide 380277

Product sheet

Entity Balance (EN) Declaration of conformity

Accessories for Balance Advance Entity

E-number

E0900500

Article number

109306

Type designation

GNM3D-LP RS485

E-number

E0901000

Article number

109385

Type designation

GNM3T-LP RS485 N

E-number

E4263376

Article number

110945

Type designation

GDT-3 36-300A

E-number

E4263377

Article number

110946

Type designation

GDT-3 36-600A

Accessories for Balance Advance Entity

Name	E-number	Article number	Type designation	Description

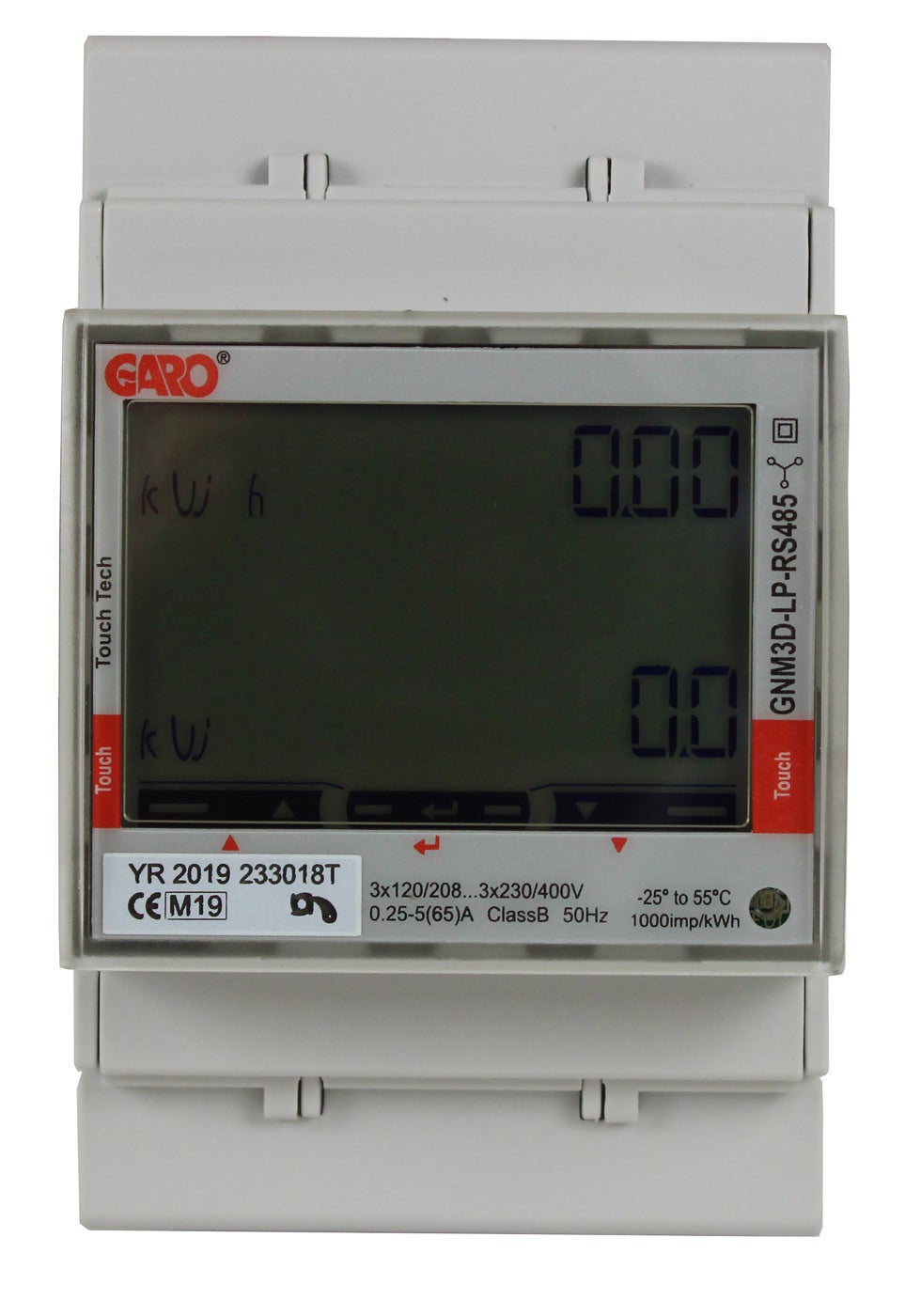

ENERGYMETER 3PH MODB RS485 LP	E0900500	109306	GNM3D-LP RS485	Energymeter 3-phase modbus RS485 local production

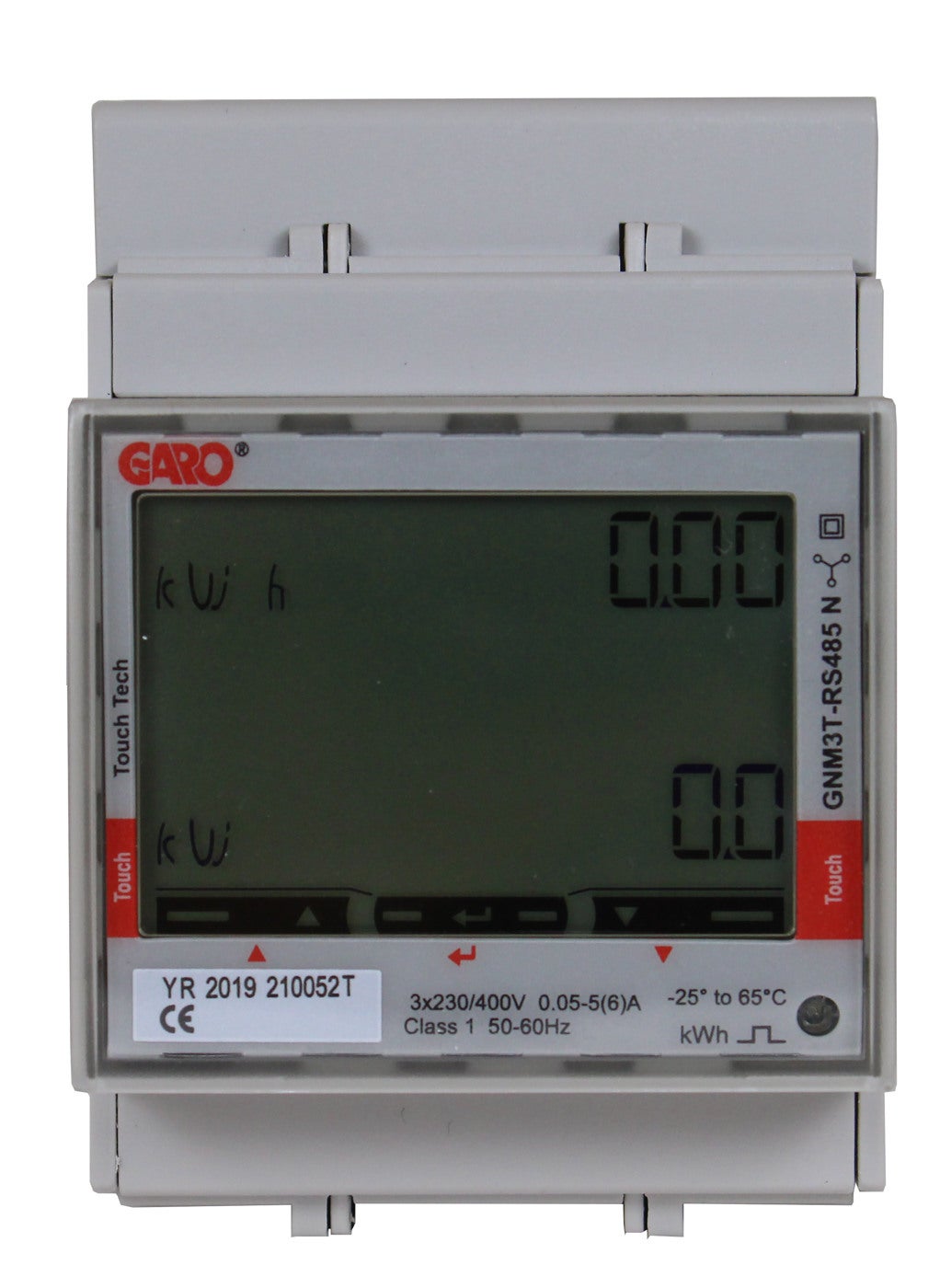

ENERGYMETER TRAFO 5A MODBUS	E0901000	109385	GNM3T-LP RS485 N	Energymeter trafo 5A Modbus not MID approved
CURRENT TRANSFORMER SPLIT CORE 36-300A	E4263376	110945	GDT-3 36-300A	Current transformer split core for 5A transformer energymeters class 1, opening 36mmØ 300A 3-pcs/box

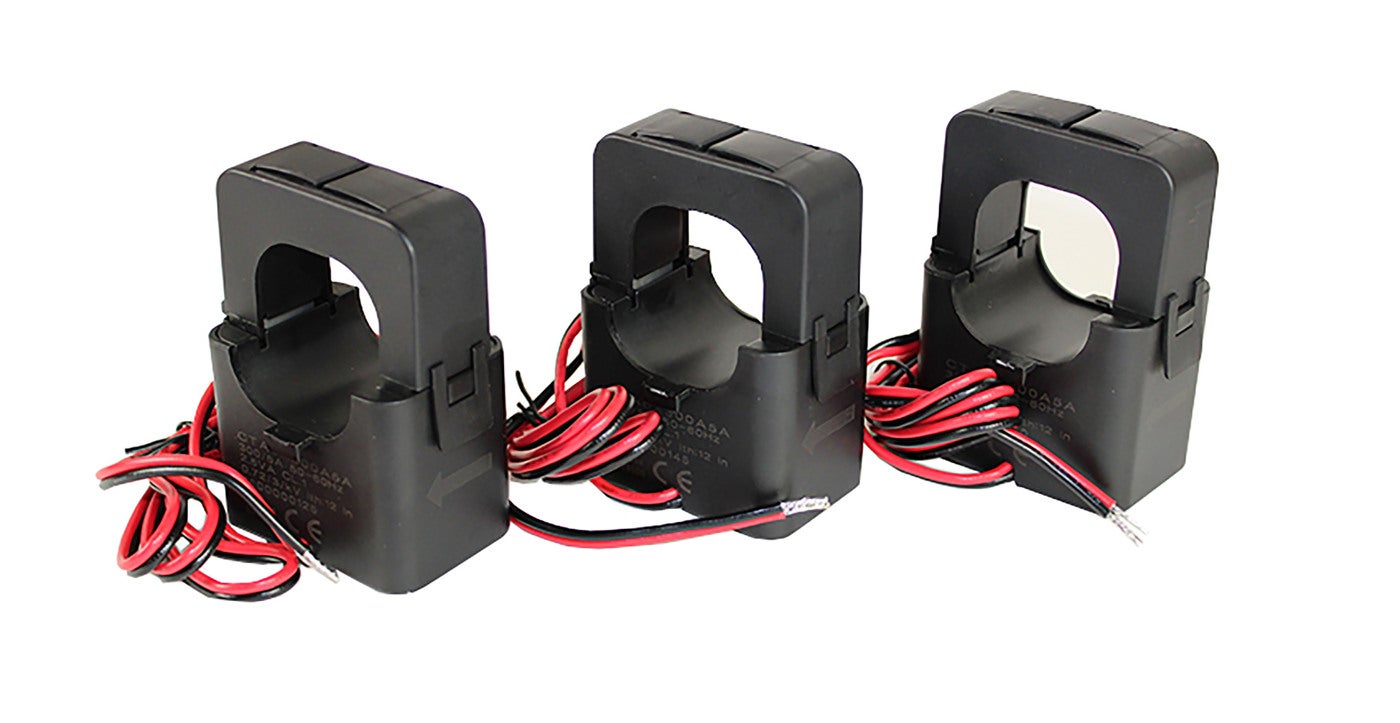

CURRENT TRAFO DELB 36-600A 3-PACK	E4263377	110946	GDT-3 36-600A	Current transformer split core for 5A transformer energymeters class 1, opening 36mmØ 600A 3 pcs/box
