Energymeter Trafometer 3-phase
Energy meters for 3-phase systems when current transformers are used. It is compact, only 4 modules wide and has self-powered power supply. The meters are billing approved according to MID (MI003). The current direction must be correct, kWh does NOT count up and the LED does NOT flash if the current direction is incorrect. Current and voltage must be measured on the same phase. Neutral conductor must be available. NOTE the current transformers’ terminal S2 must be earthed and connected to (1) (3) (5) to giv Energymeter trafo 5A Modbus not MID approved
E-number
E0901000
E0901000
Article number
109385
109385
| Standard | EN50470-1 |
|---|---|
| Storage temperature [C] | -30C...+70C |
| Frequency [Hz] | 50/60Hz |
| Housing material | Plastic |
| Color | Grey |
| Rated voltage [V AC] | 400V AC |
| Number of modules | 3 |
| Mounting method | DIN-rail |
| Modelltype | Energimätare mättransformator |
| Phases [PH] | 3PH |
| Accuracy class | 1 |
| Degree of protection [IP] | IP20 |

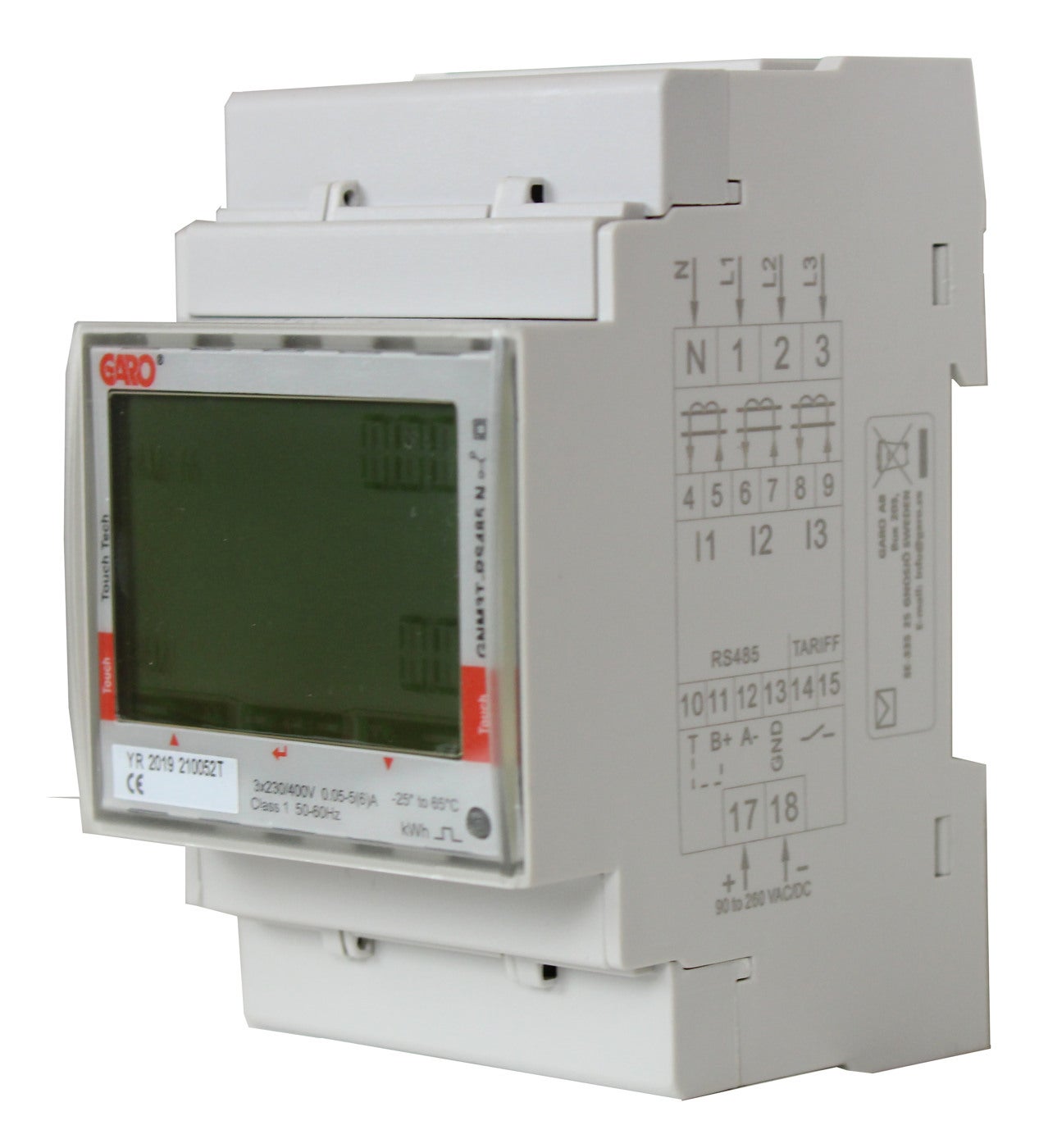

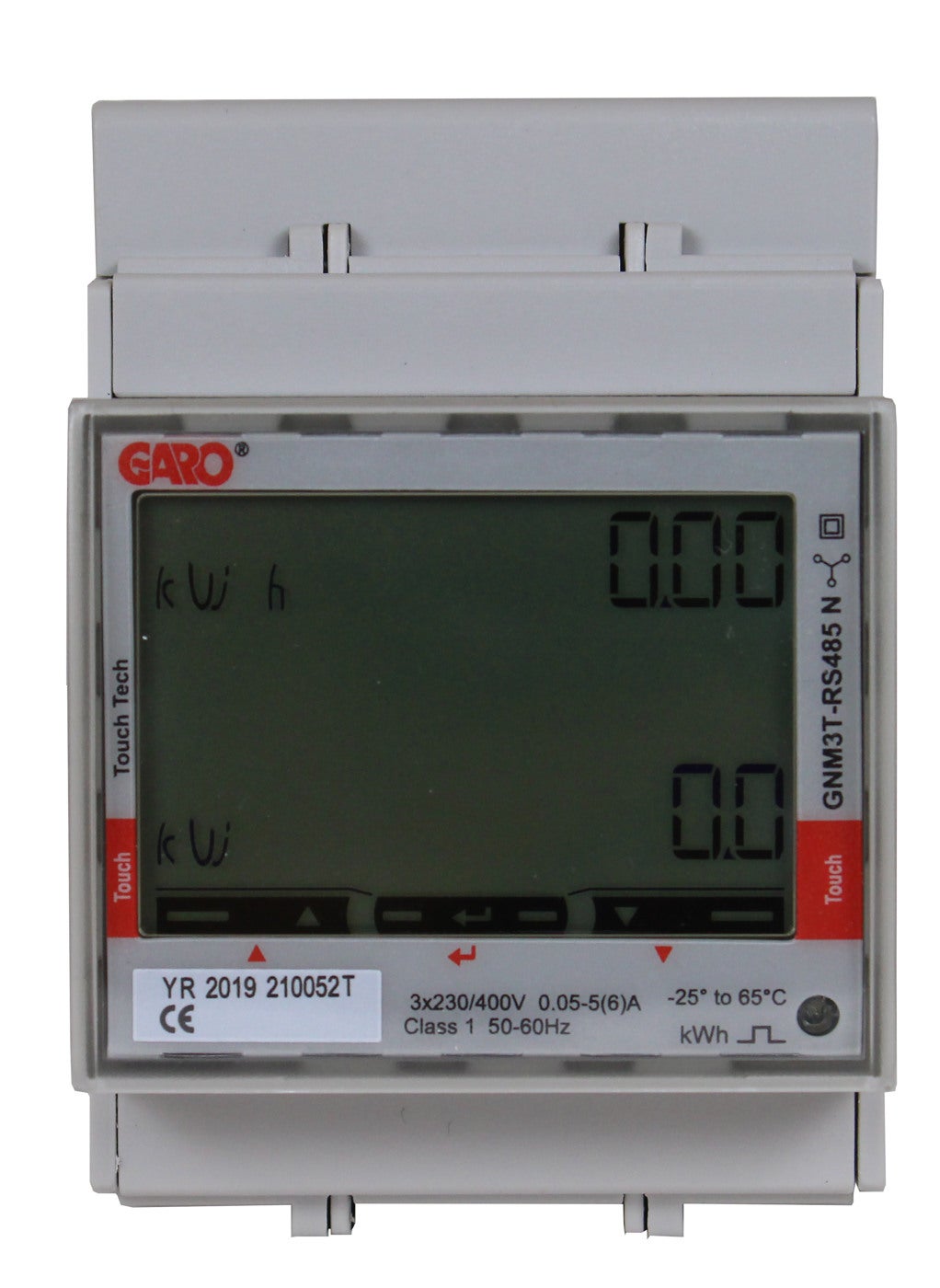

| Name | ENERGYMETER TRAFO 5A MODBUS |
|---|---|
| E-number | E0901000 |
| Article number | 109385 |
| Type designation | GNM3T-LP RS485 N |
| Operation Temperature [C] | -25C...+35C |
| Wire flexible [mm²] | 1-4mm² |
| Interface | Modbus |
| NetProductWeight | 0.24 |
| EngineerWidth | 53 |
| EngineerHeight | 91 |
| EngineerDepth | 63 |
