Energymeter Trafometer 3-phase
Energy meters for 3-phase systems when current transformers are used. It is compact, only 4 modules wide and has self-powered power supply. The meters are billing approved according to MID (MI003). The current direction must be correct, kWh does NOT count up and the LED does NOT flash if the current direction is incorrect. Current and voltage must be measured on the same phase. Neutral conductor must be available. NOTE the current transformers’ terminal S2 must be earthed and connected to (1) (3) (5) to giv Energymeter 3-phase modbus RS485 trafo
E-number
E0900191
E0900191
Article number
108740
108740
| Standard | EN50470-1 |
|---|---|
| Storage temperature [C] | -30C...+70C |
| Frequency [Hz] | 50/60Hz |
| Housing material | Plastic |
| Color | Grey |
| Rated voltage [V AC] | 400V AC |
| Number of modules | 3 |
| Mounting method | DIN-rail |
| Modelltype | Energimätare mättransformator |
| Phases [PH] | 3PH |
| Accuracy class | 1 |
| Degree of protection [IP] | IP20 |

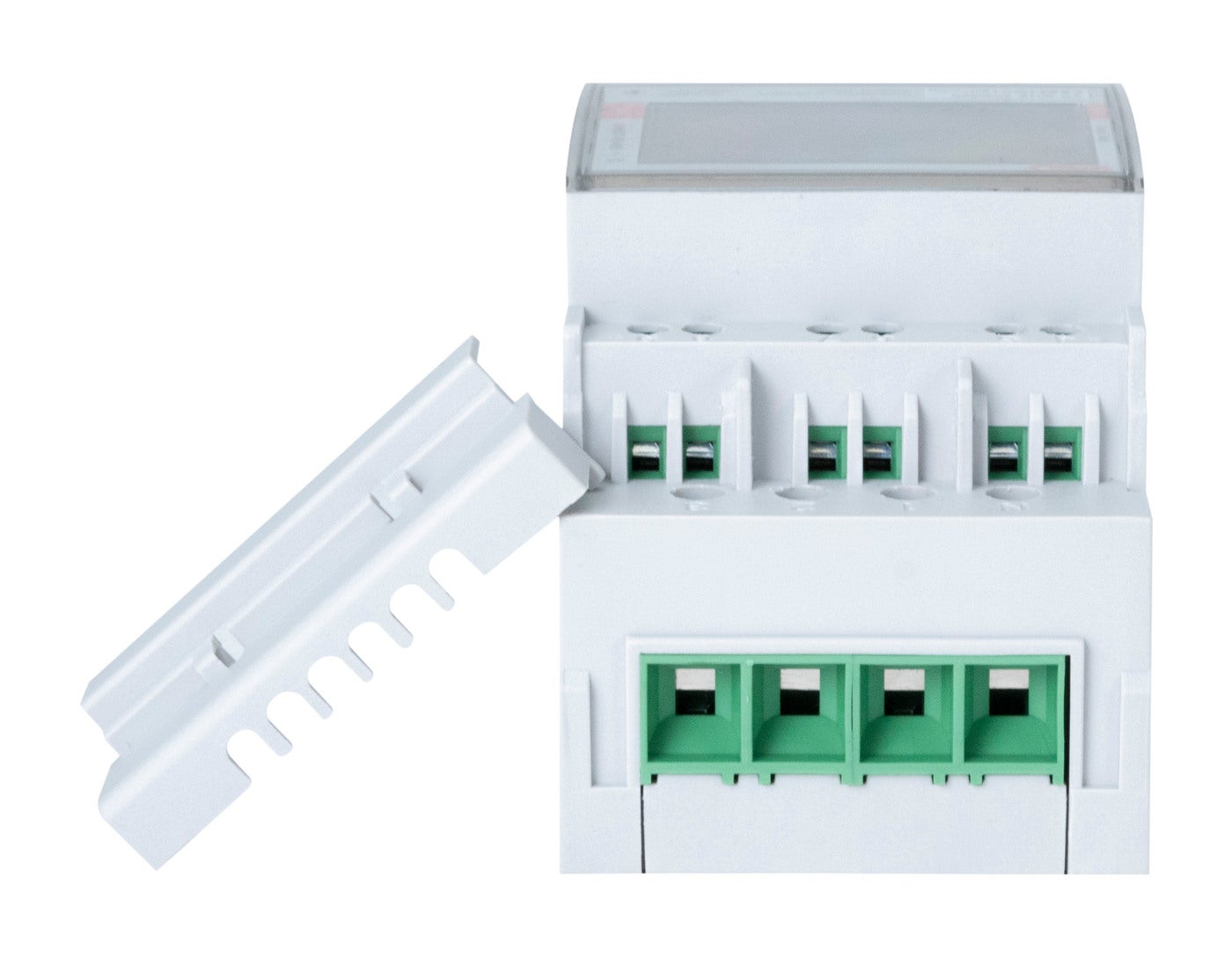

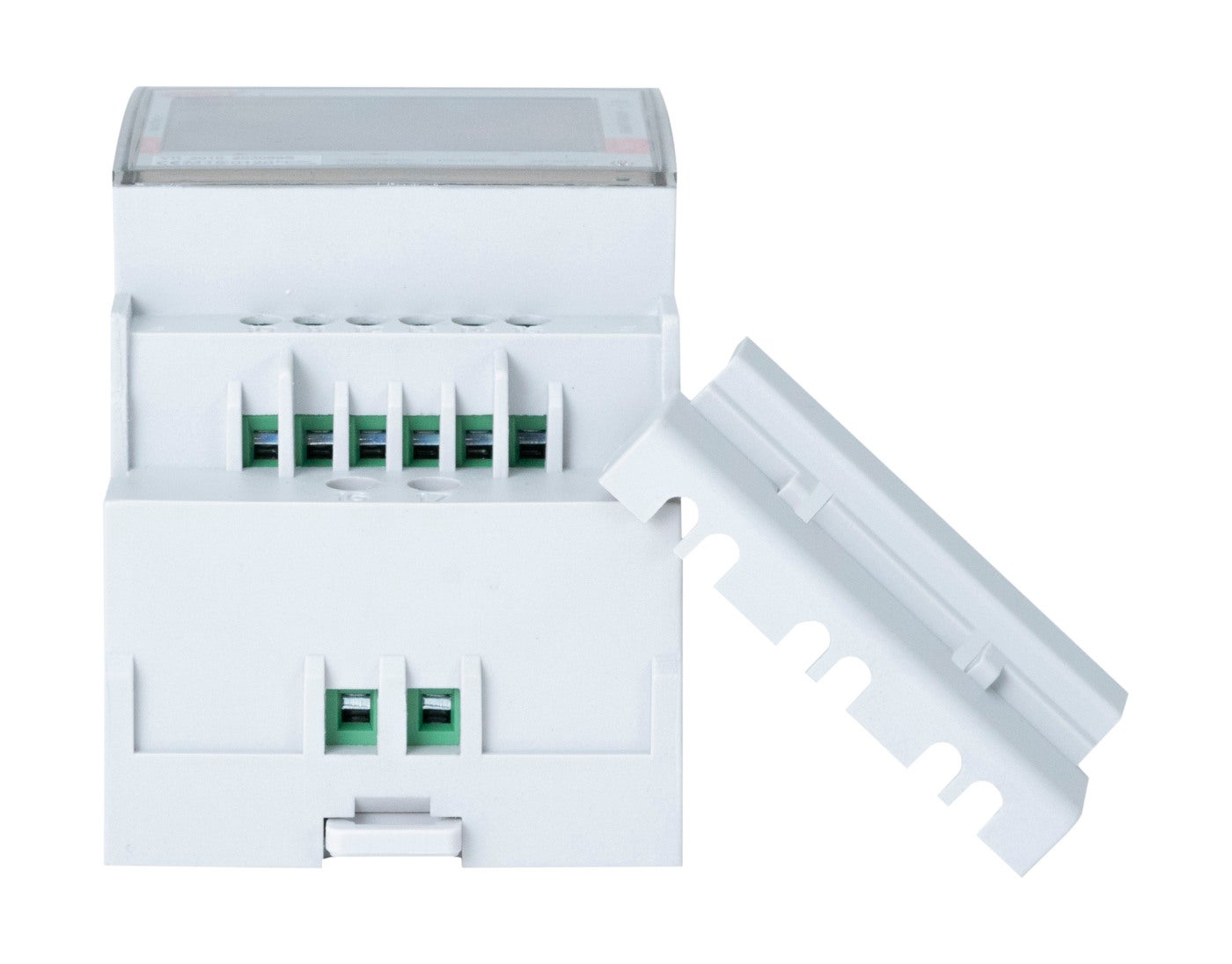

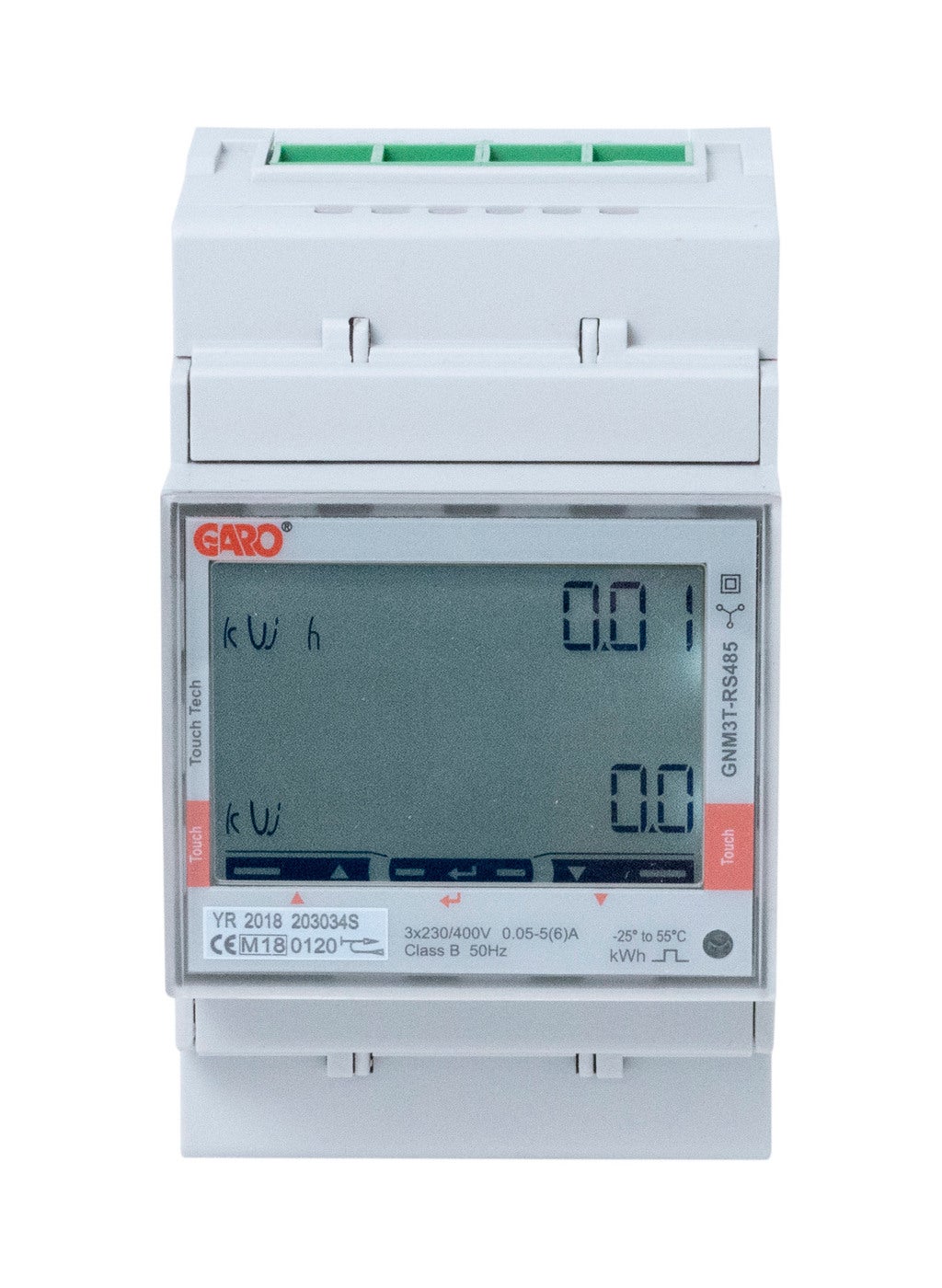

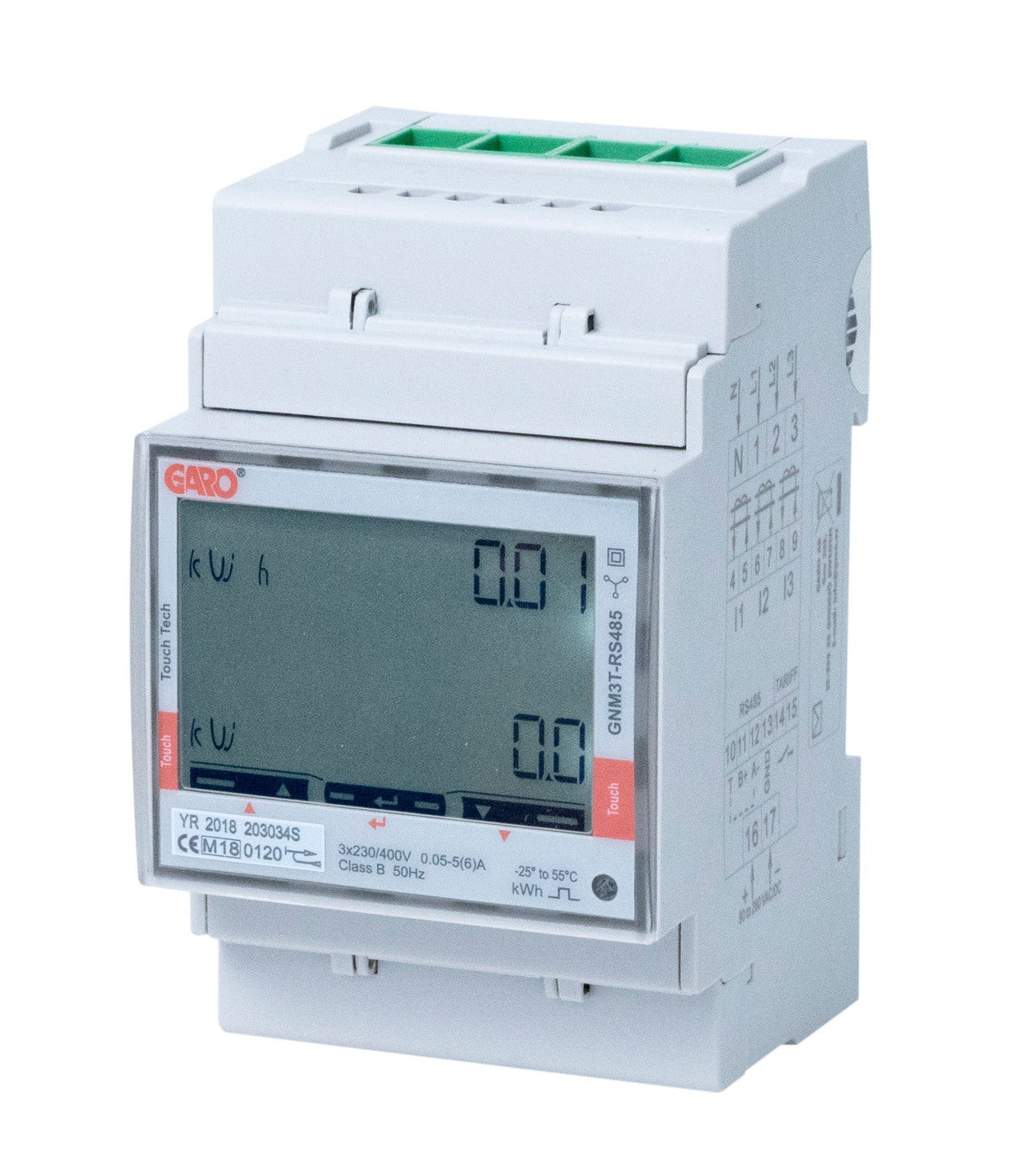

| Name | ENERGYMETER 3PH MODB RS485 T |
|---|---|
| E-number | E0900191 |
| Article number | 108740 |
| Type designation | GNM3T-RS485 |
| Operation Temperature [C] | -25C...+55C |
| Tightening torque [Nm] | 0,4-0,6Nm |
| Wire flexible [mm²] | 1-4mm² |
| Interface | Modbus RS485 |
| NetProductWeight | 0.3 |
| EngineerWidth | 105 |
| EngineerHeight | 67 |
| EngineerDepth | 135 |
