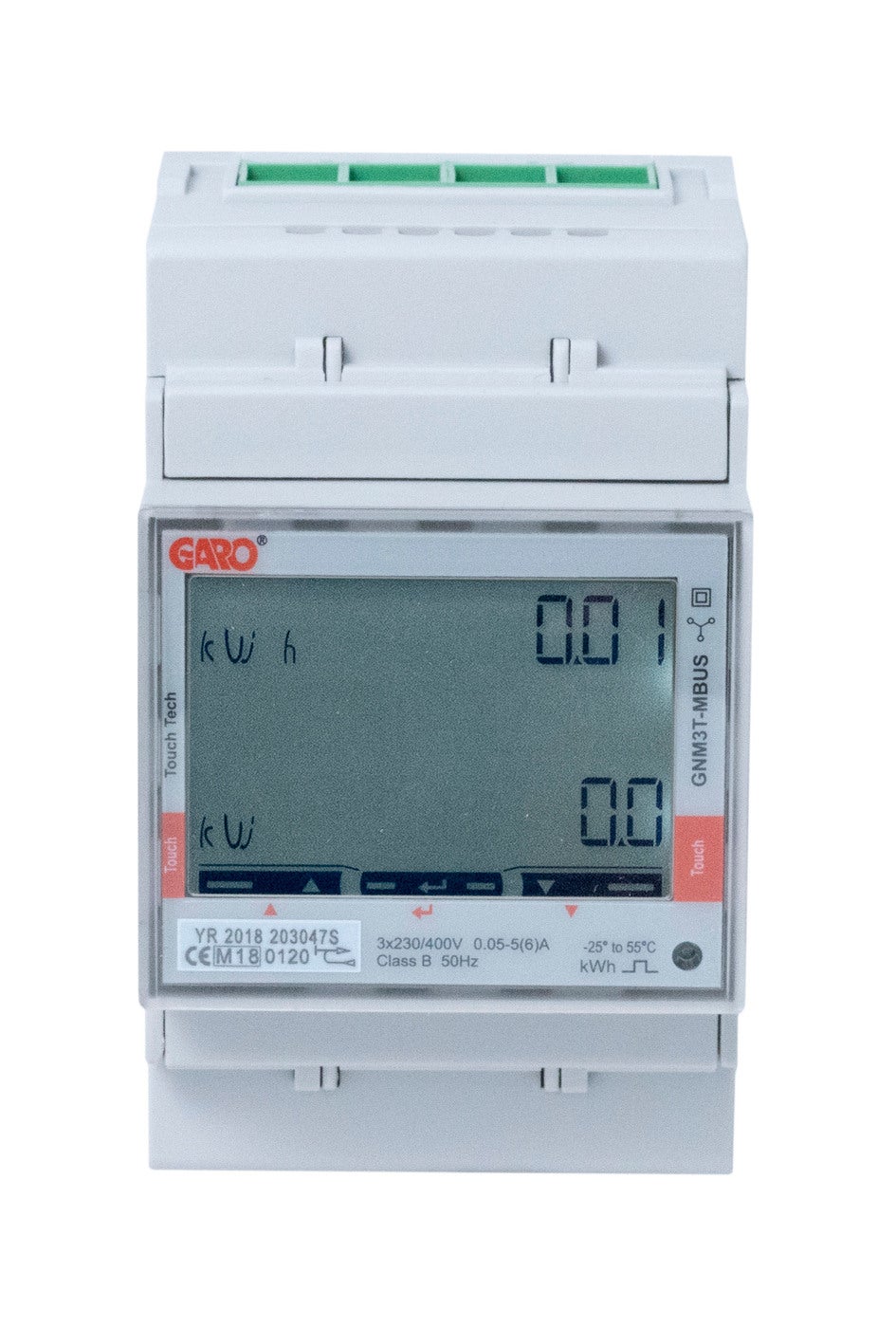

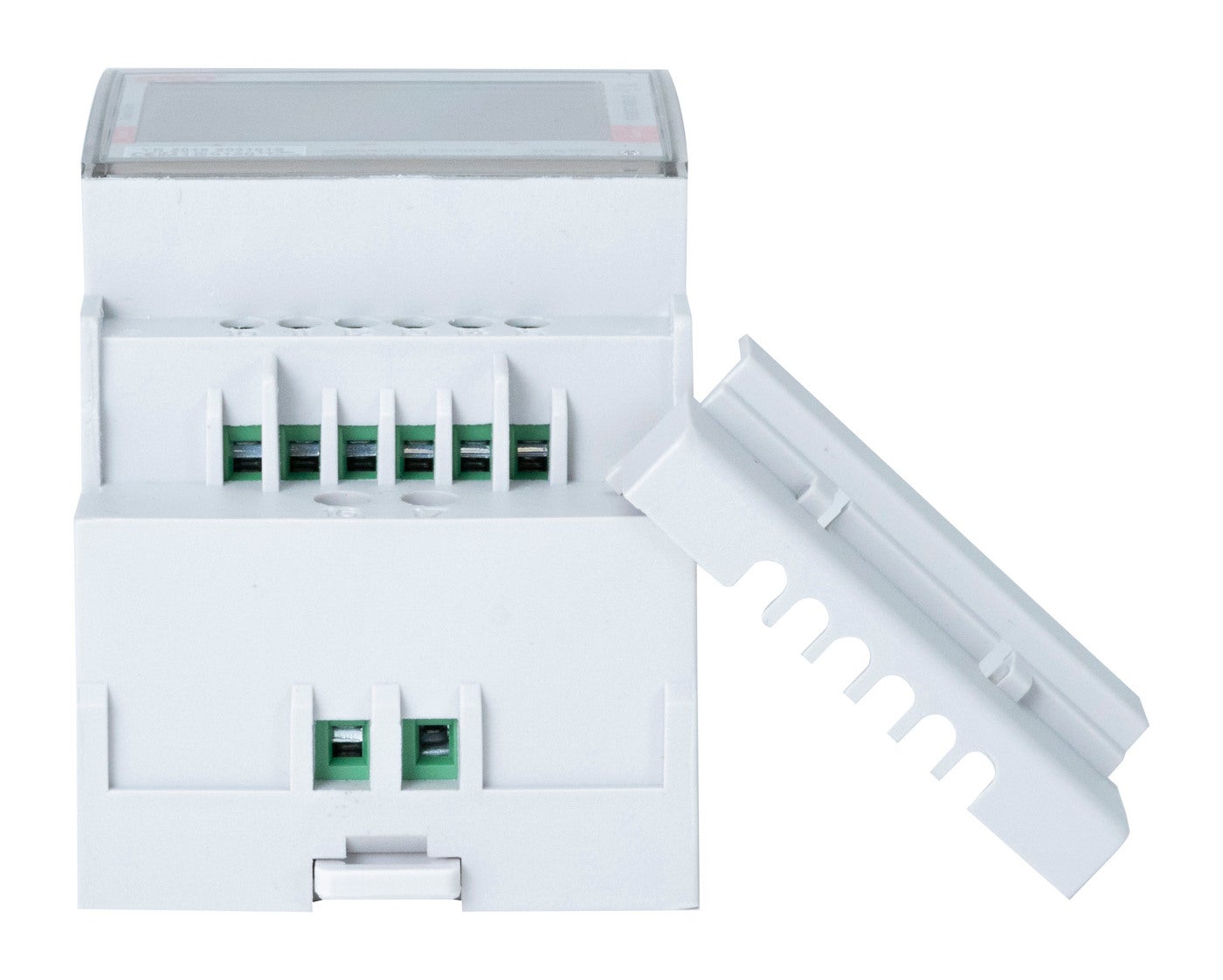

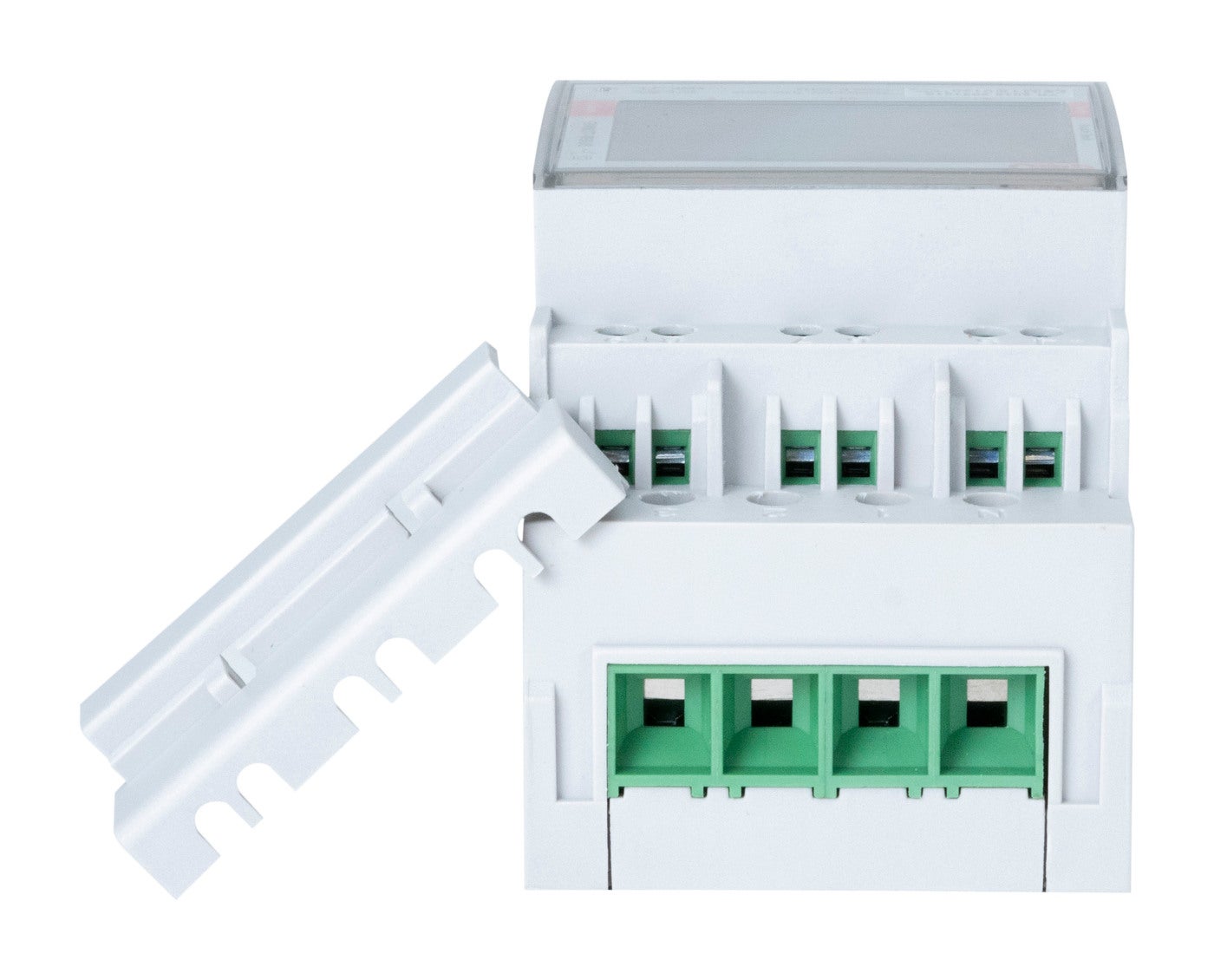

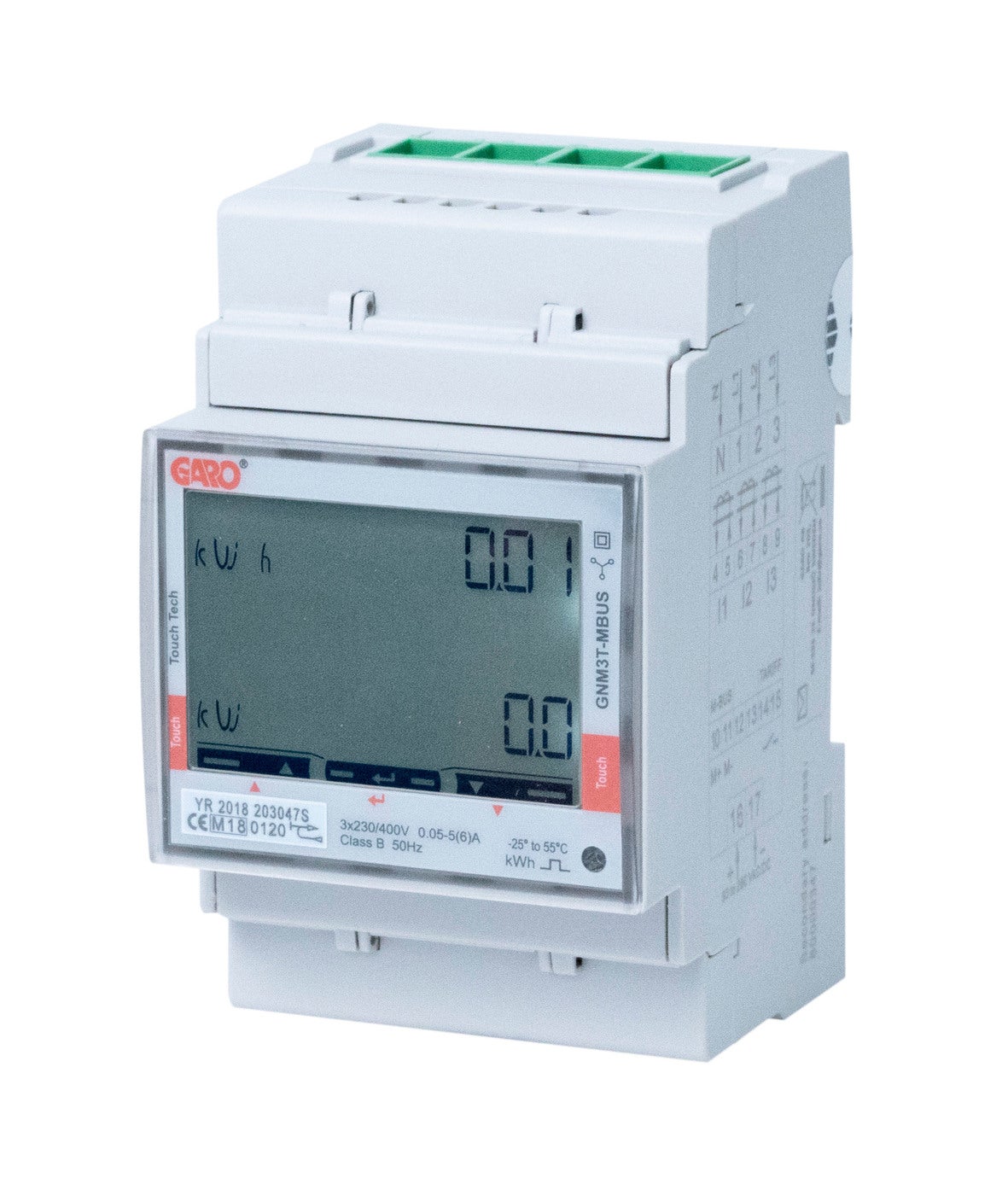

Energymeter Trafometer 3-phase
Energy meters for 3-phase systems when current transformers are used. It is compact, only 4 modules wide and has self-powered power supply. The meters are billing approved according to MID (MI003). The current direction must be correct, kWh does NOT count up and the LED does NOT flash if the current direction is incorrect. Current and voltage must be measured on the same phase. Neutral conductor must be available. NOTE the current transformers’ terminal S2 must be earthed and connected to (1) (3) (5) to giv Energymeter 3 pole trafo modbus
E-number
E0900192
E0900192
Article number
108741
108741
| Standard | EN50470-1 |
|---|---|
| Storage temperature [C] | -30C...+70C |
| Frequency [Hz] | 50/60Hz |
| Housing material | Plastic |
| Color | Grey |
| Rated voltage [V AC] | 400V AC |
| Number of modules | 3 |
| Mounting method | DIN-rail |
| Modelltype | Energimätare mättransformator |
| Phases [PH] | 3PH |
| Accuracy class | 1 |
| Degree of protection [IP] | IP20 |
| Name | ENERGYMETER 3PH TRAFO MBUS |
|---|---|
| E-number | E0900192 |
| Article number | 108741 |
| Type designation | GNM3T-MBUS |
| Operation Temperature [C] | -25C...+35C |
| Tightening torque [Nm] | 0,4-0,6Nm |
| Wire flexible [mm²] | 2,5-16mm² |
| Interface | Mbus |
| Power loss | <1 |
| NetProductWeight | 0.3 |
| EngineerWidth | 105 |
| EngineerHeight | 67 |
| EngineerDepth | 135 |
