Energymeter Directmeter 3-phase

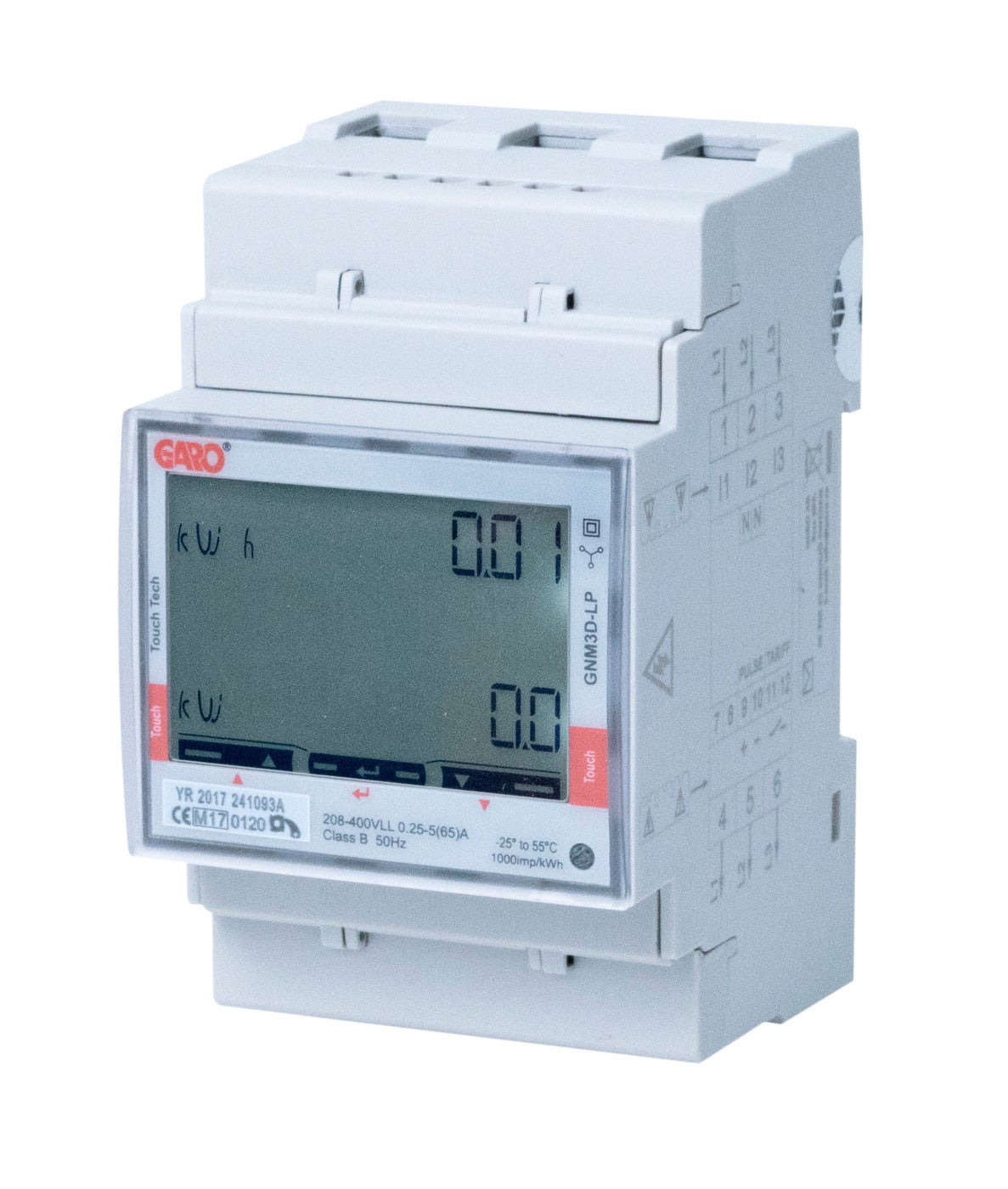

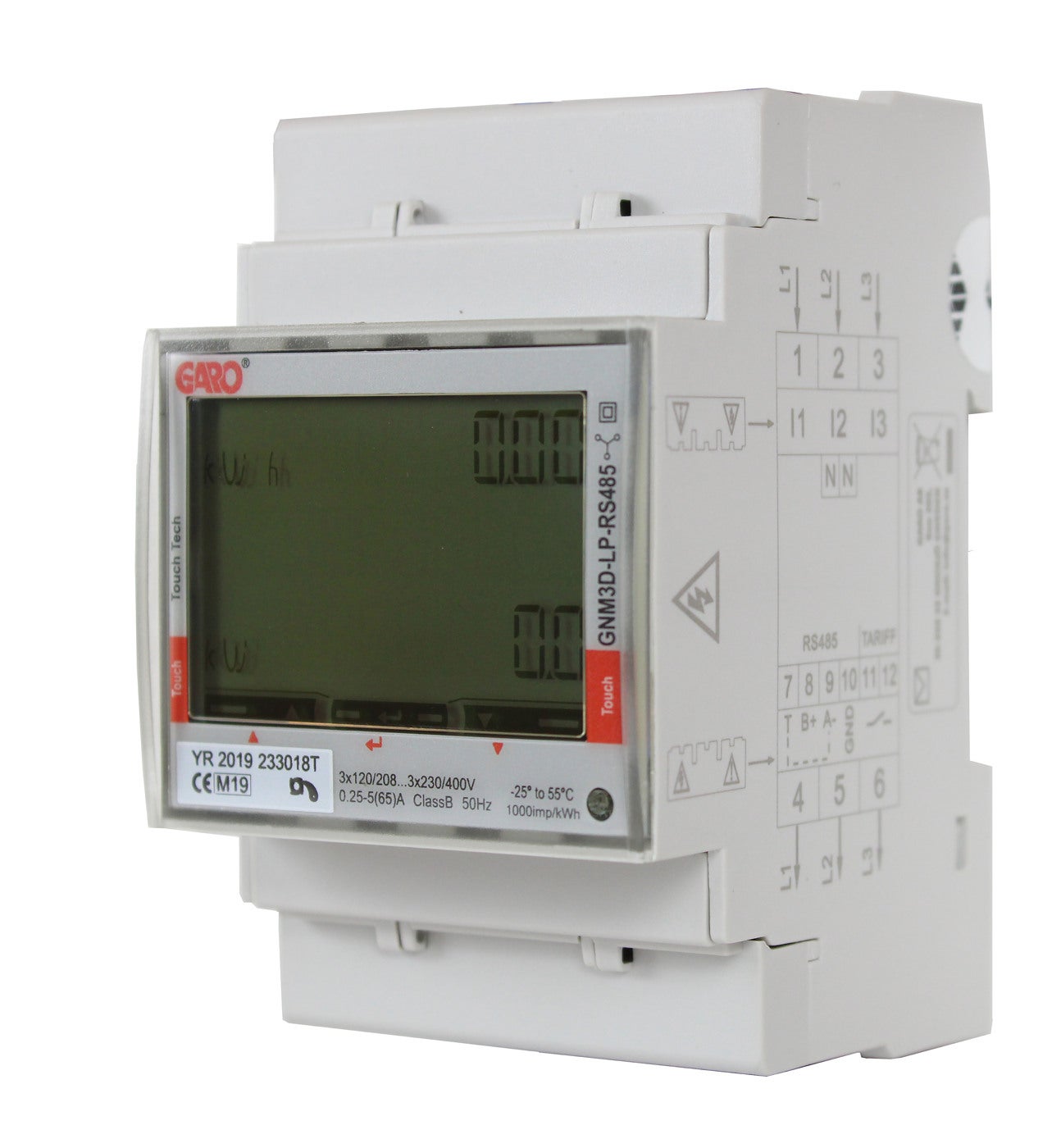

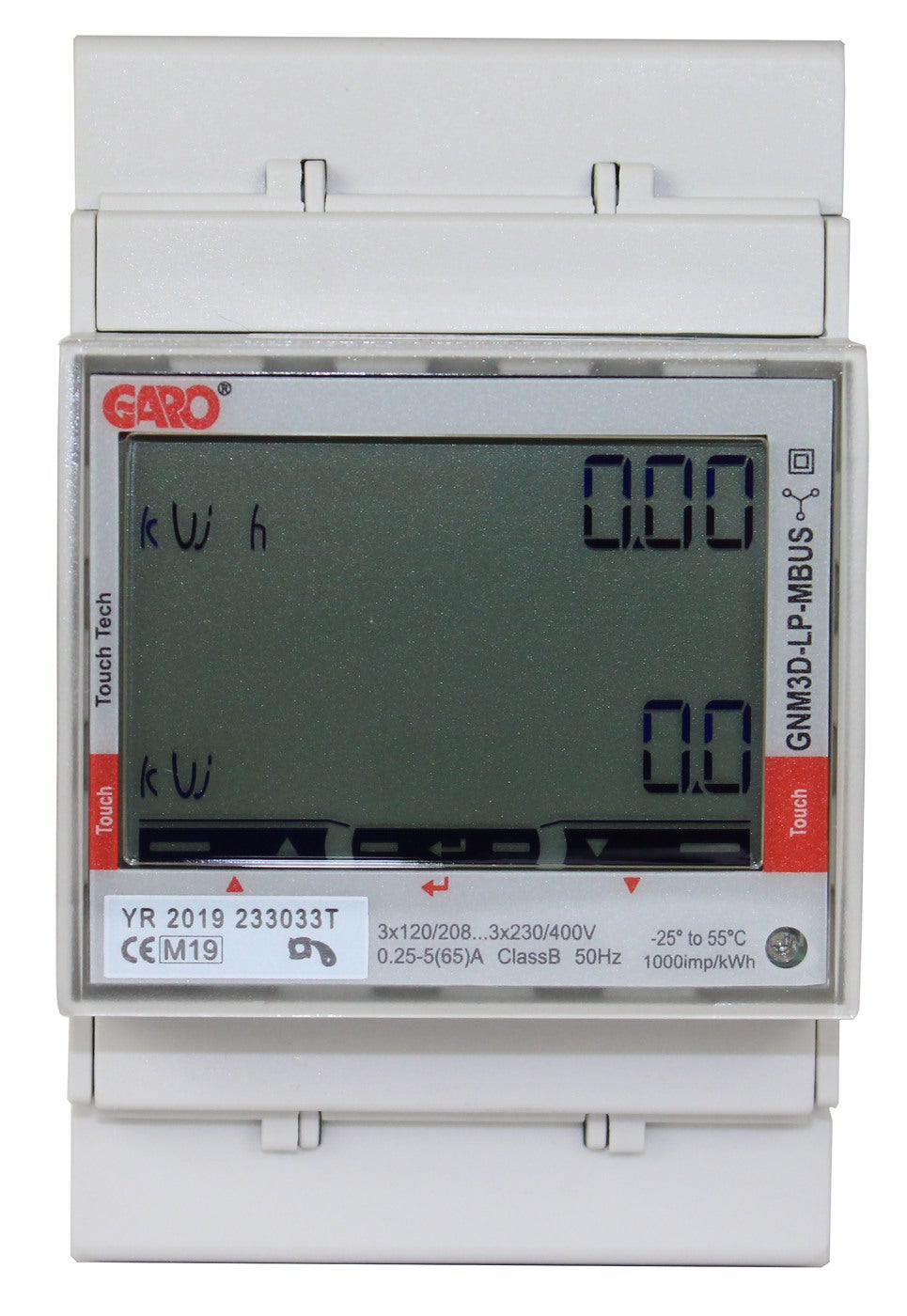

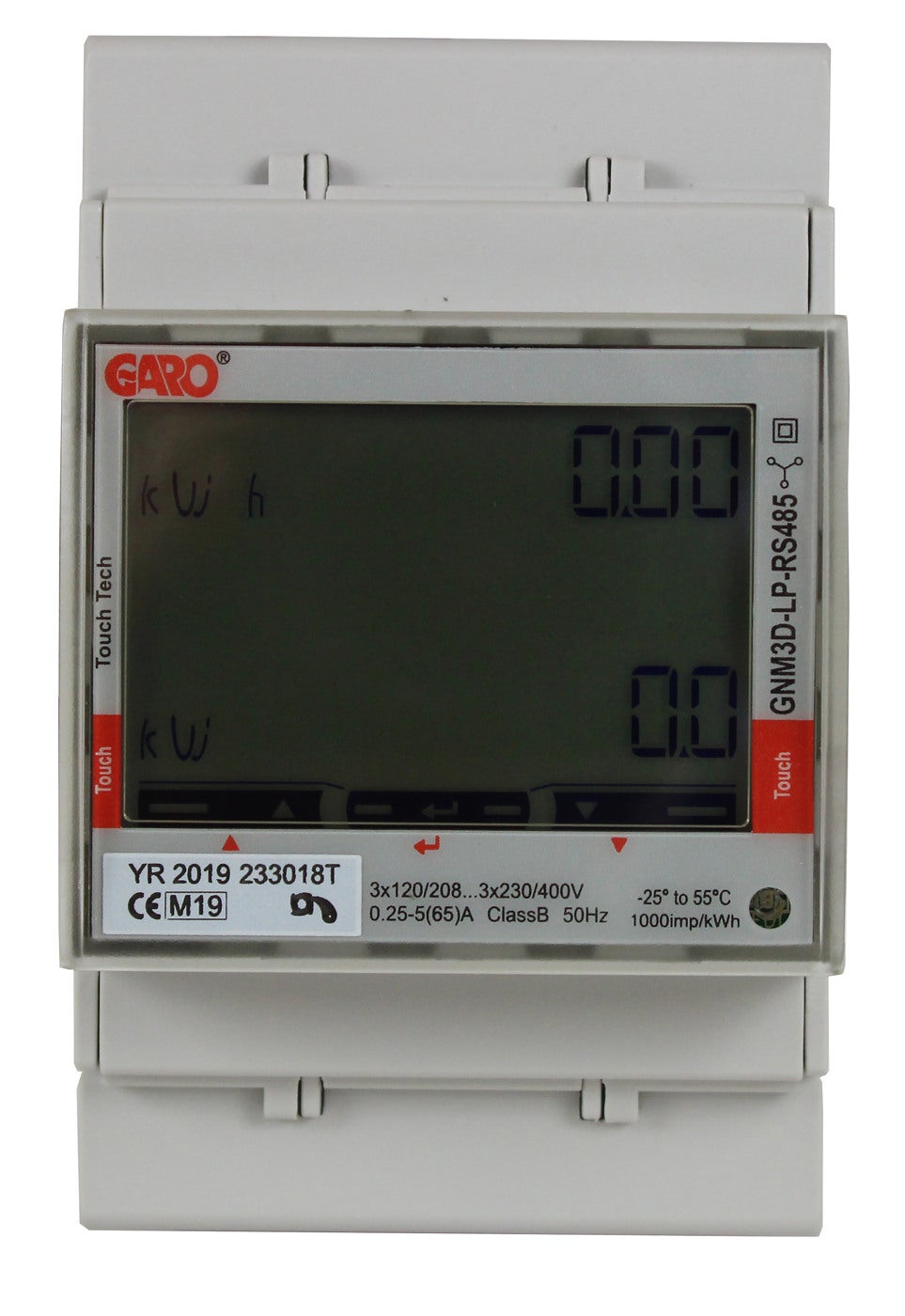

"GNM3D, GNM3D-RS485 and GNM3D-MBUS are digital energy meters for 3-phase systems. As the meters are only 3 modules wide, they are very easy to position in all types of distribution cabinets that offer DIN mounting. The display simultaneously shows total consumption in kWh and instantaneous consumption in kW. Use the buttons indicated on the display to show information about the current and voltage per phase and many more values. There is also a visual alarm function that indicates if the sequential order of Energymeter 3-phase modbus RS485 local production
E-number
E0900500
E0900500
Article number
109306
109306
| Standard | EN50470-1 |
|---|---|
| Operation Temperature [C] | -25C...+55C |
| Frequency [Hz] | 50Hz |
| Housing material | Plastic |
| Color | Grey |
| Rated current [A] | 65A |
| Rated voltage [V AC] | 400V AC |
| Tightening torque [Nm] | 2,8Nm |
| Wire flexible [mm²] | 2,5-16mm² |
| Mounting method | DIN-rail |
| Phases [PH] | 3PH |
| Degree of protection [IP] | IP20 |
| Name | ENERGYMETER 3PH MODB RS485 LP |
|---|---|
| E-number | E0900500 |
| Article number | 109306 |
| Type designation | GNM3D-LP RS485 |
| Storage temperature [C] | -30C...+80C |
| Number of modules | 3 |
| Modelltype | Energimätare direktmätning |
| Interface | Modbus RS485 |
| Accuracy class | 1 |
| NetProductWeight | 0.24 |
| EngineerWidth | 105 |
| EngineerHeight | 70 |
| EngineerDepth | 132 |
