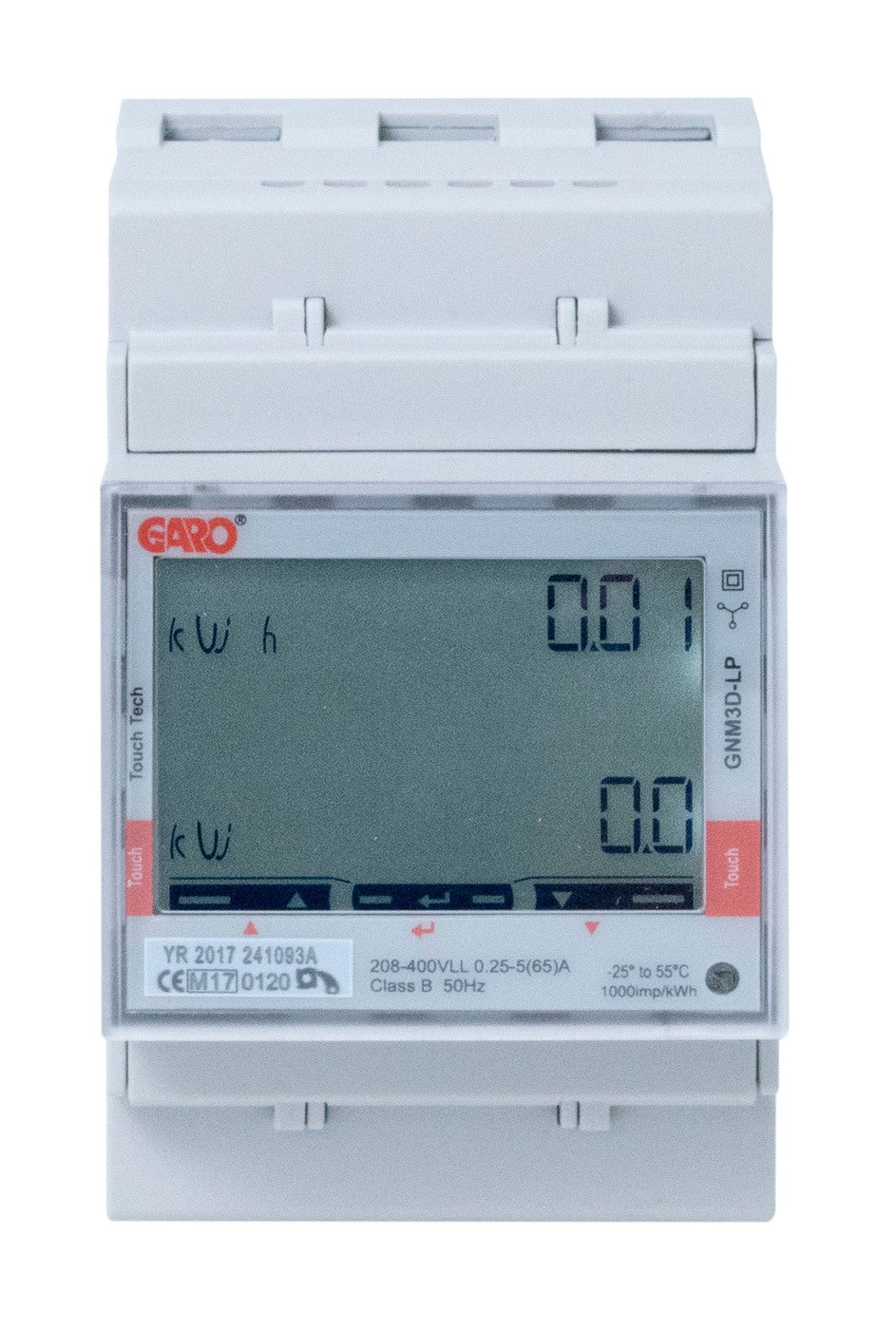

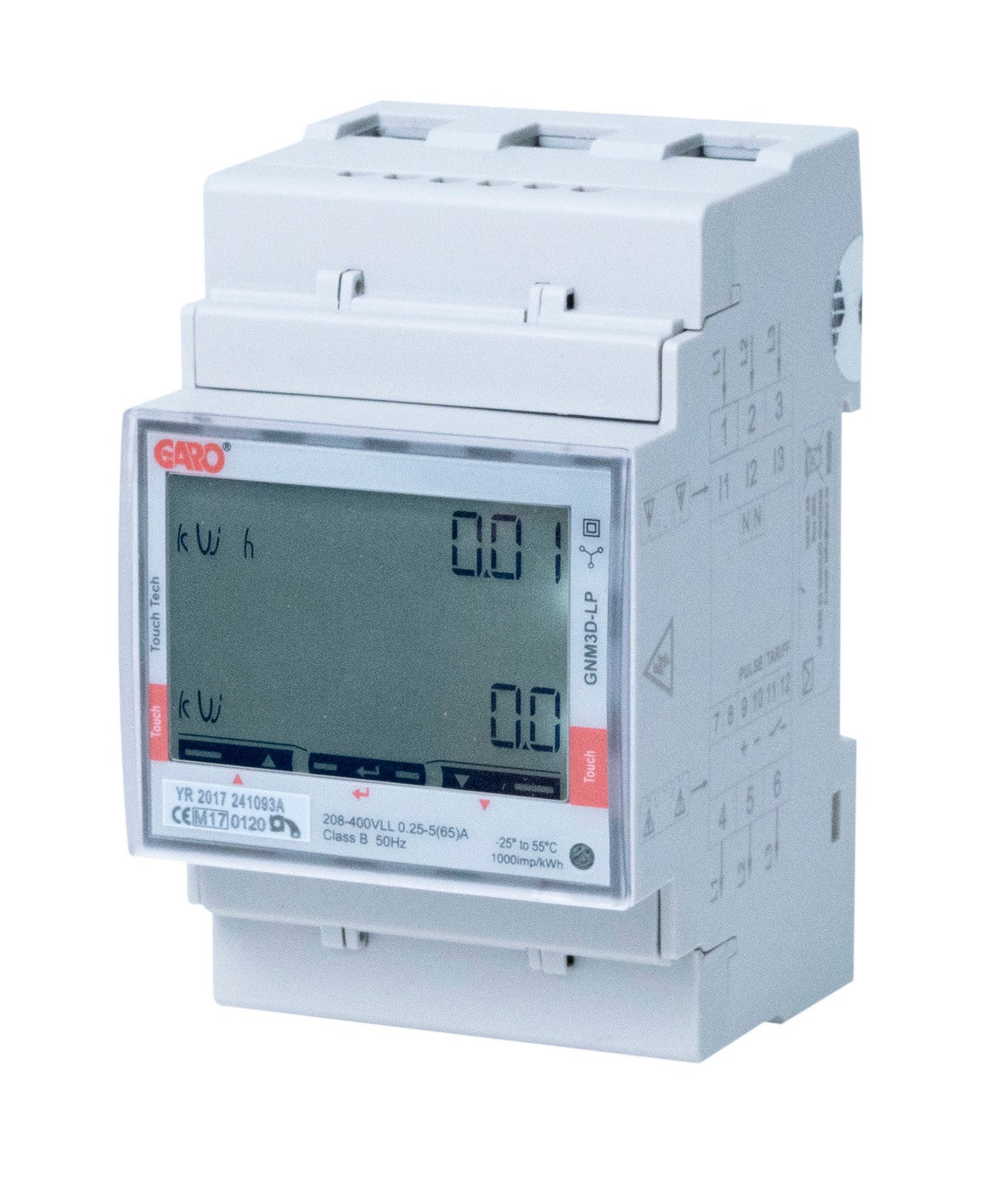

Energymeter Directmeter 3-phase
"GNM3D, GNM3D-RS485 and GNM3D-MBUS are digital energy meters for 3-phase systems. As the meters are only 3 modules wide, they are very easy to position in all types of distribution cabinets that offer DIN mounting. The display simultaneously shows total consumption in kWh and instantaneous consumption in kW. Use the buttons indicated on the display to show information about the current and voltage per phase and many more values. There is also a visual alarm function that indicates if the sequential order of Energy meter 3 pole with local production
E-number
E0900173
E0900173
Article number
108349
108349
| Standard | EN50470-1 |
|---|---|
| Operation Temperature [C] | -25C...+55C |
| Frequency [Hz] | 50Hz |
| Housing material | Plastic |
| Color | Grey |
| Rated current [A] | 65A |
| Rated voltage [V AC] | 400V AC |
| Tightening torque [Nm] | 2,8Nm |
| Wire flexible [mm²] | 2,5-16mm² |
| Mounting method | DIN-rail |
| Phases [PH] | 3PH |
| Degree of protection [IP] | IP20 |
| Name | ENERGY METER 3P W LOCAL PROD |
|---|---|
| E-number | E0900173 |
| Article number | 108349 |
| Type designation | GNM3D-LP |
| Storage temperature [C] | -30C...+70C |
| Interface | Puls |
| Accuracy class | 3 |
| NetProductWeight | 0.34 |
| EngineerWidth | 105 |
| EngineerHeight | 135 |
| EngineerDepth | 67 |
