Balance Basic Entity

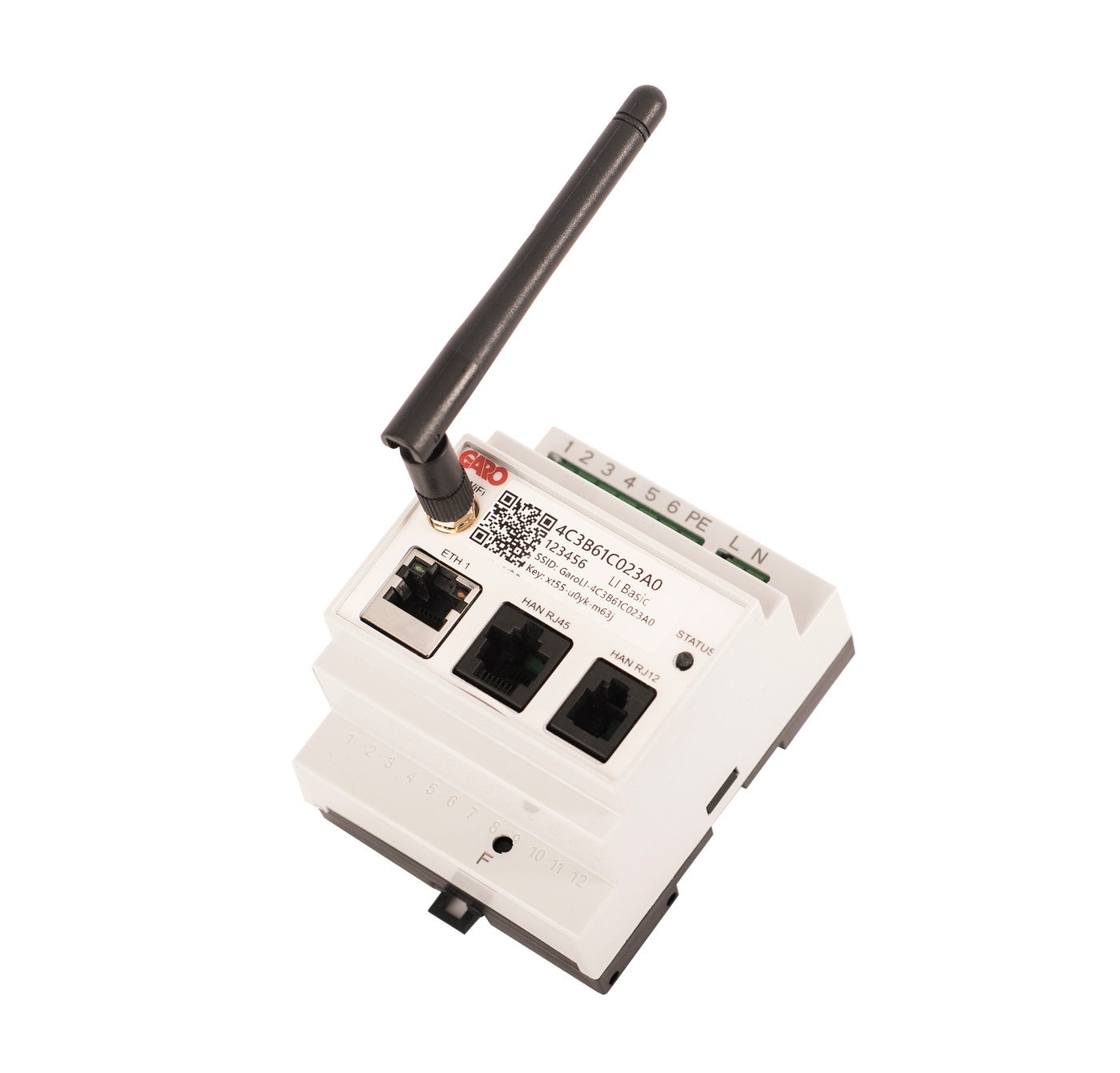

The Entity balance basic load interface is equipped with: 2 HAN-ports (RJ12 and RJ45) ports for connection to energy meters supplied from the power company that provide realtime energy usage. 1 Ethernetport (RJ45) LAN-connection. 1 Wifi Antenna SMA90mm for WifiMesh to Entity Chargers, or to connect to internet via Wifi. Connectionsockets f Entity load interface unit basic
E-number
E2701041
Article number
354247
Support
Type designation ELIB
NetProductWeight 0.3
EngineerWidth 72
EngineerHeight 86
EngineerDepth 49
Name LOAD INTERFACE ENTITY BALANCEB
E-number E2701041
Article number 354247

Manual

Product sheet

Accessories for Balance Basic Entity

Name E-number Article number Type designation Description

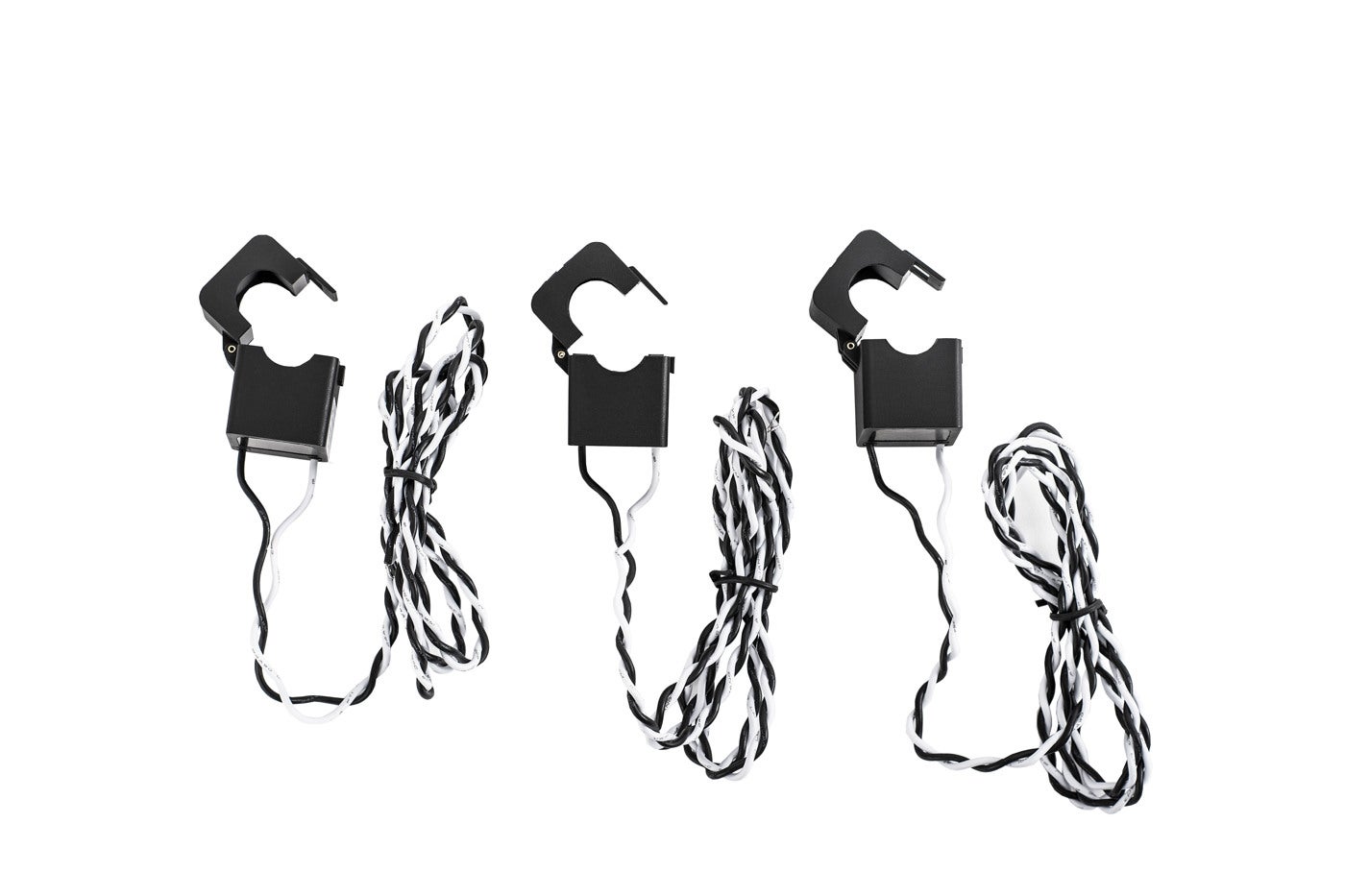

CURRENT TRAFO 100A/333mV CURRENT TRAFO 100A/333mV E4263373 110704 GDT 16-100A Current Trafo separable 100A/333mV

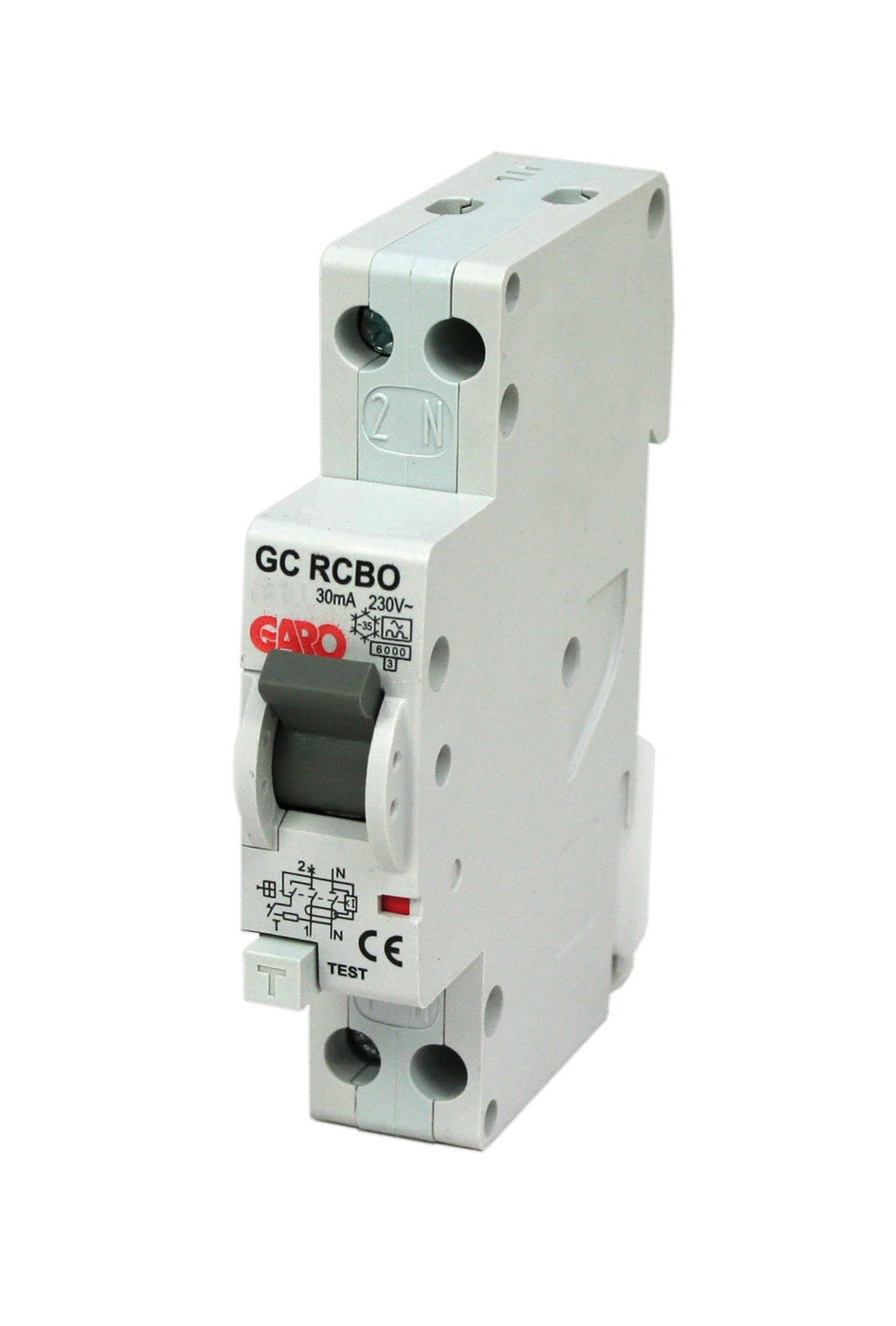

RCBO C 2P 10A 6kA U RCBO C 2P 10A 6kA U E2163338 111373 RCBO C2P 10A 6kA U GC Earth leakage circuit breaker (RCBO) GC C-characteristic 2-poles 10A 6kA 1-module
ANTENN KIT EFFECTMODUL ENTITY ANTENN KIT EFFECTMODUL ENTITY E2701026 354295 ELIANT Extern antenna kit Wifi 1,5m cable, SMA, mountinghole:19mm, 2,4 och 5GHz
LOADINTERFACEKIT ENTITYBALANCEB LOADINTERFACEKIT ENTITYBALANCEB E2701027 354385 ELIBCT100ANTMCB4 Loadinterface kit Entity Balance Basic
