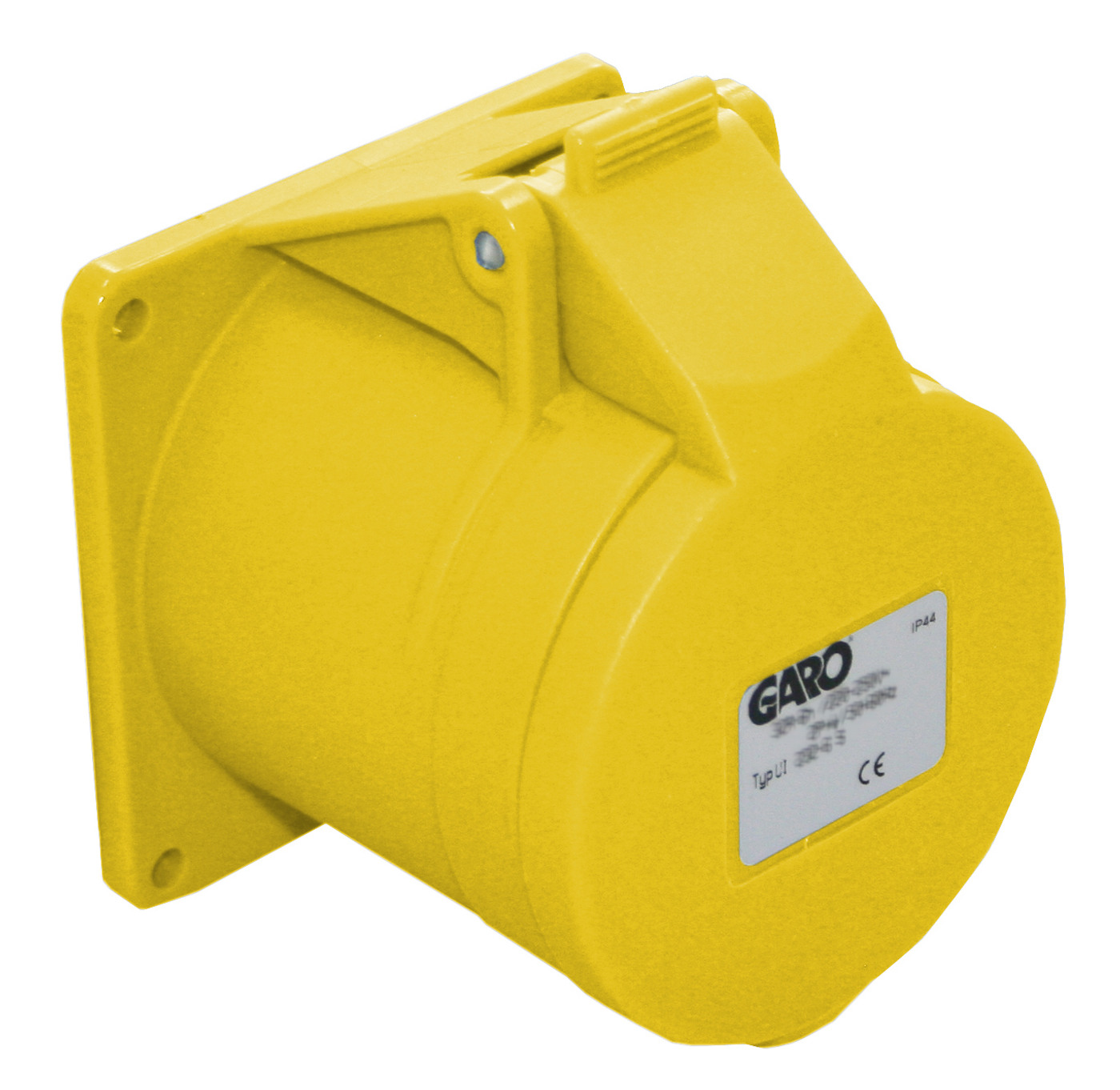

SOCKET STRAIGHT 4P 32A 9h

Flanged sockets Basic Straight 32A IP44

Basic, our standard range with a screw function. Socket 32A for recess mounting with straight mounting plate Socket straight basic 4-poles 32A 9h
E-number
E2424923
Article number
2424923
Support
Housing material Plastic
Rated current [A] 32A
Wire flexible [mm²] 2,5-6mm²
Modelltype Basic
Lock 0
Wire solid [mm²] 2,5-10mm²
Degree of protection [IP] IP44
Name SOCKET STRAIGHT 4P 32A 9h
E-number E2424923
Article number 2424923
Frequency [Hz] 50/60Hz
Color Blue
Rated voltage [V AC] 230V AC
Number of poles 4/3P+E
RAL-number RAL5017
Clock hour position [h] 9h
NetProductWeight 0.18
EngineerWidth 190
EngineerHeight 170
EngineerDepth 290

More variants of Flanged sockets Basic Straight 32A IP44

SOCKET STRAIGHT 3P 32A 2h
SOCKET STRAIGHT 3P 32A 2h
E-number
E2424913
Article number
2424913
Type designation
Frequency [Hz]
300-500Hz
Color
Green
Rated voltage [V AC]
>50V AC
Number of poles
3/2P+E
RAL-number
RAL6010
Clock hour position [h]
2h
SOCKET STRAIGHT 3P 32A 4h
SOCKET STRAIGHT 3P 32A 4h
E-number
E2424914
Article number
2424914
Type designation
Frequency [Hz]
50/60Hz
Color
Yellow
Rated voltage [V AC]
100-130V AC
Number of poles
3/2P+E
RAL-number
RAL1023
Clock hour position [h]
4h
SOCKET STRAIGHT 3P 32A 6h
SOCKET STRAIGHT 3P 32A 6h
E-number
E2424915
Article number
2424915
Type designation
Frequency [Hz]
50/60Hz
Color
Blue
Rated voltage [V AC]
200-250V AC
Number of poles
3/2P+E
RAL-number
RAL5017
Clock hour position [h]
6h
NetProductWeight
0.16
EngineerWidth
190
EngineerHeight
170
EngineerDepth
290
SOCKET STRAIGHT 3P 32A 9h
SOCKET STRAIGHT 3P 32A 9h
E-number
E2424916
Article number
2424916
Type designation
Frequency [Hz]
50/60Hz
Color
Red
Rated voltage [V AC]
380-415V AC
Number of poles
3/2P+E
RAL-number
RAL3000
Clock hour position [h]
9h
SOCKET STRAIGHT 3P 32A 12h
SOCKET STRAIGHT 3P 32A 12h
E-number
E2424917
Article number
2424917
Type designation
Frequency [Hz]
50/60Hz
Color
Red
Rated voltage [V AC]
After isolating transformerb
Number of poles
3/2P+E
RAL-number
RAL7046
Clock hour position [h]
12h
SOCKET STRAIGHT 4P 32A 3h
SOCKET STRAIGHT 4P 32A 3h
E-number
E2424919
Article number
2424919
Type designation
Frequency [Hz]
50/60Hz
Color
Red
Rated voltage [V AC]
380-440V AC
Number of poles
4/3P+E
RAL-number
RAL3000
Clock hour position [h]
3h
SOCKET STRAIGHT 4P 32A 6h
SOCKET STRAIGHT 4P 32A 6h
E-number
E2424921
Article number
2424921
Type designation
Frequency [Hz]
50/60Hz
Color
Red
Rated voltage [V AC]
400V AC
Number of poles
4/3P+E
RAL-number
RAL3000
Clock hour position [h]
6h
SOCKET STRAIGHT 4P 32A 7h
SOCKET STRAIGHT 4P 32A 7h
E-number
E2424922
Article number
2424922
Type designation
Frequency [Hz]
50/60Hz
Color
Black
Rated voltage [V AC]
480-500V AC
Number of poles
4/3P+E
RAL-number
RAL9005
Clock hour position [h]
7h
SOCKET STRAIGHT 4P 32A 9h
SOCKET STRAIGHT 4P 32A 9h
E-number
E2424923
Article number
2424923
Type designation
Frequency [Hz]
50/60Hz
Color
Blue
Rated voltage [V AC]
230V AC
Number of poles
4/3P+E
RAL-number
RAL5017
Clock hour position [h]
9h
NetProductWeight
0.18
EngineerWidth
190
EngineerHeight
170
EngineerDepth
290
SOCKET STRAIGHT 4P 32A 10h
SOCKET STRAIGHT 4P 32A 10h
E-number
E2424924
Article number
2424924
Type designation
Frequency [Hz]
100-300Hz
Color
Green
Rated voltage [V AC]
>50V AC
Number of poles
4/3P+E
RAL-number
RAL6010
Clock hour position [h]
10h
SOCKET STRAIGHT 4P 32A 11h
SOCKET STRAIGHT 4P 32A 11h
E-number
E2424925
Article number
2424925
Type designation
Frequency [Hz]
60Hz
Color
Red
Rated voltage [V AC]
440-460V AC
Number of poles
4/3P+E
RAL-number
RAL3000
Clock hour position [h]
11h
SOCKET STRAIGHT 5P 32A 2h
SOCKET STRAIGHT 5P 32A 2h
E-number
E2424926
Article number
2424926
Type designation
Frequency [Hz]
300-500Hz
Color
Green
Rated voltage [V AC]
>50V AC
Number of poles
5/3P+N+E
RAL-number
RAL6010
Clock hour position [h]
2h
SOCKET STRAIGHT 5P 32A 3h
SOCKET STRAIGHT 5P 32A 3h
E-number
E2424927
Article number
2424927
Type designation
Frequency [Hz]
50-60Hz
Color
Red
Rated voltage [V AC]
380-440V AC
Number of poles
5/3P+N+E
RAL-number
RAL3000
Clock hour position [h]
3h
SOCKET STRAIGHT 5P 32A 5h
SOCKET STRAIGHT 5P 32A 5h
E-number
E2424929
Article number
2424929
Type designation
Frequency [Hz]
50/60Hz
Color
Black
Rated voltage [V AC]
600-690V AC
Number of poles
5/3P+N+E
RAL-number
RAL9005
Clock hour position [h]
5h
SOCKET STRAIGHT 5P 32A 6h
SOCKET STRAIGHT 5P 32A 6h
E-number
E2424930
Article number
2424930
Type designation
UI 432-6 S
Frequency [Hz]
50-60Hz
Color
Red
Rated voltage [V AC]
230-400V AC
Number of poles
5/3P+N+E
RAL-number
RAL3000
Clock hour position [h]
6h
NetProductWeight
0.2
EngineerWidth
70
EngineerHeight
70
EngineerDepth
90
SOCKET STRAIGHT 5P 32A 7h
SOCKET STRAIGHT 5P 32A 7h
E-number
E2424931
Article number
2424931
Type designation
Frequency [Hz]
50/60Hz
Color
Black
Rated voltage [V AC]
480-500V AC
Number of poles
5/3P+N+E
RAL-number
RAL9005
Clock hour position [h]
7h
SOCKET STRAIGHT 5P 32A 9h
SOCKET STRAIGHT 5P 32A 9h
E-number
E2424932
Article number
2424932
Type designation
Frequency [Hz]
50/60Hz
Color
Blue
Rated voltage [V AC]
208-250V AC
Number of poles
5/3P+N+E
RAL-number
RAL5017
Clock hour position [h]
9h
SOCKET STRAIGHT 5P 32A 11h
SOCKET STRAIGHT 5P 32A 11h
E-number
E2424933
Article number
2424933
Type designation
Frequency [Hz]
60Hz
Color
Red
Rated voltage [V AC]
440-460V AC
Number of poles
5/3P+N+E
RAL-number
RAL3000
Clock hour position [h]
11h

More variants of Flanged sockets Basic Straight 32A IP44

E-number Article number Type designation Frequency [Hz] Color Rated voltage [V AC] Number of poles RAL-number Clock hour position [h] NetProductWeight EngineerWidth EngineerHeight EngineerDepth
SOCKET STRAIGHT 3P 32A 2h E2424913 2424913 300-500Hz Green >50V AC 3/2P+E RAL6010 2h
SOCKET STRAIGHT 3P 32A 4h E2424914 2424914 50/60Hz Yellow 100-130V AC 3/2P+E RAL1023 4h
SOCKET STRAIGHT 3P 32A 6h E2424915 2424915 50/60Hz Blue 200-250V AC 3/2P+E RAL5017 6h 0.16 190 170 290
SOCKET STRAIGHT 3P 32A 9h E2424916 2424916 50/60Hz Red 380-415V AC 3/2P+E RAL3000 9h
SOCKET STRAIGHT 3P 32A 12h E2424917 2424917 50/60Hz Red After isolating transformerb 3/2P+E RAL7046 12h
SOCKET STRAIGHT 4P 32A 3h E2424919 2424919 50/60Hz Red 380-440V AC 4/3P+E RAL3000 3h
SOCKET STRAIGHT 4P 32A 6h E2424921 2424921 50/60Hz Red 400V AC 4/3P+E RAL3000 6h
SOCKET STRAIGHT 4P 32A 7h E2424922 2424922 50/60Hz Black 480-500V AC 4/3P+E RAL9005 7h
SOCKET STRAIGHT 4P 32A 9h E2424923 2424923 50/60Hz Blue 230V AC 4/3P+E RAL5017 9h 0.18 190 170 290
SOCKET STRAIGHT 4P 32A 10h E2424924 2424924 100-300Hz Green >50V AC 4/3P+E RAL6010 10h
SOCKET STRAIGHT 4P 32A 11h E2424925 2424925 60Hz Red 440-460V AC 4/3P+E RAL3000 11h
SOCKET STRAIGHT 5P 32A 2h E2424926 2424926 300-500Hz Green >50V AC 5/3P+N+E RAL6010 2h
SOCKET STRAIGHT 5P 32A 3h E2424927 2424927 50-60Hz Red 380-440V AC 5/3P+N+E RAL3000 3h
SOCKET STRAIGHT 5P 32A 5h E2424929 2424929 50/60Hz Black 600-690V AC 5/3P+N+E RAL9005 5h
SOCKET STRAIGHT 5P 32A 6h E2424930 2424930 UI 432-6 S 50-60Hz Red 230-400V AC 5/3P+N+E RAL3000 6h 0.2 70 70 90
SOCKET STRAIGHT 5P 32A 7h E2424931 2424931 50/60Hz Black 480-500V AC 5/3P+N+E RAL9005 7h
SOCKET STRAIGHT 5P 32A 9h E2424932 2424932 50/60Hz Blue 208-250V AC 5/3P+N+E RAL5017 9h
SOCKET STRAIGHT 5P 32A 11h E2424933 2424933 60Hz Red 440-460V AC 5/3P+N+E RAL3000 11h
