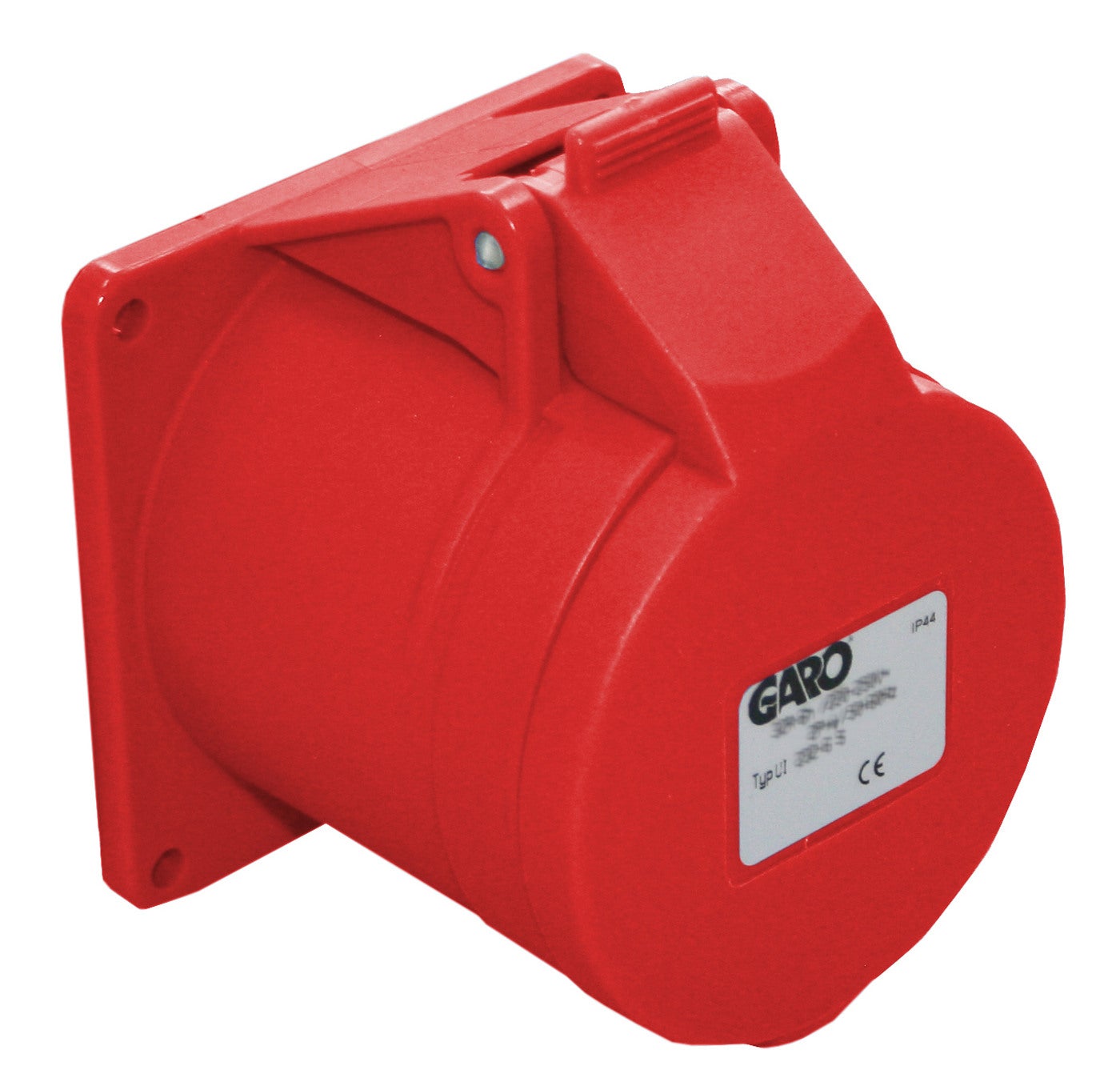

SOCKET STRAIGHT 3P 32A 12h

Flanged sockets Basic Straight 32A IP44

Basic, our standard range with a screw function. Socket 32A for recess mounting with straight mounting plate Socket straight basic 3-poles 32A 12h
E-number
E2424917
Article number
2424917
Support
Housing material Plastic
Rated current [A] 32A
Wire flexible [mm²] 2,5-6mm²
Wire solid [mm²] 2,5-10mm²
Degree of protection [IP] IP44
Name SOCKET STRAIGHT 3P 32A 12h
E-number E2424917
Article number 2424917
Type designation UI 232-12 S
Frequency [Hz] 50/60Hz
Color Red
Rated voltage [V AC] After isolating transformerb
Number of poles 3/2P+E
Modelltype Basic
RAL-number RAL7046
Clock hour position [h] 12h

More variants of Flanged sockets Basic Straight 32A IP44

E-number Article number Type designation Frequency [Hz] Color Rated voltage [V AC] Number of poles Modelltype RAL-number Clock hour position [h] NetProductWeight EngineerWidth EngineerHeight EngineerDepth
SOCKET STRAIGHT 3P 32A 2h E2424913 2424913 UI 232-2 S 300-500Hz Green >50V AC 3/2P+E Basic RAL6010 2h
SOCKET STRAIGHT 3P 32A 4h E2424914 2424914 UI 232-4 S 50/60Hz Yellow 100-130V AC 3/2P+E Basic RAL1023 4h
SOCKET STRAIGHT 3P 32A 6h E2424915 2424915 UI 232-6 S 50/60Hz Blue 200-250V AC 3/2P+E Basic RAL5017 6h 0.16 190 170 290
SOCKET STRAIGHT 3P 32A 9h E2424916 2424916 UI 232-9 S 50/60Hz Red 380-415V AC 3/2P+E Basic RAL3000 9h
SOCKET STRAIGHT 3P 32A 12h E2424917 2424917 UI 232-12 S 50/60Hz Red After isolating transformerb 3/2P+E Basic RAL7046 12h
SOCKET STRAIGHT 4P 32A 3h E2424919 2424919 UI 332-3 S 50/60Hz Red 380-440V AC 4/3P+E Basic RAL3000 3h
SOCKET STRAIGHT 4P 32A 6h E2424921 2424921 UI 332-6 S 50/60Hz Red 400V AC 4/3P+E Basic RAL3000 6h
SOCKET STRAIGHT 4P 32A 7h E2424922 2424922 UI 332-7 S 50/60Hz Black 480-500V AC 4/3P+E Basic RAL9005 6h
SOCKET STRAIGHT 4P 32A 9h E2424923 2424923 UI 332-9 S 50/60Hz Blue 230V AC 4/3P+E Basic RAL5017 9h 0.18 190 170 290
SOCKET STRAIGHT 4P 32A 10h E2424924 2424924 UI 332-10 S 100-300Hz Green >50V AC 4/3P+E RAL6010 10h
SOCKET STRAIGHT 4P 32A 11h E2424925 2424925 UI 332-11 S 60Hz 440-460V AC 4/3P+E Basic RAL3000 11h
SOCKET STRAIGHT 5P 32A 2h E2424926 2424926 UI 432-2 S 300-500Hz Green >50V AC 5/3P+N+E Basic RAL6010 2h
SOCKET STRAIGHT 5P 32A 3h E2424927 2424927 UI 432-3 S 50-60Hz Red 380-440V AC 5/3P+N+E Basic RAL3000 6h
SOCKET STRAIGHT 5P 32A 5h E2424929 2424929 UI 432-5 S 50/60Hz Black 600-690V AC 5/3P+N+E RAL9005 5h
SOCKET STRAIGHT 5P 32A 6h E2424930 2424930 UI 432-6 S 50-60Hz Red 230-400V AC 5/3P+N+E Basic RAL3000 6h 0.2 70 70 90
SOCKET STRAIGHT 5P 32A 7h E2424931 2424931 UI 432-7 S 50/60Hz Black 480-500V AC 5/3P+N+E Basic RAL9005 6h
SOCKET STRAIGHT 5P 32A 9h E2424932 2424932 UI 432-9 S 50/60Hz Blue 208-250V AC 5/3P+N+E RAL5017 9h
SOCKET STRAIGHT 5P 32A 11h E2424933 2424933 UI 432-11 S 60Hz Red 440-460V AC 5/3P+N+E Basic RAL3000 11h
