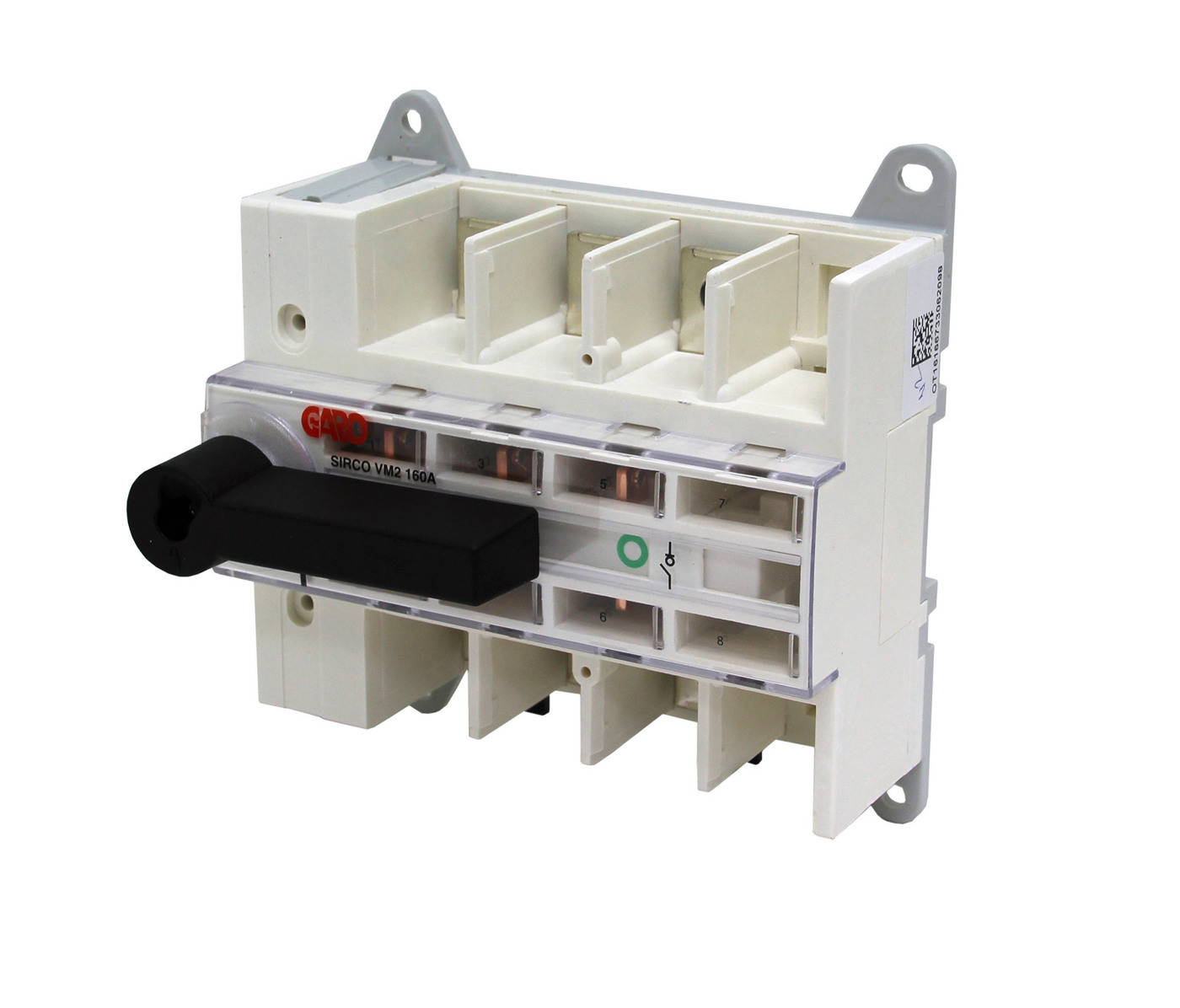

Main switches 3-poles

GARO main switches are developed for electricians and other professionals working with electrical installations in industrial, property and service facilities. A main switch is used for safe and clear disconnection during service, maintenance or emergency situations, and is therefore a central part of a safe and efficient installation. All GARO main switches are adapted for mounting on DIN rail and meet the requirements for placement in enclosures with miniature circuit breakers according to EN 60947-3. The Main switch 3P 160A
E-number
E2142895
Article number
110123
Support
Standard EN60947-3
Storage temperature [C] -40C...+80C
Operation Temperature [C] -20C...+40C
Color Grey
Rated voltage [V AC] 400V
Isolation voltage [V] 690V
Degree of protection [IP] IP20
Name MAIN SWITCH 3P 160A
E-number E2142895
Article number 110123
Type designation HB 3160
Frequency [Hz] 50/60Hz
Rated current [A] 160A
Number of modules 4
Number of poles 3
Tightening torque [Nm] 6Nm
Wire flexible [mm²] 6-70mm²
Rated current AC23 400V [A] 125A
Rated current AC22 400V [A] 160A
NetProductWeight 0.48
EngineerWidth 84
EngineerHeight 80
EngineerDepth 86
Rated current AC21 400V [A] 200A
Rated operation power at AC-23, 75kW

More variants of Main switches 3-poles

MAIN SWITCH 3P 40A 2M
MAIN SWITCH 3P 40A 2M
E-number
E2142039
Article number
108551
Type designation
HBS340-2M
Short-circuit current [kA]
50kA
Frequency [Hz]
50/60Hz
Rated current [A]
40A
Number of modules
2
Tightening torque [Nm]
3Nm
Wire flexible [mm²]
2,5-25mm²
Rated current AC23 400V [A]
32A
Rated current AC22 400V [A]
40A
NetProductWeight
0.14
EngineerWidth
36
EngineerHeight
80
EngineerDepth
76
Rated current AC21 400V [A]
63A
MAIN SWITCH 3P 63A 2M
MAIN SWITCH 3P 63A 2M
E-number
E2142040
Article number
108553
Type designation
HBS363-2M
Short-circuit current [kA]
50kA
Frequency [Hz]
0
Rated current [A]
63A
Number of modules
2
Tightening torque [Nm]
3Nm
Rated current AC22 400V [A]
63A
NetProductWeight
0.15
EngineerWidth
36
EngineerHeight
80
EngineerDepth
76
Rated current AC21 400V [A]
63A
MAIN SWITCH 3P 160A
MAIN SWITCH 3P 160A
E-number
E2142895
Article number
110123
Type designation
HB 3160
Frequency [Hz]
50/60Hz
Rated current [A]
160A
Number of modules
4
Number of poles
3
Tightening torque [Nm]
6Nm
Wire flexible [mm²]
6-70mm²
Rated current AC23 400V [A]
125A
Rated current AC22 400V [A]
160A
NetProductWeight
0.48
EngineerWidth
84
EngineerHeight
80
EngineerDepth
86
Rated current AC21 400V [A]
200A
Rated operation power at AC-23,
75kW
MAIN SWITCH 3P 40A
MAIN SWITCH 3P 40A
E-number
E2142854
Article number
2142854
Type designation
HB 340
Short-circuit current [kA]
50kA
Frequency [Hz]
50/60Hz
Rated current [A]
40A
Number of modules
3
Tightening torque [Nm]
1,8Nm
Rated current AC22 400V [A]
40A
NetProductWeight
0.19
EngineerWidth
50
EngineerHeight
85
EngineerDepth
61
Rated current AC21 400V [A]
63A
Rated operation power at AC-23,
15kW
MAIN SWITCH 3P 80A
MAIN SWITCH 3P 80A
E-number
E2142856
Article number
2142856
Type designation
HB 380
Short-circuit current [kA]
50kA
Frequency [Hz]
50/60Hz
Rated current [A]
80A
Number of modules
3
Number of poles
3
Tightening torque [Nm]
2,5Nm
Wire flexible [mm²]
2,5-35mm²
Rated current AC22 400V [A]
80A
NetProductWeight
0.2
EngineerWidth
50
EngineerHeight
70
EngineerDepth
80
Rated current AC21 400V [A]
100A
Rated operation power at AC-23,
30kW
SWITCH KUE 340
SWITCH KUE 340
E-number
E2394651
Article number
2394651
Type designation
KUE 340
Short-circuit current [kA]
50kA
Frequency [Hz]
50/60Hz
Rated current [A]
40A
Number of modules
3
Number of poles
3
Tightening torque [Nm]
1,8Nm
Wire flexible [mm²]
1,5-16mm²
Rated current AC22 400V [A]
40A
NetProductWeight
0.18
EngineerWidth
67
EngineerHeight
50
EngineerDepth
71
Rated current AC21 400V [A]
63A
SWITCH KUE 3P 80A
SWITCH KUE 3P 80A
E-number
E2394652
Article number
2394652
Type designation
Short-circuit current [kA]
50kA
Frequency [Hz]
50/60Hz
Rated current [A]
80A
Number of modules
3
Number of poles
3
Tightening torque [Nm]
2,5Nm
Wire flexible [mm²]
2,5-35mm²
Rated current AC22 400V [A]
80A
NetProductWeight
0.19
EngineerWidth
75
EngineerHeight
65
EngineerDepth
90
Rated current AC21 400V [A]
100A
SWITCH KS 3P 80A
SWITCH KS 3P 80A
E-number
E2394662
Article number
2394662
Type designation
Short-circuit current [kA]
50kA
Frequency [Hz]
50/60Hz
Rated current [A]
80A
Number of modules
3
Number of poles
3
Tightening torque [Nm]
2,5Nm
Wire flexible [mm²]
2,5-35mm²
Rated current AC22 400V [A]
80A
NetProductWeight
0.19
EngineerWidth
51
EngineerHeight
68
EngineerDepth
65
Rated current AC21 400V [A]
100A

More variants of Main switches 3-poles

E-number Article number Type designation Short-circuit current [kA] Frequency [Hz] Rated current [A] Number of modules Number of poles Tightening torque [Nm] Wire flexible [mm²] Rated current AC23 400V [A] Rated current AC22 400V [A] NetProductWeight EngineerWidth EngineerHeight EngineerDepth Rated current AC21 400V [A] Rated operation power at AC-23,
MAIN SWITCH 3P 40A 2M E2142039 108551 HBS340-2M 50kA 50/60Hz 40A 2 3Nm 2,5-25mm² 32A 40A 0.14 36 80 76 63A
MAIN SWITCH 3P 63A 2M E2142040 108553 HBS363-2M 50kA 0 63A 2 3Nm 63A 0.15 36 80 76 63A
MAIN SWITCH 3P 160A E2142895 110123 HB 3160 50/60Hz 160A 4 3 6Nm 6-70mm² 125A 160A 0.48 84 80 86 200A 75kW
MAIN SWITCH 3P 40A E2142854 2142854 HB 340 50kA 50/60Hz 40A 3 1,8Nm 40A 0.19 50 85 61 63A 15kW
MAIN SWITCH 3P 80A E2142856 2142856 HB 380 50kA 50/60Hz 80A 3 3 2,5Nm 2,5-35mm² 80A 0.2 50 70 80 100A 30kW
SWITCH KUE 340 E2394651 2394651 KUE 340 50kA 50/60Hz 40A 3 3 1,8Nm 1,5-16mm² 40A 0.18 67 50 71 63A
SWITCH KUE 3P 80A E2394652 2394652 50kA 50/60Hz 80A 3 3 2,5Nm 2,5-35mm² 80A 0.19 75 65 90 100A
SWITCH KS 3P 80A E2394662 2394662 50kA 50/60Hz 80A 3 3 2,5Nm 2,5-35mm² 80A 0.19 51 68 65 100A
