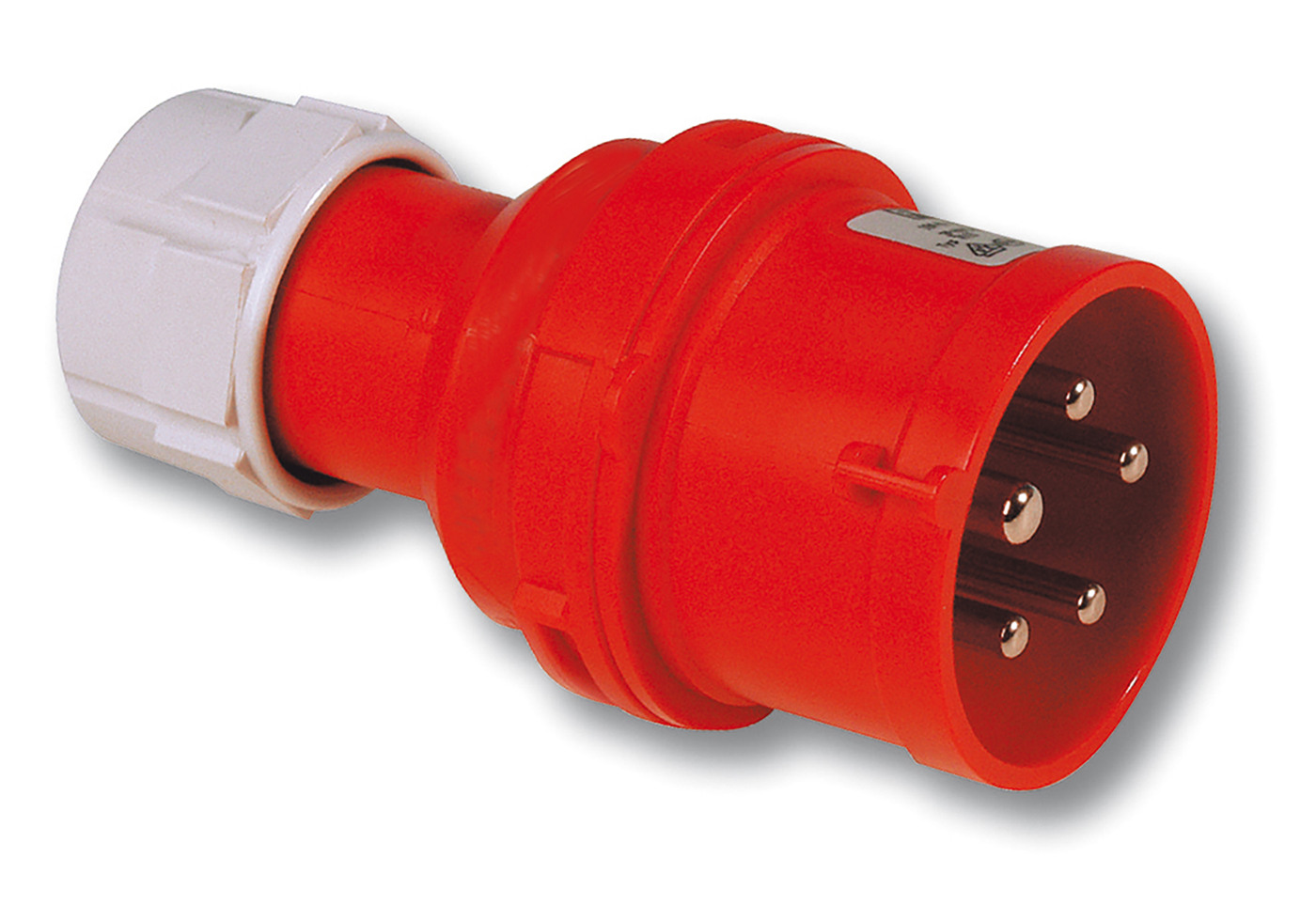

Phase inverters Basic 16A IP44
GARO’s phase shifters 16A Basic, which are easily operated with a screwdriver. A convenient solution to a common problem with incorrect phase sequence in installations. Phase inverters basic 5-poles 16A 6h.
| Type designation | FV 416-6 S |
|---|---|
| Rated current [A] | 16 |
| No.of Poles [pcs] | 5/3PN+E |
| Rated voltage [V AC] | 230/400 |
| Frequency [Hz] | 50/60 |
| Degree of protection [IP] | 44 |
| Wire flexible [mm²] | 1-2,5 |
| Colour | Red |
| Standard | Class 1 EN 60044-8 |
| Width [mm] | 61 |
| Height [mm] | 131 |
| Depth [mm] | 61 |
| Netweight [kg] | 0.15 |
| Materials | Plastic |
| Function | Basic |
| Position of earth [h] | 6 |
| RAL-nummer | RAL3000 |
| Name | PHASE INVERTERS 5P 16A 6h |
|---|---|
| E-number | 2424630 |
| Article number | 2424630 |
