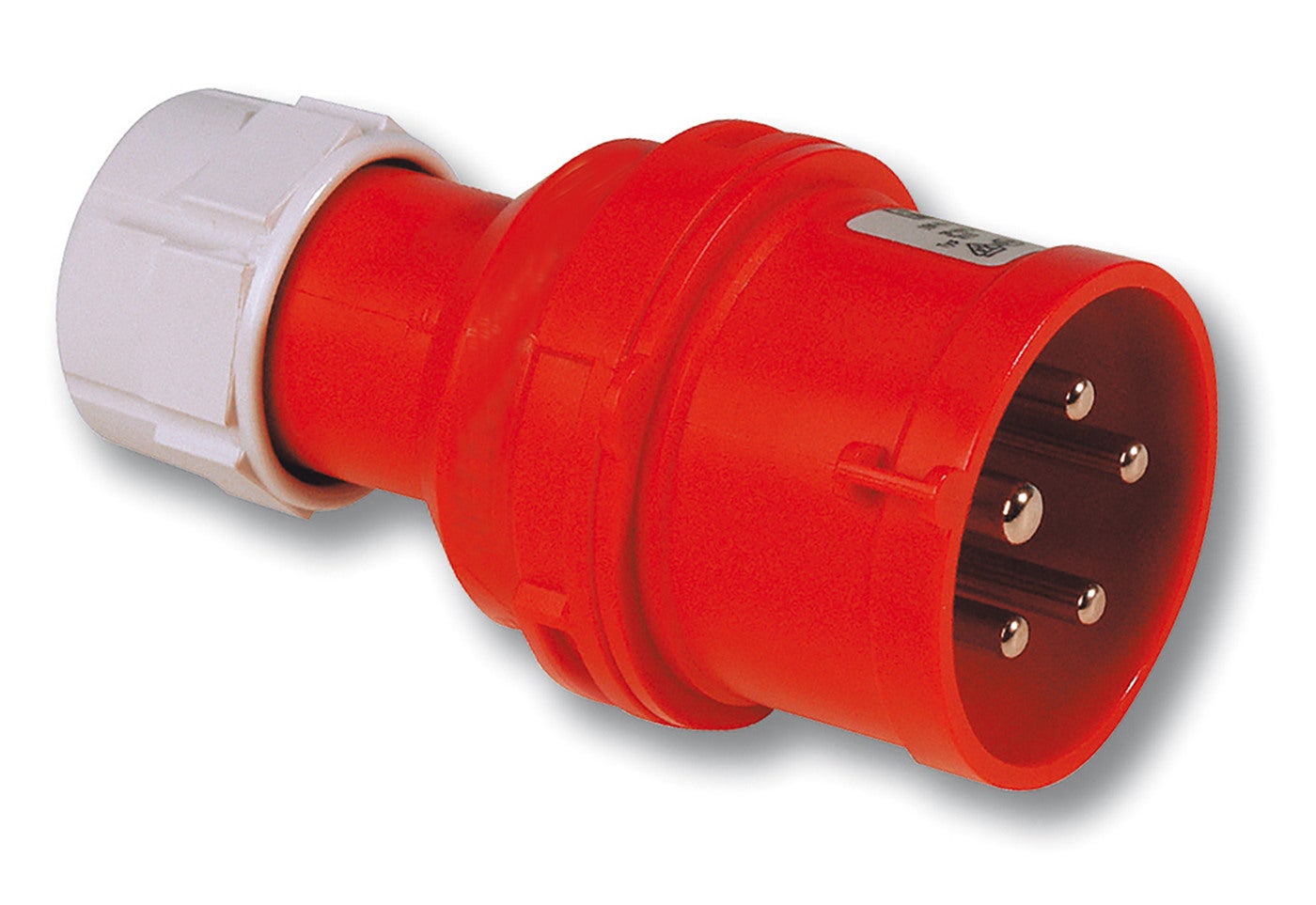

Phase inverters 5P 32A IP44 Basic
GARO’s phase shifters 16A Basic, which are easily operated with a screwdriver. A convenient solution to a common problem with incorrect phase sequence in installations. Phase inverters basic 5-poles 32A 6h
E-number
E2424631
E2424631
Article number
2424631
2424631
| Type designation | FV 432-6 S |
|---|---|
| Materials | Plastic |
| Standard | EN60309-2 |
| Frequency [Hz] | 50/60Hz |
| Color | Red |
| Number of poles | 3 |
| Connection type | Screwed terminal |
| Wire flexible [mm²] | 2,5-6mm² |
| RAL-number | RAL3020 |
| Clock hour position [h] | 6h |
| Voltage according to EN 60309-2 | 400 V (50+60 Hz) red |
| Cable entry | Other |
| Contact material | CuZn |
| Phase inverter | No |
| Contact plating | Untreated |
| Plug angle | Straight |
| Pin/Sleeve | Pin |
| Degree of protection [IP] | IP44 |
| NetProductWeight | 0.24 |
| EngineerWidth | 190 |
| EngineerHeight | 170 |
| EngineerDepth | 290 |
| Name | PHASE INVERTER 5P 32A 6h |
|---|---|
| E-number | E2424631 |
| Article number | 2424631 |
