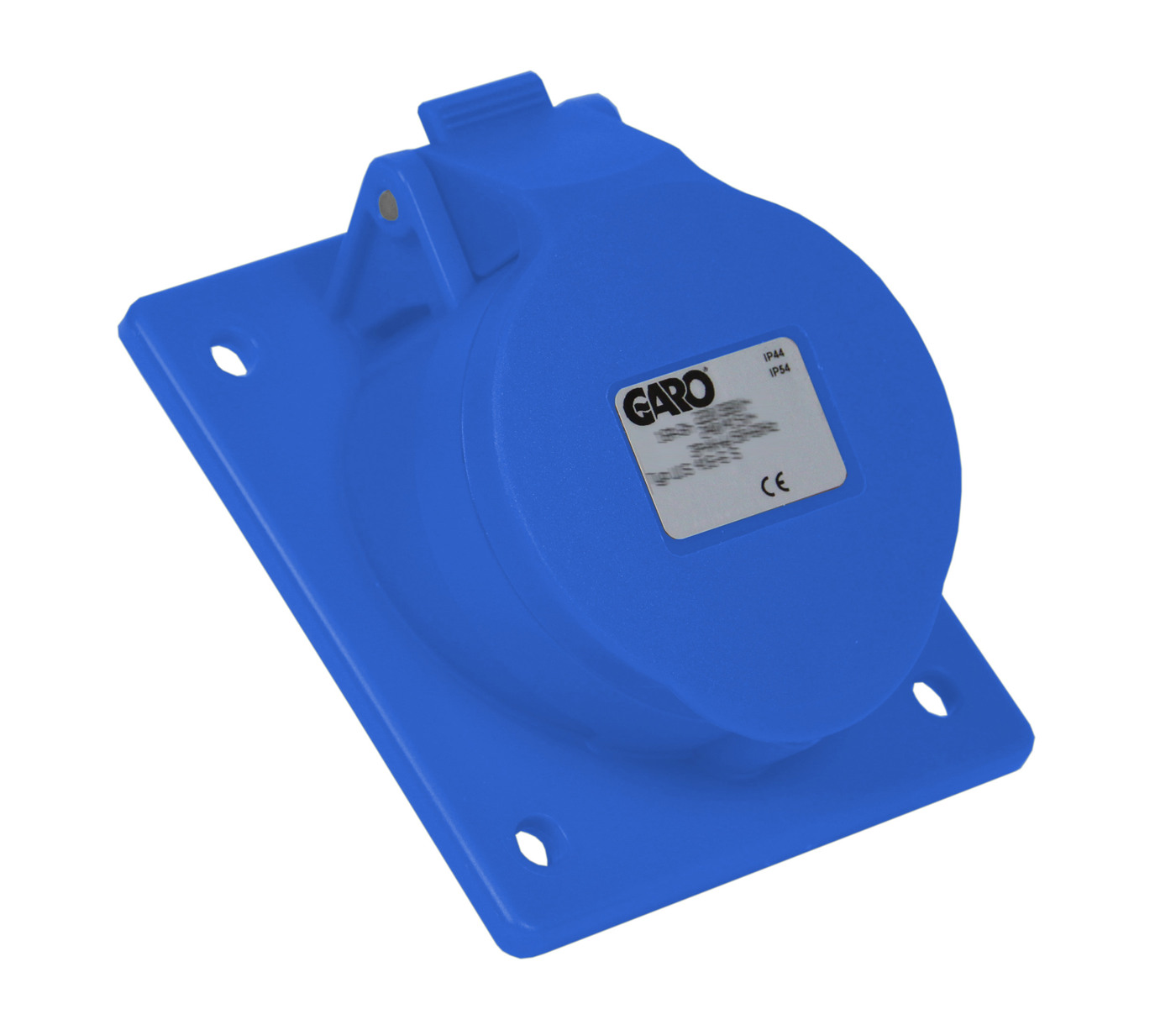

Flanged sockets Basic with sloping mounting plate 32A IP44

Basic, our standard range with a screw function.Socket 32A for recess mounting with straight small mounting plate. Supplied including seal. Socket sloping basic 3-poles 32A 6h
E-number
2425041
Article number
2425041
Rated current [A] 32
Degree of protection [IP] 44
Wire flexible [mm²] 2,5-6
Standard Class 1 EN 60044-8
Package size [pcs] 10
Width [mm] 80
Height [mm] 97
Materials Plastic
Location Recessed
Function Basic
Wire solid [mm²] 2,5-10
Name SOCKET SLOPING 3P 32A 6h
E-number 2425041
Article number 2425041
Type designation UIS 232-6 S
No.of Poles [pcs] 3/2P+E
Rated voltage [V AC] 200-250
Frequency [Hz] 50/60
Colour Blue
Depth [mm] 102
Netweight [kg] 0.17
Position of earth [h] 6
RAL-nummer RAL5017

More variants of Flanged sockets Basic with sloping mounting plate 32A IP44

E-number Article number Type designation No.of Poles [pcs] Rated voltage [V AC] Frequency [Hz] Colour Depth [mm] Netweight [kg] Position of earth [h] RAL-nummer
SOCKET SLOPING 3P 32A 2h 2425039 2425039 UIS 232-2 S 3/2P+E >50 >300-500 Green 102 0.17 2 RAL6010
SOCKET SLOPING 3P 32A 4h 2425040 2425040 UIS 232-4 S 3/2P+E 100-130 50/60 Yellow 102 0.17 4 RAL1023
SOCKET SLOPING 3P 32A 6h 2425041 2425041 UIS 232-6 S 3/2P+E 200-250 50/60 Blue 102 0.17 6 RAL5017
SOCKET SLOPING 3P 32A 7h 2425042 2425042 UIS 232-7 S 3/2P+E 480-500 50/60 Black 102 0.17 7 RAL9005
SOCKET SLOPING 3P 32A 9h 2425043 2425043 UIS 232-9 S 3/2P+E 380-415 50/60 Red 102 0.17 9 RAL3000
SOCKET SLOPING 3P 32A 12h 2425044 2425044 UIS 232-12 S 3/2P+E Matning fr.isolertransf. 50/60 Grey 102 0.17 12 RAL7046
SOCKET SLOPING 4P 32A 2h 2425045 2425045 UIS 332-2 S 4/3P+E >50 >300-500 Green 102 0.19 2 RAL6010
SOCKET SLOPING 4P 32A 3h 2425046 2425046 UIS 332-3 S 4/3P+E 380-440 50/60 Red 102 0.19 3 RAL3000
SOCKET SLOPING 4P 32A 4h 2425047 2425047 UIS 332-4 S 4/3P+E 100-130 50/60 Yellow 102 0.19 4 RAL1023
SOCKET SLOPING 4P 32A 6h 2425048 2425048 UIS 332-6 S 4/3P+E 400 50/60 Red 102 0.19 6 RAL3000
SOCKET SLOPING 4P 32A 7h 2425049 2425049 UIS 332-7 S 4/3P+E 480-500 50/60 Black 102 0.19 7 RAL9005
SOCKET SLOPING 4P 32A 9h 2425050 2425050 UIS 332-9 S 4/3P+E 230 50/60 Blue 102 0.19 9 RAL5017
SOCKET SLOPING 4P 32A 10h 2425051 2425051 UIS 332-10 S 4/3P+E >50 100-300 Green 102 0.19 10 RAL6010
SOCKET SLOPING 4P 32A 11h 2425052 2425052 UIS 332-11 S 4/3P+E 440-460 60 Red 102 0.19 11 RAL3000
SOCKET SLOPING 5P 32A 2h 2425053 2425053 UIS 432-2 S 5/3PN+E >50 >300-500 Green 102 0.21 2 RAL6010
SOCKET SLOPING 5P 32A 3h 2425054 2425054 UIS 432-3 S 5/3PN+E 380-440 50/60 Red 103 0.21 3 RAL3000
SOCKET SLOPING 5P 32A 4h 2425055 2425055 UIS 432-4 S 5/3PN+E 100-130 50/60 Yellow 103 0.21 4 RAL1023
SOCKET SLOPING 5P 32A 6h 2425056 2425056 UIS 432-6 S 5/3PN+E 230/400 50/60 Red 103 0.21 6 RAL3000
SOCKET SLOPING 5P 32A 7h 2425057 2425057 UIS 432-7 S 5/3PN+E 480-500 50/60 Black 103 0.21 7 RAL9005
SOCKET SLOPING 5P 32A 9h 2425058 2425058 UIS 432-9 S 5/3PN+E 208-250 50/60 Blue 103 0.21 9 RAL5017
SOCKET SLOPING 5P 32A 11h 2425059 2425059 UIS 432-11 S 5/3PN+E 440-460 60 Red 103 0.21 11 RAL3000
