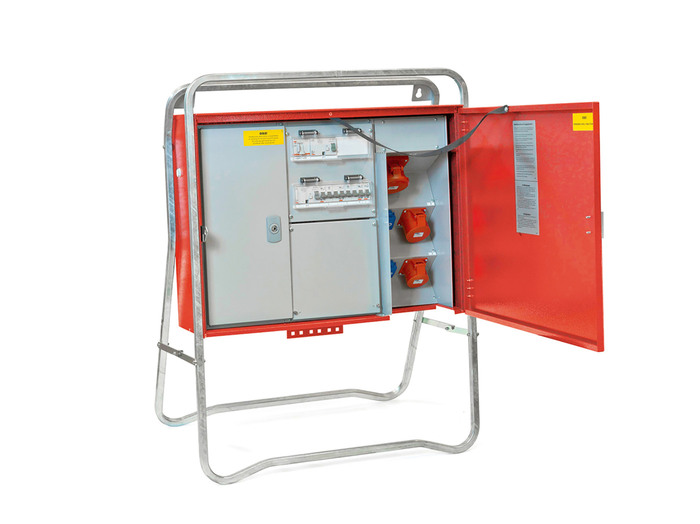

Mains distribution assembly 63A (HC63, HFC63) is normally used for the construction of terraced houses, apartment construction, events, etc. The distribution assembly is equipped with sockets 13-63A which are preceded by residual current devices and miniature circuit breakers. Some models are also equipped with output for onward feed of the earth cable (Type AKKJ) 16-95 mm². The distribution assemblies are equipped with a hot-dip galvanized stand and lockable door. Main distribution assembly 63A 2xRCCB 2xschuko 1x16A outlet 1x32A outlet 1x63A outlet
| Standard | EN61439-4 |
|---|---|
| Frequency [Hz] | 50Hz |
| Housing material | Sheet steel |
| Color | Red |
| Rated current [A] | 63A |
| Rated voltage [V AC] | 400V AC |
| Number of RCCB [pcs] 1 | 1pcs 4P 63A 300mA |
| CEE socket outlet 63A | 1pcs 5P 63A 230/400V |
| Space for meters [pcs] | 1 |
| Degree of protection [IP] | IP44 |
| Name | MAIN DISTRUBUTION ASS 63A RCCB |
|---|---|
| E-number | E2469021 |
| Article number | 2469021 |
| Type designation | ZSF GBN 63/00/11102-11 |
| Number of MCB 1P (1) | 2pcs C113 |
| Number of MCB 1P (2) | 1pcs C316 |
| Number of MCB 3P (1) | 1pcs C332 |
| Number of Schuko[pcs] | 2pcs |
| CEE socket outlet 32A | 1pcs 5P 32A 230/400V |
| NetProductWeight | 48 |
| EngineerWidth | 790 |
| EngineerHeight | 1100 |
| EngineerDepth | 545 |
