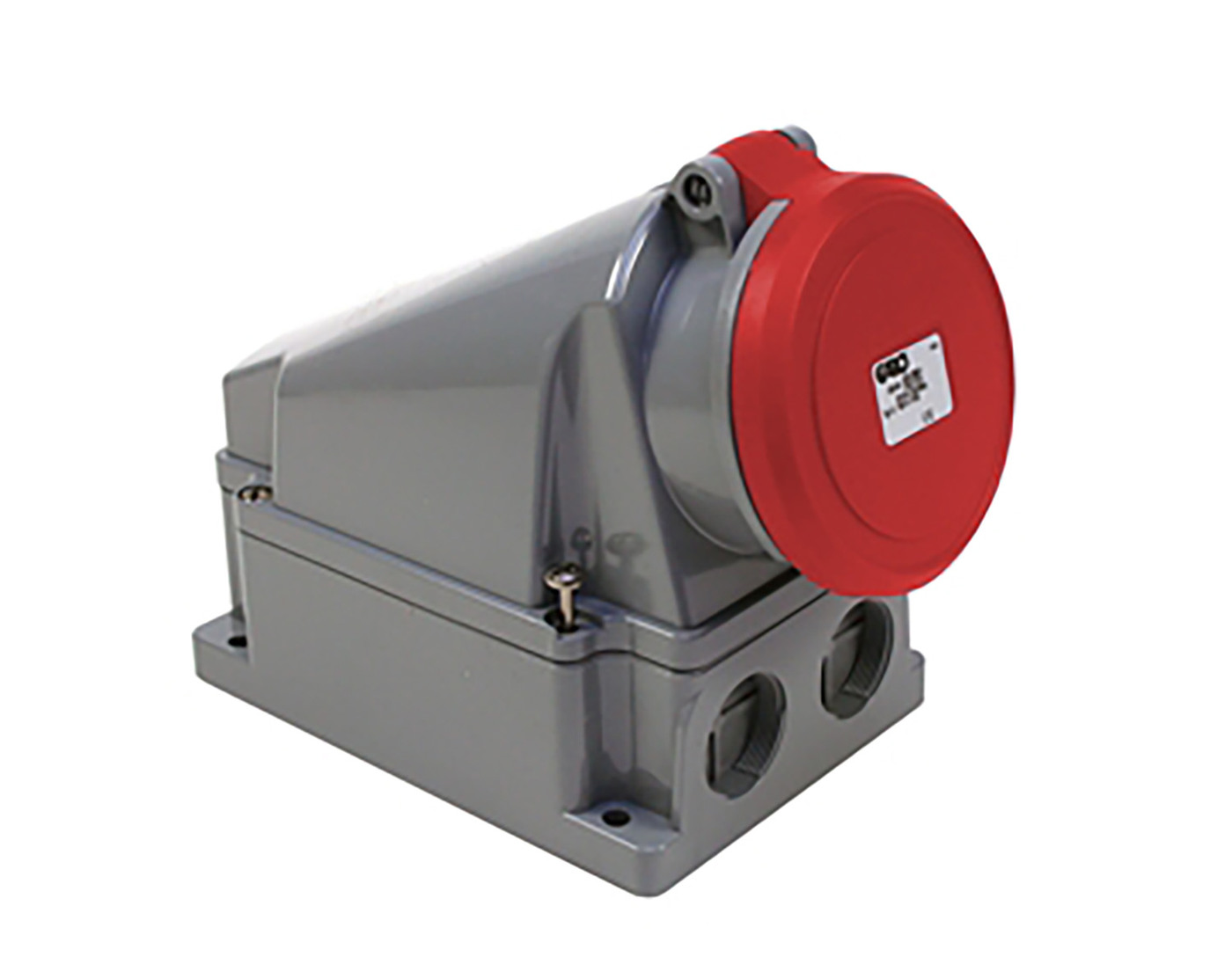

Sockets wallmounting 63A IP44
Basic, our standard range with a screw function. Wall socket 32A in waterproof design, suitable for wall mounting and engine mounting with cable connectivity from the bottom. Wall socket basic 3-poles 63A 6h
E-number
E2424816
E2424816
Article number
2424816
2424816
-
WALLSOCKET 3P 63A 6hE-number
E2424816Article number
2424816 -
WALLSOCKET 3P 63A 12hE-number
E2424818Article number
2424818 -
WALLSOCKET 4P 63A 6hE-number
E2424820Article number
2424820 -
WALLSOCKET 5P 63A 5hE-number
E2424827Article number
2424827 -
WALLSOCKET 5P 63A 6hE-number
E2424828Article number
2424828 -
WALLSOCKET 5P 63A 7hE-number
E2424829Article number
2424829 -
WALLSOCKET 5P 63A 11hE-number
E2424831Article number
2424831
| Housing material | Plastic |
|---|---|
| Rated current [A] | 63A |
| Wire flexible [mm²] | 6-16mm² |
| Modelltype | Basic |
| Lock | 0 |
| Wire solid [mm²] | 6-25mm² |
| Degree of protection [IP] | IP44 |
| Name | WALLSOCKET 3P 63A 6h |
|---|---|
| E-number | E2424816 |
| Article number | 2424816 |
| Type designation | UI 263-6 S+RU |
| Frequency [Hz] | 50/60Hz |
| Color | Blue |
| Rated voltage [V AC] | 200-250V AC |
| Number of poles | 3/2P+E |
| RAL-number | RAL5017 |
| Clock hour position [h] | 6h |
| NetProductWeight | 0.83 |
| EngineerWidth | 180 |
| EngineerHeight | 135 |
| EngineerDepth | 225 |
