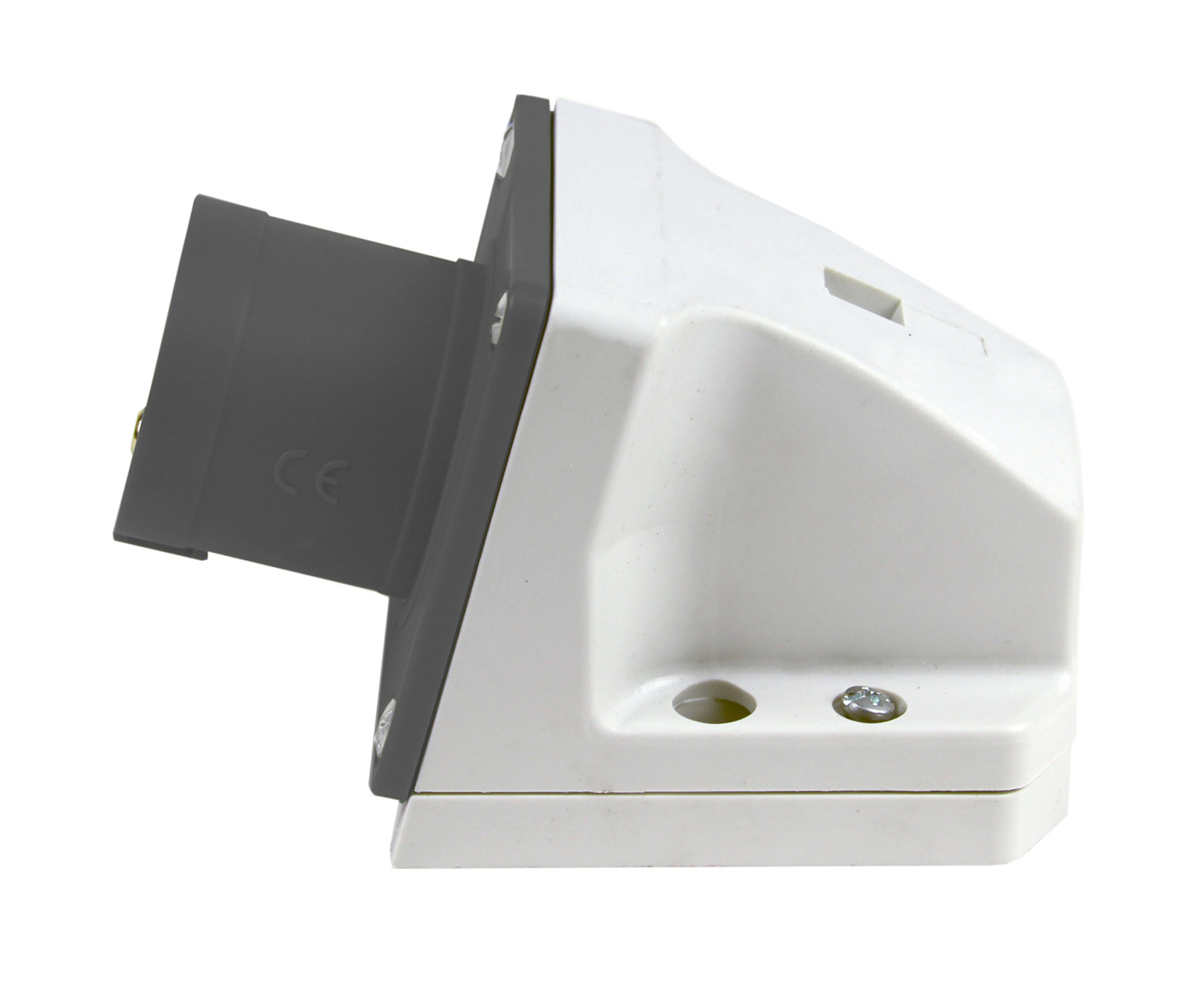

WALL INLET 3P 32A 7h

Inlet wallmounting 32A IP44 Basic

Inlet wallmounting Basic 32A IP44 Wall inlet basic 3-poles 32A 7h
E-number
E2425165
Article number
2425165
Support
Rated current [A] 32A
Wire flexible [mm²] 2,5-6mm²
Modelltype Basic
Degree of protection [IP] IP44
Name WALL INLET 3P 32A 7h
E-number E2425165
Article number 2425165
Frequency [Hz] 50/60Hz
Color Black
Rated voltage [V AC] 480-500V AC
Number of poles 3/2P+E
RAL-number RAL9005
Clock hour position [h] 7h

More variants of Inlet wallmounting 32A IP44 Basic

WALLINLET 3P 32A 2h
WALLINLET 3P 32A 2h
E-number
E2425162
Article number
2425162
Type designation
Frequency [Hz]
300-500Hz
Color
Green
Rated voltage [V AC]
>50V AC
Number of poles
3/2P+E
RAL-number
RAL6010
Clock hour position [h]
2h
WALLINLET 3P 32A 6h
WALLINLET 3P 32A 6h
E-number
E2425164
Article number
2425164
Type designation
II 232-6 S+RI
Frequency [Hz]
50/60Hz
Color
Blue
Rated voltage [V AC]
200-250V AC
Number of poles
3/2P+E
RAL-number
RAL5017
Clock hour position [h]
6h
NetProductWeight
0.21
EngineerWidth
190
EngineerHeight
225
EngineerDepth
290
WALL INLET 3P 32A 7h
WALL INLET 3P 32A 7h
E-number
E2425165
Article number
2425165
Type designation
Frequency [Hz]
50/60Hz
Color
Black
Rated voltage [V AC]
480-500V AC
Number of poles
3/2P+E
RAL-number
RAL9005
Clock hour position [h]
7h
WALL INLET 3P 32A 9h
WALL INLET 3P 32A 9h
E-number
E2425166
Article number
2425166
Type designation
Frequency [Hz]
50/60Hz
Housing material
Plastic
Color
Red
Rated voltage [V AC]
380-415 V (50+60 Hz) red
Number of poles
3/2P+E
Lock
0
RAL-number
RAL3000
Clock hour position [h]
9h
Wire solid [mm²]
2,5-10mm²
WALL INLET 3P 32A 12h
WALL INLET 3P 32A 12h
E-number
E2425167
Article number
2425167
Type designation
Frequency [Hz]
50/60Hz
Housing material
Plastic
Color
Grey
Rated voltage [V AC]
After isolating transformerb
Number of poles
3/2P+E
Lock
0
RAL-number
RAL7046
Clock hour position [h]
12h
Wire solid [mm²]
2,5-10mm²
WALL INLET 4P 32A 3h
WALL INLET 4P 32A 3h
E-number
E2425169
Article number
2425169
Type designation
Frequency [Hz]
50/60Hz
Housing material
Plastic
Color
Red
Rated voltage [V AC]
380-440V AC
Number of poles
4/3P+E
Lock
0
RAL-number
RAL3000
Clock hour position [h]
3h
Wire solid [mm²]
2,5-10mm²
WALL INLET 4P 32A 4h
WALL INLET 4P 32A 4h
E-number
E2425170
Article number
2425170
Type designation
Frequency [Hz]
50/60Hz
Housing material
Plastic
Color
Yellow
Rated voltage [V AC]
100-130V AC
Number of poles
4/3P+E
Lock
0
RAL-number
RAL1023
Clock hour position [h]
4h
Wire solid [mm²]
2,5-10mm²
INLET WALL 4P 32A 6h
INLET WALL 4P 32A 6h
E-number
E2425171
Article number
2425171
Type designation
II 332-6 S+RI
Frequency [Hz]
50/60Hz
Housing material
Plastic
Color
Red
Rated voltage [V AC]
400V AC
Number of poles
4/3P+E
Lock
0
RAL-number
RAL3000
Clock hour position [h]
6h
Wire solid [mm²]
2,5-10mm²
EngineerWidth
70.5
EngineerHeight
131
EngineerDepth
82
WALLINLET 4P 32A 7h
WALLINLET 4P 32A 7h
E-number
E2425172
Article number
2425172
Type designation
Frequency [Hz]
50/60Hz
Housing material
Plastic
Color
Black
Rated voltage [V AC]
480-500V AC
Number of poles
4/3P+E
Lock
0
RAL-number
RAL9005
Clock hour position [h]
7h
Wire solid [mm²]
2,5-10mm²
WALLINLET 4P 32A 9h
WALLINLET 4P 32A 9h
E-number
E2425173
Article number
2425173
Type designation
Frequency [Hz]
50/60Hz
Housing material
Plastic
Color
Blue
Rated voltage [V AC]
230V AC
Number of poles
4/3P+E
Lock
0
RAL-number
RAL5017
Clock hour position [h]
9h
Wire solid [mm²]
2,5-10mm²
WALLINLET 4P 32A 11h
WALLINLET 4P 32A 11h
E-number
E2425175
Article number
2425175
Type designation
Frequency [Hz]
60Hz
Housing material
Plastic
Color
Red
Rated voltage [V AC]
440-460V AC
Number of poles
4/3P+E
Lock
0
RAL-number
RAL3000
Clock hour position [h]
11h
Wire solid [mm²]
2,5-10mm²
WALLINLET 5P 32A 2h
WALLINLET 5P 32A 2h
E-number
E2425176
Article number
2425176
Type designation
Frequency [Hz]
300-500Hz
Housing material
Plastic
Color
Green
Rated voltage [V AC]
>50V AC
Number of poles
5/3P+N+E
RAL-number
RAL6010
Clock hour position [h]
2h
Wire solid [mm²]
2,5-10mm²
WALLINLET 5P 32A 3h
WALLINLET 5P 32A 3h
E-number
E2425177
Article number
2425177
Type designation
Frequency [Hz]
50-60Hz
Housing material
Plastic
Color
Red
Rated voltage [V AC]
380-440V AC
Number of poles
5/3P+N+E
Lock
0
RAL-number
RAL3000
Clock hour position [h]
3h
Wire solid [mm²]
2,5-10mm²
WALLINLET 5P 32A 5h
WALLINLET 5P 32A 5h
E-number
E2425179
Article number
2425179
Type designation
Frequency [Hz]
50/60Hz
Housing material
Plastic
Color
Black
Rated voltage [V AC]
600-690V AC
Number of poles
5/3P+N+E
Lock
0
RAL-number
RAL9005
Clock hour position [h]
6h
Wire solid [mm²]
2,5-10mm²
WALLINLET 5P 32A 6h
WALLINLET 5P 32A 6h
E-number
E2425180
Article number
2425180
Type designation
II 432-6 S+RI
Frequency [Hz]
50/60Hz
Housing material
Plastic
Color
Red
Rated voltage [V AC]
230-400V AC
Number of poles
5/3P+N+E
Lock
0
RAL-number
RAL3000
Clock hour position [h]
6h
Wire solid [mm²]
2,5-10mm²
NetProductWeight
0.25
EngineerWidth
70.5
EngineerHeight
132
EngineerDepth
85
WALLINLET 5P 32A 7h
WALLINLET 5P 32A 7h
E-number
E2425181
Article number
2425181
Type designation
Frequency [Hz]
50/60Hz
Housing material
Plastic
Color
Black
Rated voltage [V AC]
480-500V AC
Number of poles
5/3P+N+E
Lock
0
RAL-number
RAL9005
Clock hour position [h]
7h
Wire solid [mm²]
2,5-10mm²
WALLINLET 5P 32A 9h
WALLINLET 5P 32A 9h
E-number
E2425182
Article number
2425182
Type designation
Frequency [Hz]
50/60Hz
Housing material
Plastic
Color
Blue
Rated voltage [V AC]
208-250V AC
Number of poles
5/3P+N+E
RAL-number
RAL5017
Clock hour position [h]
9h
Wire solid [mm²]
2,5-10mm²
WALLINLET 5P 32A 11h
WALLINLET 5P 32A 11h
E-number
E2425183
Article number
2425183
Type designation
Frequency [Hz]
60Hz
Housing material
Plastic
Color
Red
Rated voltage [V AC]
440-460V AC
Number of poles
5/3P+N+E
RAL-number
RAL3000
Clock hour position [h]
11h
Wire solid [mm²]
2,5-10mm²

More variants of Inlet wallmounting 32A IP44 Basic

E-number Article number Type designation Frequency [Hz] Housing material Color Rated voltage [V AC] Number of poles Lock RAL-number Clock hour position [h] Wire solid [mm²] NetProductWeight EngineerWidth EngineerHeight EngineerDepth
WALLINLET 3P 32A 2h E2425162 2425162 300-500Hz Green >50V AC 3/2P+E RAL6010 2h
WALLINLET 3P 32A 6h E2425164 2425164 II 232-6 S+RI 50/60Hz Blue 200-250V AC 3/2P+E RAL5017 6h 0.21 190 225 290
WALL INLET 3P 32A 7h E2425165 2425165 50/60Hz Black 480-500V AC 3/2P+E RAL9005 7h
WALL INLET 3P 32A 9h E2425166 2425166 50/60Hz Plastic Red 380-415 V (50+60 Hz) red 3/2P+E 0 RAL3000 9h 2,5-10mm²
WALL INLET 3P 32A 12h E2425167 2425167 50/60Hz Plastic Grey After isolating transformerb 3/2P+E 0 RAL7046 12h 2,5-10mm²
WALL INLET 4P 32A 3h E2425169 2425169 50/60Hz Plastic Red 380-440V AC 4/3P+E 0 RAL3000 3h 2,5-10mm²
WALL INLET 4P 32A 4h E2425170 2425170 50/60Hz Plastic Yellow 100-130V AC 4/3P+E 0 RAL1023 4h 2,5-10mm²
INLET WALL 4P 32A 6h E2425171 2425171 II 332-6 S+RI 50/60Hz Plastic Red 400V AC 4/3P+E 0 RAL3000 6h 2,5-10mm² 70.5 131 82
WALLINLET 4P 32A 7h E2425172 2425172 50/60Hz Plastic Black 480-500V AC 4/3P+E 0 RAL9005 7h 2,5-10mm²
WALLINLET 4P 32A 9h E2425173 2425173 50/60Hz Plastic Blue 230V AC 4/3P+E 0 RAL5017 9h 2,5-10mm²
WALLINLET 4P 32A 11h E2425175 2425175 60Hz Plastic Red 440-460V AC 4/3P+E 0 RAL3000 11h 2,5-10mm²
WALLINLET 5P 32A 2h E2425176 2425176 300-500Hz Plastic Green >50V AC 5/3P+N+E RAL6010 2h 2,5-10mm²
WALLINLET 5P 32A 3h E2425177 2425177 50-60Hz Plastic Red 380-440V AC 5/3P+N+E 0 RAL3000 3h 2,5-10mm²
WALLINLET 5P 32A 5h E2425179 2425179 50/60Hz Plastic Black 600-690V AC 5/3P+N+E 0 RAL9005 6h 2,5-10mm²
WALLINLET 5P 32A 6h E2425180 2425180 II 432-6 S+RI 50/60Hz Plastic Red 230-400V AC 5/3P+N+E 0 RAL3000 6h 2,5-10mm² 0.25 70.5 132 85
WALLINLET 5P 32A 7h E2425181 2425181 50/60Hz Plastic Black 480-500V AC 5/3P+N+E 0 RAL9005 7h 2,5-10mm²
WALLINLET 5P 32A 9h E2425182 2425182 50/60Hz Plastic Blue 208-250V AC 5/3P+N+E RAL5017 9h 2,5-10mm²
WALLINLET 5P 32A 11h E2425183 2425183 60Hz Plastic Red 440-460V AC 5/3P+N+E RAL3000 11h 2,5-10mm²
