INSERT CAR 2IEC WOM P2

Inserts with schuko and outlets without meter

The inserts is designed e.g. for squares, cemeteries and other places where temporary access to 230/400V is needed. Equipped with quick coupling. AEUM is also equipped with a kWh meter. The ACU insert is an insert that makes it possible to replace the UI 416-6 with a Schuko socket. To do this requires adapter 41155 and wall socket 18 968 80. Not connected. For fuse protection complete with ACS416. Insert 2XUI 416-6 fits P100 system.
E-number
E2449455
Article number
2449455
Support
Standard EN61439-3
Short-circuit current [kA] 6kA
Frequency [Hz] 50Hz
Housing material Aluzinc
Color Grey
Rated current [A] 16A
Rated voltage [V AC] 230V AC
Modelltype PN100 Insert
Energymeter No
Number of MCB 1P (1) No
Number of Schuko[pcs] 1pcs
Response time [h] Continuous
Degree of protection [IP] IP44
EngineerWidth 175
EngineerHeight 220
EngineerDepth 130
Further feeding polebracket Yes
Further feeding wallbracket No
Name INSERT CAR 2IEC WOM P2
E-number E2449455
Article number 2449455
Type designation ACU 416
CEE socket outlet 16A 1pcs 5P 16A 230/400V
Number of RCCB [pcs] 1 No
Number of RCBO [pcs] No
NetProductWeight 0.67

Manual

More variants of Inserts with schuko and outlets without meter

E-number Article number Type designation CEE socket outlet 16A Number of MCB 3P (1) Number of RCCB [pcs] 1 CEE socket outlet 32A Number of RCBO [pcs] Number of RCBO NetProductWeight
INSERT CAR 2IEC WOM P2 E2449455 2449455 ACU 416 1pcs 5P 16A 230/400V No No 0.67
INSERT CAR 16A WOM SCH/IEC R P E2449460 2449460 AEU16-J 1pcs 5P 16A 230/400V 1pcs C316 1pcs 4P 25A No 1.5
INSERT CAR 32A SCH/IEC RCCB P E2449130 350857 AEU32-J 1pcs C332 1pcs 4P 40A 1pcs 5P 32A 230/400V No No 1.5
INSERT CAR 16A SCH/IEC RCBO P E2449131 353195 AEU16-P 1pcs 5P 16A 230/400V No No 1pcs C4P 16A 1pcs C2P 10A 1.5
INSERT CAR 32A SCH/IEC RCBO P E2449132 353196 AEU32-P No No 1pcs 5P 32A 230/400V 1pcs C4P 32A 1pcs C2P 10A 1.5

Accessories for Inserts with schuko and outlets without meter

Name E-number Article number Type designation Description
ENERGYMETER 1PH PULS ENERGYMETER 1PH PULS E0900131 108043 GNM1D Energymeter 1 pole pulse

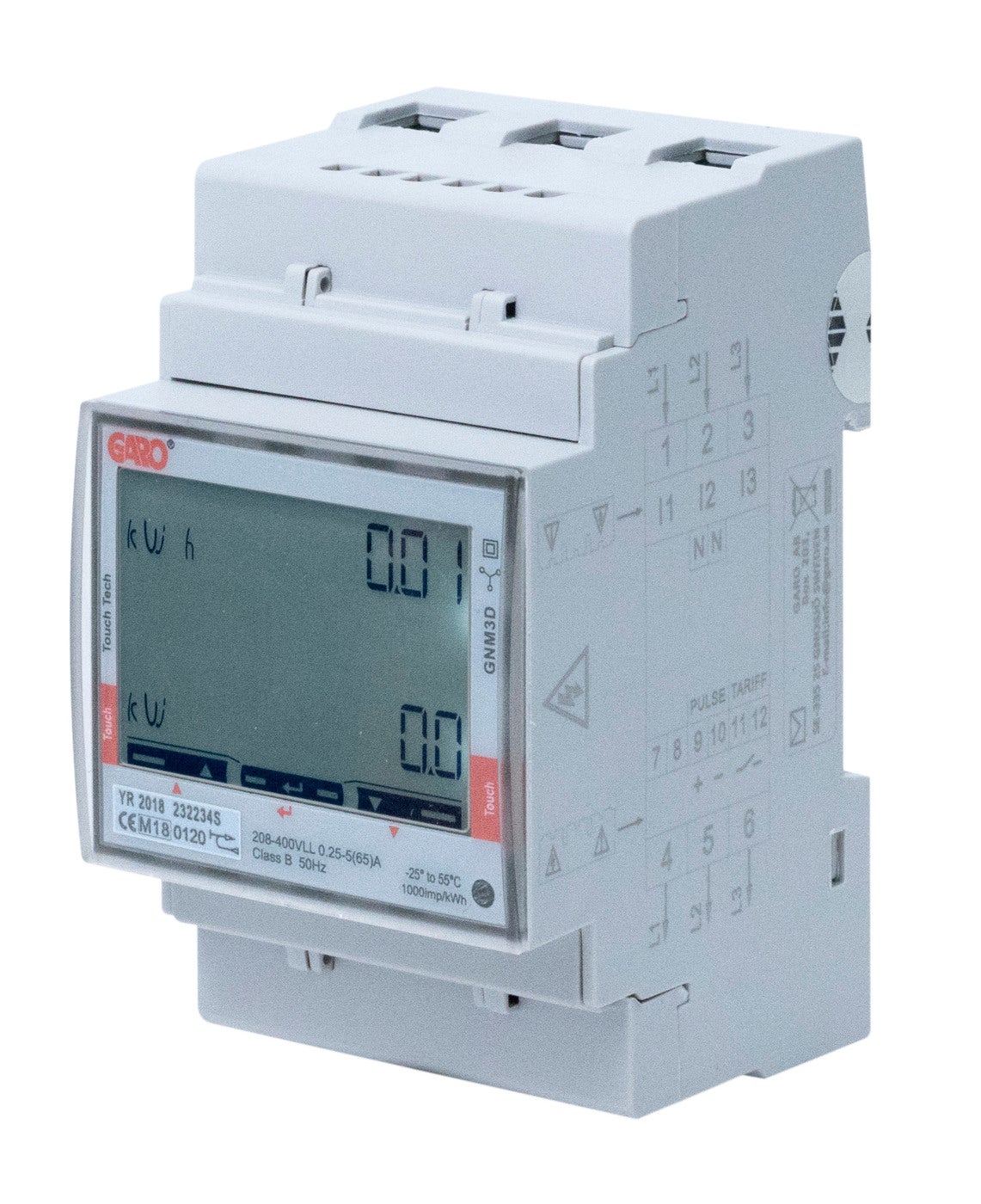

ENERGYMETER 3P PULS ENERGYMETER 3P PULS E0900134 108046 GNM3D Energymeter 3 pole pulse
RCCB 25A 30mA 10kA 2P RCCB 25A 30mA 10kA 2P E2163321 110092 RCCB 2P 25A 10kA 30mA GS RCCB type GS 25A 2-pole 30mA
RCBO C 2P 6A 6kA U RCBO C 2P 6A 6kA U E2163337 111372 RCBO C2P 6A 6kA U GC Earth leakage circuit breaker (RCBO) GC C-characteristic 2-poles 6A 6kA 1-module
RCBO C 2P 10A 6kA U RCBO C 2P 10A 6kA U E2163338 111373 RCBO C2P 10A 6kA U GC Earth leakage circuit breaker (RCBO) GC C-characteristic 2-poles 10A 6kA 1-module
RCBO C 2P 13A 6kA U RCBO C 2P 13A 6kA U E2163339 111374 RCBO C2P 13A 6kA U GC Earth leakage circuit breaker (RCBO) GC C-characteristic 2-poles 13A 6kA 1-module
RCBO C 2P 16A 6kA U RCBO C 2P 16A 6kA U E2163340 111375 RCBO C2P 16A 6kA U GC Earth leakage circuit breaker (RCBO) GC C-characteristic 2-poles 16A 6kA 1-module
MCB C 1P 4A 10kA GS MCB C 1P 4A 10kA GS E2142704 2142704 MCB GS C104 MCB GS C-Characteristic 4A 10kA 1-pole
MCB C 1P 6A 10kA GS MCB C 1P 6A 10kA GS E2142705 2142705 MCB GS C106 MCB GS C-Characteristic 6A 10kA 1-pole
MCB C 1P 10A 10kA GS MCB C 1P 10A 10kA GS E2142706 2142706 MCB GS C110 Miniature cirucit breaker C-characteristic 1-pole 10A 10kA GS
MCB C 1P 16A 10kA GS MCB C 1P 16A 10kA GS E2142708 2142708 MCB GS C116 MCB GS C-Characteristic 16A 10kA 1-pole
LOCKING PIN LOCKING PIN E2163136 2163136 LB 2 Locking pin suitable MCB GS,RCCB GS,RCBO GS,GCB ,GCBO and most other components.
RCBO GS C-CHAR 6A 2P RCBO GS C-CHAR 6A 2P E2163247 2163247 RCBO C2P 6A 10kA GS RCBO GS C-Characteristic 6A 10kA 2-pole
RCBO C 2P 10A 10kA RCBO C 2P 10A 10kA E2163248 2163248 RCBO C2P 10A 10kA GS Residual current circuit breaker with overcurrent protection (RCBO) C-characteristic 2-poles 10A 10kA
RCBO C 16A 2P GS RCBO C 16A 2P GS E2163250 2163250 RCBO C2P 16A 10kA GS RCBO GS C-Characteristic 16A 10kA 2-pole
SOCKET STRAIGHT 3P 16A 6h S SOCKET STRAIGHT 3P 16A 6h S E2424890 2424890 UIL 216-6 S Socket straight small basic 3-poles 16A 6h
OUTLET INSERT MVU OUTLET INSERT MVU E2449413 2449413 MVU Outlet inserts B50xH50

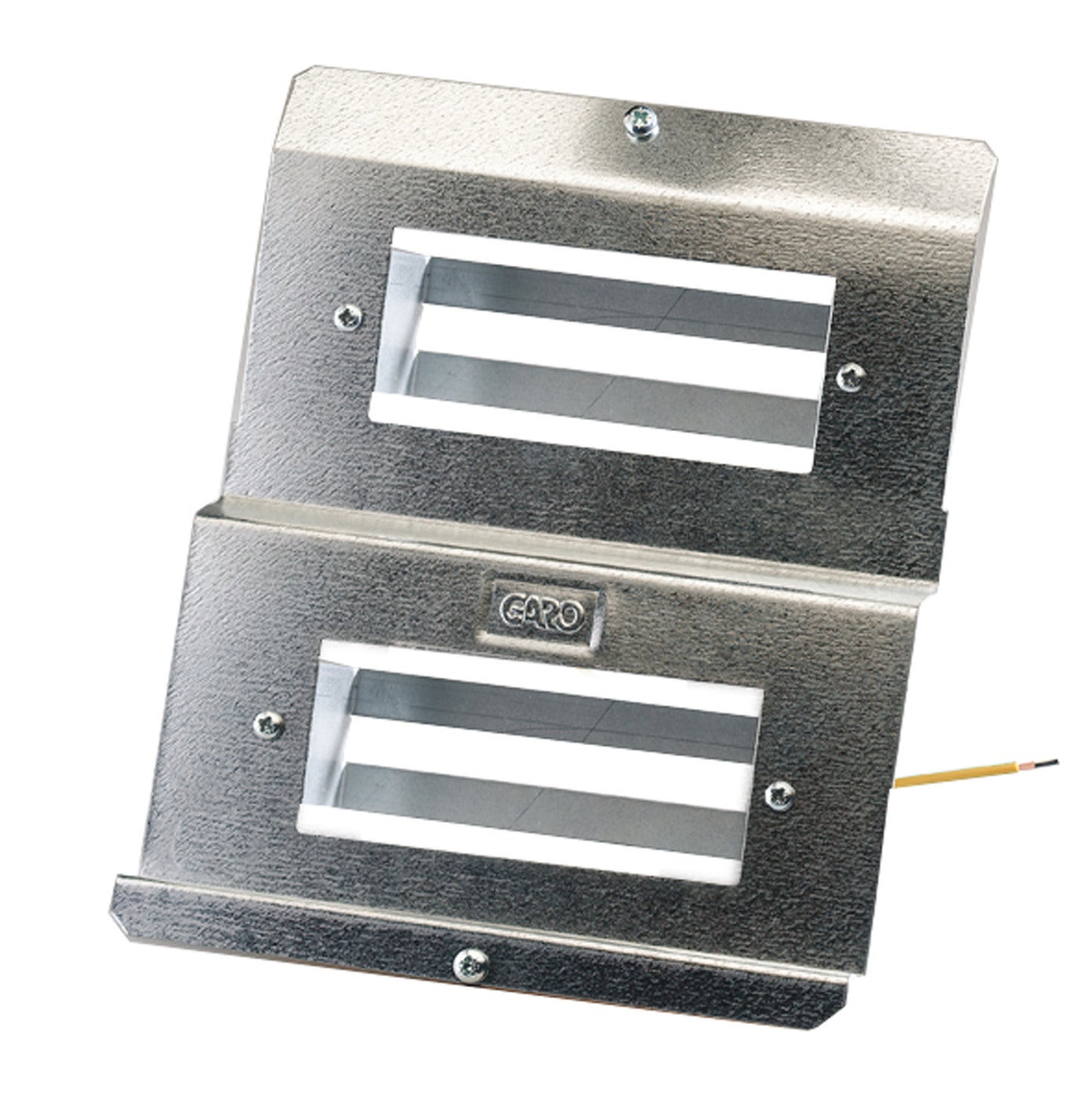

INSERT CAR 12MOD P INSERT CAR 12MOD P E2449456 2449456 ACS 416 Insert 12 modules fits P100 system.
CONTACT PLUG P100 CONTACT PLUG P100 E2449505 2449505 KD-P Contactplug fits P100 MVC
OUTLET SCHUKO UIF 10/16 OUTLET SCHUKO UIF 10/16 E2449508 2449508 UIF-P Schuko outlet UIF MVPE
ADAPTER 16/32-UIF 41155 ADAPTER 16/32-UIF
