SOCKET STRAIGHT 3P 16A 6h S

Flanged sockets Basic Straight Small 16A IP44

Basic, our standard range with a screw function. Socket 16A for recess mounting with straight small mounting plate. Socket straight small basic 3-poles 16A 6h
E-number
E2424890
Article number
2424890
Support
Housing material Plastic
Rated current [A] 16A
Number of poles 3/2P+E
Wire flexible [mm²] 1-2,5mm²
Modelltype Basic
Wire solid [mm²] 1-4mm²
Degree of protection [IP] IP44
Name SOCKET STRAIGHT 3P 16A 6h S
E-number E2424890
Article number 2424890
Type designation UIL 216-6 S
Frequency [Hz] 50-60Hz
Color Blue
Rated voltage [V AC] 200-250V AC
RAL-number RAL5017
Clock hour position [h] 6h
NetProductWeight 0.1
EngineerWidth 190
EngineerHeight 140
EngineerDepth 290

More variants of Flanged sockets Basic Straight Small 16A IP44

E-number Article number Type designation Frequency [Hz] Color Rated voltage [V AC] RAL-number Clock hour position [h] NetProductWeight EngineerWidth EngineerHeight EngineerDepth

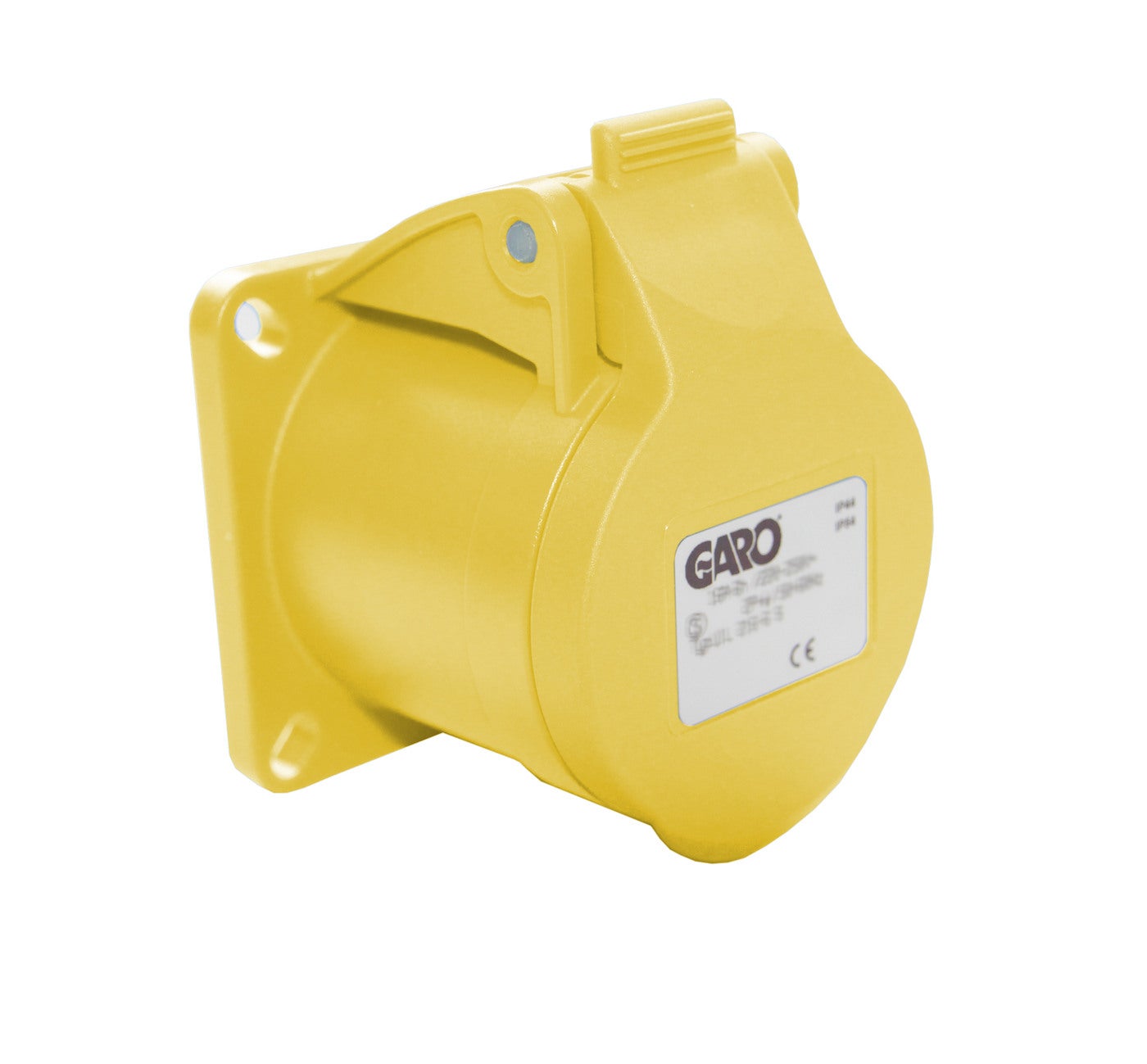

SOCKET STRAIGHT 3P 16A 4h S E2424889 2424889 UIL 216-4 S 50/60Hz Yellow 100-130V AC RAL1023 4h
SOCKET STRAIGHT 3P 16A 6h S E2424890 2424890 UIL 216-6 S 50-60Hz Blue 200-250V AC RAL5017 6h 0.1 190 140 290
