Energymeter Directmeter 1-phase

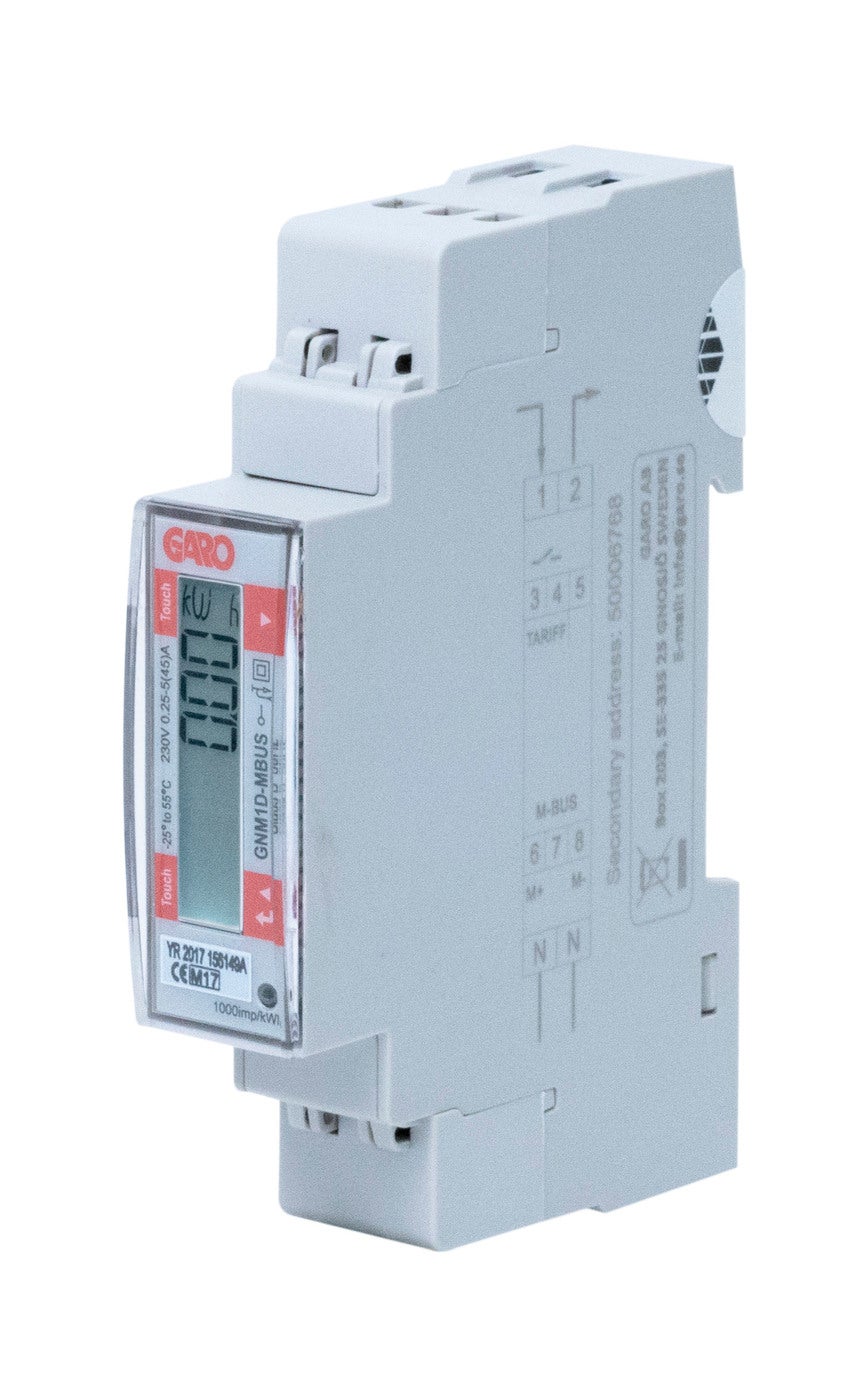

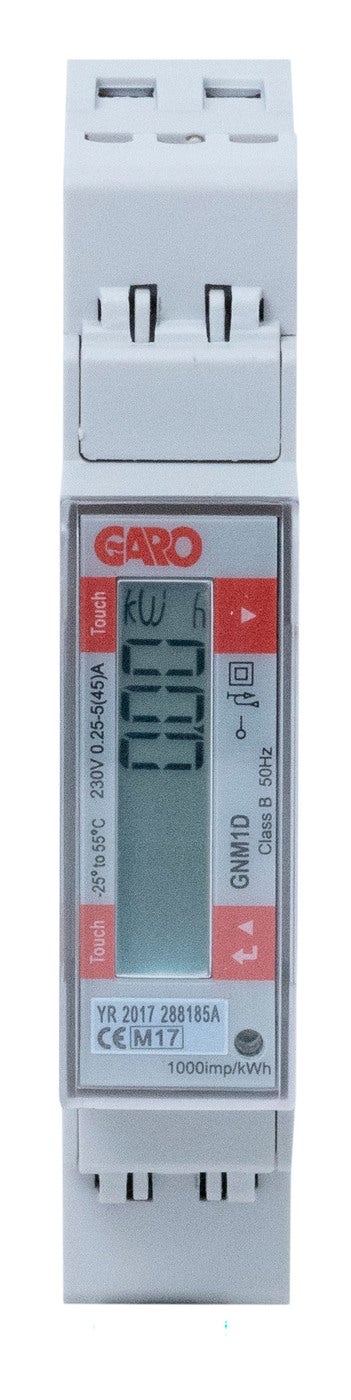

"GNM1D is a series of compact DIN-mounted digital electricity meters for 1-phase loads. The meters measure up to 45A and have a pulse output and modbus output to report power consumption. Reading of power consumption is easy to do on the sharp LCD screen. The meters are billing approved according to MID (MI003)." Energymeter 1 pole pulse
E-number
E0900131
E0900131
Article number
108043
108043
| Standard | EN50470-1 |
|---|---|
| Storage temperature [C] | -30C...+80C |
| Operation Temperature [C] | -25C...+55C |
| Housing material | Plastic |
| Color | Grey |
| Rated voltage [V AC] | 400V AC |
| Number of modules | 1 |
| Tightening torque [Nm] | 2,8Nm |
| Wire flexible [mm²] | 2,5-6mm² |
| Mounting method | DIN-rail |
| Modelltype | Energimätare direktmätning |
| Phases [PH] | 1PH |
| Power loss | <1 |
| Accuracy class | 1 |
| Degree of protection [IP] | IP20 |
| Name | ENERGYMETER 1PH PULS |
|---|---|
| E-number | E0900131 |
| Article number | 108043 |
| Type designation | GNM1D |
| Frequency [Hz] | 50Hz |
| Rated current [A] | 45A |
| Interface | Puls |
| NetProductWeight | 0.15 |
| EngineerWidth | 17.8 |
| EngineerHeight | 91.5 |
| EngineerDepth | 62 |
